Mitel NETWORKS 5010 Manuale utente
USER GUIDE
IP Phone
5010
MITEL NETWORKS
3300 ICP - 7.0
-i-
Contents
ABOUT YOUR PHONE 1
For Users on Resilient 3300 ICP Systems 2
TIPS FOR YOUR COMFORT AND SAFETY 2
Don't cradle the handset! 2
Protect your hearing 2
Angle the phone for easier viewing 2
Changing Handsets 4
CUSTOMIZING YOUR PHONE 4
Ringer Control 4
Handset Receiver Volume Control 4
Speaker Volume Control 5
Display Contrast Control 5
Feature Keys 5
Language Change 5
MAKING AND ANSWERING CALLS 6
Make a call 6
Answer a call 6
Redial 6
Redial - Saved Number 6
Speed Call Keys 7
Speed Call - Personal 8
On-Hook Dialing 8
Auto-Answer 8
-ii-
CALL HANDLING 9
Hold 9
Transfer 9
Conference 10
Conference Split 10
Swap 10
Call Forward 11
Call Forward - Remote 12
Call Forward - End Chaining 13
Call Forward - Override 13
Messaging - Advisory 13
Messaging - Callback 14
Messaging - Cancel Callback 14
Messaging - Cancel All Callbacks 14
USING ADVANCED FEATURES 15
Account Codes 15
Attendant Call Hold - Remote Retrieve 15
Call Park 16
Call Pickup 17
Campon 17
Do Not Disturb 17
Override 18
Paging 18
Direct Paging 18
Headset Operation 19
Headset Operation (with Feature Control Switch) 20
Music 20
Group Paging / Meet Me Answer 21
Trunk Flash 21
Record a Call 22
Hot Desking 23
Tag Call 24
Call History 25
-1-
ABOUT YOUR PHONE
The Mitel Networks 5010 IP has eight fixed-function keys ( SUPERKEY,
MESSAGE, HOLD, CANCEL, TRANSFER/CONFERENCE, REDIAL, , )
and seven personal keys with built-in status indicators. The personal key on
the bottom left is always your Prime Line; the remaining personal keys can
be programmed as:
zFeature keys (for example, Swap). You can program feature keys using
the Desktop Tool. Your administrator can also program feature keys.
zSpeed Call keys. You can program speed call keys from your phone, or
using the Desktop Tool.
zLine Appearances. Only the administrator can program line appearances.
Note: For more information on the Desktop Tool, talk to your system
administrator.
Your telephone also features display-assisted selection of features, on-hook
dialing, and a large Message Indicator.
Note: When using the SuperKey, press Cancel to back up one menu level.
IMPORTANT NOTE FOR HEADSET USERS:
Mitel Networks Headsets with Feature Control Switch (PN9132-800-500-
NA/9132-800-501-NA) must be installed in the dedicated headset jack (the
j
ack nearest the front of the set). Installation will disable your handset
microphone. Disconnecting the headset at the jack or at the quick-
disconnect plug restores handset operation.
Telephone status indicators
When line is the indicator is
Idle Off
Busy On
Ringing Flashing slowly
On hold at your set Flashing rapidly
On hold at another set Flashing slow on/fast off
-2-
For Users on Resilient 3300 ICP Systems
If durin
g
a call, you hear two beeps repeated every 20 seconds it means that
your phone is switching to a secondary 3300 ICP system. The call continues
and there is a change in the operation of some keys and features on your
phone. Normal operation resumes when your phone switches back to the
primary system. If your phone is idle and switched to the secondary system,
you'll see a flashin
g
rectan
g
le on the display. The rectan
g
le remains until the
switch to the primary system is complete.
TIPS FOR YOUR COMFORT AND SAFETY
Don't cradle the handset!
Prolon
g
ed use of the handset can lead to neck, shoulder, or back discomfort,
especially if you cradle the handset between your ear and shoulder. If you
use your phone a lot, you may find it more comfortable to use a headset.
See the section on headset usage elsewhere in this guide for more
information.
Protect your hearing
Your phone has a control for ad
j
ustin
g
the volume of the handset receiver or
headset. Because continuous exposure to loud sounds can contribute to
hearing loss, keep the volume at a moderate level.

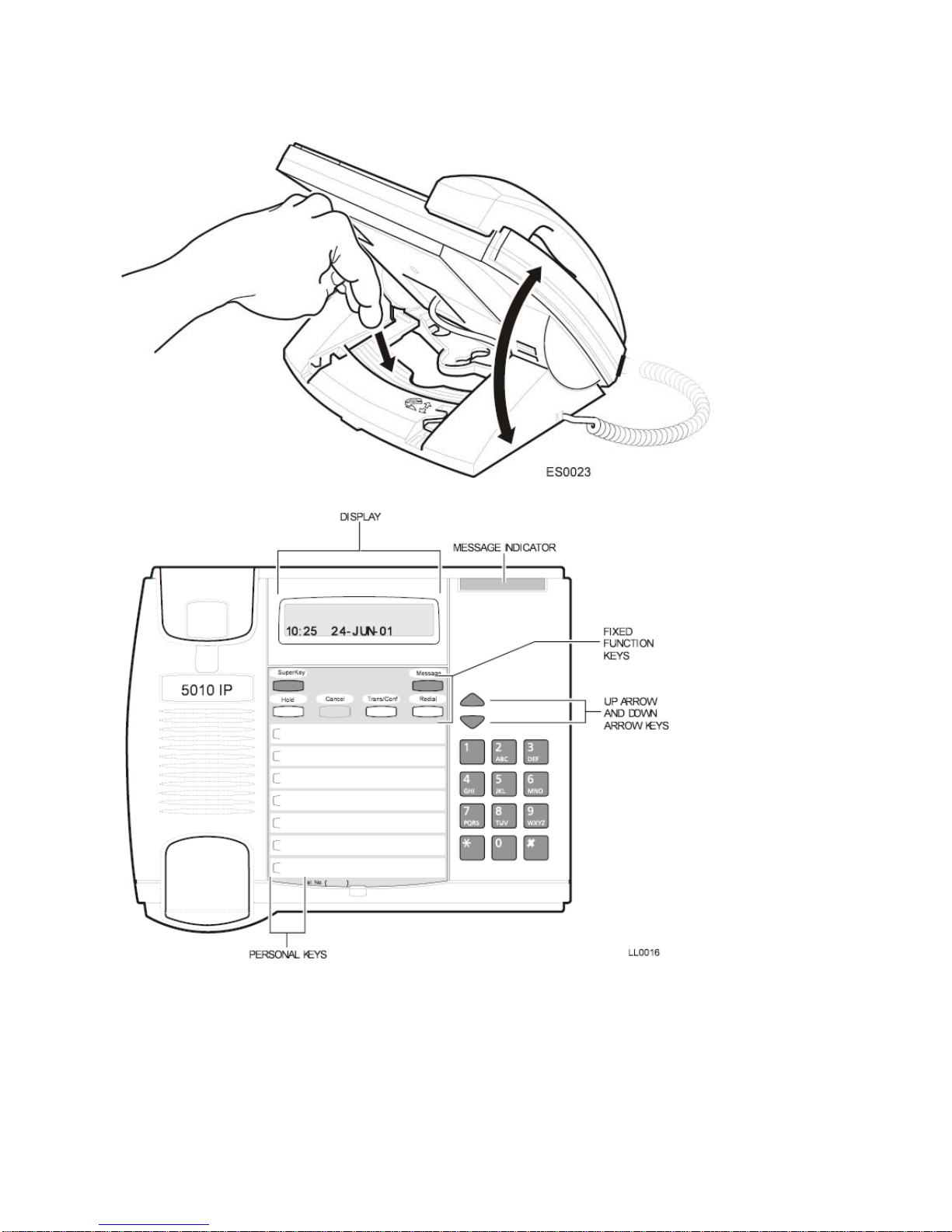

Angle the phone for easier viewing
The stand built into your phone tilts to give you a better view of the keys.
To tilt your telephone for better viewing:
1. Press the tilt-release paddle on the telephone base.
2. Tilt your telephone to the desired angle.
3. Release the tilt-release paddle.
-3-
-4-
Changing Handsets
Your 5010 IP telephone is compatible with several specialty handsets. To
remove the handset shipped with your set from the handset cord:
1. Bend a paper clip to produce approximately 4 cm (1.5 in.) of straight
wire.
2. On the handset, locate the plastic groove leading into the handset jack.
The groove is on the side of the jack that is closest to the handset
microphone.
3. Slide the end of the wire into the handset jack along the groove until it
stops underneath the handset cord clip.
4. While gently pulling on the handset cord, use the wire to pry the clip
upward. The cord will separate from the handset.
5. Store the original handset in a safe place.
CUSTOMIZING YOUR PHONE
Ringer Control
To adjust the Ringer Volume while the set is ringing:
z, or )
To adjust the Ringer Pitch while the set is idle:
1. Press SUPERKEY.
2. Press # until "Ringer Adjust?" appears.
3. Press *.
4. Press *.
5. Press , or ) .
6. Press #.
7. Press SUPERKEY.
Handset Receiver Volume Control
To adjust the Handset Receiver Volume when you are using the
handset:
zPress , or ) .
-5-
Speaker Volume Control
To adjust the Speaker Volume when making an on-hook call or when
listening to background music:
zPress , or ) .
Display Contrast Control
To adjust the Display Contrast while your set is idle:
zPress , or ) .
Feature Keys
To display information about a key:
1. Press SUPERKEY.
2. Press a personal key or REDIAL.
3. Press SUPERKEY.
Language Change
To change the display language:
1. Press SUPERKEY.
2. Press # until "Language?" appears.
3. Press *.
4. Press *.
5. Press # until the desired language appears.
6. Press *.
-6-
MAKING AND ANSWERING CALLS
Make a call
1. Lift the handset.
2. If you want to use a Non-Prime Line, press a Line Appearance key.
3. Dial the number,
-OR-
Press a Speed Call key
-OR-
Press REDIAL.
Answer a call
zLift the handset.
-OR-
Press the flashing Line appearance key and lift the handset.
Redial
To redial the last number that you manually dialed:
1. Lift the handset.
2. Press REDIAL.
Redial - Saved Number
To save the last number that you manually dialed:
1. Lift the handset.
2. Dial **79.
To Redial a saved number:
1. Lift the handset.
2. Dial *6*.
