Mitox 260B Manuale utente
Operator’s Manual
user manual, maintenance instructions and spare parts
260B Blower / 280BV Blower Vacuum
www.mitoxgm.co.uk
Read this manual carefully before operating the machine
Original Instructions Version July 12
260B Blower / 280BV Blower Vacuum
2
Original Instructions Version July 12

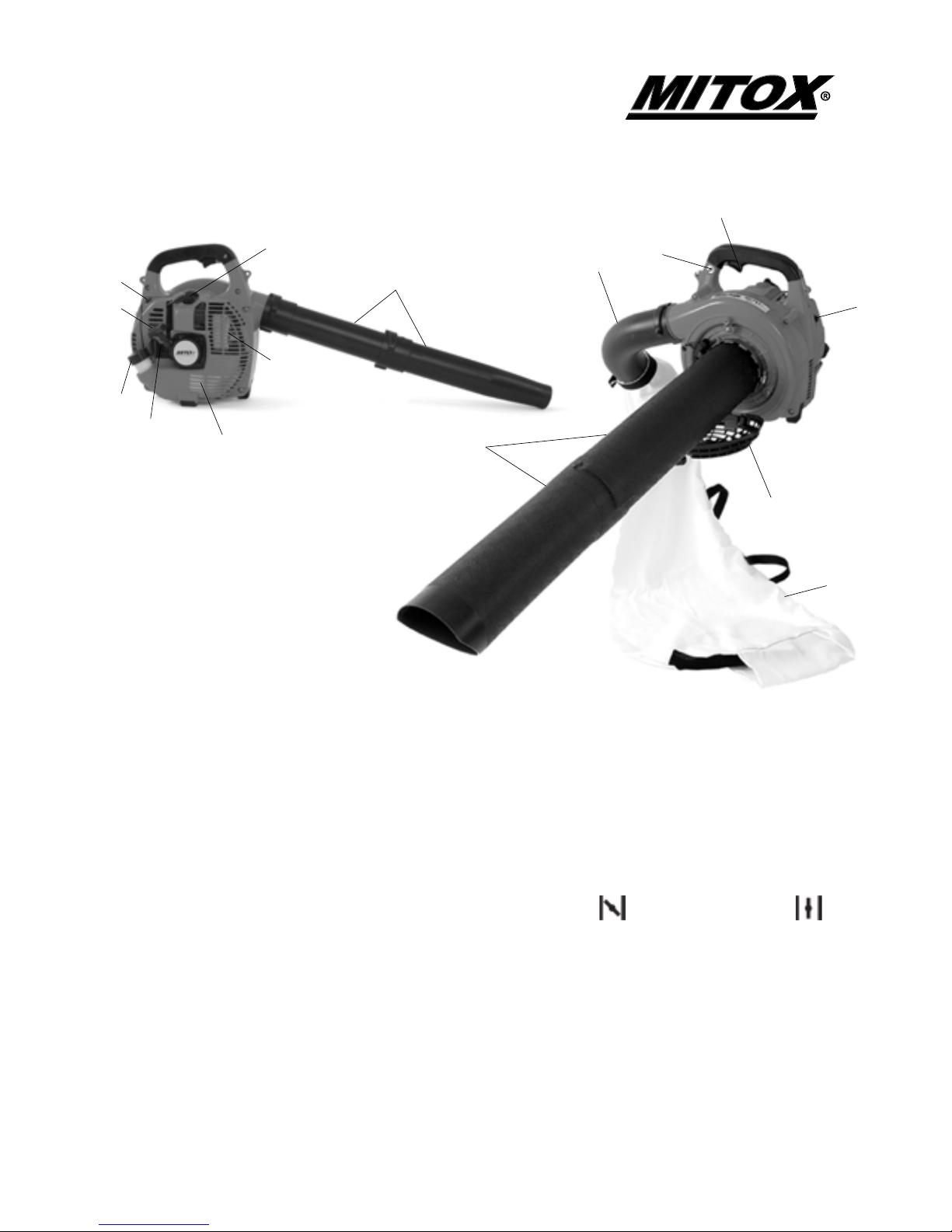

Component Location
1. Ignition Switch ON-OFF toggle switch. Switch to ON before starting. Switch to OFF to stop engine
2. Spark Plug Provides spark to ignite 2-stroke fuel mixture
3. Air Cleaner Replaceable air lter
4. Fuel Tank Contains fuel and fuel lter
5. Fuel Cap Seals fuel inside fuel tank
6. Recoil Starter Pull to start engine
7. Muer Controls exhause emissions and noise
8. Choke To assist cold starting. Fully extend to close choke. Push in to open choke.
9. Primer Bulb Draws fuel from fuel tank and purges air from the carburetor prior to starting.
10. Blower Pipes Two parts lock together to form air discharge pipe.
11. Throttle Lever Pull to increase engine speed.
12. Vacuum Tube Two parts lock together to form air intake pipe. Vacuums in debris to be shredded.
13. Vacuum Elbow Discharges shredded materials into collection bag.
14. Collection Bag Collects shredded materials with zip to empty.
15. Side Cover Must be closed when in blower mode.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
260B Blower / 280BV Blower Vacuum
3
Original Instructions Version July 12
PRODUCT DESCRIPTION
This Blower/Vacuum is a 2 stroke fast running power tool and is designed to be used in
a domestic application for vacuuming leaves and cut lawn. It can be easily converted
into a blower.
Important
The information contained in this manual describes machines available at the time of production. While
every attempt has been made to give you the very latest information about your BV280, there may be
some dierences between your machine and what is described here .We reserve the right to make changes
in production without prior notice, and without obligation to make alterations to machines previously
manufactured.
Before using this product, consult local regulations concerning noise restrictions and hours of operation.
• ThisproducthasbeendesignedtobeusedasaBlower/Vacuumpowertoolasdescribed
previously and it should never be used for any other purpose; doing so could result in unforeseen
accidents and injuries occurring. Only approved Mitox accessories should be used with this
product.
• ThisBlow/Vacisequippedwithextremelysharpblades,alwayswearsturdygloveswhenhandling
the blades and t the safety guards when not in use.
• WhenusingtheBlow/Vac,gripthehandlesrmlywithbothhands,placeyourfeetslightlyapart
so your weight is distributed evenly across both legs, and always maintain a steady even posture
while working. Do not use on ladders or if the ground surface is slippery or uneven.
Work Clothing and Safety Equipment
When using the product, you should wear proper clothing and protective equipment:
• Helmet
• Protectiongogglesorfaceprotector
• Earprotectors
• Thickworkgloves
• Non-slipsoleworkboots
• Whenusingyourblower,alwayswearstrong,durable,workclothing;shirtsshouldbelong-
sleeved and trousers should be full-length. No loose clothing / ties or jewellery.
• Dustmask
260B Blower / 280BV Blower Vacuum
4
Original Instructions Version July 12
Warnings in the Manual
This manual contains special “attention statements”surrounded by boxes and preceded
by the triangular Attention Symbol:
Additional attention statements that are not preceded by the Attention Symbol are:
A statement preceded by the word“IMPORTANT” is one that possesses special
signicance.
Astatementproceededbytheword“NOTE”containsinformationthatishandytoknow
and may make your job easier.
Read and follow this manual. Failure to do so could result in serious
injury.
Wear eye and hearing protection at all times during the operation of
this machine
DO not operate this machine if you are tired, ill
or under the inuences of alcohol, drugs, or Medicine.
IMPORTANT
!
NOTE
260B Blower / 280BV Blower Vacuum
5
Original Instructions Version July 12
Product Description
The operational procedures described in this manual are intended to help you get the
most from your machine and also to protect you and others from harm. These procedures
are general guidelines only,
and are not intended to replace any safety rules/laws that may be in force in your area.
Ifyouhaveanyquestionsregardingyourblower/vacuum,orifyoudonotunderstand
something in this manual, your dealer will be glad to assist you.
Specications
Model………………………………………………………………………………BV280
Dimensions(L×W×H)…………………………………………………845×340×350(mm)
EngineType ………………………………2 cycle air cools gas engine, vertical cylinder
Bore&Stroke…………………………………………………………………..34×28(mm)
Displacement…………………………………………………………………26cc
Fuel………………………………………………………………Gasoline/oilmixture25:1
Carburetor……………………………………….Walbro diaphragm-typewithprimerpump
Ignition…………………..………………………All transistor electronic ignition system
Spark plug……………………………………L9T(LD)
Starting……………………………………………………………………….Recoil starter
Stopping………………………………………………………………..Grounding
FuelTank Capacity………………………………………………………………….0.65liter
Exhaustsystem………………………………………………lowdB;spark-arrestormuer
Air Cleaner Type………………………………………………………………….Semi-wet
Weight(dry;withvacuumtubes)………………………………………………………6.3kg
Vibration values……………………………………………………………………≤10m/s
Soundpowervalues……………..………………………………………………≤105dB(A)
260B Blower / 280BV Blower Vacuum
6
Original Instructions Version July 12
Assembling the Vacuum

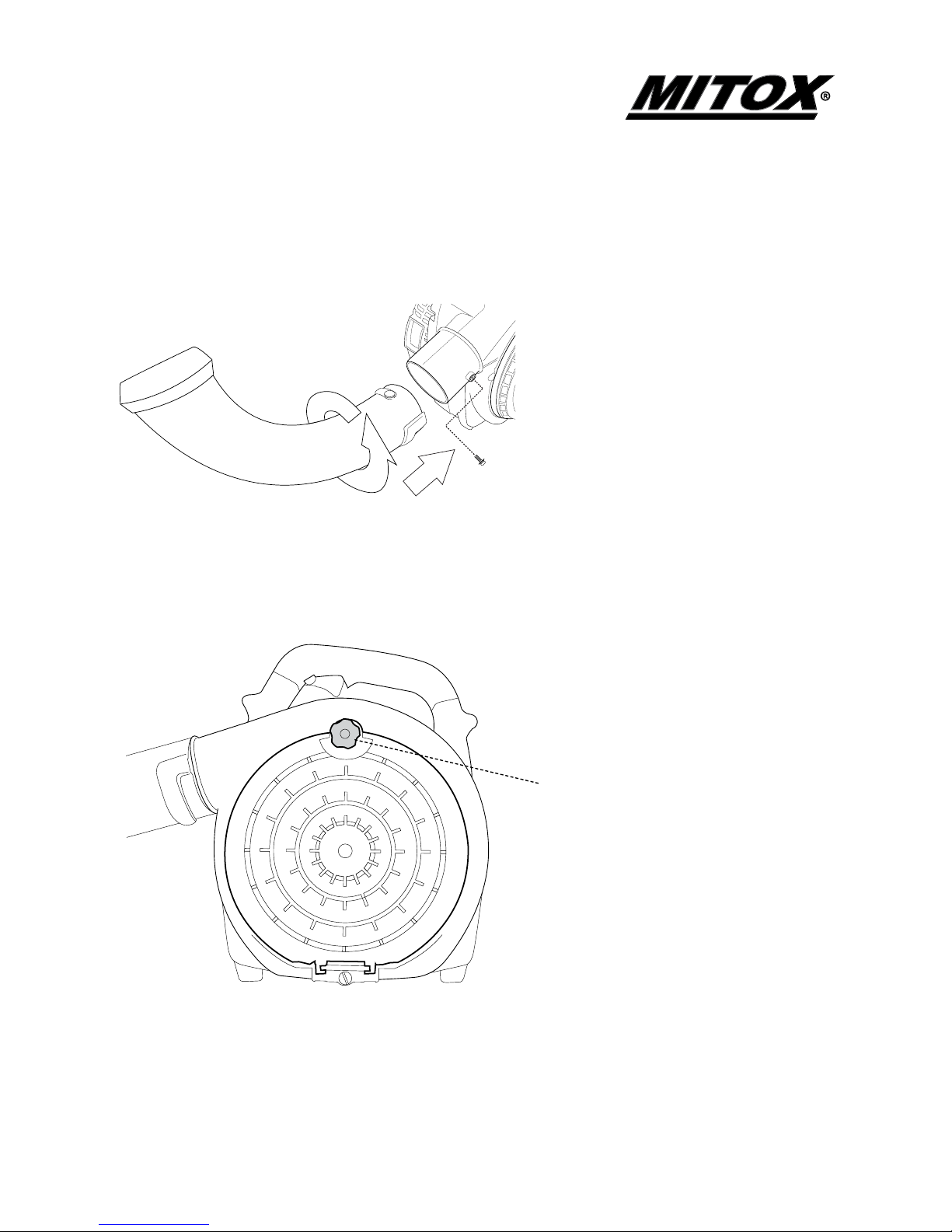

1.FittheVacuumelbowtubeoverthe
blower discharge port, aligning the
channels in the tube over the locking pin.
2. Twist the Vacuum elbow tube to engage
the locking pin as illustrated.
3.Lockthetubeinplaceusing1xM5x10
screw.
1.
2.
3.
Open the side cover using the
thumbscrew.
260B Blower / 280BV Blower Vacuum
7
Original Instructions Version July 12

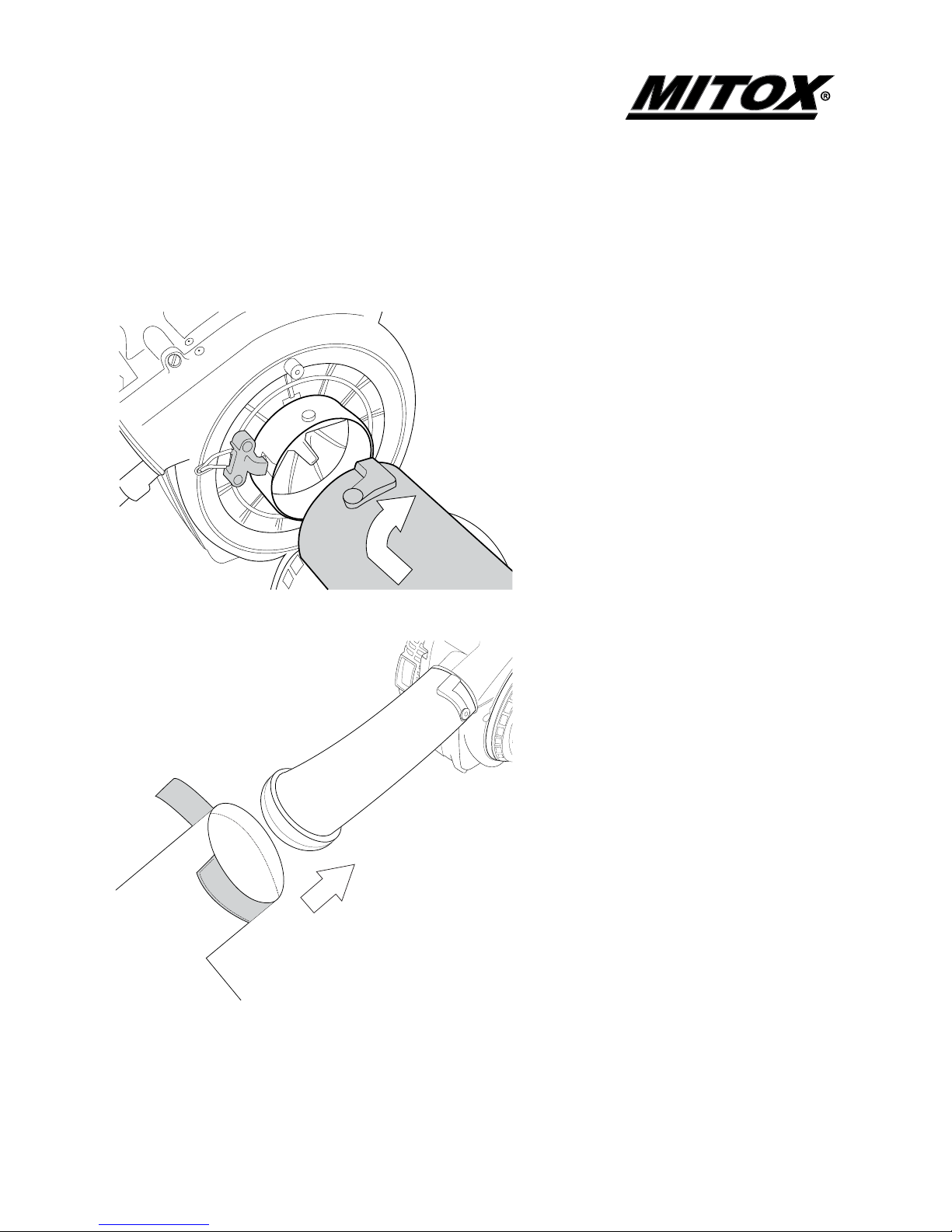

Fit the upper vacuum tube over the
vacuum intake port, aligning the channels
in the tube over the locking pin.
Twist the upper vacuum tube to engage
the locking pin as illustrated.
Attach the lower vacuum tube to the
upper vacuum tube using the same
method.
Fit the collection bag over the Vacuum
elbow tube using the velcro fastener.
260B Blower / 280BV Blower Vacuum
8
Original Instructions Version July 12
Assembling the Blower

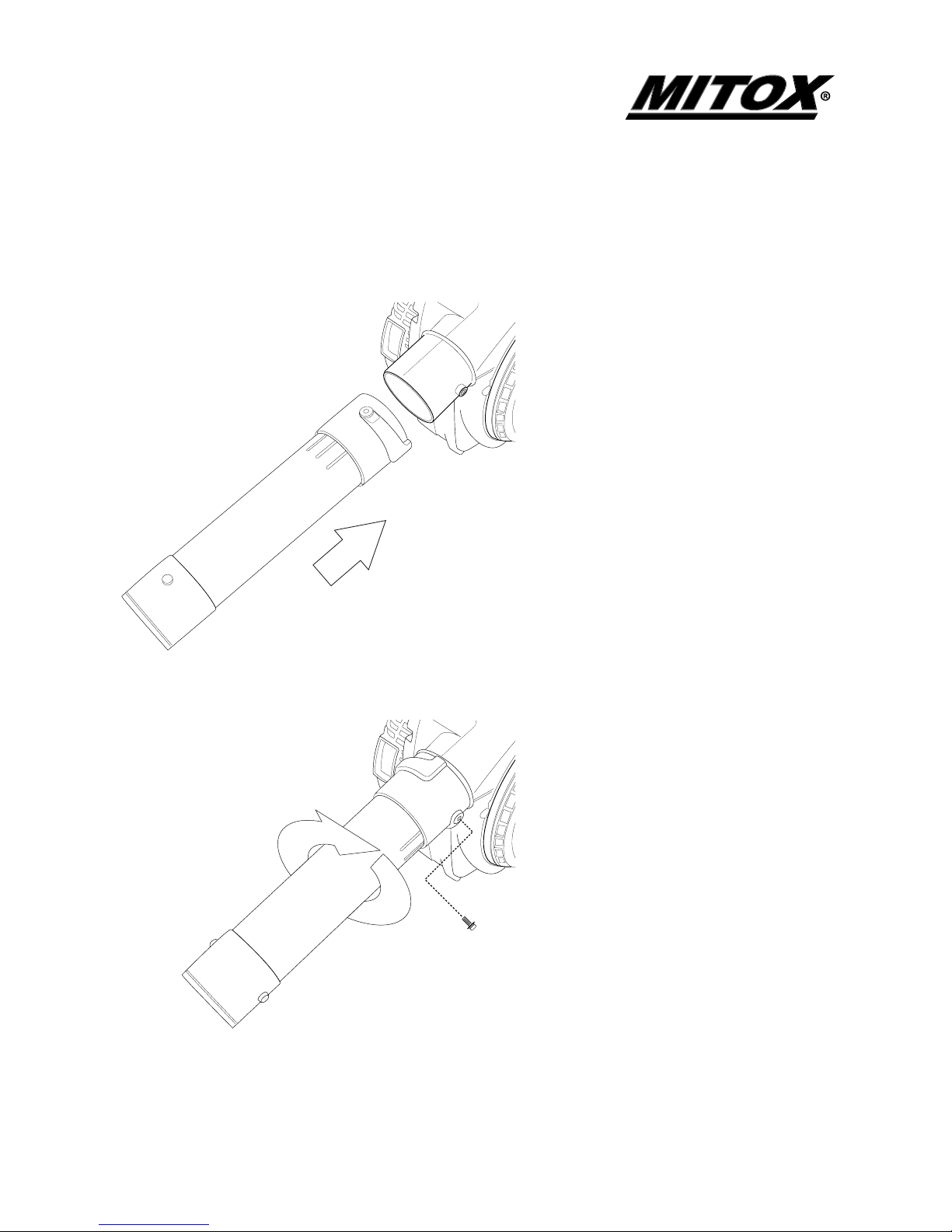

Fit the straight blower tube over the
blower discharge port, aligning the
channels in the tube over the locking pin.
Twist the straight blower tube tube to
engage the locking pin as illustrated. Lock
thetubeinplaceusing1xM5x10screw.
260B Blower / 280BV Blower Vacuum
9
Original Instructions Version July 12
Important
Blower tube installation aects both blower Balance and performance! The tube and
Nozzle are correctly installed when the label “TOP” is visible to the operator during normal
operation.

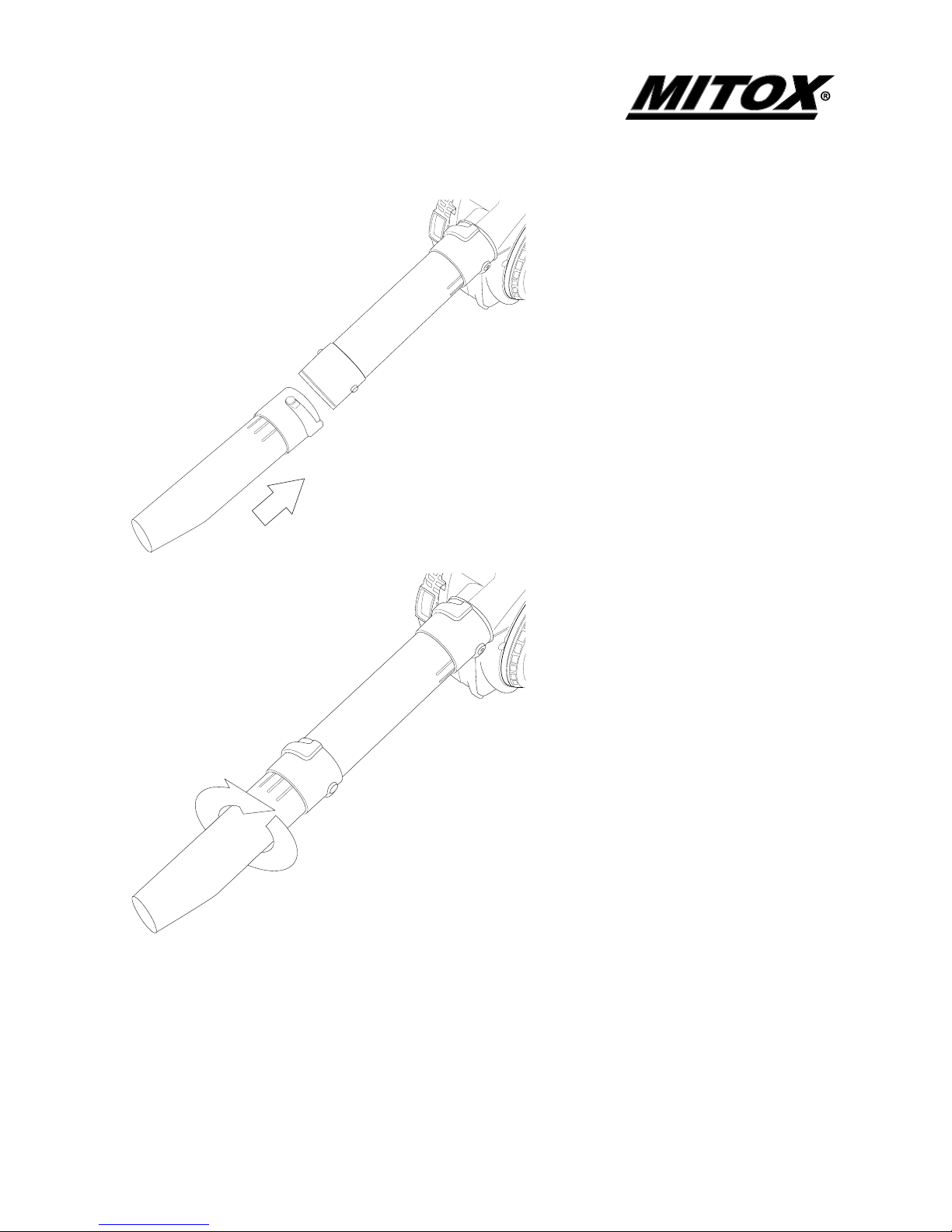

Fit the tapered blower tube over the
straight blower tube, aligning the channels
in the tube over the locking pins.
Twist the tapered blower tube tube to
engage the locking pins as illustrated.
Note the tapered discharge chute is
marked with a TOP side.
260B Blower / 280BV Blower Vacuum
10
Original Instructions Version July 12
Two-Stroke Fuel
Fuel is very ammable. Do not smoke or bring any ame or sparks near fuel.
Always stop the engine and allow it to cool before refuelling.
Refueloutdoorsonbareground,restartengineatleast5mawayfromtherefuellingstop.
The engine is lubricated by oil mixed into petrol. Prepare a mixture of unleaded petrol and semi-synthetic
two-strokeoilthatmeetsthespecicationsof:APITC,ISO-L-EGC,JASOFC(LowSmoke)oil.
Recommended mixing ratio is 25:1.
FUEL WITH NO OIL (RAW PETROL) will cause severe damage to the engine which is not covered by
manufacturer’s warranty.
Usefresh,unleadedpetrol(95RON)andsemi-syntheticoilspeciallymadeforhighperformancetwo-stroke
engines.Mixinaratioof25partspetrolto1partofoil.
By using two-stroke oil specially made for two-stroke engines you will reduce the formation of ash and
carbondepositsonthesparkplug,piston,exhaustmuerandcylinderaswellasreducingemissionsof
harmful exhaust gases.
OilFOR4-CYCLEENGINESshouldnotbeusedastwo-strokelubricationoilasitcancausefoulingofthespark
plug, exhaust port blocking, piston ring sticking and other internal engine damage.
