PHV HEAT PUMP RANGE AIR CURTAINS

INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS

For use with Mr Slim units

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION

Thermoscreens Ltd

St. Mary’s Road Nuneaton

Warwickshire England

CV11 5AU

Email: [email protected]

Tel: +44 (0) 24 7638 4646

Fax: +44 (0) 24 7638 8578

www.thermoscreens.com

English

9901025-2 Page 2 of 21

Thermoscreens / Mitsubishi Electric

Heat Pump Warm Air Curtain System

The Heat Pump Warm Air Curtain System consists of :-

•a Thermoscreens 'PHV Air Curtain' fitted with a PAC-IF010 Mitsubishi Electric Interface

PCB

•a Mitsubishi Electric 'Mr Slim Outdoor Unit'

•a Thermoscreens 'Manual Room Control' for the manual control option by the occupant

Refer to Mitsubishi Electric if the air curtain is to be controlled via a Building Management

System (BMS) or Centralised Controller. Do not install Manual Room Control and

BMS/Centralised Control components together, install either one or the other.

A communications link is supplied to the Thermoscreens Heat Pump Air Curtain from the

Mitsubishi Electric Outdoor Unit. This link provides control of the heat output of the air curtain

and tells the air curtain when the outdoor unit is in defrost mode so auxiliary electric element

heaters (if specified) can provide partial heat back-up during the few minutes of defrost.

The Air Curtain requires a permanent 3 phase electrical supply (3L+N+E) from a local

switched spur to provide power to the defrost cycle electric heating elements, the air curtain

fans and the Mitsubishi Electric Interface PCB. If the defrost cycle electric elements are not

required they can be permanently disconnected, see 'Electrical Connections', and a 1 phase

electrical supply (1L+N+E) used instead.

High and Low Output in this document refers to the heat pump heating capacity of the Air

Curtain, not to any electrical rating.

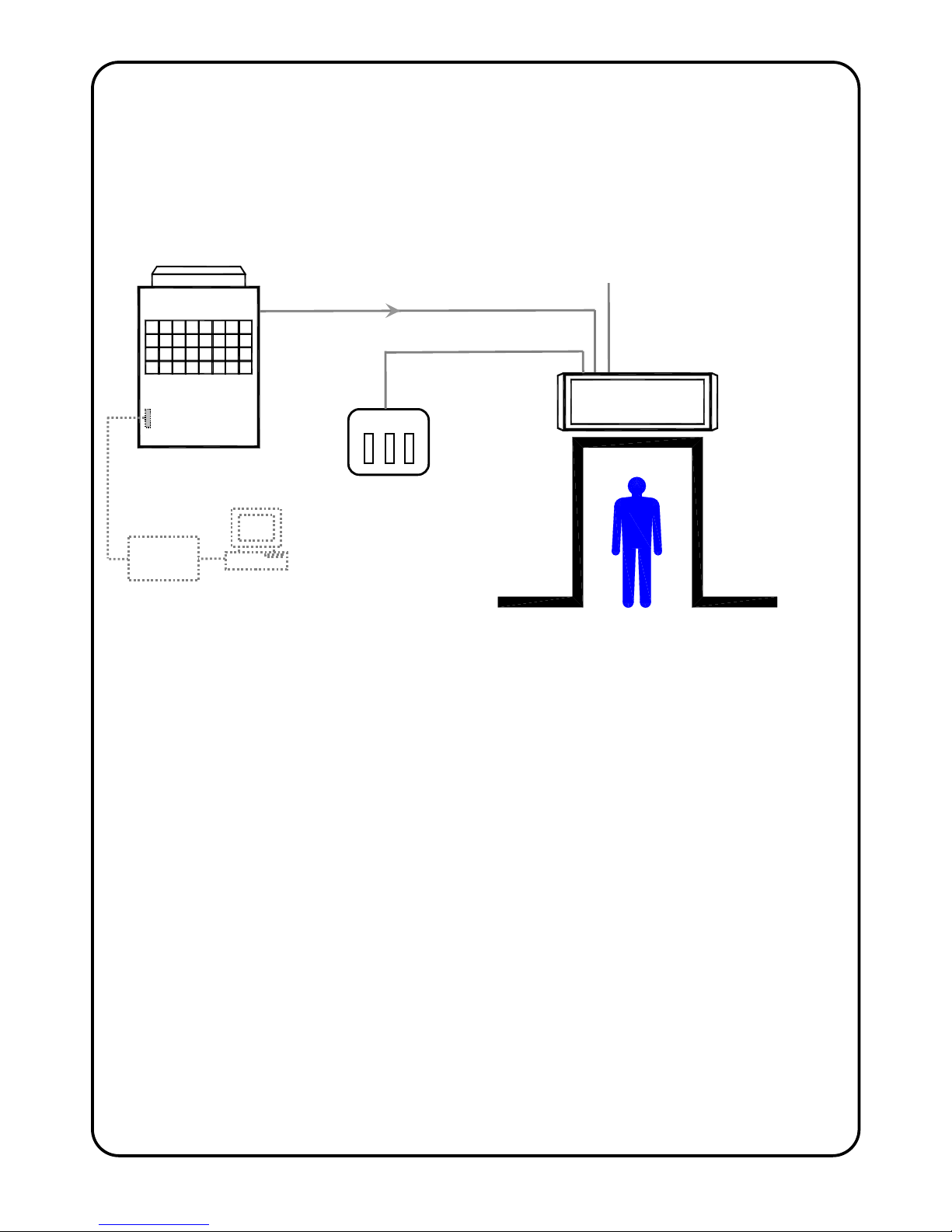

Heat Pump

Air Curtain

Mitsubishi Electric

Outdoor Unit

Communications Link Permanent mains electrical supply

(from local switched spur) for

xFans

xMitsubishi Electric Interface PCB

xDefrost electric heaters (if used)

Manual Room

Control

Manual On/Off Control and

Heat Setting Control

Optional

BMS Control

Interface Board

Procon

32/M

9901025-2 Page 3 of 21

UNPACKING THE PHV HEAT PUMP AIR CURTAIN

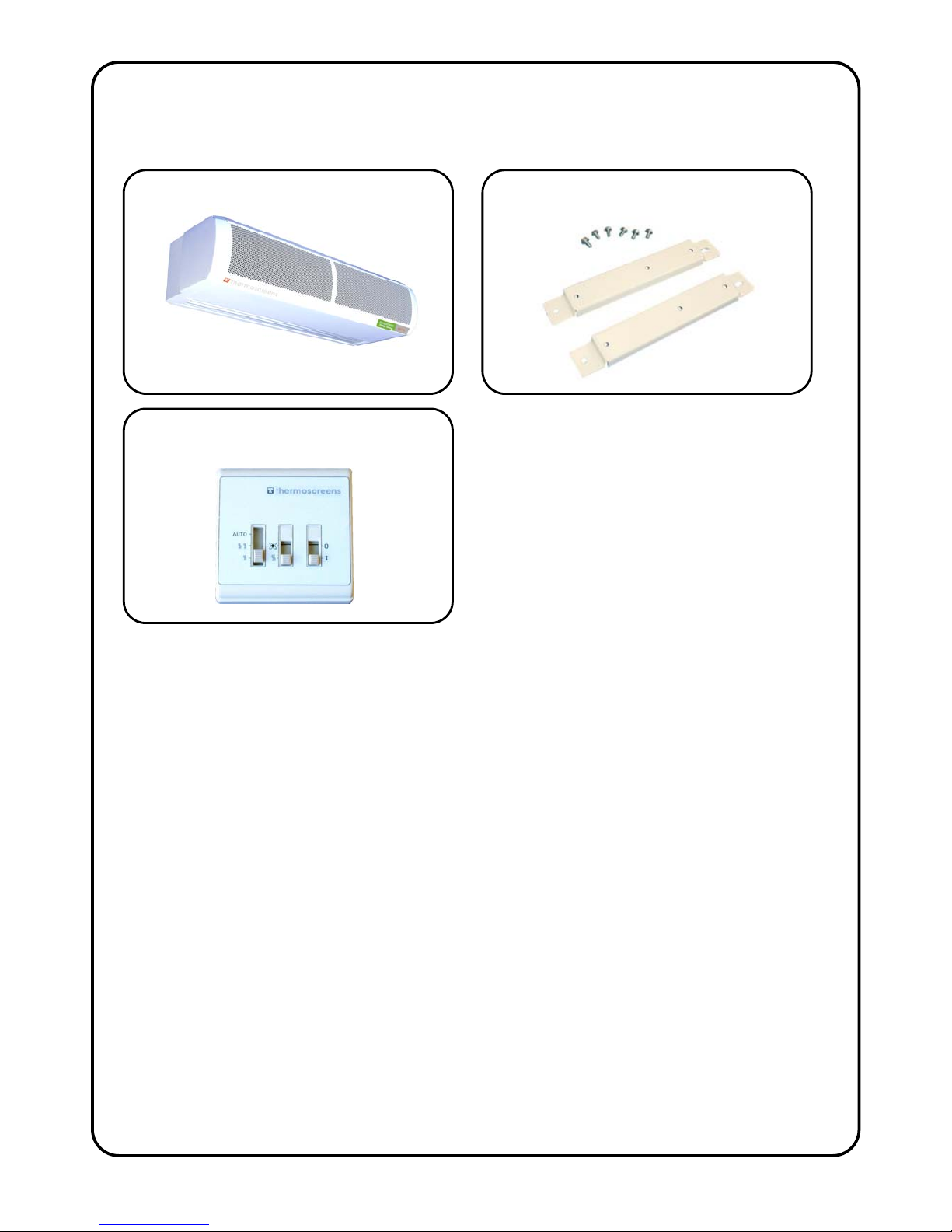

The following items are supplied and packaged within the air curtain box.

There will also be a 'Mr Slim Outdoor Unit' supplied by Mitsubishi Electric.

The complete Thermoscreens/Mitsubishi Electric heat pump system, to provide a heat

pump warm air curtain over a doorway, including wiring, fridge pipework, etc. is to be

installed only by an approved Mitsubishi Electric refrigeration contractor.

For your records

Date of Purchase……………………………..

Place of Purchase…………………………….

Serial Number…………………………………

For warranty purposes proof of purchase is necessary so please keep a copy of your

invoice.

IMPORTANT

This Heat Pump Air Curtain in intended only for use with a Mitsubishi Electric Mr Slim

Outdoor Unit, for use on R410a with a condensing temperature of 49°C.

These instructions must be read in conjunction with the Mitsubishi Electric Mr Slim

Outdoor Unit instructions.

(All documentation supplied with each unit should be stored and kept for future reference.)

Wall Brackets and Fixin

Bolts

PHV Heat Pump Air Curtain

Please note end caps are supplied loose

to be fitted during installation

Manual Room Control

If anything is missing or damaged

please contact your place of

purchase immediately.

9901025-2 Page 4 of 21

INSTALLATION OF THE HEAT PUMP AIR CURTAIN

The air curtain has been designed to be surface mounted inside of the building and

located horizontally over a doorway. It must not be installed outside of the building,

or built into a cabinet or recessed in anyway. The air curtain is intended for use as a

heating only unit.

Location

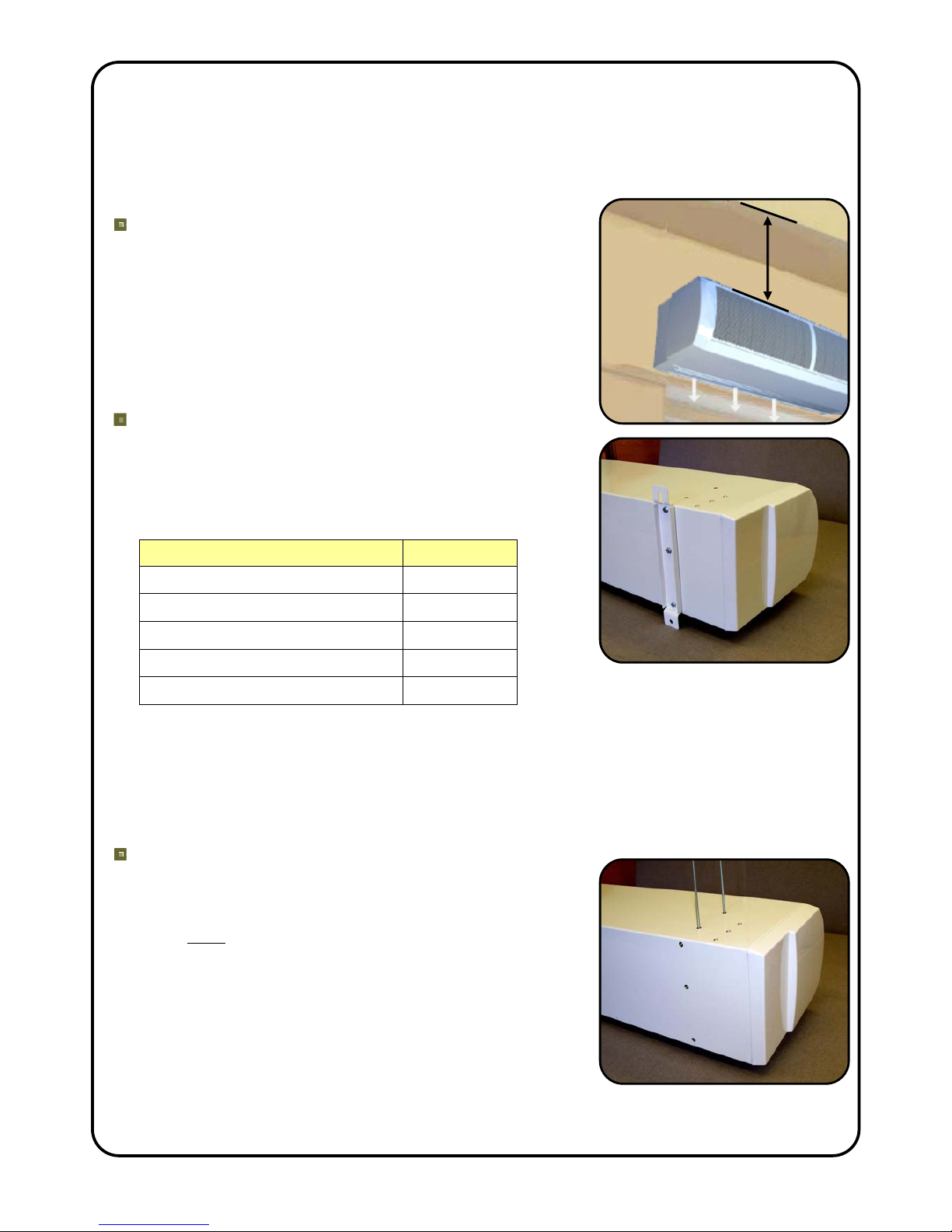

The air curtain must be mounted so the discharge grille is

between 1.8m minimum and 3.75m maximum above floor

level and situated as close to the doorway as possible.

Leave a gap of 250mm minimum above the air curtain to

allow for pipework brazing operations. Beware of doorway

top edges, structural beams, door opening/closure

devices, etc. which may interfere with the air stream and

affect the location of the unit.

Wall Fixing

Bolt all of the wall brackets supplied to the rear face of the

unit as shown in the adjacent picture using the M6 bolts

supplied. Suitable wall fixing bolts (not supplied) need to

be used to fix the brackets to the wall, taking into account

the type of wall and the weight of the unit*, see table:

Air Curtain Weight (kg)

PHV1000DXE HO 39

PHV1500DXE LO 59

PHV1500DXE HO 60

PHV2000DXE LO 78

PHV2000DXE HO 80

Step 1. Refer to Figure 1 for mounting details and drill the fixing points in the wall.

Step 2. Screw in the top wall bolts leaving a small gap between the head and the wall.

Lower the unit onto the bolts via the key-hole slots in the top of the wall brackets and then

screw in the bottom wall bolts.

Step 3. Ensure all fixing bolts are tightened and the air curtain is safely secured to the

wall.

Ceiling Suspension

M10 threaded inserts are provided in the top face of the

unit (see Figure 1 for positions) so it can be suspended on

M10 threaded hanging rods (not provided). All suspension

points must be used. Ensure each of the hanging rods is

secured onto a suitable structure that can support the

weight of the unit (see table above)*. Screw the hanging

rods into the inserts by a minimum or 20mm and fit

locking nuts (not supplied) to prevent the rod rotating and

coming away from the casing. Do not screw the hanging

rod too far in or it could interfere with internal components.

*It is the sole responsibility of the installer to ensure that the

building fixing locations and suspension system used are

suitable for the air curtain being installed.

250mm min

9901025-2 Page 5 of 21

295

E E

C C

168 36

255

377

PHV2000DXPHV1500DX 22961746 18961400

1300

700 1824

948

650 912

A (mm)

B (mm)

C (mm)

D (mm)

E (mm) Hot Gas

Refrigerant Connection Liquid line

Refrigerant Connection

100

Electrical Supply and

Control Wiring Inlets

for pipes

250 min.

PHV1000DX

1196

800

N/A

Optional sheet metal covers

to hide pipework, cables, etc.

250, 500 or 1000 high

Holes for M10 drop rods

4 for 1m unit, 6 for 1.5m/2m units

Use all drop rod holes !

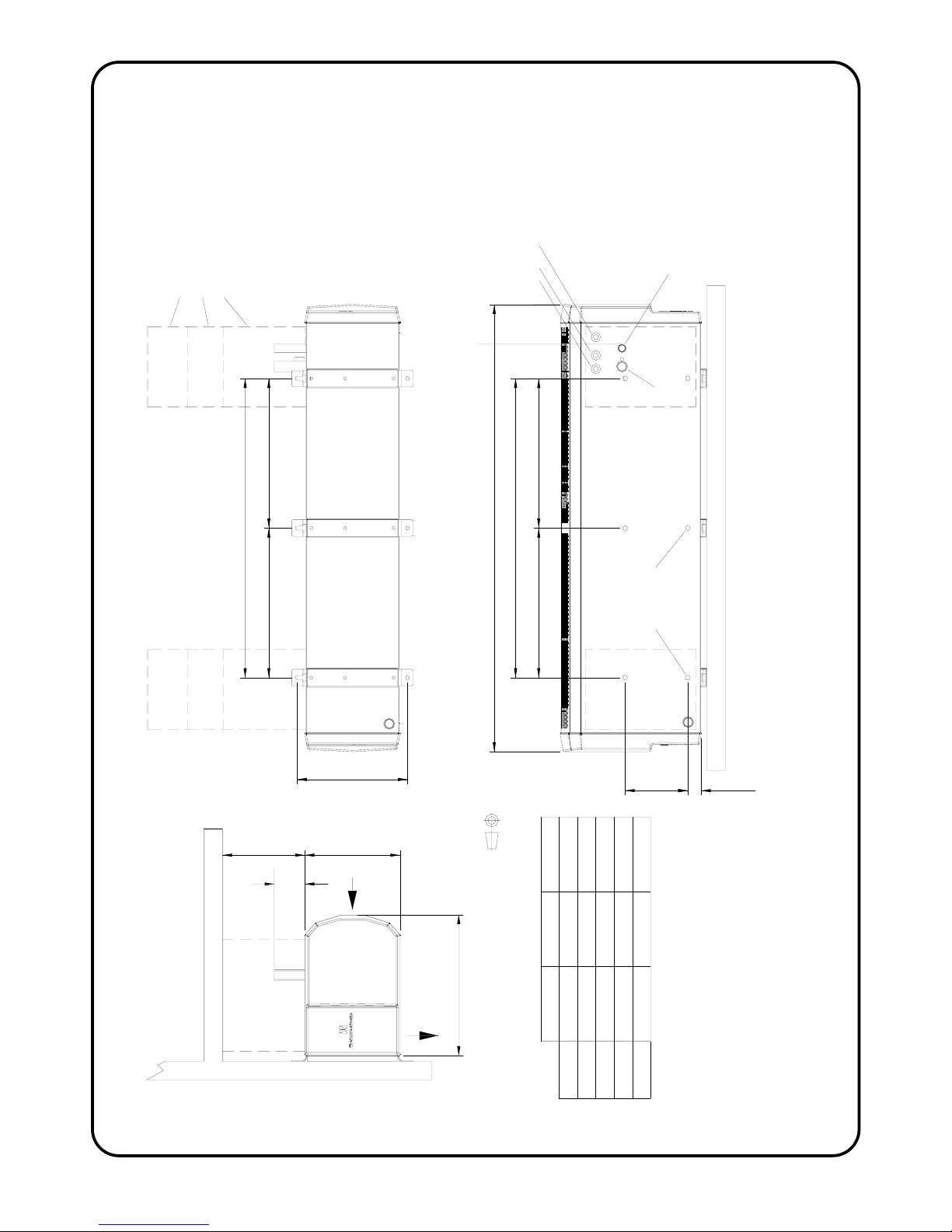

FIGURE 1 – DIMENSIONS OF PHV HEAT PUMP AIR CURTAIN

9901025-2 Page 6 of 21

Mitsubishi Electric Outdoor Unit

The Mitsubishi Electric Outdoor Unit is selected to match its refrigerant heat output to

the size of the Air Curtain. See table below for size of outdoor unit to be used together

with performance data for the air curtain.

Heat Output (kW)

@outdoor air 7/6°C db/wb

Air Curtain Mr Slim Outdoor

Unit Full

Heat Half

Heat

Max. Air

Volume

Flow Rate

(m3/h)

Max.

Noise

Level

dB(A) @3m

PHV1000 DXE HO PUHZ-RP71VHA 8.6 5.34 1400 56

PHV1500 DXE LO PUHZ-RP71VHA 10.1 5.6 2500 58

PHV1500 DXE HO PUHZ-

RP140VKA/YKA 14.4 8.3 2600 58

PHV2000 DXE LO PUHZ-

RP100VKA/YKA 14.1 7.9 3300 59

PHV2000 DXE HO PUHZ-RP200YKA 21.3 11.2 3130 59

Indoor Air Temperature = 20ºC

Performance figures derived from independent testing by UK test houses BRE and BSRIA in accordance with

test standard EN 14511.

The air curtain normally operates under automatic temperature control and can also run at part load.

Refrigerant Pipework

This must be carried out before connection of any electrical and controls cables

and in accordance with the Instructions that come with the Mitsubishi Electric

Outdoor Unit. This work must only be undertaken by a Mitsubishi Electric

approved Contractor.

Refrigerant installation pipework sizes are as follows :-

Maximum Pipe Run

Air Curtain Discharge Line

(Gas) Liquid

Line Length Height

PHV1000 DXE HO 8

5in. 8

3in. 50m 30m

PHV1500 DXE LO 8

5in. 8

3in. 50m 30m

PHV1500 DXE HO 8

5in. 8

3in. 50m 30m

PHV2000 DXE LO 8

5in. 8

3in. 50m 30m

PHV2000 DXE HO 18

1in. 8

3in. 100m 30m

It is intended that refrigerant pipe connections to the air curtain are made using brazed

joints and these must be carried out in a professional and safe manner. If installation

pipe sizes for the discharge (gas) line and liquid line are different from the pipe

connection sizes on the air curtain, suitable pipe reducers must be used for the

connection. R410a refrigerant systems can operate at pressures up to 610 psi (c. 42

Bar). These brazed joints may well be located in a public area and a weakness leading

to an explosion could be extremely dangerous. The air curtain with its coil is

9901025-2 Page 7 of 21

manufactured in accordance with the Pressure Equipment Directive and the installation

must be carried out to a good standard of workmanship. Remove the protective plastic

film on top of the air curtain before starting work. Use a heat sink on the copper pipes

when brazing to reduce the transfer of heat to the inside of the air curtain where

sensitive components are located.

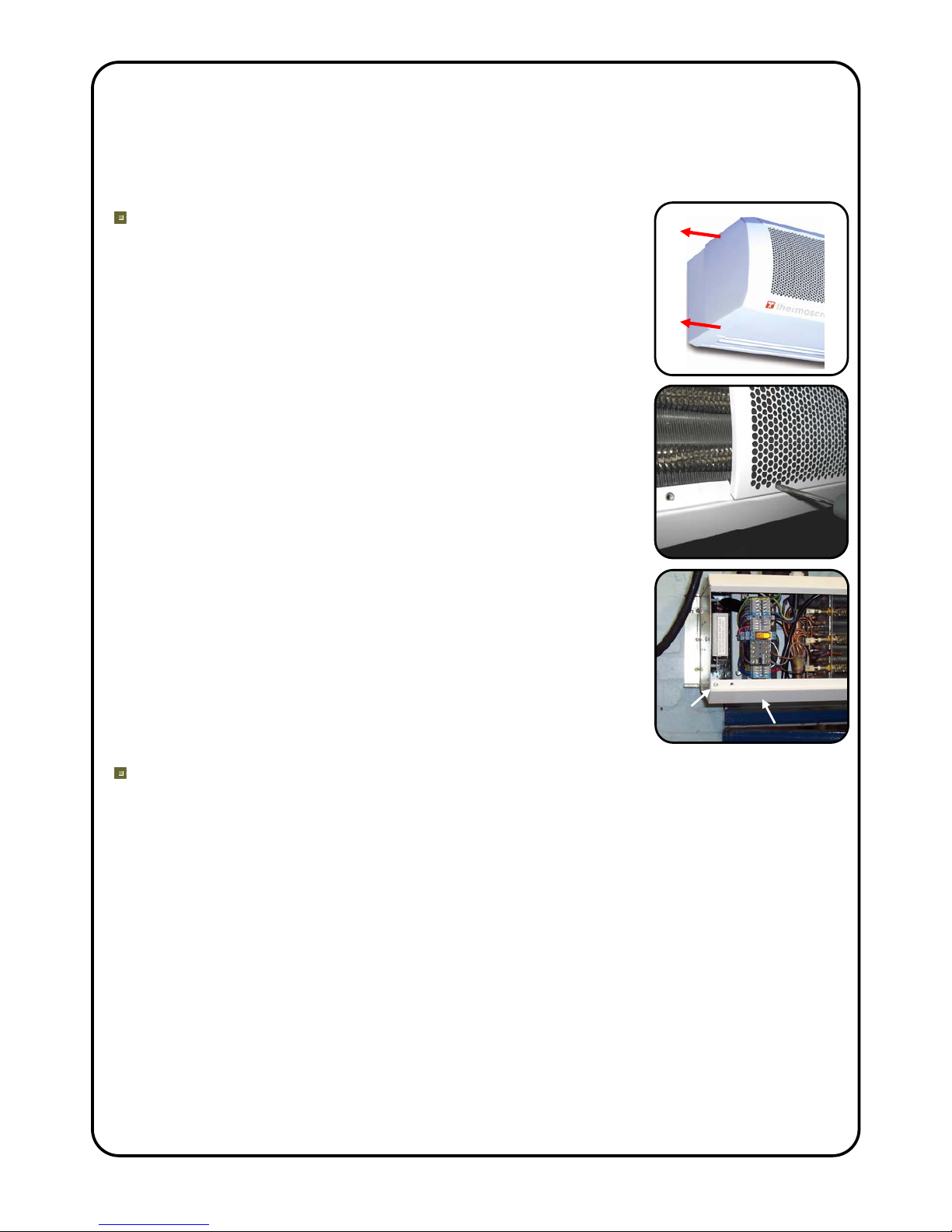

To gain access inside the Air Curtain

To gain access for connection of the electrical supply, controls

wiring and to work on the unit during commissioning, remove the

air inlet grilles and the bottom access panel.

First remove the plastic end caps if already fitted by pulling off to

the side (see picture).

Then remove each inlet grille in turn with its filter by unfastening

the M4 Pozi Head screw at the bottom corner of the grille. Use a

Pozi No.1 screwdriver to access the screw via the elongated

hole at each bottom corner of the grille (see adjacent picture).

To remove the bottom access panel unfasten the access panel

securing screws, one at each end and two in the centre

(PHV1500 and PHV2000 units) and slide the panel out forwards.

Please note: All the panels of the air curtain are covered in a

protective plastic film which should be removed.

Electrical Supply to the Air Curtain

This must be carried out AFTER the connection of the refrigerant pipework. All

electrical wiring and connections MUST be carried out by a competent qualified

electrician in accordance with the latest edition of the IEE wiring regulations

and/or local statutory regulations. (see also Wiring Diagram on Page 10)

•A local isolator having a contact separation of at least 3mm on all poles must be

fitted in the electrical supply to the air curtain and located in an accessible position

adjacent to the unit. 1 phase if defrost electric heaters are not required. 3 phase if

defrost electric heaters are required.

•The appliance must be connected using cables having an appropriate temperature

rating (heat resistant).

•Ensure that the supply cables, circuit breakers and other electrical installation

equipment are correctly sized for the air curtain being installed. See Table

overleaf.

•A 20mm size cable gland or conduit connector should be used for the Electrical

Supply into the air curtain.

•This appliance must be Earthed.

access

anel

location

of screw

9901025-2 Page 8 of 21

230V/1ph/50Hz

if defrost electric heaters are not used 400V/3ph/50Hz

if defrost electric heaters are required

Air Curtain Rated Electrical

Power Input (kW) Rated Current (A) Rated Electrical

Power Input (kW) Rated Current per

phase (A)

PHV1000 DXE HO 0.3 1.3 4.8 7.8

PHV1500 DXE LO 0.35 1.8 7.8 12.7

PHV1500 DXE HO 0.35 1.8 7.8 12.7

PHV2000 DXE LO 0.5 2.7 9.5 15.7

PHV2000 DXE HO 0.5 2.7 9.5 15.7

If the defrost electric heaters are to be disabled this can be

done by disconnecting the neutral wire (blue or purple) from

terminal A2 on the contactor inside the air curtain. The

disconnected wire should be terminated safely into unused

auxiliary terminal 14NO as shown in the adjacent picture, or

into a suitable terminal block (see also wiring diagram on

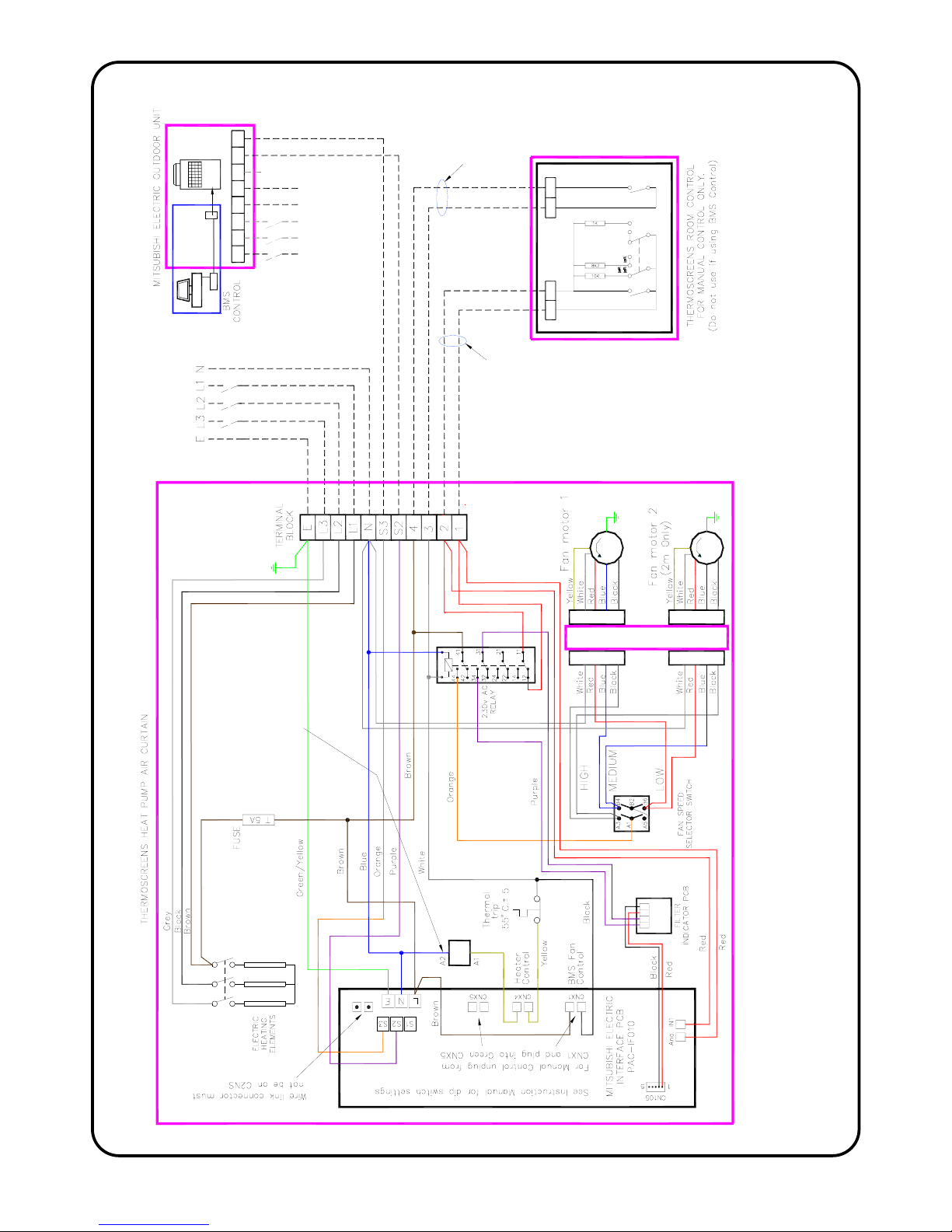

Page 10).

Note: If the defrost electric heaters are disconnected,

discharge air temperatures could be very cold, approximately

6ºC. Defrost times could also be extended.

Wiring to the air curtain should be carried out in accordance with the wiring diagram on

Page 10 and IEE Regulations. The figure below shows the completed wiring for a 3

phase electrical supply if the defrost electric heaters are required.

1) Connection from Mitsubishi Electric

Outdoor Unit

Connections to terminals S2 and S3 provide a

communications link between the Mitsubishi

Electric Outdoor Unit and the Air Curtain. S1 in

the Mitsubishi Electric Outdoor Unit is not used

at all for this Air Curtain Indoor Unit.

2) Connecting a 400V/3ph/50Hz supply

Connect to terminals L1, L2, L3, N and E with

a 3-phase electrical supply. This will power the

electric heating elements during the defrost

cycle, air curtain fans and the Mitsubishi

Electric interface pcb.

Connecting a 230V/1ph/50Hz supply

Connect to terminals L1, N and E with a 1-

phase electrical supply. This will power the air

curtain fans and the Mitsubishi Electric

interface pcb. NB. Electric heaters must be

disabled !!

3) Connection from Manual Room Control (required only for manual control)

To comply with IEE regulations two separate 2-core, 230v mains rated double

insulated cables of different colours should be used to wire from the manual room

control. One 2-core cable is wired to terminals 1 & 2 (Heat Setting - signal voltage).

The other 2-core cable is wired to terminals 3 & 4 (On/Off switch - 230v).

9901025-2 Page 9 of 21

If a BMS or Centralised Controller is to be used instead of Manual Control it is not

necessary to wire to terminals 1-4. NB. Do not install Manual Room Control and

BMS/Centralised Control together as they can interfere with each other.

Recommended wire size for electrical connections are as follows:

1 2 3

1.0mm22.5mm2max for access 0.75mm2

Do not use cable size of more than 2.5mm2or connecting the cable is difficult.

Electrical details for the Mitsubishi Electric Mr Slim Outdoor Unit are as follows:

Mr Slim

Outdoor Unit Electrical Supply

(V/ph/Hz)

Maximum

Current per

phase (A)

Mitsubishi

recommended

BS88 Fuse Size

(A)

PUHZ-RP71VHA 230/1/50 19.0 20

PUHZ-RP100VHA 230/1/50 26.5 32

PUHZ-RP100YHA 415/3/50 8.0 10

PUHZ-RP140VHA 230/1/50 28.0 32

PUHZ-RP140YHA 415/3/50 11.0 16

PUHZ-RP200YHA 415/3/50 19.0 20

9901025-2 Page 10 of 21

SITE WIRING

ON/OFF

Ambient (Closed)

Heat (Open)

AUTO

1 2 3 4

2-core double insulated flex

(carries signal voltages)

2-core double

insulated flex

(carries 230v ac)

L1 L2 L3 N

Electrical Supply for

Outdoor Unit

400V/3ph/50Hz

or 230V/1ph/50Hz

A-CONTROL SUB

INTERFACE

PROCON

A32/M

not used

OPTIONAL LOW SPEED CONTROLLER

Local Electrical Supply for Defrost

Electric Heaters and Fans

PHV1000 = 7.8A per phase

PHV1500 = 12.7A per phase

PHV2000 = 15.7A per phase

400V/3ph/50Hz

If Defrost Electric Heating Elements

are not required disconnect neutral

wire from A2 and terminate wire safely

in auxiliary terminal 14NO.

L2 and L3 are not then needed

L1 is then 230V/1ph/50Hz

1.3A for PHV1000DX

1.8A for PHV1500DX

2.7A for PHV2000DX

1m unit 3 x 1.5kW = 4.5kW

1.5m unit 3 x 2.5kW = 7.5kW

2m unit 3 x 3.0kW = 9kW

WIRING DIAGRAM – PHV HEAT PUMP AIR CURTAIN

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Mitsubishi Electric Condizionatore d'aria

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PUZ-HA NHA Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric MXZ-3DM50VA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MCF-GA35VB-E1 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MXZ-4C36NAHZ Manuale operativo

Mitsubishi Electric

Mitsubishi Electric Mr. Slim SLZ-KA50VAQ2 Manuale utente

Mitsubishi Electric

Mitsubishi Electric SEZ-KD25 Manuale utente

Mitsubishi Electric

Mitsubishi Electric PUMY-P250YBM2-ER Manuale operativo

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PUHZ-SP125V Manuale utente

Mitsubishi Electric

Mitsubishi Electric PLP-6EAJ Manuale utente

Mitsubishi Electric

Mitsubishi Electric PVA-A12 Manuale utente

Mitsubishi Electric

Mitsubishi Electric PMFY Series Manuale operativo

Mitsubishi Electric

Mitsubishi Electric MSZ-FH25VE - E1 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PEAD-RP EA Manuale utente

Mitsubishi Electric

Mitsubishi Electric PLA-RP AA Manuale di istruzioni

Mitsubishi Electric

Mitsubishi Electric MU-GA50VB Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSY-D30NA Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSZ-BT20VG Manuale utente

Mitsubishi Electric

Mitsubishi Electric SEZ-KD25 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSZ-SF15VA-E1 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSZ-SF25VE2 Manuale utente

Mitsubishi Electric

Mitsubishi Electric PKFY-P VBM-E Manuale utente

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKA-M KA Series Manuale utente

Mitsubishi Electric

Mitsubishi Electric PSD-12-18 Manuale utente

Mitsubishi Electric

Mitsubishi Electric MUZ-EF VG Series Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
