MJ LED LIGHTNING MJ-1034A Manuale utente

10.Maintenance and Cleaning

The following points have to be considered during the inspection:

1. All screws for installing the devices or parts of the device have to be tightly connected

and must not be corroded.

2. There must not be any deformations on the housing, color lenses, fixations and

installation spots (ceiling, suspension, trussing).

3. Mechanically moved parts must not show any traces of wearing and must not rotate

with unbalances.

4. The electric power supply cables must not show any damage, material fatigue or

sediments.

Further instructions depending on the installation spot and usage have to be adhered by

a skilled installer and any safety problems have to be removed.

In order to make the lights in good condition and extend the life time, we suggest a

regular cleaning to the lights.

1) Clean the inside and outside lens each week to avoid the weakness of the lights due

to accumulation of dust.

2) Clean the fan each week.

3) A detailed electric check by approved electrical engineer each three month, make

sure that the circuit contacts are in good condition, prevent the poor contact of circuit

from overheating.

We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.

Never use alcohol or solvents.

There are no serviceable parts inside the device. Please refer to the instructions under

“Installation instructions”.

.11.

LED BEAM4 MOVING HEAD

MJ-1034A

User Manual

======PROFESSIONAL LED LIGHTING ========

Thank you for choosing our Mini LED moving head light. For the sake of

your safety, Please read and follow these instructions carefully and keep

this manual in a safe place for future reference.

11CH Mode

Channel Function DMX Value Description

Pan

0-255

0~540 degree

2 Tilt 0-255 0~270 degree

3 Strobe

0-15 Open Lighting

16-131 Strobe from slow to fast

132-139 Open lighting

140-181 Fast dark then slow light

182-189 Open lighting

190-231 Slow light then fast dark

232-239 Open lighting

240-247 Random strobe

248-255 Open lighting

4 led1 dimming 0-255 dimming from dark to bright

5 led2 dimming 0-255 dimming from dark to bright

6 led3 dimming 0-255 dimming from dark to bright

7 Led4 dimming 0-255 dimming from dark to bright

8 Total Dimming 0-255 Dimming from 0-100%

9 Lens Plate 0-127 0-360 degree position

128-191

Rotation clock from fast to slow

192-255 Rotation re clock from slow to fast

10 Color Plate

0-67 16 kinds color and half color

68-128 Color Plate position 360 degree

120-190 Rotation clock from fast to slow

191-193 Stop

194-255 Rotation re clock from slow to fast

11 Macro function

0-69 No Function

70-79 Dark activate when X/Y Rotation

80-89 Dark no-activate when X/Y Rotation

90-199

No Function

200-209 Reset

.10.

Unpacking

Thank you for choosing Super beam light . For your own safety, please read this

manual before installing the device. This manual covers the important information on

installation and applications. Please install and operate the fixture with following

instructions. Meanwhile, please keep this manual well for future needs.

Super beam light is made of a new type of high temperature strength of engineering

plastics and cast aluminum casing with nice outlook. The fixture is designed and

manufactured strictly following CE standards, complying with international standard

DMX512 protocol. It’s available independently controlled and linkable with each other for

operation. And it is applicable for large-scale live performances, theater, studio,

nightclubs and discos.

The adopts 4pcs 25 LEDs which features high brightness and stability. Please

carefully unpack it when you receive the fixture and check whether it is damaged during

the transportation. And please check whether the following items are included inside the

box:

Moving Head------------One XLR connector----One

Hanging Bracket-------One Power Cable-------One

User Manual------------One

.1.

Safety Instructions

This device has left the factory in perfect condition. In order to maintain this condition

and to ensure a safe operation, it is absolutely necessary for the user to follow the

safety instructions and warning notes written in this user manual.

If the device has been exposed to temperature changes due to environmental

changes, do not switch it on immediately. The arising condensation could damage the

device. Leave the device switched off until it has reached room temperature.

This device falls under protection-class I. Therefore it is essential that the device be

earthed.

The electric connection must carry out by qualified person.

The device shall only be used with rate voltage and frequency.

Make sure that the available voltage is not higher than stated at the end of this

manual.

Make sure the power cord is never crimped or damaged by sharp edges. If this would

be the case, replacement of the cable must be done by an authorized dealer.

Always disconnect from the mains, when the device is not in use or before cleaning it.

Only handle the power cord by the plug. Never pull out the plug by tugging the power

cord.

During initial start-up some smoke or smell may arise. This is a normal process and

does not necessarily mean that the device is defective, it should decrease gradually.

Please don't project the beam onto combustible substances.

Fixtures cannot be installed on combustible substances, keep more than 50cm

distance with wall for smooth air flow, so there should be no shelter for fans and

ventilation for heat radiation.

If the external flexible cable or cord of the luminaire was damaged, it shall

be exclusively replaced by the manufacturer or his service agent or a similar qualified

person in order to avoid a hazard.

.2.

9. DMX CHANNELS:

16CH Mode

Channel Function DMX Value Description

Pan

0-255

0~540 degree

Pan fine adjustment

0-255

16bit

Tilt

0-255

0~270 degree

Tilt fine adjustment

0-255

16bit

Pan/Tilt speed

0-255

Pan/Tilt speed from fast to slow

6 X/Y Auto run effect

0-15

No function

16-35

Auto run 1

36-55

Auto run 2

..........

.........

236-255

Auto run 12

6CH Effect Speed

0-255

From fast to slow

8 Lens motor

rotation(Beam)

0-127

0-360 degree position

128-191

Rotation clock from fast to slow

192-255

Rotation re clock from slow to fast

9 Color Plate

0-67

16 kinds color and half color

68-128

Color Plate position 360 degree

120-190

Rotation clock from fast to slow

191-193

Stop

194-255

Rotation re clock from slow to fast

10 Macro function

0-69

No Function

70-79

Dark activate when X/Y Rotation

80-89

Dark no-activate when X/Y Rotation

90-199

No Function

200-209

Reset

210-249

No Function

250-255

Random Sound Mode

Total Dimming

0-255

Total Dimming 0-100%

12 Strobe

0-15

Open Lighting

16-131

Strobe from slow to fast

132-139

Open lighting

140-181

Fast dark then slow light

182-189

Open lighting

190-231

Slow light then fast dark

232-239

Open lighting

240-247

Random strobe

248-255

Open lighting

led1 dimming

0-255

Linear dimming from dark to bright

led2 dimming

0-255

Linear dimming from dark to bright

led3 dimming

0-255

Linear dimming from dark to bright

Led4 dimming

0-255

Linear dimming from dark to bright

.9.

3. Operation Instructions

-The moving head is for beam light use.

-Don’t turn on the fixture if it’s been through severe temperature difference like after

transportation because it might damage the light due to the environment changes.

So make sure to operate the fixture until it is in normal temperature.

-This light should be keep away from strong shaking during any transportation or

movement.

-Don’t pull up the light by only the head, or it might cause damages to the

mechanical parts.

-Don’t expose the fixture in overheat, moisture or environment with too much dust

when installing it. And don’t lay any power cables on the floor. Or it might cause

electronic shock to the people.

-Make sure the installation place is in good safety condition before installing the

fixture.

-Make sure to put the safety chain and check whether the screws are screwed

properly when installing the fixture.

-Make sure the lens are in good condition. It’s recommended to replace the units if

there are any damages or severe scratch.

-Make sure the fixture is operated by qualified personnel who knows the fixture

before using.

-Keep the original packages if any second shipment is needed.

-Don’t try to change the fixtures without any instruction by the manufacturer or the

appointed repairing agencies.

-It is not in warranty range if there are any malfunctions from not following the user

manual to operate or any illegal operation, like shock short circuit, electronic shock,

lamp broke, etc.

.3.

8. Menu Instruction

DMX Address A001-A512

Channel Mode 11/16CH Choose

Show Mode Sound Mode/Auto Mode

Slave Mode Master/Slave Mode Choose

Black Out YES/NO Wait Mode

Sound State ON/OFF

Sound Sense 0-100

Pan Inverse YES/NO

Tit Inverse YES/NO

Back Light ON/OFF of display light

White Balance LED1234 dimming

Manual Test Pan,Tilt, LED1---4,Dimmer,Strobe

Auto Test Auto run

Fixture Time 0-9999 fixture used time

Firmware Version V104

Pro Defaults YES/NO

System Reset YES/NO

.8.

4. Specifications:

Voltage: AC100-240V 50-60Hz

Led source: 4pcs high brightness 25W white LEDs

Power: 130W Beam angle: 5-40°

Strobe: 1-25Hz/Second with various stroboscopic effects

Dimmer: 16 bit dimming system, smoothly without strobe

Pan: 540°+ fine Tilt: 250°+ fine

Color: RYB, colorful and symmetrical, with running water effect

Channel: 11/15 DMX channels

Control: DMX512/Master-slave/Auto/Sound activated

Function: 1. Strong beam light effect, beam angle is optional, beam light with macro

effect.

2. Each bulb is controllable, with racing light effect.

3. Intelligent fan control system, temperature auto detect system.

N.W: 7KG G.W: 8KG

Packing Size: 31*27*40 cm (1pc/CTN)

N.W: 16KG G.W: 17 KG

Packing Size: 57*33*43 cm (2pcs/CTN)

Installation instruction:

Cautions: For added protection mount the fixtures in areas outside walking paths,

seating areas, or in areas were the fixture might be reached by

unauthorized personnel.

Before mounting the fixture to any surface, make sure that the installation area can

hold a minimum point load of 10 times the device’s weight.

Fixture installation must always be secured with a secondary safety attachment, such

as an appropriate safety cable.

Never stand directly below the device when mounting, removing, or servicing the

fixture.

From a ceiling, or ser on a flat level surface (see illustration below0. Be sure the fixture

is kept at least 0.5 m away from any flammable materials.

Always use and install the supplied safety cable as a safety measure to prevent

accidental damage caused by the clamp fails.

.4.

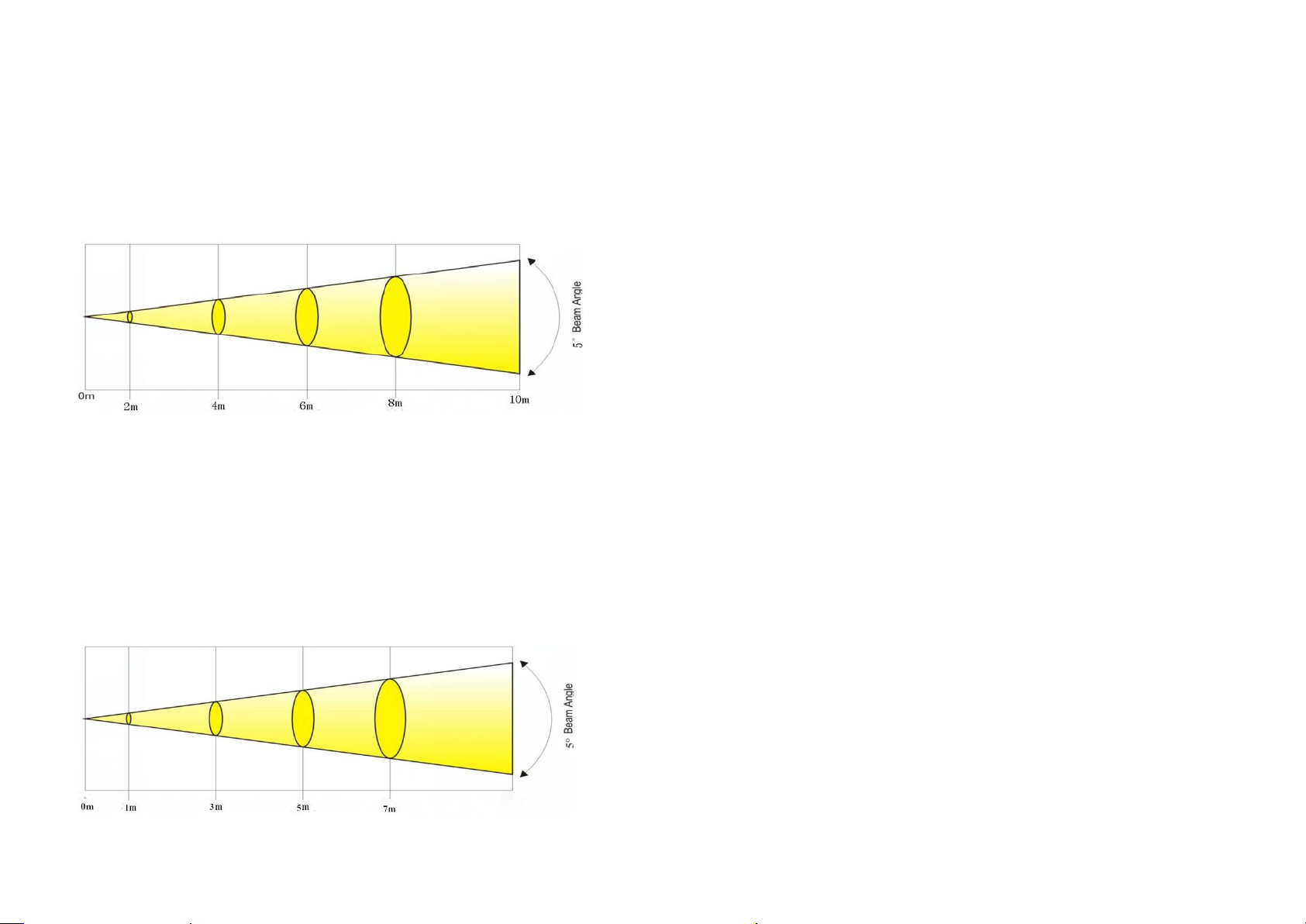

Photometric Data

Photometric Beam Angle Data

5° Beam Angle LUX

（

White

）

115800Lux@2m 32400Lux@4m 16000Lux@6 9200Lux@8m 6200Lux@10m

Photometric Beam Angle Data

5° Beam Angle LUX

（

RGBW

）

R: 11050 Lux@1m 4070 Lux@3m 15060 Lux@5m 830 Lux@7m

G: 2670 Lux@1m 9060 Lux@3m 3370 Lux@5m 1680 Lux@7m

B: 4480 Lux@1m 16060 Lux@3m 5360 Lux@5m 2660 Lux@7m

W: 11570 Lux@1m 53070 Lux@3m 19500 Lux@5m 10170 Lux@7m

.7.

Mounting points: Overhead mounting requires extensive experience, including

amongst others calculating working load limits, a fine knowledge of the installation

material being used, and periodic safety inspection of all installation material and the

fixture. If you lack these qualifications, do not attempt the installation yourself. Improper

installation can result in bodily injury.

Be sure to complete all rigging and installation procedures before connecting the main

power cord to the appropriate wall outlet.

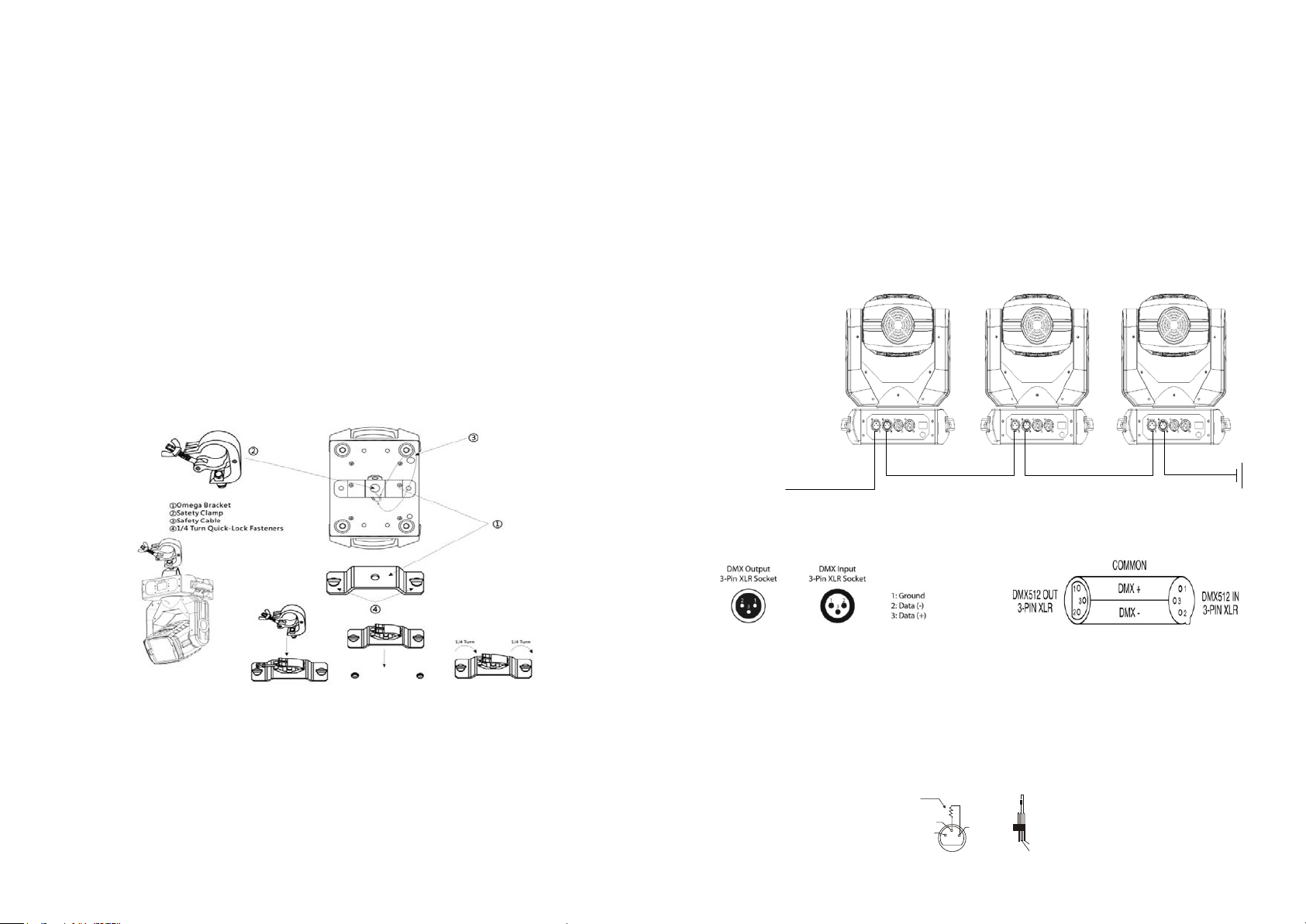

Clamp Mounting: The LED BEAM provides a unique mounting bracket assembly that

integrates the bottom of the base, the included “Omega Bracket,” and the safety cable

rigging point in one unit (see the illustration below). When mounting this fixture to truss

be sure to secure an appropriately rated clamp to the included omega bracket using a

M10 screw fitted through the center hole of the “omega bracket”. As an added safety

measure be sure to attached at least one properly rated safety cable to the fixture using

on of the safety cable rigging point integrated in the base assembly

Regardless of the rigging option you choose for your LED super beam, always be sure

to secure your fixture with a safety cable. The fixture provides a built-in rigging point for

a safety cable on the hanging bracket as illustrated above. Be sure to only use the

designated rigging point for the safety cable and never secure a safety cable to a

carrying handle.

.5.

6. DMX-512 control connections

Connect the provided XLR cable to the female 3-pin XLR output of your controller and

the other side to the male 3-pin XLR input of the moving head. You can chain multiple

Moving head together through serial linking. The cable needed should be two core,

screened cable with XLR input and output connectors. Please refer to the diagram

below.

DMX-512 connection with DMX terminator

CONTROLLER

For installations where the DMX cable has to run a long distance or is in an electrically

noisy environment, such as in a discotheque, it is recommended to use a DMX

terminator. This helps in preventing corruption of the digital control signal by electrical

noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected

between pins 2 and 3,which is then plugged into the output XLR socket of the last

fixture in the chain. Please see illustrations below.

PIN 3

PIN 2

120Ω

.6.

Indice

Altri manuali MJ LED LIGHTNING Attrezzatura di illuminazione

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3915 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1051 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3343A20W36DCW Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2037C Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3004 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2029E Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1350 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3114 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1018F Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2042CR Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-B380 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1057 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3615E Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1027A Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3126A Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3301B-6IN1 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009A Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2009A Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3372 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3001B-6IN1 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3072 Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012A Manuale utente

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010A-4IN1 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
