MK Diamond Products MK-770 EXP Manuale del sistema

MK-770 EXP TILE SAW

OWNERS MANUAL &

OPERATING INSTRUCTIONS

www.mkdiamond.com

Caution: Read all safety and operating instructions before

using this equipment.This owner manual MUST accompany

the equipment at all times.

03.2011Revision 205

Manual Part No. 160434

EXPLODED VIEW AND PARTS LIST MK-770EXP

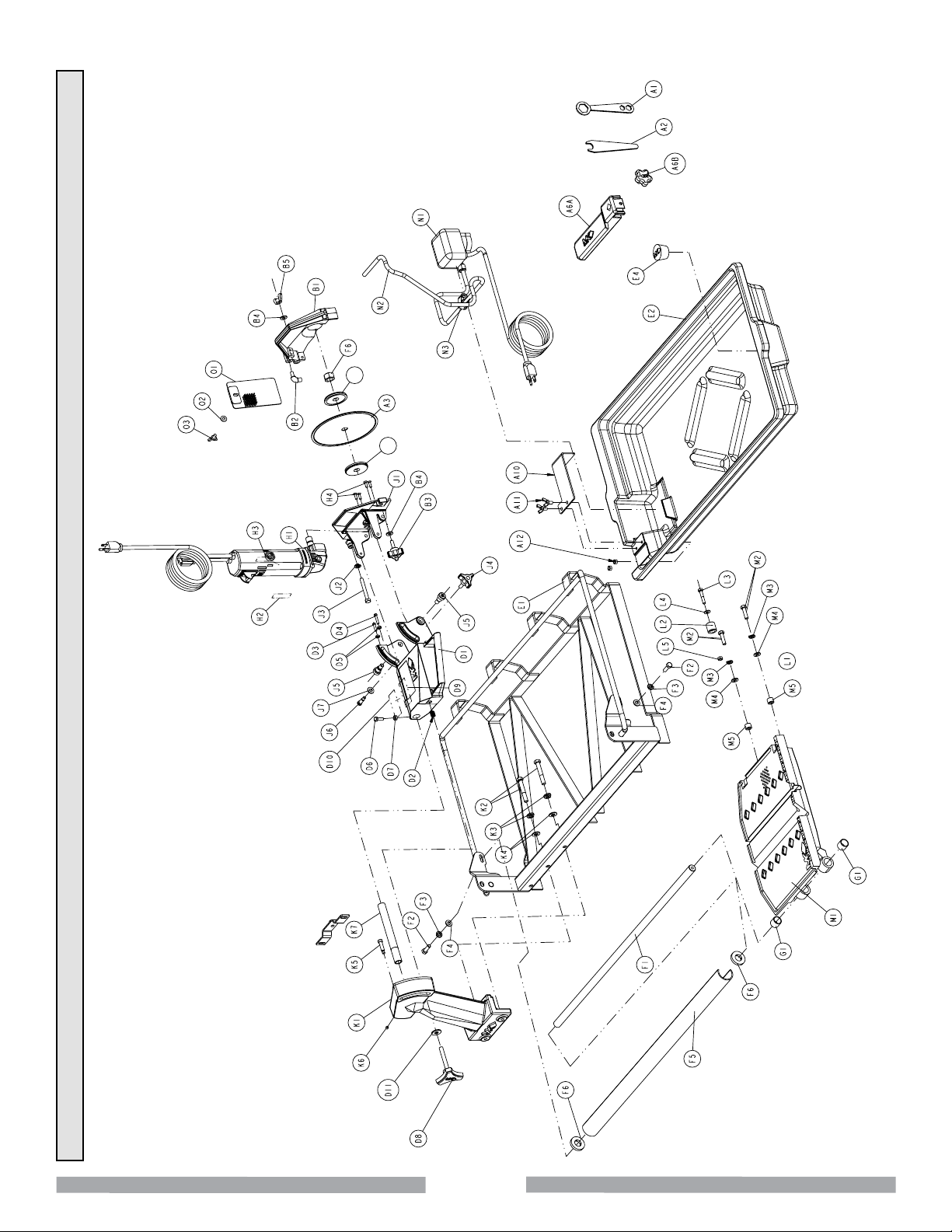

EXPLODED VIEW

MK-770 EXP PARTS LIST

Item Description Qty Part #

A Accessories 1 n/a

A1 Wrench, Blade Nut, 15/16 Boxed End 1 134684

A2 Wrench, Blade Shaft, 11/16 Open End 1 153450

A3 Blade, 7 x 5/8 1 -

A4 Owner’s Manual, 770EXP 1 160434

A5 Warranty Card 1 155037

A6 Assembly, Large Die Cast Rip Guide

A6A) Rip Guide (comp)

Rip Guide (raw)

A6B) Knob, Rubber (1/4-20x3/4)

n/a

159751

159751-RW

159428-1

A7 Carton, Accessory Pack 1 153366

A8 Sell Sheet, Tile Accessory 1 156915

A9 Clip, Table Lock, 50 deg 1 160331-3

A10 Clamp, Holding, Pump 1 162073

A11 Screw, Wing, 1/4-20x1/2 2 151888

A12 Nut, Hex, 1/4-20 2 151893

Table, Side (comp) - optional 1 160488

Table, Side (raw) 1 160485

Screw, Set, 10-32x3/8 - optional 2 160769

BAssembly, Blade Guard, 7” 1 154811-MK

B1 Guard, 7” Blade (comp)

Guard, 7” Blade (raw)

154811

154810

B2 Elbow, 1/8 MNPT X 1/4 BARB 90° Brass 1 154652

B3 Knob, Davies 1 151681

B4 Washer, 5/16 SAE Flat 2 151754

B5 Wing nut, 5/16-18 Nylock 1 151746

CCarton, MK-770 EXP 1 160433

C1 Carton, Outer (PCA# 3490003530) 1 160433-01

C2 Insert, Table Support (PCA# 3490003538) 1 160433-02

C3 Pad, Corner, Outer Carton (PCA# 3490003540 4 160433-03

C4 Insert, Outer Carton (PCA# 3490003531) 1 160433-04

C5 Insert, Accessory Pack (PCA# 3490003236, rev.A) 1 160044-03

C6 Divider, Cutting Head Carton (PCA# 3490003237, rev.A) 2 160044-01

C7 Carton, Cutting Head (PCA# 3490003234) 1 160044-05

C8 Divider, Cutting Head Carton (PCA# 3490003238, rev. A) 2 160044-02

C9 Pad, Carton, Cutting Head (PCA# 3490003355) 4 160044-08

DAssembly, Cutting Head 1 160042

D1 Cutting Head (Comp)

Cutting Head (Raw)

159937

159936

D2 Helicoil, 3/8-16x3/8 1 153486

D3 Screw, Slotted Pan Head, 10-32x3/4 1 151750

D4 Screw, Slotted Pan Head, 10-32x1 1 151751

D5 Nut, Hex 10-32 2 151749

D6 Screw, Hex Head, 1/4-20x3/4 1 152370

D7 Nut, Hex, 1/4-20 1 151893

D8 Knob, Tri Plastic 1 156770-04

D9 Label, Warning, Read Owner’s Manual 1 155806

D10 Tag, Serial Number, Blank 1 157500

D11 Washer, Flat, 3/8 1 101360

D12 Drive Screw, Round Head, #7 x 5/16 2 157849

E Frame 1 n/a

E1 Frame 1 153003

E2 Pan, Water 1 160121

E3 Clip, Cord, 1/4 Push Mount 2 157259

E4 Plug, Water Drain 1159529

E5 Strap, 9" Drain Plug 1 159530

PARTS LIST:

FAssembly, Guide Bar, 3/4 Dia 1 n/a

F1 Bar, Guide, 3/4 Dia

Steel, C1045 Chromerod, 3/4 Dia x 2.25’

134759

154185

F2 Screw, 5/16-18 X 1 Hex Head Cap 2 151743

F3 Washer, 5/16 Split Lock 2 151747

F4 Washer, 5/16 SAE Flat 2 151754

F5 Cover, Guide Bar 1 158403

F6 Spacer, Cover, Guide Bar 2 152393

GLinear Bearing, 3/4 Dia 1 n/a

G1 Bearing, Multi lube 2 152227

HAssembly, 120v Motor 1 n/a

H1 Motor, 120v 7.4A, Ryobi 1 156428-R

H2 Label, Caution, GFCI, 1 X 2 1/8 1 155678

H3 Label, Caution, Receptacle, 1 X 2 1/8 1 154822

H4 Screw, 10-32 X 5/8 Flat Head Phillips Cap 4 157554

H5 Flange, Blade 2 135830

H6 Nut, 5/8-18 1 135848

JAssembly, Motor Mount 1 160052

J1 Motor Mount (Comp)

Motor Mount (Raw)

159941

159940

J2 Washer, 5/16 Split Lock 1 151747

J3 Screw, 5/16-18 x 2-1/2 Hex Head Cap, Full Thread 1 151748

J4 Knob, Davies 1 151681

J5 Bolt, Shoulder, Soc Head, 1/2 x 1/2 2 151753

J6 Bolt, Shoulder, Soc Head, 5/16 x 5/8 1 152137

J7 Washer, 5/16 SAE Flat 1 151754

K Post 1 n/a

K1 Post (Comp)

Post (Raw)

160199

160198

K2 Screw, Hex Head, 3/8-16x2” 2 153485

K3 Washer, Lock, 3/8 2 150925

K4 Washer, Flat SAE, 3/8 2 150923

K5 Screw, Shoulder, Soc Head, 5/16x1 1 160045

K6 Screw, Soc Head Set, 1/4-20x1/4 1 157528

K7 Pin, Pivot 1 160271

LAssembly, Roller Wheel 1 151756

L1 Bracket, Roller Wheel 1 154021

L2 Wheel, Roller 1 151799

L3 Screw, ¼-20 X 1 ¼ Hex Head Cap 1 157145

L4 Washer, ¼ SAE Flat 1 151915

L5 Nut, ¼-20 Hex 1 151893

M Table n/a

M1 Table (Comp)

Table (Raw)

160268

159938

M2 Screw, 5/16-18 X 1 Hex Head Cap 2 151743

M3 Washer, 5/16 Split Lock 2 151747

M4 Washer, 5/16 SAE Flat 2 151754

M5 Spacer, 1/2x5/16x3/8 2 160264

NAssembly, 120v Water Pump 1 n/a

N1 Pump, Water, 120v 1 151271

N2 Hose, Vinyl, ¼ ID x 2’ 1 132951

N3 Clamp, Flow, ¼-1/2 1 154394

OAssembly, Splash Curtain 1 155901-MK

O1 Guard, Splash 1 160310

O2 Washer, ¼ SAE Flat 1 151915

O3 Wing screw, ¼-20 X ½ 1 151888

MK-770 EXP PARTS LIST (cont...)

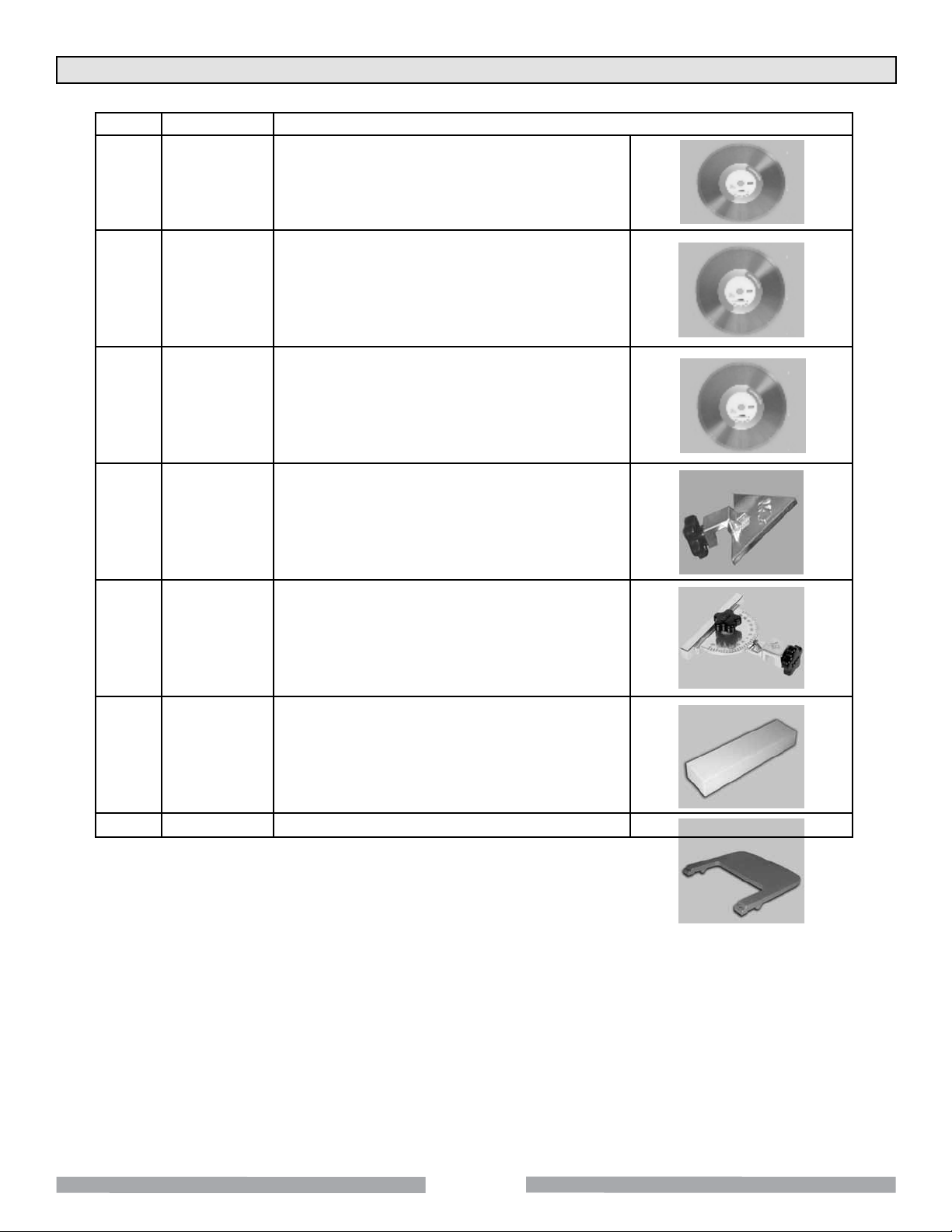

ACCESSORIES

ITEM NUMBER DESCRIPTION

1. 139295 MK-200, 7 x 5/8 Arbor

2. 139311 MK-215, 7 x 5/8 Arbor

3. 153293 MK-315, 7 x 5/8 Arbor

5. 134577-MK Dual 45° Flat Angle Guide

6. 134569-MK 90° Protractor

8. 152792 Dressing Stone

ACCESSORIES
