MK Martin 3200 Manuale di programmazione
3200
5000
6500
MK Martin Enterprise Inc.
3950 Stef er Rd Elmira, ON, Canada N3B 2Z3
Tel: 519-664-2752
Toll Free: 1-855-664-2752
Fax: 519-664-3695
E-mail: [email protected]
www.mkmartin.ca
Gravity Box Operator’s / Parts Manual
THIRD ANGLE PROJECTION
5
4
3
1
Folder
S:\Solidworks\Solidworks_Jonathan\Gravity Box\500 Gravity\2015 update\52260.SLDASM
DWG. NO.
REV
Model
SCALE 1:64
SHEET 2 OF2
DATE DRAWN
MATERIAL
52260
March-10-15 3:48:14 PM
DESCRIPTION
Gravity box 5000
S:\Solidworks\Solidworks_Jonathan\Gravity Box\500 Gravity\2015 update\
Weight(lbs.)
0
Width
Height
Length
0 0
3565.08
0
Blank Size
Unit of Measure
ITEM ID.
52260
Config ID
52260
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL
1/64
BEND
1.0
TWO PLACE DECIMAL
0.01"
THREE PLACE DECIMAL
0.002"
Notes
DO NOT SCALE DRAWING
REV: 18-1
Table of Contents
• Warranty ---------------------------------------------------------------------------------------------
• Registration -----------------------------------------------------------------------------------------
• Safety ------------------------------------------------------------------------------------------------
• Lighting Marking -----------------------------------------------------------------------------------
• Transportation -------------------------------------------------------------------------------------
• Decal Location -------------------------------------------------------------------------------------
• Assembly Instruction -----------------------------------------------------------------------------
• Operating -------------------------------------------------------------------------------------------
• Sign Off Form --------------------------------------------------------------------------------------
• 3200 Parts ------------------------------------------------------------------------------------------
• 5000 - 6500 Parts ---------------------------------------------------------------------------------
• Center Dump ---------------------------------------------------------------------------------------
• Low Extensions ------------------------------------------------------------------------------------
• High Extensions -----------------------------------------------------------------------------------
• Maintenance ----------------------------------------------------------------------------------------
• Notes -------------------------------------------------------------------------------------------------
• Safety Instructions --------------------------------------------------------------------------------
• Roll Tarp Operation -------------------------------------------------------------------------------
• Tarp installation ------------------------------------------------------------------------------------
• Tarp Parts -------------------------------------------------------------------------------------------
• Bolt Torque Chart ----------------------------------------------------------------------------------
2
3-4
5-6
7
7
8
9
10
11
12-13
14-15
16
17
18
19
20
21
21
22-25
26-27
28
2
Warranty
Effective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by
MK Martin Enterprise Inc.
to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or affect the replacement of defective parts, unless otherwise approved
by
MK Martin
. Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
misuse, negligence, accident, theft or re
use of improper or insuf cient fuel, uids or lubricants
use of after market parts or accessories, unless approved by
MK Martin
modi cations, alteration, tampering or improper repair
any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc.
shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Stef er Rd. Elmira Ontario, Canada N3B 2Z3 Email : [email protected] Fax : (519)-664-3695 Tel : (519)-664-2752
230817
3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above
4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Stef er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration
5

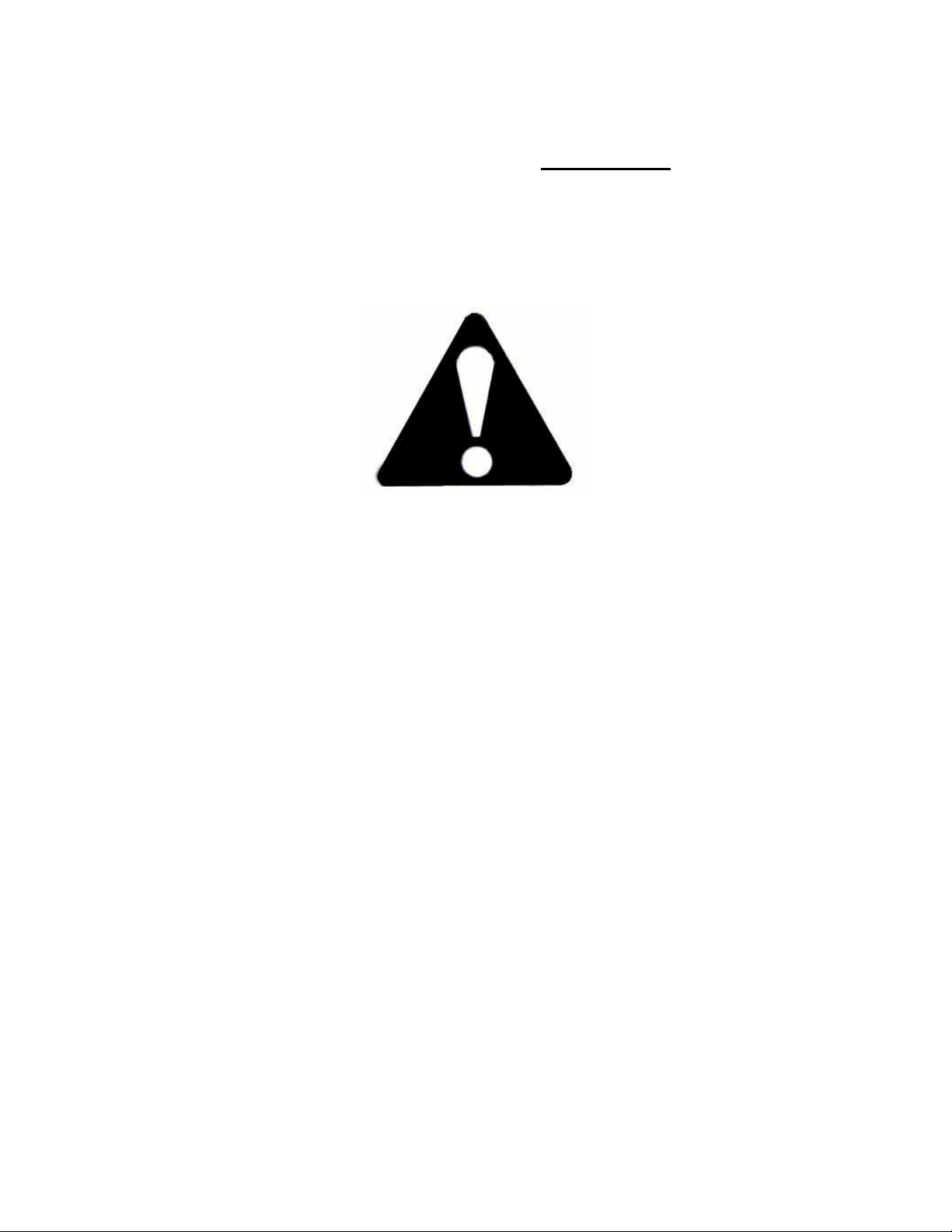

Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: 519-664-2752
3950 Stef er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: 519-664-3695
www.mkmartin.ca
6
Safety -- It’s in your interest!
Before using this equipment!
Be sure that you know the dangers and safety concerns while operating this equipment!
Understand that your safety and the safety of other persons are measured by how you service
and operate this machine.
The safety information given in this manual does not replace safety codes,federal,state or local
laws. Make certain your machine has the proper equipment as designed by local laws and reg-
ulations.
Warning!
Never allow anyone in, near, or on gravity box during transporting or unloading of grain. Moving
grain is dangerous and can cause entrapment, resulting in severe injury or death by suffocation.
Operator should be a responsible adult. Do not allow persons to operate or assemble this
unit until they have developed a thorough understanding of safety precautions and how it works.
Before unhooking the implement from the towing unit, be sure to properly block the wheels to
prevent the implement from moving.
Do not allow anyone to stand between tongue or hitch and towing vehicle when backing up.
Never overload the wagon. Overloading the wagon is dangerous and can cause extensive
damage. Never add more sideboards to the gravity box than is recommended, as the box is not
designed to carry the additional weight. Do not exceed the rating of the gear or load rating of
the tires, which ever is less.
If equipment has been altered in any way from original design, manufacturer does not accept
any liability for injury or warranty.
Do not wear loose-tting clothing which may catch moving parts.
Always wear protective clothing and substantial shoes.
It is recommended that hearing and eye protection be worn.
Never adjust, service, clean, or lubricate gravity box until all power is shut off.
Ensure that anybody present is clear before applying power to any machinery used in
conjunction with wagon box or when moving the box.
7
Lighting and Marking
It is the responsibility of the customer to know lighting and marking requirements of local high-
way authorities and to install and maintain equipment to provide compliance with regulations.
Add extra lights when transporting at night or during periods of limited visibility.
Inspect all the lights to ensure they are all working.
Inspect all the reectors and SMV emblem to ensure that they are all visible and in the proper
place.
Keep safety signs clean and legible at all times.
Transportation and Highway Operation
Travel Speeds should be such that complete control and machine stability is maintained at all
times. Where possible avoid operating near ditches, embankments and holes. Reduce speed
when turning, crossing slopes and rough, slick or muddy surfaces.
Check the owners manual of the running gear for operating and maintaining the equipment.
When towing always have the draw-pin locked and secured, always have the safety chain fas-
tened in the proper position.
When towing equipment without brakes.
Do Not travel at speeds over 32 km/h (20 mph); or when fully loaded weighs more than 1.5t
(3300 lbs) and more than 1 1/2 times the weight of the towing unit.
When towing equipment with brakes.
Do Not tow equipment with brakes over 40km/h (25 mph) when fully loaded, that weighs more
than 4 1/2 times the weight of the towing unit.
Be observant of bridge load ratings. Do not cross bridges rated lower than gross weight at which
you are operating.
If the Gravity Box has a tarp, ensure that it is secured before traveling on the road.
Safety -- It’s in your interest!
8

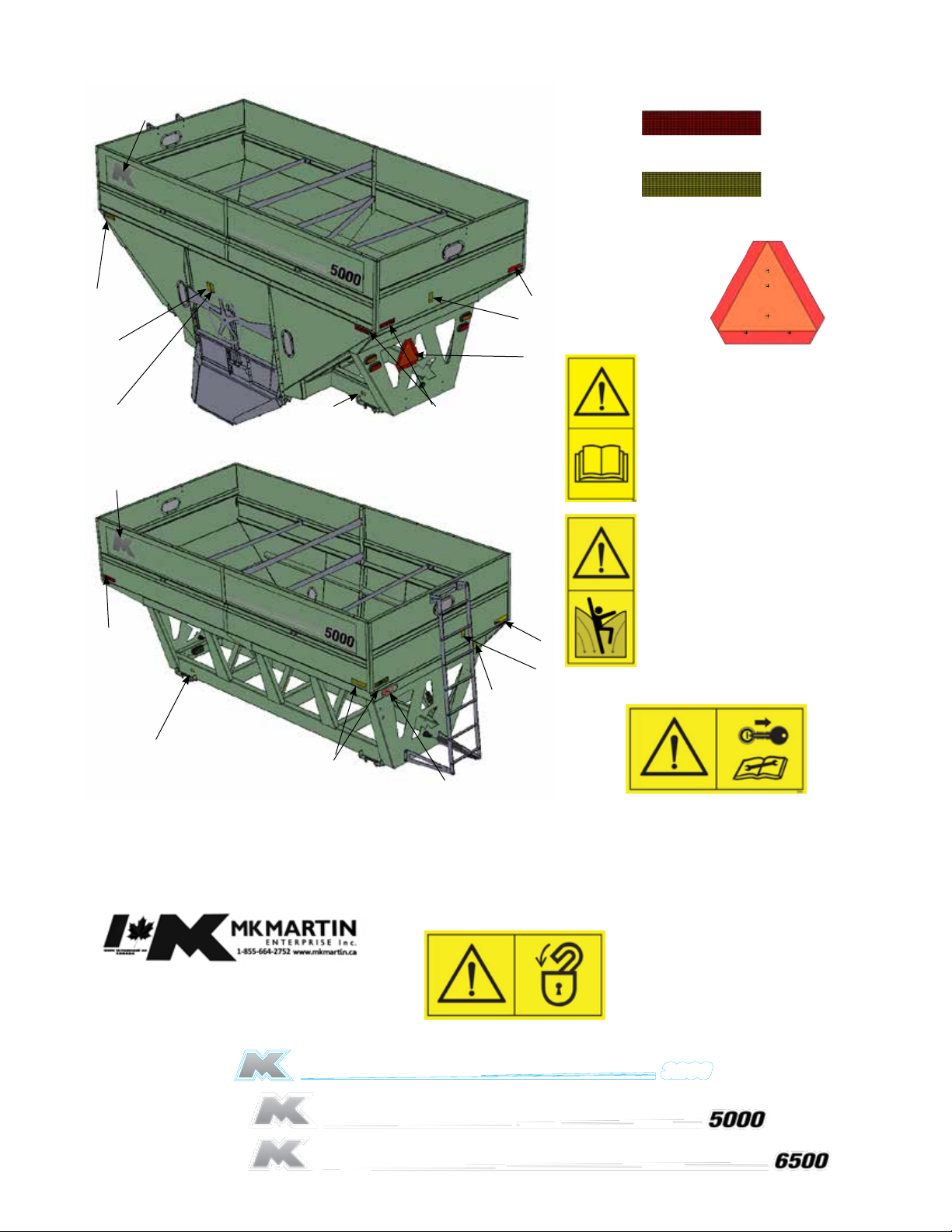

Decal Location
B
F
I
A -- Red Reector - Part # 24349
B -- Amber Reector - Part # 24350
B
C -- SMV Symbol - Part # smv
THIRD ANGLE PROJECTION
5
4
3
1
Folder
DWG. NO.
REV
Model
SCALE 1:4
SHEET 1 OF1
DATE DRAWN
MATERIAL
SMV
February-29-16 2:13:19 PM
DESCRIPTION
SMV Signs [AP101NS]
S:\Solidworks\Solidworks_Elo\Parts\
A
Weight(lbs.)
Width
Height
Length
Blank Size
Unit of Measure
ITEM ID.
smv
Config ID
Default
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL
1/64
BEND
1.0
TWO PLACE DECIMAL
0.01"
THREE PLACE DECIMAL
0.002"
Notes
DO NOT SCALE DRAWING
3200
I -- One ea side
Part # 24342
Part # 24340
Part # 53793
A
H -- One at end of box
Part # 53800
H
G
E
D -- Read operators manual
Part # F9
E -- Never enter box
containing grain. Flowing
grain traps and suffocates
victims
F -- Shut off engine and remove key
before preforming maintance or
repair work - Part # 226
G -- Secure box to running
gear
B
I
EGA
C
E
A
D
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali MK Martin Accessori per trattori
MK Martin
MK Martin MK Series Manuale di programmazione
MK Martin
MK Martin UTILUTY DUMPBOX 395 Manuale di programmazione
MK Martin
MK Martin Pulsar Wing Manuale di programmazione
MK Martin
MK Martin AXIS 4 Manuale di programmazione
MK Martin
MK Martin LAND LEVELER Manuale di programmazione
MK Martin
MK Martin TRACK CURRY Manuale di programmazione
