MOA GS513 Manuale utente

Food Processor

Instruction Manual

English / Nederlands / Deutsch / Français

www.moacolors.com

Food Processor - English manual 2

BEFORE USE

Before use, please read this manual carefully.

Only connect the appliance to an earthed wall socket.

This appliance is for household use only. When using electrical

appliances, basic safety precautions should always be followed to

avoid res, electric shocks, burns, or other injuries and damage. Read

these operating and safety instructions carefully.

IMPORTANT SAFEGUARDS (1/2)

1. Carefully read and save all instructions provided.

2. Ensure that the supply voltage matches the rated voltage specied

for this product.

3. Remember to unplug the cord from the outlet when the product is not

in use, before handling any parts, and before cleaning.

4. Before using the food processor, inspect the cord, plug, and switch.

If any part is damaged, do not use it. Instead, contact our customer

service. Avoid attempting repairs yourself.

5. Avoid allowing the cord to hang over the edge of a table or counter,

and keep it away from hot surfaces.

6. Always place the product on a smooth and stable worktable surface

before operating it.

7. Never touch the plug with wet hands. Hold the plug when inserting

or removing it from the outlet. Do not pull on the power cord.

8. Do not immerse the main unit in water for cleaning. Instead, use

a damp cloth or sponge to wipe the base, control panel, and cord,

ensuring protection against the risk of electrical shock.

9. Keep your hands and utensils away from the moving blade and disc

while processing food to minimize the risk of severe personal injury

and/or damage to the food processor.

Food Processor - English manual 3

IMPORTANT SAFEGUARDS (2/2)

10. Only use the original spare parts provided by the manufacturer.

Do not use any alternative parts or components. When the machine is

running, avoid placing your eyes close to the feeding tube to prevent

injuries.

11. If the power cord is damaged, have it replaced by manufacturing

technicians, the Service Department, or a similar professional

maintenance department to prevent any injuries.

12. Always disconnect the power supply before disassembling or

adjusting any parts of the components.

13. This product is not a toy. Please keep it out of reach of children.

14. This product should not be used by individuals with sensory

or visual disabilities, or those lacking experience and knowledge

(including children).

15. This product is intended for household use only and is not suitable

for commercial purposes.

16. Never leave young children unattended while using this product.

17. Store the product in a cool, dry place away from direct sunlight.

Food Processor - English manual 4

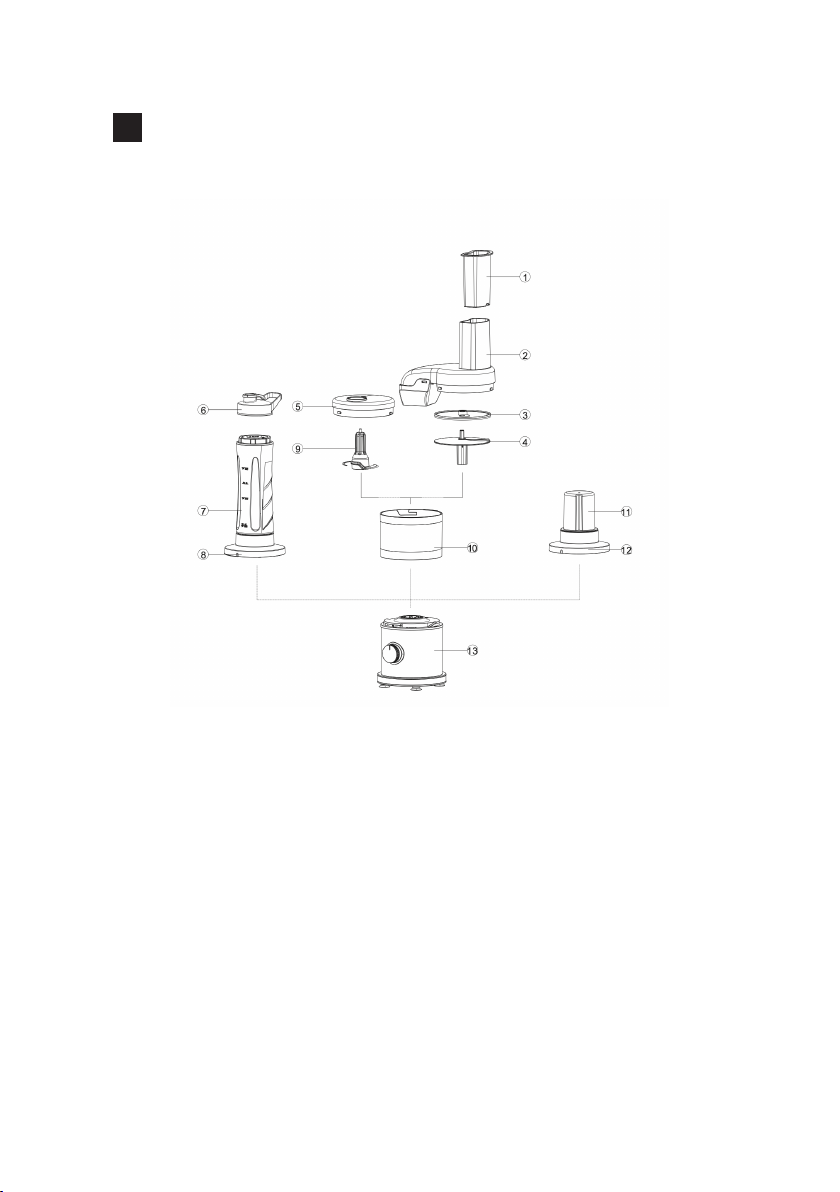

PARTS DESCRIPTION & POSITION

1. Pushers

2. Top cover

3. SS disc

4. Plastic disc

5. Chopper cover

6. Spill-Proof Drinking Lid

7. Blender bottle

8. Blender blade base

9. SS blade

10. Chopper bowl

11. Grinder jar

12. Grinder blade base

13. Base

Food Processor - English manual 5

TECHNICAL DATA

Model MOA GS513

Voltage 220V

Frequency 50Hz

Power 400W

Capability 500ml

Speed blender:18000~21000 chopper:3000~3500

CIRCUIT WIRING DIAGRAM

Food Processor - English manual 6

HOW TO USE

Ingredients such as minced meat, peanuts, and radishes can be

processed using the chopper blade (refer to g. 1). This blade is

designed to break down various types of meat, vegetables, and kernels

like peanuts and almonds. However, please avoid using hard objects

such as bones or extremely hard nuts that are difcult to cut or require

foaming.

To operate the chopper, follow these steps:

1. Assemble the components shown in the gure below.

2. Cut 200g of boneless, tendon-free, and fat-free meat into

20x20x20mm pieces.

3. Place the chopped meat directly into a cup using the chopping knife.

Remember not to exceed 250 grams of meat at a time.

4. Plug in the power cord and adjust the knob to the II setting.

5. Let the chopper work for 10 to 20 seconds, making sure not to

exceed 60 seconds of continuous operation. If you need to chop more

meat, take a 30-second break before resuming.

6. Important: Do not open the chopper cover until the blade inside the

rear cup has stopped rotating.

Food Processor - English manual 7

For shredding and slicing tasks (refer to g. 2), use the

following instructions:

1. The thin slicing and julienne discs are primarily used for slicing

various fruits and vegetables like carrots, radishes, potatoes, green

melons, and celery.

2. Secure the cup onto the main machine seat by turning it clockwise.

Then, insert the rotating disc into the cup, ensuring that the selected

blade faces up and is pressed down rmly.

3. Cover the cup with the lid. Plug in the power cord and set the knob

to the I setting.

4. Place the fruits and vegetables to be cut into the top feed of the cover

and use the pusher to guide them. Remember not to exceed 1 minute

of continuous operation. If you need to cut more vegetables, take a

30-second break before resuming.

5. Note: When using the stainless steel disc, make sure it is correctly

positioned in the chopper jar and laid at. When securing the cup

cover, ensure it is tightly sealed by twisting it.

Food Processor - English manual 8

Grinder (g 3):

The grinder is designed for grinding dry foods into a ne powder, such

as coffee beans, dried soybeans, pepper, and more. Here’s how to use

it:

1. Place approximately 50g of soybeans into the grinding cup (do not

exceed the maximum capacity indicated on the scale).

2. Screw the middle cup knife holder clockwise onto the main machine.

3. Plug in the power cord and adjust the knob to the II section.

4. Grind the soybeans for 30-40 seconds. Avoid grinding for more than

60 seconds. Allow at least 30 seconds of interval between each use.

5. After grinding, rotate the cup counterclockwise and pour out the

powdered food.

Note:

• If the grinder blade doesn’t come into contact with the food and

remains idle, immediately stop the grinder, disconnect the power

supply, and remove the cup components. Loosen the food and

repeat the grinding process.

• At the end of your grinding session, make sure to remove the

cup from the grinder base only when the motor has completely

stopped. Then, rotate the grinder jar counterclockwise and

separate the cup holder from the transparent cup to retrieve the

processed food.

Food Processor - English manual 9

Blender bottle (g 4):

The blender bottle is designed for mixing fruits, vegetables, and other

ingredients. Follow these steps to use it effectively:

1. Cut fruits, vegetables, etc. into 2cm x 2cm pieces.

2. Place the cut food into the mixing glass.

3. Add the desired amount of water, juice, milk, honey, or other spices.

4. Rotate the blender blade base counterclockwise onto the cup body

and tighten it securely.

5. Attach the blender with the food onto the main machine

counterclockwise (refer to the instructional pattern).

6. Use the knob switch to select the motor speed:

• Use the I section or the P section for multiple cycles to mix liquid

food (e.g., milk, sugar, juice).

• Use the II section for blending hard foods (e.g., carrots, apples,

pears, etc.).

7. Blending time:

• Half cup capacity: 30 to 60 seconds.

• Full max capacity: Use 60 to 90 seconds.

• Avoid continuous blending for more than 2 minutes. Allow at

least 1 minute of interval between each use. If you have blended

continuously for three cycles, stop and let the blender cool for 25

minutes before using it again.

8. Once the motor has stopped running, rotate the mixing cup

counterclockwise to detach it from the main engine and pour out the

contents.

Food Processor - English manual 10

Note:

• To prevent food from overowing during blending, ensure that the

total capacity of liquid in the mixing cup does not exceed the max

capacity indicated.

• When using the blender continuously, work for 2 minutes and rest

for 1 minute. If you have used it continuously for three cycles, stop

using it, wait for 25 minutes to let it cool down, and then resume.

• Avoid blending boiling liquids (the temperature of the liquid food

should not exceed 45°C).

• Do not operate the blender without any food or liquid inside the

mixing cup.

• It is not recommended to blend bones or excessively hard foods.
