USER MANUAL

Mobeye®WaterGuard

CM2300

Water leakage sensor

SW version 1.n

Attention! Very important

This user manual contains important guidelines for the installation and usage of the Mobeye® device

as described in this manual. Please read these thoroughly before you start using the Mobeye® device!

In case of damage caused by disregarding the guidelines, the warranty expires.

The user must regularly check the proper functioning of the device. The manufacturer cannot be held

liable for any damage caused by any incorrect use or incorrect functioning of the Mobeye® device.

Safety guidelines

• The permitted ambient temperature during operation may not be exceeded (not lower than -10°C

and not higher than 50°C).

• The device is intended for use in dry and clean places.

• Protect the device from moisture, heat and water splashing.

• The guidelines for the battery usage must be regarded.

• Do not expose the device to strong vibrations.

• Do not let it fall from height.

• Do not use in an environment where any inflammable gases, vapors or dust are present or could be

present.

• The repairs of the device may only be carried out by people, trained for Mobeye®repair.

• In case the device must be repaired, only original replacement components may be used. The use of

different parts may lead to damage of the Mobeye®device.

Use in accordance with the regulation

The use of this device in accordance with the regulation is sending SMS text messages and making

telephone calls after an alarm situation. Other usages are not permitted.

Battery recycling

CR123 batteries, as used in the Mobeye WaterGuard, are classified as non-hazardous waste and can

be recycled. Please take empty batteries to a nearest collection point.

CONTENT

1. General description 3

2. Getting started 4

2.1 Place a SIM card 4

2.2 Connect the water sensor to the unit 4

2.3 Place the batteries 4

2.4 Enter the program mode 4

2.5 Program at least one telephone number 5

2.6 Switching on/off 5

3. Use of inputs and external power supply 6

3.1 Using the input(s) 6

3.2 Using external power 6

4. Extended options 7

4.1 Program mode 7

4.2 The security code 7

4.3 Programming the settings by SMS 7

4.4 Possible General settings 8

4.4.1 Phone numbers 8

4.4.2 Identification text 8

4.4.3 Alarm text 8

4.4.4 Alarm notification type: SMS or SMS + call 8

4.4.5 Input type 8

4.4.6 Input delay time 9

4.4.7 Inactive time 9

4.4.8 Alarm repeat time 9

4.4.9 Test SMS text message 9

4.4.10 Power failure SMS message 9

4.5 List of SMS commands for configuration 10

4.6 Reset of system 10

5. Request overview of the settings and status 11

5.1 Status request 11

5.2 Overview general settings 11

5.3 Overview phone numbers 11

6. Technical messages and status feedback 12

1. GENERAL DESCRIPTION

The Mobeye WaterGuard is a battery operated GSM module used to send out an alarm after

detection of a water based fluid, after a triggered input or - if external power supply is used- after

a power failure. It is also possible to monitor the water level, in such a way that the Mobeye

WaterGuard detects the absence of water.

The Mobeye WaterGuard is pre-programmed with standard action-reaction patterns. To change

this behaviour please refer to chapter 4.

The factory settings of the Mobeye WaterGuard cause following reactions:

- When the Mobeye WaterGuard detects water, it sends an alarm SMS text message and calls to

the phone numbers as programmed. The SMS message contains the text ‘Mobeye Water

alarm.

- As soon as no water is detected anymore, an SMS text message is sent to the set telephone

numbers containing the text ‘Mobeye Water Level OK’.

- In case one of the inputs is activated by a sensor, the Mobeye WaterGuard sends an alarm

SMS text message and calls to the phone numbers as programmed by the user.

- In case the water sensor and/or the inputs remain in the alarm status, the Mobeye WaterGuard

repeats sending the SMS alarm message every four hours.

- In case the batteries need to be replaced, the Mobeye WaterGuard sends a ‘battery low’ SMS

text message to the administrator.

- In case an external power supply is used and a power failure occurs, the Mobeye WaterGuard

sends a ‘power failure’ SMS text message to the administrator. In case the power is restored,

the Mobeye WaterGuard sends a ‘power restored’SMS text message to the administrator.

2. GETTING STARTED

To get started with the Mobeye WaterGuard at least the following steps need to be taken in

following order:

1. Place SIM card (with PIN code 0000 or without PIN code)

2. Connect the water sensor to the unit

3. Place the batteries

4. Enter the program mode

5. Program at least one telephone number (administrators’ number)

6. Arming/disarming the system

These steps are further explained in this chapter. After these steps the module will be

operational.

2.1 PLACE A SIM CARD

Open the enclosure with the 4 screws and insert a SIM card into the module. Push the black

cover outward slightly to open the holder. Before installing the SIM card should have PIN code

"0000", or be free of a PIN code.

(A PIN code can be changed or removed by putting the SIM card in a mobile phone and change or remove

the PIN in the security menu.)

NB: make sure the SIM card is inserted before the batteries are placed. In case of a SIM card

change, please first remove the batteries (and remove any other external power supply).

2.2 CONNECT THE WATER SENSOR TO THE UNIT

Plug the external water sensor into the metal socket and press it firmly.

2.3 PLACE THE BATTERIES

Place the two batteries (CR123) in the module. Use the +/- indication for the correct placement.

The green LED will flash to indicate that the module is not configured (at least one telephone

number should be programmed).

2.4 ENTER THE PROGRAM MODE

Directly after placing the batteries, the Mobeye WaterGuard switches to the program mode. First

the GSM module establishes network connection. During this time the LED flashes 2 sec. on/1

sec. off. Within 10-30 seconds the connection is established and the status LED starts flashing 1

sec. on/1 sec. off (or ‘on’ in case the first telephone number has been configured).

The Mobeye WaterGuard returns to the program mode by pressing the on/off button during 5

seconds, until the LED starts flashing (or turns to ‘on’).

As long as the unit is in the program mode, the status LED is on (or flashing 1 sec. on/1 sec. off if

the module has no configuration). During the first 3 minutes, the GSM module remains open,

ready to receive SMS commands. After 3 minutes a time-out occurs and the GSM module

switches off in order to save the batteries. The unit returns to the low power operational mode.

2.5 PROGRAM AT LEAST ONE TELEPHONE NUMBER

The Mobeye WaterGuard is able to send messages up to 5 telephone numbers. The first

telephone number belongs to the administrator. Technical messages (like “battery low”) are sent

to the administrator only. Without the administrators’phone number, the Mobeye WaterGuard

cannot not function.

When the WaterGuard is in initial (factory) status and the batteries are placed (so the LED is

flashing), the administrators’number is programmed by calling the telephone number of the

Mobeye WaterGuard using the administrators’ phone. The unit will recognize this number and

store it as administrator (telephone number 1). The administrator will receive a confirmation SMS

text message including the security code. This code is needed to program the other settings in

the unit.

NB: for this way of programming the number recognition in the administrator’s phone must be

‘on’. To program or change the administrators’ number by SMS command, please refer to 4.4.1.

2.6 SWITCHING ON/OFF

After the previous steps, the Mobeye WaterGuard is ready for use.

It is armed (switched on) automatically. The green LED blinks once in 3 seconds.

In order to switch off (disarm) the Mobeye WaterGuard:

- Press the on/ off button at the upper side for 1 second. The green LED switches off to indicate

the armed status.

In order to switch on (arm) the Mobeye WaterGuard:

- Press the on/ off button at the upper side for 1 second. The green LED blinks once in 3 seconds

(or permanently in case of an external power supply) to indicate the armed status.

+ -

3. USE OF INPUTS AND EXTERNAL POWER SUPPLY

3.1 USING THE INPUT(S)

It is possible to connect external sensors to the inputs. As a standard reaction after a triggered

input, the Mobeye WaterGuard sends an SMS text message to the preset numbers and calls

these numbers.

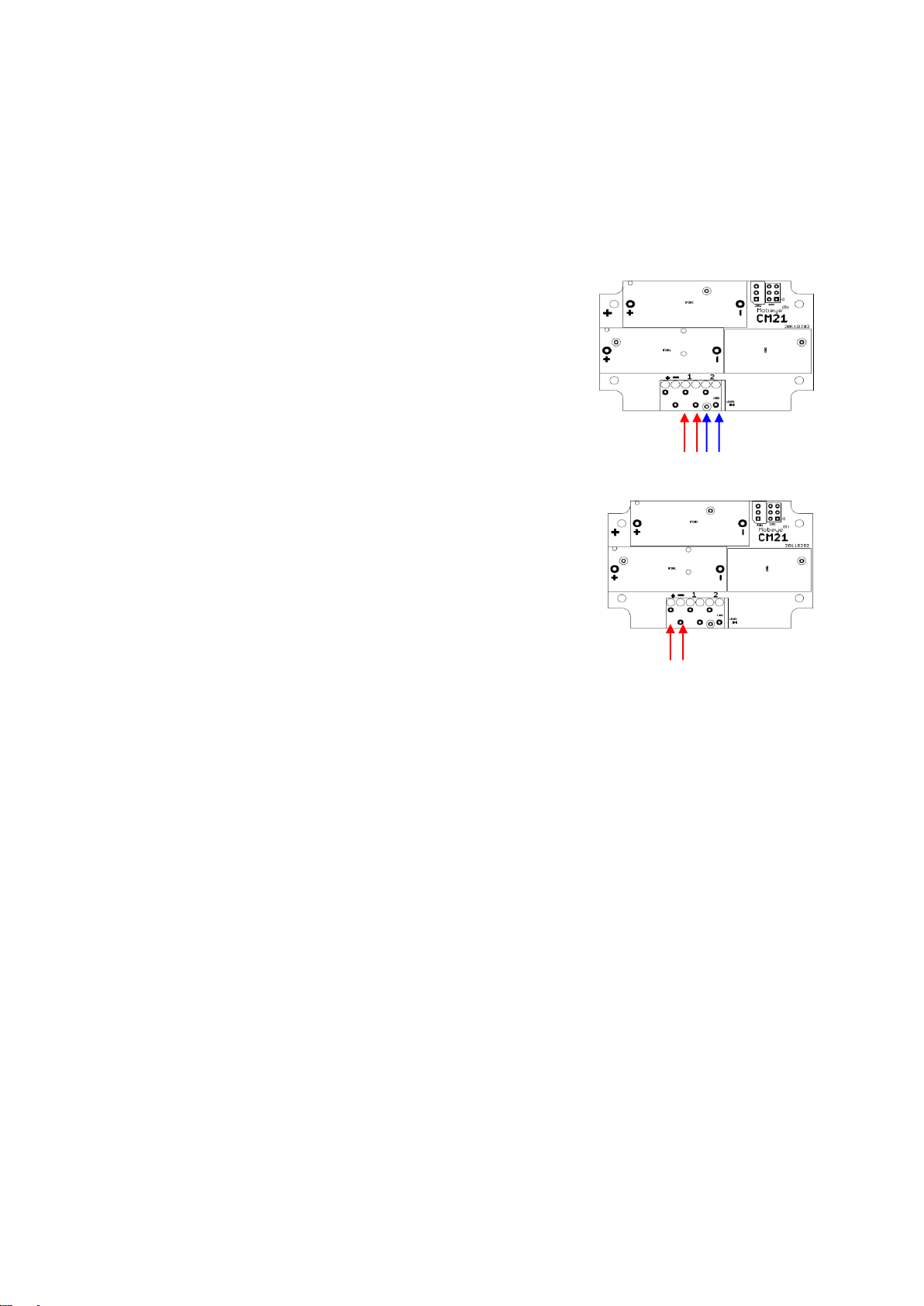

Insert the 2 wires of an external sensor through the hole of the enclosure to the inside part and

next in the two connectors of input 1 (press on the green pins for connecting the wires). It does

not matter which wire is connected to which connector. If necessary the wires can be extended

up to 5 meters using appropriate wire material.

When using a second input, connect this to input 2.

As default the inputs are programmed as Normally Open (NO)

contacts. This means the inputs are triggered in case the input is

closed during at least 1 second. In case the contact should be

Normally Closed (NC), please refer to paragraph 4.4.5. In case a

sensor should be activated shorter or longer before evoking an

alarm, please refer to 4.4.6.

3.2 USING EXTERNAL POWER

Although the Mobeye WaterGuard is designed to run on batteries,

it is possible to use an external power supply. In this mode the

module is always in connection with the GSM network and

therefore always in program mode. In case the power fails, the

batteries take over the functioning and the administrator is

informed by an SMS text message. The module continues

operating albeit in the low power mode. This means the GSM

module switches off and only establishes network connection in

case it needs to send out an alarm, test message or battery low

alert.

Connect the external power adapter (or any other regulated

12VDC power supply) to the power input of the connector (press

on the green pins for connecting the wires):

- V+ (black lead with white stripe) to “+”

- Ground (black lead) to “-“

4. EXTENDED OPTIONS

To program the Mobeye WaterGuard, the GSM module must have network connection. In case

only batteries are used, first switch the unit to the program mode. Next send SMS commands for

the configuration.

All settings are stored and will be kept in the unit, even in case the power supplies are removed.

4.1 PROGRAM MODE

Directly after placing the batteries, the Mobeye WaterGuard switches to the program mode. First

the GSM module establishes network connection. During this time the LED flashes 2 sec. on/1

sec. off. Within 10-30 seconds the connection is established and the status LED starts flashing 1

sec. on/1 sec. off (or ‘on’ in case the first telephone number has been configured).

The Mobeye WaterGuard returns to the program mode by pressing the on/off button during 5

seconds, until the LED starts flashing (or turns to ‘on’).

As long as the unit is in the program mode, the status LED is on (or flashing 1 sec. on/1 sec. off in

case the module has no configuration). During the first 3 minutes the GSM module remains open,

ready to receive SMS commands. After 3 minutes a time-out occurs and the GSM module

switches off in order to save the batteries. The unit returns to the low power operational mode. In

case the unit is connected to an external power supply, the WaterGuard has network connection

all the time and the unit is in program mode all the time.

The program mode is interrupted by pressing the on/off button during one second until the LED

switches off. The unit is switched off completely (disarmed).

4.2 THE SECURITY CODE

For configuration activities the security code of the Mobeye WaterGuard must be used. The initial

security code is ‘1111’. In this manual this code is referred to as <CODE>.

4.3 PROGRAMMING THE SETTINGS BY SMS

The settings are programmed by SMS text messages.

- Be sure the WaterGuard is in program mode (please refer to 4.1).

- Send an SMS message with following content:

- Do not forget the space character between <PIN code> and <command>.

- The commands are case sensitive.

- Several commands may be combined in one SMS message (with a maximum of 160

characters) by placing a # between the commands.

The green LED blinks 3 times to indicate the successful configuration. In case of an incorrect

command, the LED flashes 5 times.

In 4.5 the complete scheme with SMS commands is listed

4.4 POSSIBLE GENERAL SETTINGS

This paragraph describes the general settings for the WaterGuard.

4.4.1 Phone numbers

The Mobeye WaterGuard is able to send alarm messages up to 5 phone numbers. The first

telephone number (TEL1) belongs to the administrator. Only this number receives all system

messages. The other phone numbers (including the administrator) only get the alarm messages.

To set or change telephone numbers:

SMS command 1st telephone number: <CODE> TEL1:<tel. number>

SMS command 2nd telephone number: <CODE> TEL2:<tel. number>

.... similar for TEL3...TEL5

To delete telephone numbers:

SMS command delete 1st telephone number: <CODE> DEL1

.... similar for DEL2...DEL5

In case a foreign number needs to be entered start with 00 follow by the country code (e.g.

0031612345678).

4.4.2 Identification text

It is possible to add a standard identification text (NAME) to all messages sent out by the Mobeye

WaterGuard. The alarm messages are a combination of the name and the alarm text. A user

defined identification has a length of maximum 20 characters. The default identification text is

‘Mobeye’.

SMS command identification text: <CODE> NAME:<free text>

4.4.3 Alarm text

Unique alarm texts can be programmed into the Mobeye WaterGuard. User defined texts have a

maximum length of 20 characters.

Following default texts are programmed:

Water alarm <TEXT1> : Water alarm

Water level restored <TEXT2> : Water level OK

Triggered input 1 <TEXT3> : Alarm 1

Triggered input 2 <TEXT4> : Alarm 2

SMS commands text 1: <CODE> TEXT1:<free text>

SMS commands text 2: <CODE> TEXT2:<free text>

.... similar for TEXT3 and TEXT4

4.4.4 Alarm notification type: SMS or SMS + call

As default behaviour, after an activated input the Mobeye WaterGuard notifies by SMS text

message followed by a telephone call (beep signal). The combination of SMS text and the call

increases the chance of getting the attention of the contact persons. It is possible to disable the

call (OFF), so that only an SMS message will be sent. The default alarm notification type is ON

(SMS + call).

SMS command alarm notification type: <CODE> CALL:xxx

4.4.5 Input type

As default behaviour the Mobeye WaterGuard sends out an alarm after detection of a water

based fluid. In case the water level in a tank should be monitored, the WaterGuard needs to send

out the alarm as soon as the sensor detects the absence of water. As default the input type IN3 is

set to NO (normally open); for alarming the absence of water, IN3 needs to be changed to NC

(normally closed).

SMS command input type input 3: <CODE> TYPEIN3:xx

The input types IN1 and IN2 define the character of the additional inputs IN1 and IN2. This can be

Normally Open (NO) or Normally Closed (NC). In case an input is set to NO, the alarm will be

triggered as soon as the terminals of the input are closed. If the input is set to NC, the alarm is

triggered in case the connection between the input terminals is broken. The default input type is

set to NO.

SMS command input type input 1: <CODE> TYPEIN1:xx

SMS command input type input 2: <CODE> TYPEIN2:xx

4.4.6 Input delay time

The input delay time defines the time that the input are triggered before an alarm is initiated. If the

input returns to the non-alarm status within the delay time, no alarm is sent. The time can be set

between 0 and 999 seconds.

As default, the input delay time is set to 1 second.

SMS command alarm delay input 1: <CODE> DELAY1:xxx

SMS command alarm delay input 2: <CODE> DELAY2:xxx

SMS command alarm delay water sensor: <CODE> DELAY3:xxx

4.4.7 Inactive time

The “inactive time” defines the time input 1 or input 2 is not active after an activation. In case the

time is set to “0” (minutes), the input is active again immediately after returning to the non-alarm

status. In case the time is set to e.g. 30 minutes, the input remains inactive for the first 30

minutes. In case the input is again (or still) activated after these 30 minutes, a new alarm

message is sent. The time can be set between 0 and 60 minutes. As default, the inactive time is

set to “0”.

SMS command inactive time input 1: <CODE> INACTIVEIN1:xx

SMS command inactive time input 2: <CODE> INACTIVEIN2:xx

SMS command inactive time Water sensor: <CODE> INACTIVEIN3:xx

4.4.8 Alarm repeat time

In order to emphasize the urgency of the alarm messages, all alarms can be repeated. As long as

the alarm status has not returned to the inactive status, the SMS alarm will be repeated after the

‘alarm repeat time’. The time can be set between 0 and 24 hours. As default the alarm repeat

time is set to 4 hour.

SMS command alarm repeat time: <CODE> REPEAT:xx

4.4.9 Test SMS text message

The Mobeye WaterGuard can send regular test SMS messages (´keep alive’) to the

administrator, to ensure the proper functioning of the unit. The test message function is only

active in case the unit is armed.

The interval between the test messages can be set between 0 days (no test message) and 30

days. The default test interval is set to 0 (no test message).

SMS command interval test message: <CODE> TEST:xx

4.4.10 Power failure SMS message

In case the Mobeye WaterGuard is powered externally and the power fails it sends an SMS text

message to the administrator. The message is only sent in case the unit is armed. This message

can be set to ‘OFF’. The default setting for the ‘power failure SMS text message’ is set to “ON”.

SMS command power failure message: <CODE> POWERSMS:xx

Altri manuali per WaterGuard CM2300

Indice

Altri manuali Mobeye Accessori

Mobeye

Mobeye WaterGuard CM2300 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
