D14D Camera Manual

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its

decentralized concept has made high-resolution video systems cost ecient.

MOBOTIX AG

•

D-67722 Langmeil

•

Tel: +49-6302-9816-103

•

Fax: +49-6302- 9816-190

•

[email protected]

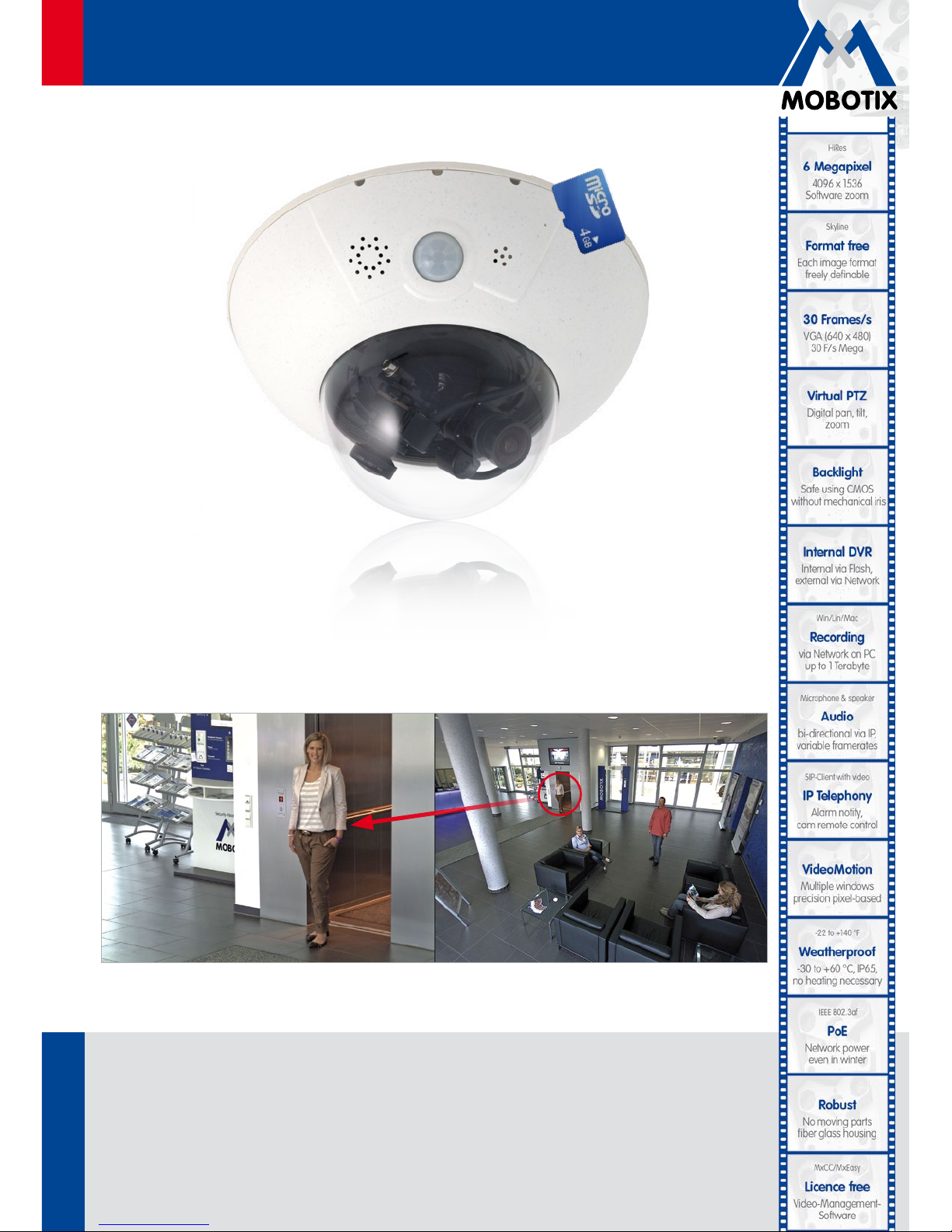

One camera, two lenses.

Seeing more is just not possible.

Two lenses, two HiRes image sensors, up to 64GB internal storage and a dual image of a maximum

of 6 megapixels make the D14D DualDome an ecient security solution: It is possible to secure two

dierent areas using just one camera. All without vulnerable mechanical components!

MOBOTIX D14D Dual Dome - one camera, two views (left: telephoto lens, right: wide angle lens)

60.170_EN_V3_01/2013

2/132

www.mobotix.com • [email protected]

D14D Camera Manual: Contents

MOBOTIX Seminars

MOBOTIX oers inexpensive seminars that include workshops and practical

exercises.

For more information, visit www.mobotix.com > Seminars.

Notes and Copyright Information

The enclosed Camera Software Manual contains detailed information on the camera

software. Download the latest version of this manual and the MxEasy and MxControlCenter

MOBOTIX, MxControlCenter, MxEasy, ExtIO and CamIO are internationally protected

trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are registered

trademarks of Microsoft Corporation. Apple, the Apple logo, Macintosh, OSX and Bonjour are

trademarks of Apple Inc. Linux is a trademark of Linus Torvalds. All other marks and names

mentioned herein may be trademarks or registered trademarks of the respective owners.

change without notice!

Additional information:

www.mobotix.com

3/132

www.mobotix.com • [email protected]

Contents

Foreword 6

The MOBOTIX Concept 8

Superior Storage Solution 10

Added Security Value 12

Cost Beneﬁts And Technical Advantages 14

1 Product Overview 16

1.1 An Overview Of The D14D DualDome 16

1.2 The Most Important Beneﬁts 22

1.3 New Features Compared To The D12D 23

1.4 General Camera Functions 24

1.5 Lenses, Equipment and Technical Data 30

1.6 Standard delivery 36

1.6.1 Standard delivery – D14D 36

1.6.2 Standard delivery – D14D 180° 38

1.6.3 Delivered With The D14D-Sec-DNight-Fix 40

1.6.4 Delivered Parts Of The Outdoor Wall Mount (Accessories) 42

1.6.5 Delivered Parts Of The Corner And Pole Mount (Accessories) 43

1.7 Available Accessories 44

1.7.1 NPA-PoE Set 44

1.7.2 Replacement Dome 44

1.7.3 Vandalism Set 44

1.7.4 Ethernet Patch Cable With Bayonet Catch 45

1.7.5 Outdoor Wall Mount 45

1.7.6 Corner And Pole Mount 45

1.7.7 ExtIO Function Expansion 45

1.7.8 Mx2wire+ Media Converter 46

1.7.9 MX-Patch-Box 46

1.7.10 MX-NPA-Box 47

2 Mounting 48

2.1 Overview Of Mounting Options 48

2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories) 48

2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories) 49

4/132

www.mobotix.com • [email protected]

D14D Camera Manual: Contents

2.2 Overview Of Network Connection 50

2.2.1 Power over Ethernet (PoE Conforming to IEEE 802.3af) 50

2.2.2 Uninterruptible Power Supplies (UPS) 51

2.2.3 Providing The Camera Connections, Wall Outlets 51

2.2.4 Wiring, Fire Prevention, Lightning And Surge Protection 52

2.3 First Installation Steps 54

2.3.1 Mounting Lens Units 54

2.3.2 Overview Of Cable Connections 58

2.3.3 Connecting Ethernet Cable With The MX-Patch-Box 59

2.3.4 Connecting The Mini USB Cable 59

2.3.5 Connecting MxBus Modules 61

2.3.6 Replacing The MicroSD Card 62

2.4 Mounting The Camera With Outdoor Wall Mount 64

2.4.1 Aiming The Passive Infrared Sensor (PIR) 64

2.4.2 Mounting The Outdoor Wall Mount 65

2.4.3 Aiming The Camera 67

2.4.4 Connecting The Camera With Bottom Plate 68

2.4.5 Connecting And Securing The Camera 69

2.5 Mounting The Corner And Pole Mount 70

2.5.1 Overview 70

2.5.2 Mounting To The Corner Of A Building 71

2.5.3 Mounting To A Pole 72

2.5.4 Mounting The Outdoor Wall Mount 73

2.6 Adjusting The Lens 74

2.7 Network And Power Connection 76

2.7.1 Notes On Cable Lengths And Power Supply 76

2.7.2 PoE Variables 76

2.7.3 Power Supply Using A Switch 77

2.7.4 Power Supply When Connected Directly To A Computer 78

2.7.5 Power Supply With Power-Over-Ethernet Products 78

2.7.6 Camera Startup Sequence 79

3 Operating The Camera 80

3.1 Manual And Automatic Operation – Overview 80

3.1.1 Manually Using A Computer In The 10.x.x.x IP Address Range 81

3.1.2 Automatically Using MxControlCenter Or MxEasy 82

3.1.3 Automatically Using DHCP 83

3.2 First Images And The Most Important Settings 84

3.2.1 Manually Setting Up The Network Parameters In A Browser 84

3.2.2 First Images And The Most Important Settings In The Browser 86

3.2.3 First Images And Network Parameter Conﬁguration In MxControlCenter 88

5/132

www.mobotix.com • [email protected]

3.2.4 First Images And Network Parameter Conﬁguration In MxEasy 93

3.2.5 Starting the Camera With The Factory IP Address 96

3.2.6 Starting The Camera With An Automatic IP Address (DHCP) 97

3.3 Virtual PTZ And Full Image Recording 98

3.3.1 Virtual PTZ 98

3.3.2 Full Image Storage 100

3.4 Image Optimization 102

3.4.1 Correction Of Lens Distortion (L22 Only) 102

3.4.2 Adjusting The Panorama Image (D14D 180° Only) 104

3.4.3 Dual Image Exposure 109

3.5 MicroSD Card Recording 110

3.5.1 Introduction 110

3.5.2 Formatting The Card 112

3.5.3 Activate Recording 113

3.5.4 Accessing Camera Data 114

3.5.5 Deactivating The Card Memory 114

3.5.6 Using A MicroSD Card In A Dierent MOBOTIX Camera 115

3.5.7 Limitations On Warranty When Using Flash Storage Media 115

3.6 Conﬁguration In The Browser 116

3.6.1 Overview 116

3.6.2 General Browser Settings 116

3.6.3 Additional Conﬁguration Options 119

3.7 Additional Notes 120

3.7.1 Password For The Administration Menu 120

3.7.2 Permanently Deactivating The Microphone 120

3.7.3 Starting The Camera With The Factory IP Address 120

3.7.4 Reset The Camera To Factory Settings 121

3.7.5 Activate Event Control And Motion Detection 121

3.7.6 Deactivate Text And Logo Options 121

3.7.7 Deactivating The Daily Automatic Camera Reboot 121

3.7.8 Browser 122

3.7.9 Cleaning The Camera And Lens 122

3.7.10 Safety Warnings 122

3.7.11 Online Help In The Browser 123

3.7.12 RoHS Declaration 123

3.7.13 Disposal 123

3.7.14 Disclaimer 123

6/132 D14D Camera Manual: Foreword

www.mobotix.com • [email protected]

FOREWORD

Dear MOBOTIX customer,

Congratulations on your decision to purchase an exceptionally ecient premium

network camera 'Made in Germany.' Thanks to its double lens and sensor assembly,

the D14D can monitor two dierent areas at once, for example, making it the most

powerful MOBOTIX Fixdome camera yet.

The integrated 4-GB long-term memory can now be expanded up to 64GB. An entirely

new MOBOTIX dual camera system architecture with HiRes image sensors ensures you

are able to transmit a dual image of up to 6 megapixels – also as a highly detailed 180°

panorama, if necessary (special model D14D Sec-180° with two 90° lenses).

The new MxBus and Mini USB camera interfaces make it particularly easy and cost eective

to connect add-on modules such as UMTS, GPS or data storage units.

This Camera Manual will give you an initial overview of the innovative MOBOTIX concept

that is at the core of this technology. This includes all the information you need to unpack

and install the camera (Chapter 2) and to view initial images on a PC (Chapter 3).

Please see the Software Camera Manual Part 2, included in the camera packaging, for

information on how to work with the many camera functions, such as event control or

image storage, for example.

If you would prefer to work with MxEasy or MxControlCenter instead of the browser-

controlled MOBOTIX camera software, you can download these programs for free including

a manual (PDF) from the MOBOTIX website: www.mobotix.com > Support> Software

Downloads.

If you still have any questions, our support and international sales sta are available at

[email protected] from Monday to Friday, 8 a.m. to 6 p.m. (German time).

Thank you for choosing MOBOTIX products and services. We trust you will be impressed

with the performance of your new D14D DualDome camera!

MiniUSB interface

for extensions

7/132

www.mobotix.com • [email protected]

MiniUSB interface

for extensions

MxBus interface

for additional modules

PoE class

adjustable & variable

4 GB MicroSD integrated

(expandable up to 64 GB)

HiRes double image

up to 6 megapixels

High frame rates

up to 30 fps (Mega)

Shock detector

8/132 D14D Camera Manual: The MOBOTIX Concept

www.mobotix.com • [email protected]

THE MOBOTIX CONCEPT

HiRes Video Innovations And Technology Leader

The German company MOBOTIX AG is known as the

leading pioneer in network camera technology since its

founding in 1999, and its decentralized concept has made

high-resolution video systems cost ecient.

MOBOTIX has been producing megapixel cameras exclusively

for many years now and is regarded as the global market

leader for high-resolution video systems.

Why High-Resolution Systems?

The higher the resolution, the more accurate the detail

in the image. With analog technology, a recorded image

generally has no more than 0.1 megapixels (CIF). One

single MOBOTIX camera with 3.1 megapixels records

around 30 times more detail. As a result, larger image areas with up to 360° allround

views are possible, thus reducing the number of cameras, and therefore the costs. For

example, four lanes of a gas station can be recorded with one MOBOTIX camera instead

of four conventional cameras.

Disadvantages Of The Old Centralized Standard Solution

Usually, cameras only supply the images while the processing and recording is done later

on a central PC using expensive video management software. This traditional centralized

structure has many limitations, since it requires high network bandwidth and the PC processing

power is not enough for several cameras. An HDTV MPEG4 ﬁlm already puts considerable

strain on a PC, so how can it be

expected to process dozens of high-

resolution live cameras? Traditional

centralized systems are therefore

less suitable and unproﬁtable when

compared with high-resolution

systems due to the high number

of PCs needed.

MOBOTIX Camera

CMOS

3.1 Megapixel

CPU

Image-Analysis MicroSD

Recording

3 Mega

1536 lines

TV-Pal

576 lines

CIF

288 lines

Mega

960 lines

9/132

www.mobotix.com • [email protected]

The Decentralized MOBOTIX Concept

Unlike other systems, with the decentralized MOBOTIX concept, a high-speed computer

and if necessary, digital long-term memory (MicroSD Card) is built into every camera,

providing several days of recording time. The PC and the video control center now serve

only for viewing and controlling the cameras (PTZ), not for analysis or recording. This

makes it unnecessary to purchase expensive video management software, as the most

important and computer-intensive functions are already integrated in the MOBOTIX cameras.

The Beneﬁts

MOBOTIX video solutions therefore require signiﬁcantly:

•

fewer cameras due to the more accurate detail of panoramic images with megapixel

technology,

• fewer storage devices, because in the decentralized system, 10 times the standard

number of cameras can simultaneously store high-resolution HDTV video with sound

on one PC/server.

• lower network bandwidth, because everything is processed in the camera itself

and the high-resolution images therefore do not have to be constantly transferred

for analysis.

Robust And Low-Maintenance

MOBOTIX cameras have neither mechanical motors for lenses nor for movement. Without

any moving parts, they are therefore so robust that maintenance is reduced to a minimum.

The unique temperature range from -30 to +60 °C (-22 to +140 °F) is achieved without

heating or a fan at only 3 watts. Since no PC hard disk is required for recording, there are

no parts that wear out in the entire video system.

MOBOTIX System

Decentral and secure

PC as storage

Recording

software

MicroSD integrated

One Camera For Four Gas Pumps – Long-Term Recording Without Peripheral Devices

10/132

www.mobotix.com • [email protected]

D14D Camera Manual: Superior Storage Solution

SUPERIOR STORAGE SOLUTION

MOBOTIX Storage Concept Without Bottlenecks

These days, video data is normally pre-processed and stored centrally on a PC or digital

video recorder (DVR) using video management software. Video and audio streams from

all installed cameras are directed to this central device. In this case, using high-resolution

cameras often results in data jam. Above all, storage is inecient, because if the PC has

limited computing power, the high-resolution video with a high frame rate must be sent

directly to a storage device before it can be processed.

If, like with MOBOTIX cameras, the camera adjusts the image format and the frame rate to

the correct values for the speciﬁc application (at a gas station, two frames per second are

enough for the recording), it relieves the load both of the network and of the recording device

(PC, server). MOBOTIX cameras can of course also minimize the recording independent

of the live video, and the sound channel is recorded even with video recordings of two

frames per second.

No Storage Limit

The decentralized MOBOTIX concept enables the user to save around 10 times the number

of cameras on a single storage device because the camera manages the recording

itself (on a PC, server, NAS), thus reducing load on the device. For this reason, practically

speaking, there is no memory limit for the entire system because theoretically, each

camera is able to manage its own terabyte-sized storage device via the network. Another

beneﬁt of this concept is the use of aordable, reliable NAS drives that do not require any

special software.

PC as storage

Recording

software

Standard System

Storage bottleneck is pre-programmed

Standard system requires an extra PC including software for analysis and storage

Altri manuali per D14D

Indice

Altri manuali Mobotix Telecamera di sicurezza

Mobotix

Mobotix M26B Istruzioni per l’uso

Mobotix

Mobotix D71 Manuale utente

Mobotix

Mobotix Q24M Manuale utente

Mobotix

Mobotix p26 Indoor PT Series Istruzioni per l’uso

Mobotix

Mobotix VandalDome MOVE VD-2-IR Istruzioni per l’uso

Mobotix

Mobotix M25M Series Manuale utente

Mobotix

Mobotix D16 DualDome Manuale utente

Mobotix

Mobotix M25 Allround B036 Manuale utente

Mobotix

Mobotix MOVE SD-330 Istruzioni per l’uso

Mobotix

Mobotix D16 DualDome Istruzioni per l’uso

Mobotix

Mobotix D26 Dome Istruzioni per l’uso

Mobotix

Mobotix D15 Manuale utente

Mobotix

Mobotix Q22M Manuale utente

Mobotix

Mobotix Q26 Istruzioni per l’uso

Mobotix

Mobotix S26 Flex Istruzioni per l’uso

Mobotix

Mobotix S15 Manuale utente

Mobotix

Mobotix D22 Manuale utente

Mobotix

Mobotix Q24M Manuale utente

Mobotix

Mobotix D26 Dome Istruzioni per l’uso

Mobotix

Mobotix Mx-D26A Istruzioni operative originali

Mobotix

Mobotix Mx-SD1A-230-LL Istruzioni operative originali

Mobotix

Mobotix M24M Allround CS-Vario Istruzioni per il montaggio

Mobotix

Mobotix MX-c25 Istruzioni per l’uso

Mobotix

Mobotix M22M Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
