Bronte Console Table
1
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Thank you for your purchase.
Please follow the instructions below for correct assembly.
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
WARNING: Any furniture not anchored to a wall
has the potential to tip over in circumstances, ie. if a
child attempts to climb on or in the event
of an earthquake. we recommend that all
furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that
different wall materials may require different fixing devices
from those supplied.
Wall
attachment
Q
wall plug
x2
P
screw
x2
O
wall strap
x2
A
screw
x14
G
rail
x2
L
screw
x8
M
allen key
x1
N
screw
x8
H
screw
x20
I
left rail
x2
J
right rail
x2
K
dowel
x12
locking nut
x14
B
bolt
x14
C
screw
x16
D
screw
x4
R
handle
x2
E
guide
x2
F

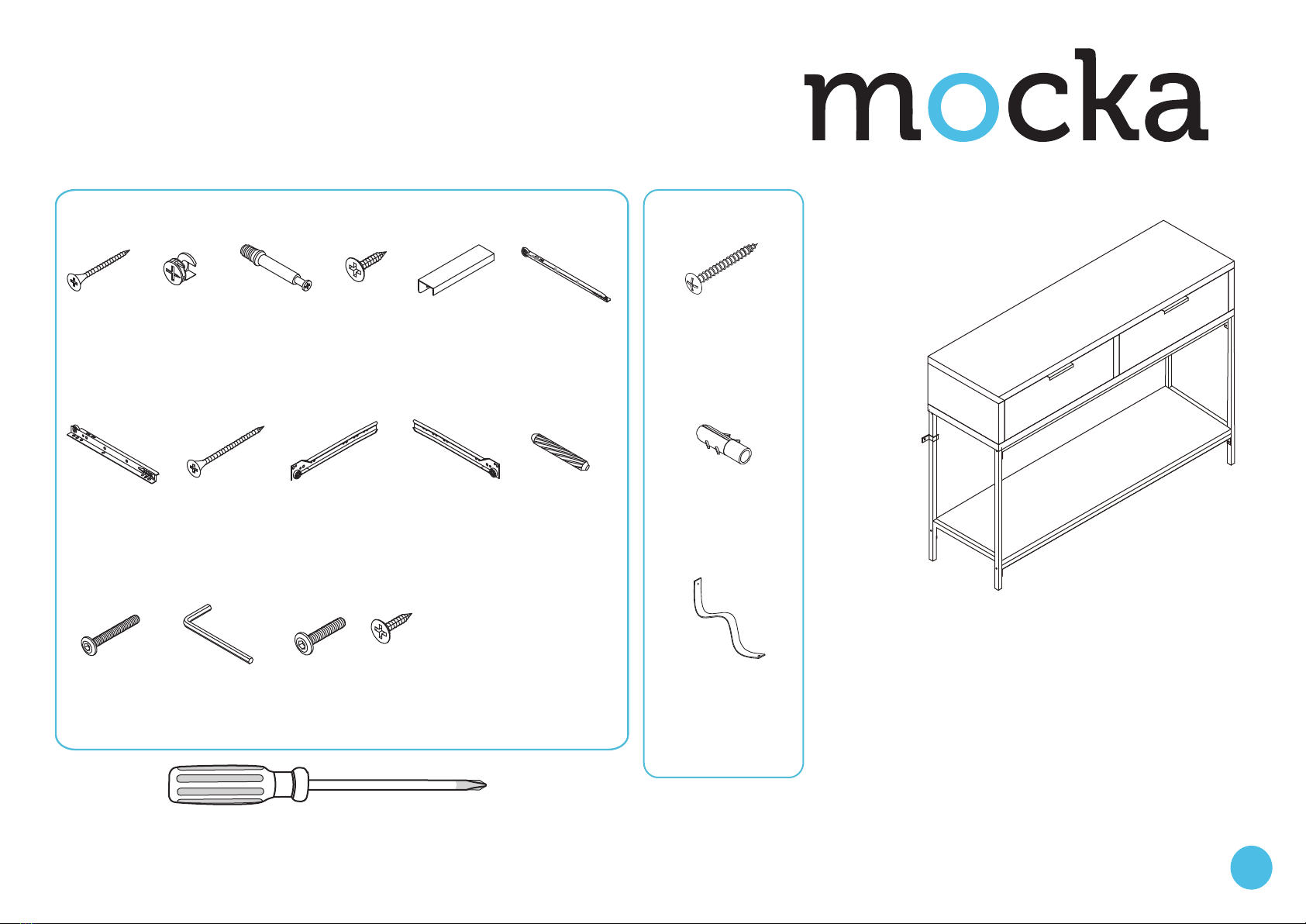

Hardware Supplied
12
Bronte Console Table
2
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

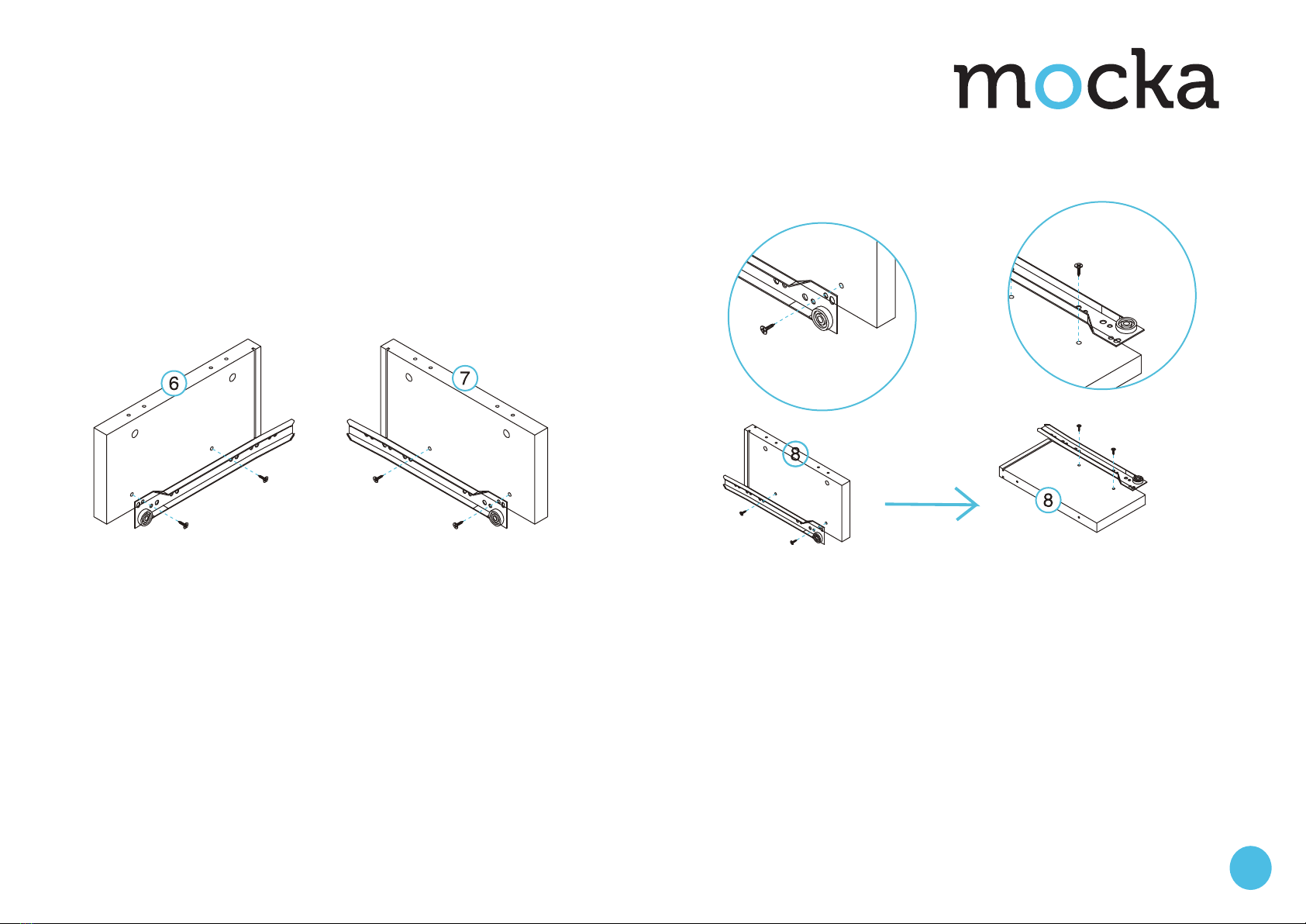

Attach 1 x left rail (I) and 1 x right rail (J) to panels [6] and [7] and
secure with 4 x screws (D). Tighten with a screwdriver.
Attach 1 x left rail (J) and 1 x right rail (I) to panel [8] and secure with 4
x screws (D). Tighten with a screwdriver.
ID
DD
DD
D
D
D
J
JI
D
D
J
D
D
I
3
3
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

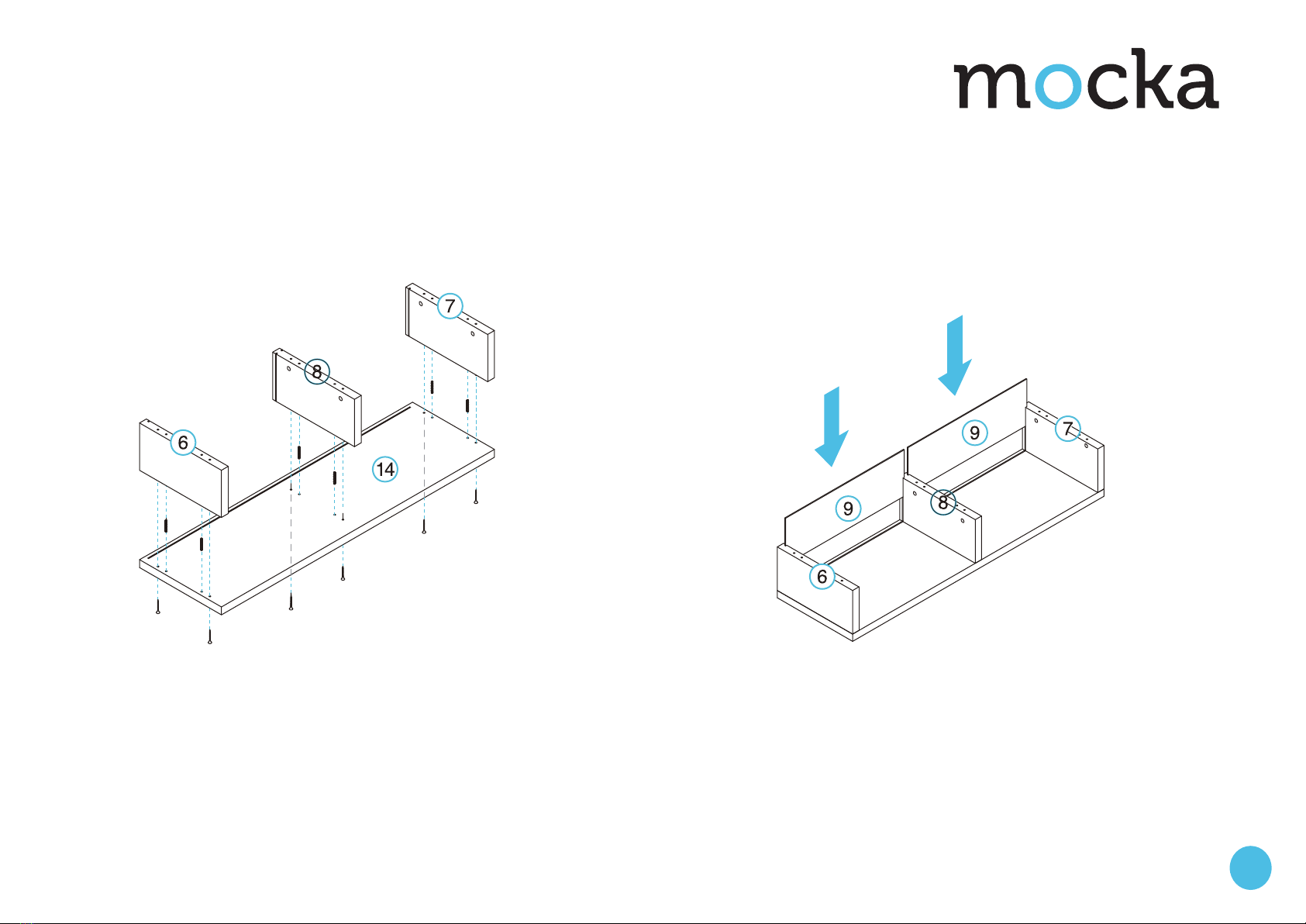

Attach panels [6], [7] and [8] to panel [14] and secure with
6 x dowels (K) and 6 x screws (A). Tighten with a screwdriver.
Slide panels [9] into position as shown.
Bronte Console Table
4
A
A
A
A
A
A
K
K
K
K
K
K
5
4
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

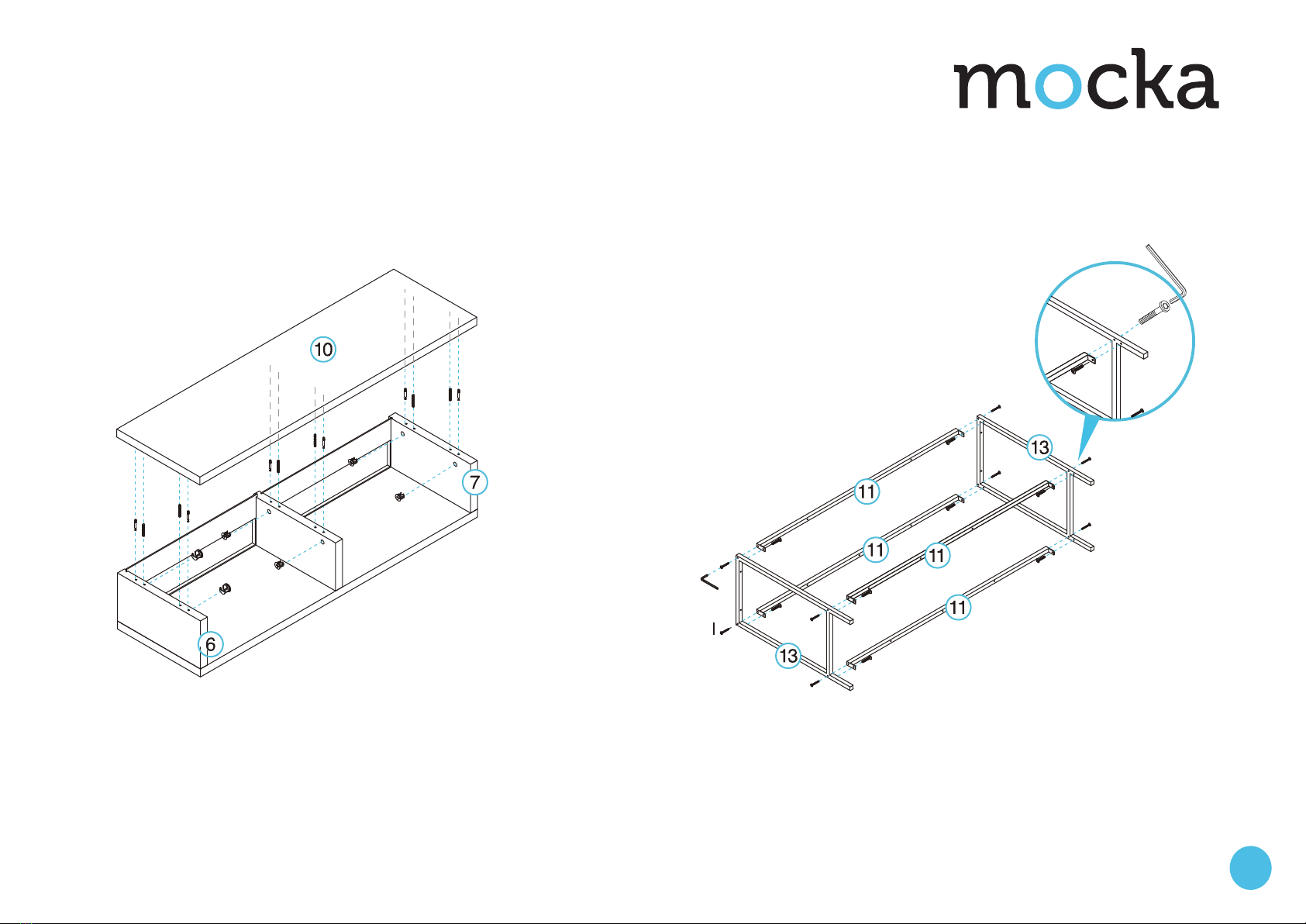

Attach panel [10] to assembled frame and secure with 6 x dowels (C),
6 x bolts (K) and 6 x locking nuts (B). Tighten with a screwdriver.
Attach panels [11] to panels [13] as shown and secure with 8
x screws (N) and 8 x bolts (L). Tighten with a screwdriver and an Allen
Key (M) as shown.
Bronte Console Table
6
CC
B
B
B
B
B
B
C
C
K
K
KK
M
M
L
L
N
N
N
N
L
L
N
N
N
LL
L
L
C
K
K
N
N
N
L
L
7
5
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Attach panels [11], [13] to panel [14],[12] as shown and secure with
20 x screws (H). Tighten with a screwdriver.
Bronte Console Table
8 x2
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
HH
H
H
H
Attach panels [1], [2] and [3] together as shown and secure with
4 x screws (A). Tighten with a screwdriver.
A
2
2
1
3
9 x2
6
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Bronte Console Table
10 x2
Slide panel [4] into position as shown.
2
4
1
3

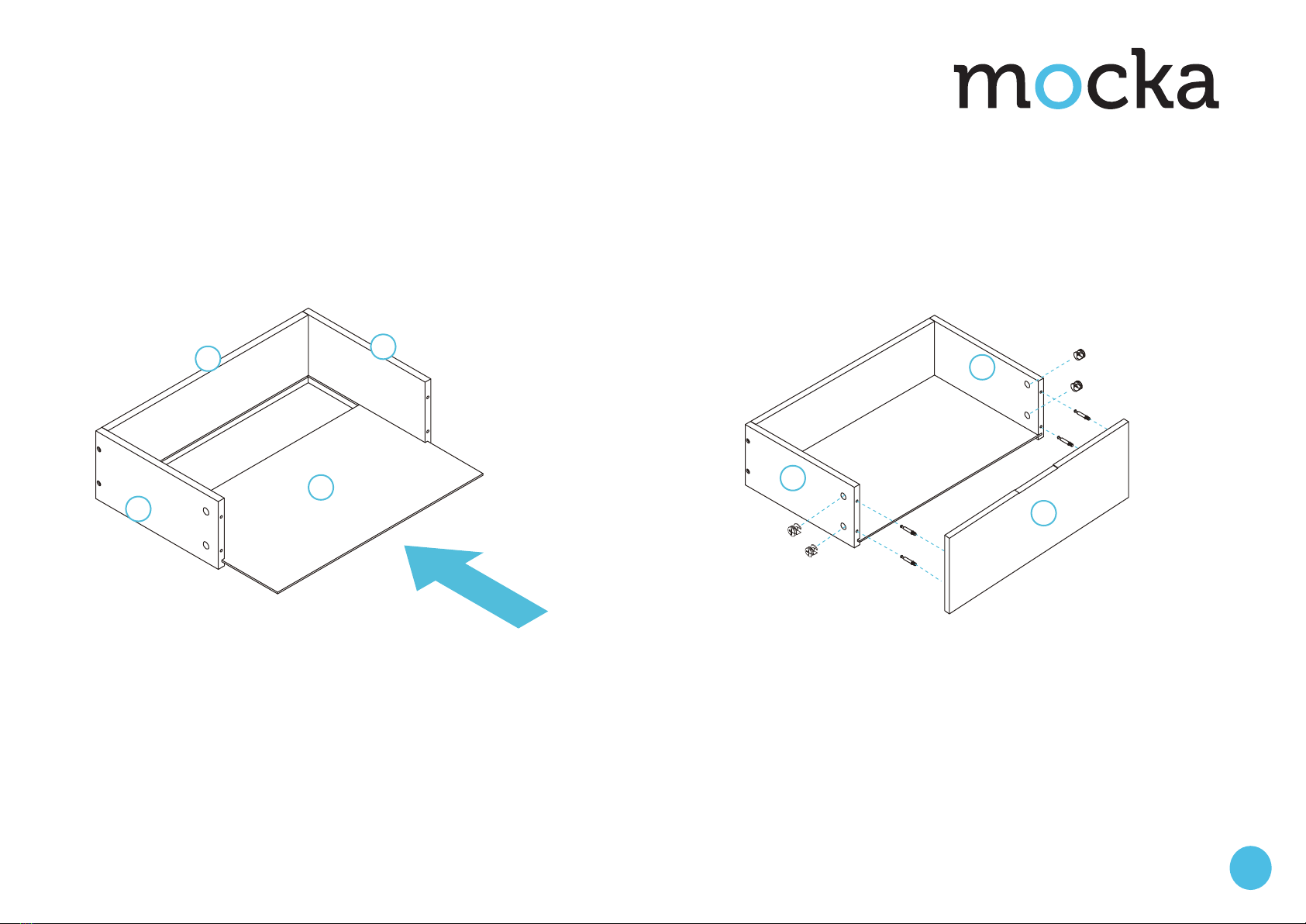

Attach panel [5] to assembled frame and secure with 4 x bolts (C) and
4 x locking nuts (B). Tighten with a screwdriver.
C
B
1
3
5
11 x2
7
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Bronte Console Table
12 x2
Attach 1 x handle (E) to assembled frame and secure with 2 x screws
(R). Tighten with a screwdriver.
R
R
E
Attach 1 x left rail (F) and 1 x right rail (G) to panels [3] and [1] and
secure with 4 x screws (D). Tighten with a screwdriver.
D
F
G
D
3
1
13
8
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Bronte Console Table

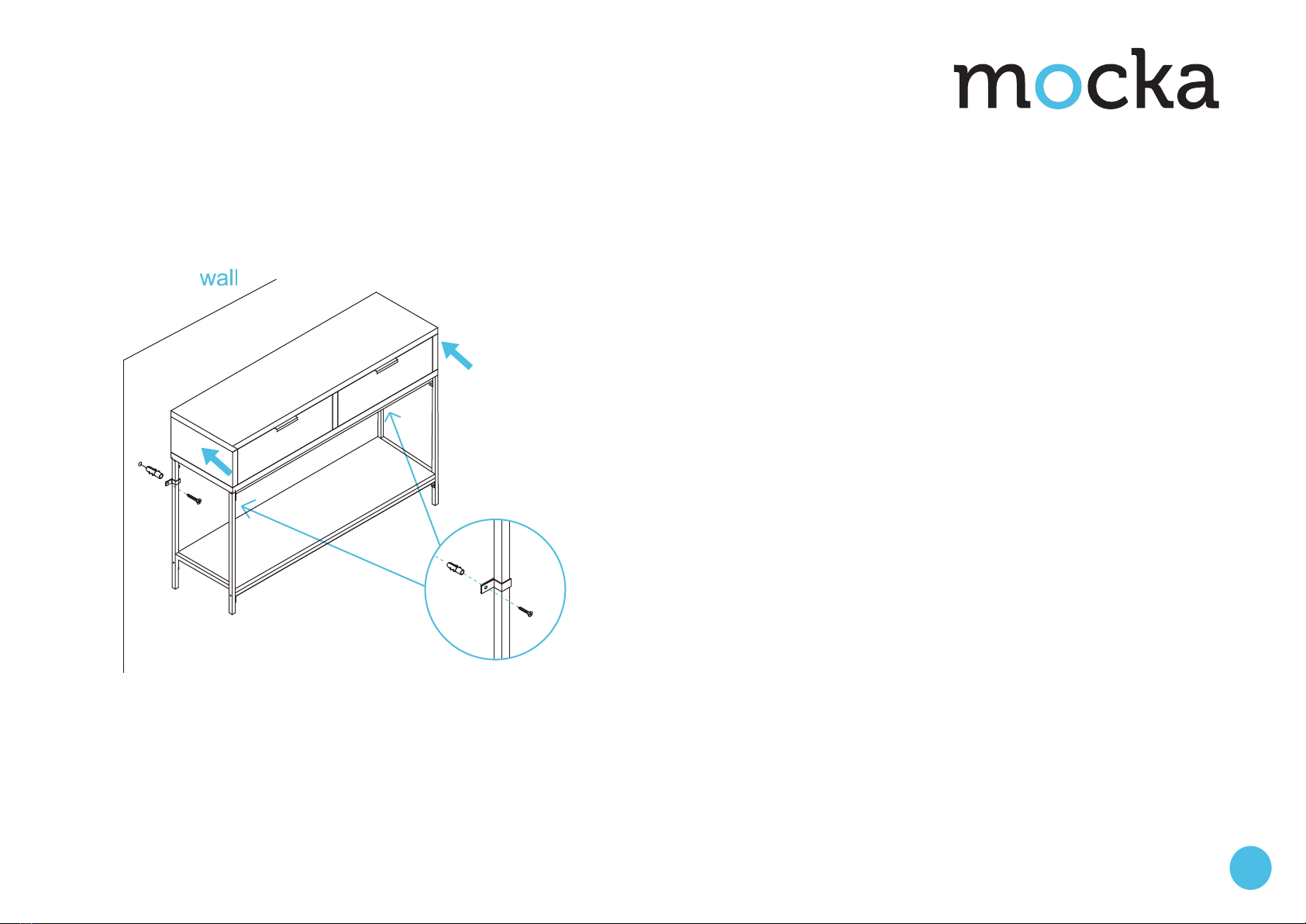

Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the 2 x wall strap (O).
Fasten to the wall using 2x wall anchors (Q) and 2x screws (P). Ensure
unit is balanced and steady before use. You’re done, enjoy!
P
Q
O
P
O
Q
