Mocka Eclipse Buffet Manuale utente
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Buet
Thank you for your purchase.
Please follow the instructions below for correct assembly
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that dierent wall
materials may require dierent fixing devices from those supplied.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
.
Phillips & Flathead screwdrivers
Wall Strap
x4
washer
Z
Y
wall
x2
X
anchor
safety
WV
strap x2 x2
screw wall
x2
screw
x16
Hardware Supplied
A B C D EFGH
J K L M N
I O P
dowel
x20
screw
x6
bolt
x14 x18
screw
x48
screw
nut x 14
locking
wedge
x16
bolt
x10
buffer
plate
screw
x4
Allen
Key
x1
hinge
x8
screw
x2
height
adjuster
x2
handle
x4 screw
handle
x8
1
Eclipse
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
2
Buet
2

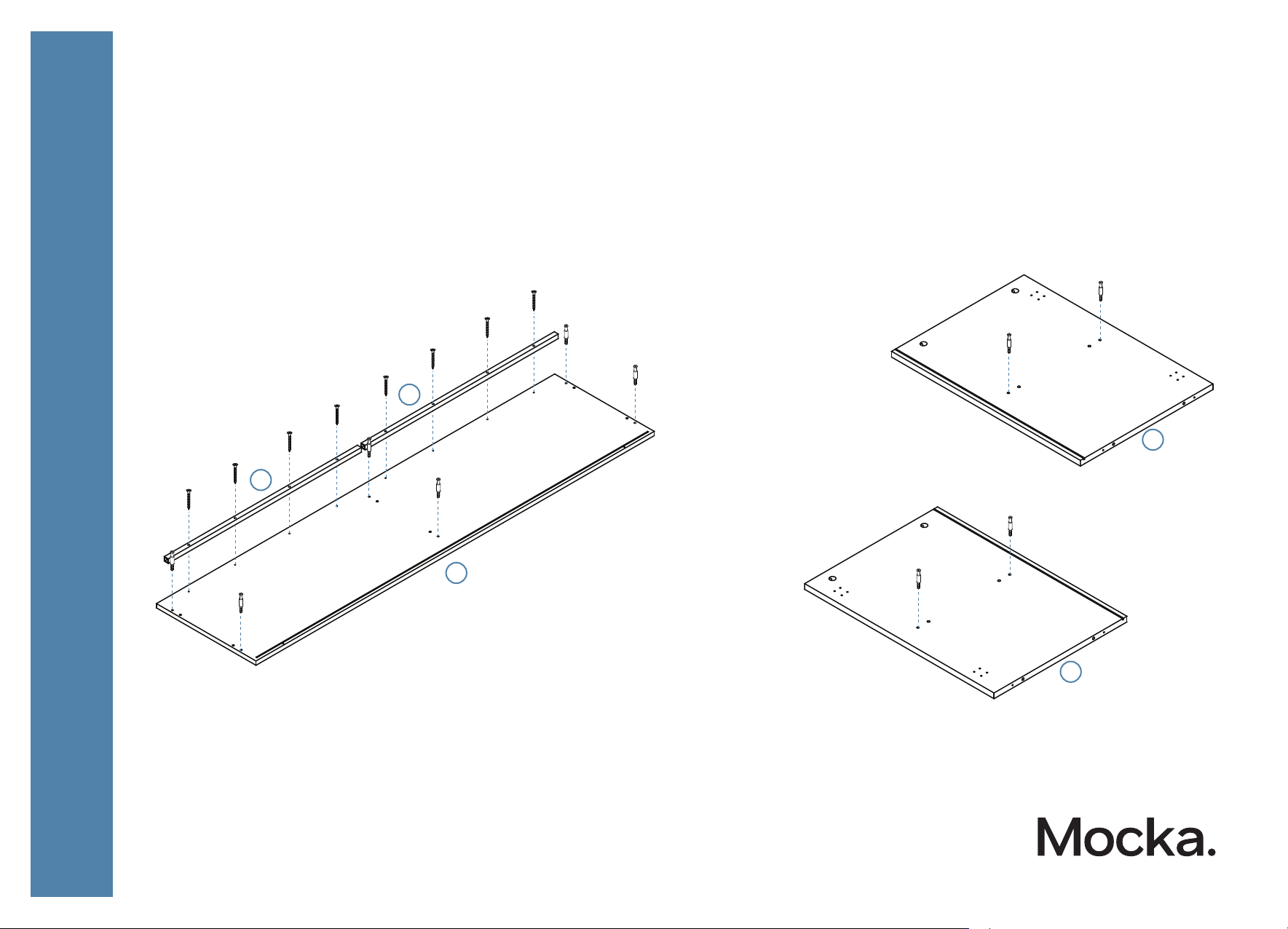

Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Attach 2x
panels [8] to panel [1] and secure with 8x screws (E).
Tighten with a screwdriver.
Insert 4x bolts (C) into panels [3] and [4]. Tighten with a screwdriver.
1
3
4
8
8
C
E
C
C
C
C
C
E
E
E
E
E
E
E
C
C
C
C
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Insert 4x bolts (C) into panel [5]. Tighten with a screwdriver.
3 4
Attach 2x panels [6] to panel [5] with 4x dowels (A) and secure with
4x locking nuts (D). Tighten with a screwdriver.
5
5
6
6
5
FLIP
C
C
C
C
A
D
D
A
A
D
D
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Buet
5 6
Attach panel [3] to panel [6] with 2x dowels (A) and secure with 2x locking nuts (D).
Tighten with a screwdriver.
Attach panel [4] to panel [6] with 2x dowels (A) and secure with 2x
locking nuts (D). Tighten with a screwdriver.
3
4
6
6
D
D
A
A
D
A
A
D
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Slide 2x panels [7] down along the grooves between panels [3], [4] and
[5] to form the back of the unit as shown.
Attach panel [1] to panels [3] ,[4] and [5] with 6x dowels (A) and secure
with 6x locking nuts (D). Tighten with a screwdriver.
7 8
33
44
1
55
7
7
A
A
A
A
D
A
A
D
D
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Slide 2x panels [7] down along the grooves between panels [3], [4] and
[5] to form the back of the unit as shown.
Attach panel [2] to the unit with 6x dowels (A) and secure with 6x screws (B).
Tighten with a screwdriver.
109
B
B
B
B
B
B
A
A
A
A
33
44
55
2
7
7
11
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Attach panel [10] to panel [9]. Attach panel [11] to panels [9] and [10] and secure with 2x bolts (L).
Tighten with an Allen Key (P).
12
9
10
x2
10
9
9
10
11
L
L
L
P
13
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Attach panels [12] to panels [9] and [13] and secure with 8x bolts (L).
Tighten with an Allen Key (P). Attach 2x height adjuster (I)
to panels [9] as shown.
Attach panels [13] to panel [2] and secure with 10x screws (E). Attach
panels [10] to panel [2] and secure with 2x screws (H).
Tighten with a screwdriver.
14
9
9
10
10
12
12
12
12
13
13
13
13
E
E
E
E
E
E
E
E
H
H
E
E
L
P
L
L
L
L
L
2
2
I
I
E
H
15
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Attach 2x hinges (G) to panel [14] using 4x screws (F), and attach 1x
handle (M) to panel [14] and secure with 2x screw (N).
Tighten with a screwdriver.
Attach hinges on panels [14] to panels [3], [4] and [5] and secure with 3
2x screws (F). Tighten with a screwdriver. Attach 4x buer plates (O)
to panels [6] as shown. Ensure the doors open and close easily.
16
3
6
6
14
14
14
4
5
14
Door x 4
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
FF
F
FF
F
F
F
F
OF
O
FG
G
G
M
NN
4141
Tighten the
screws 90%..
17
Eclipse
Buet
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Attach 16x wedges (J) into the corners of the back of the unit and
secure with 16x screws (K). Tighten with a screwdriver. Attach 2x
safety straps (V) to the top of the back side of the unit as shown
using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver.
Once assembled lift furniture into place, do not drag. Use a drill to create
a small hole lining up with the top of the safety strap (V). Fasten to the wall
using 2x washers (Z), 2x wall anchors (X) and 2x wall screws (Y). Ensure unit
is balanced and steady before use. You’re done, enjoy!
18
7
7
7
7
K
J
V
Z
W
V
Z
W
V
Z
W
X
Y
Z
X
Y
Z
anchor
wall
screw
strap
washe
r
