Mocka Eclipse Manuale utente
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Entertainment Unit
Thank you for your purchase.
Please follow the instructions below for correct assembly
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that dierent wall
materials may require dierent fixing devices from those supplied.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
.
Phillips & Flathead screwdrivers
Wall Strap
x2
washer
Z
Y
wall
x1
X
anchor
safety
WV
strap x1 x1
screw wall
x1
screw
x8

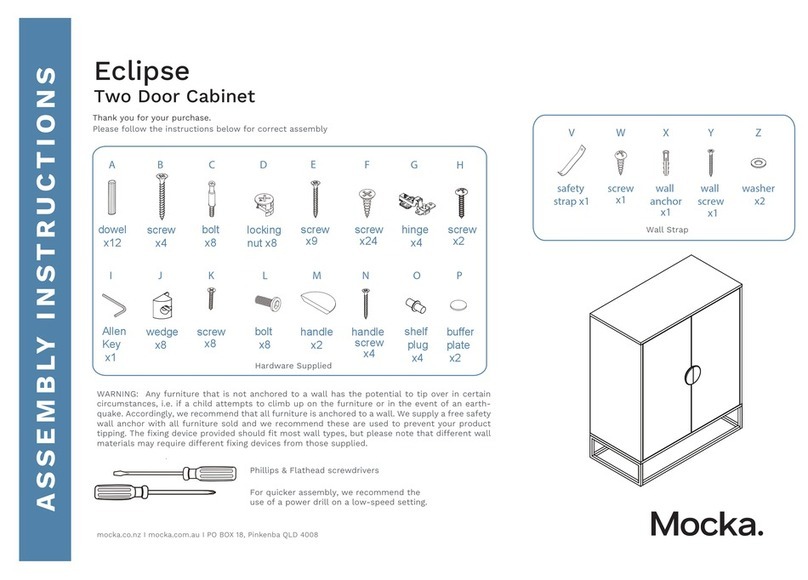

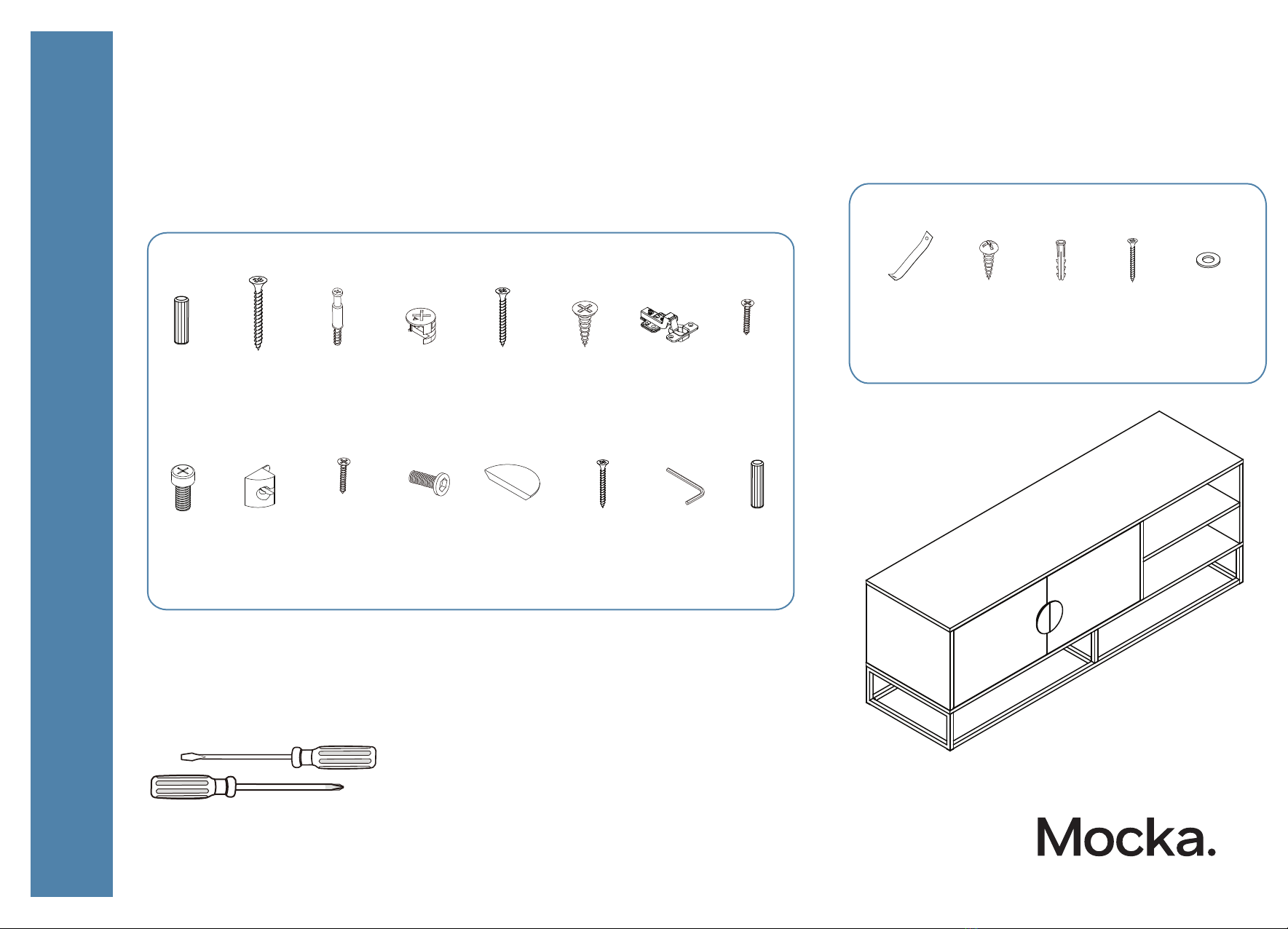

Hardware Supplied
A B C D EFGH
J K L M N
I O P
big
x16
dowel
x4
dowel
screw
x6
bolt
x10 x10
screw
x24
screw
nut x 10
locking
wedge
x8
bolt
x10
Allen
Key
x1
screw
hinge screw
x4 x2
height
adjuster
x2
handle
x2
handle
screw
x4
1
Eclipse
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
2
Entertainment Unit
2

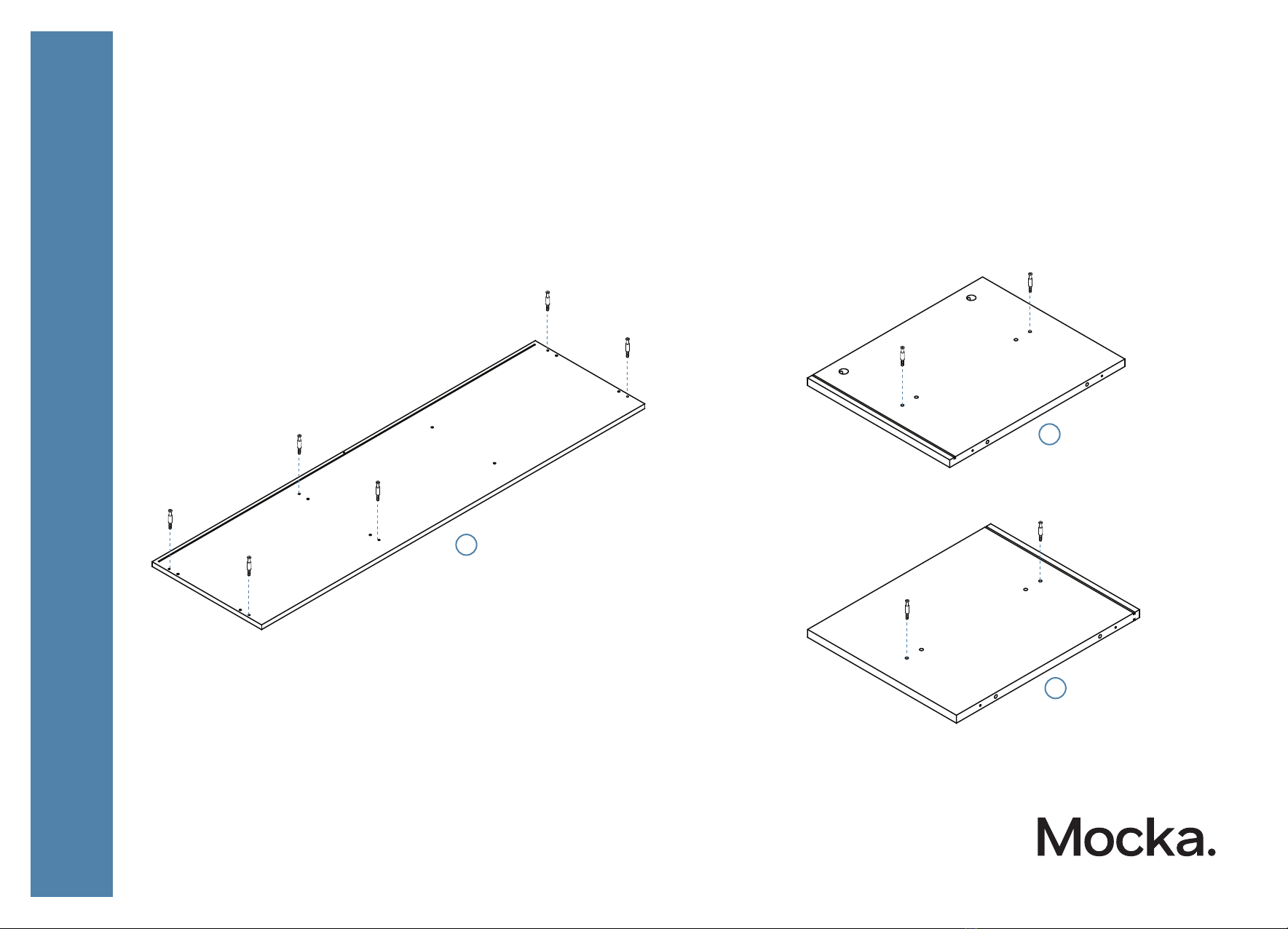

Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Insert 4x bolts (C) into panels [4] and [5]. Tighten with a screwdriver.
1
4
5
C
C
C
C
C
C
C
C
C
C
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

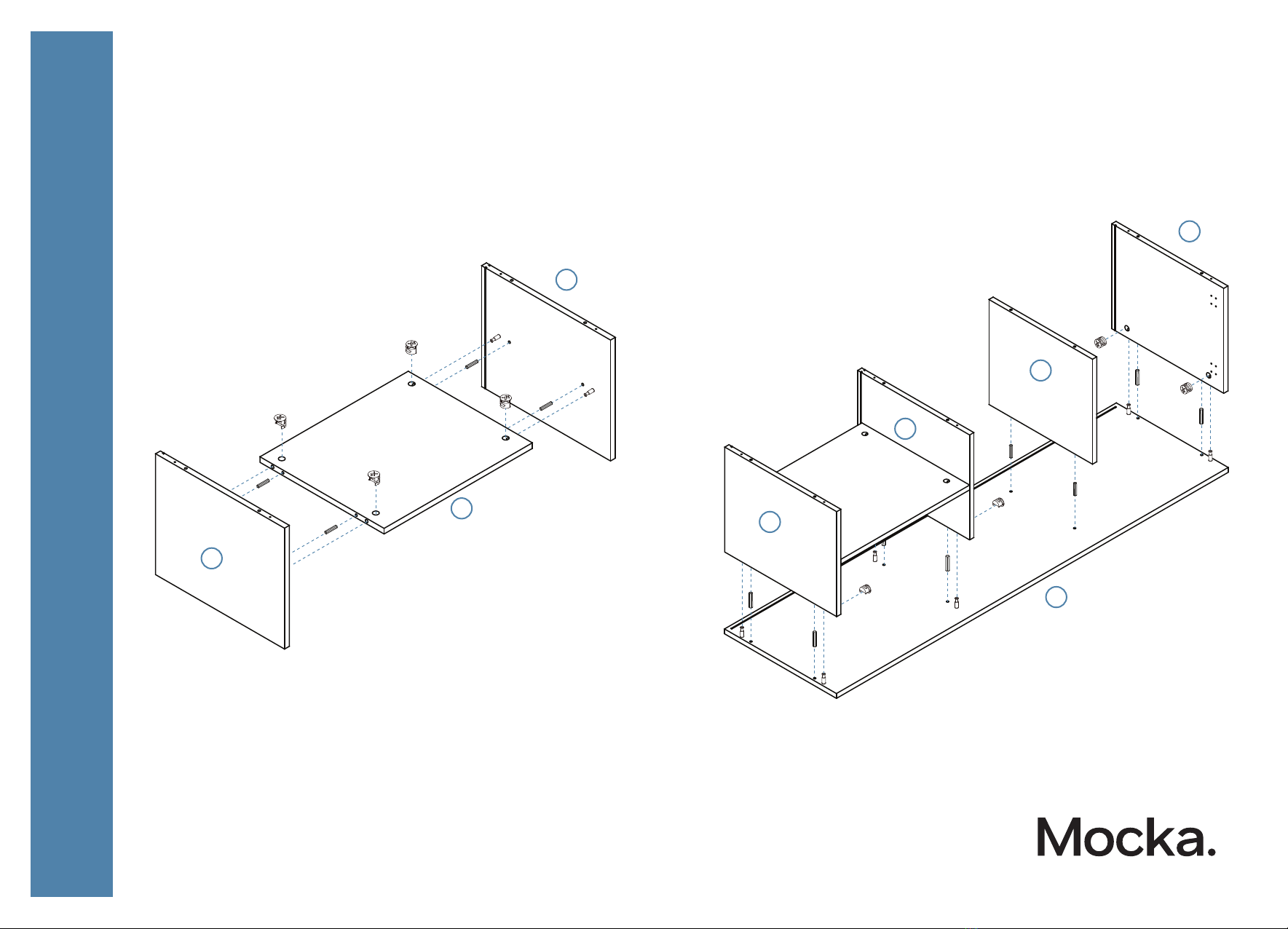

Attach panels [4] and [5] to panel [7] with 4x big dowels (A) and
secure with 4x locking nuts (D). Tighten with a screwdriver.
3 4
Attach panels [3], [4], [5] and [6] to panel [1] with 6x big dowels (A) and
2x dowels (P) and secure with 6x locking nuts (D).
Tighten with a screwdriver.
1
4
4
5
5
6
3
7
A
D
D
D
D
A
A
A
A
A
A
P
P
A
A
D
D
D
D
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Entertainment Unit
5 6

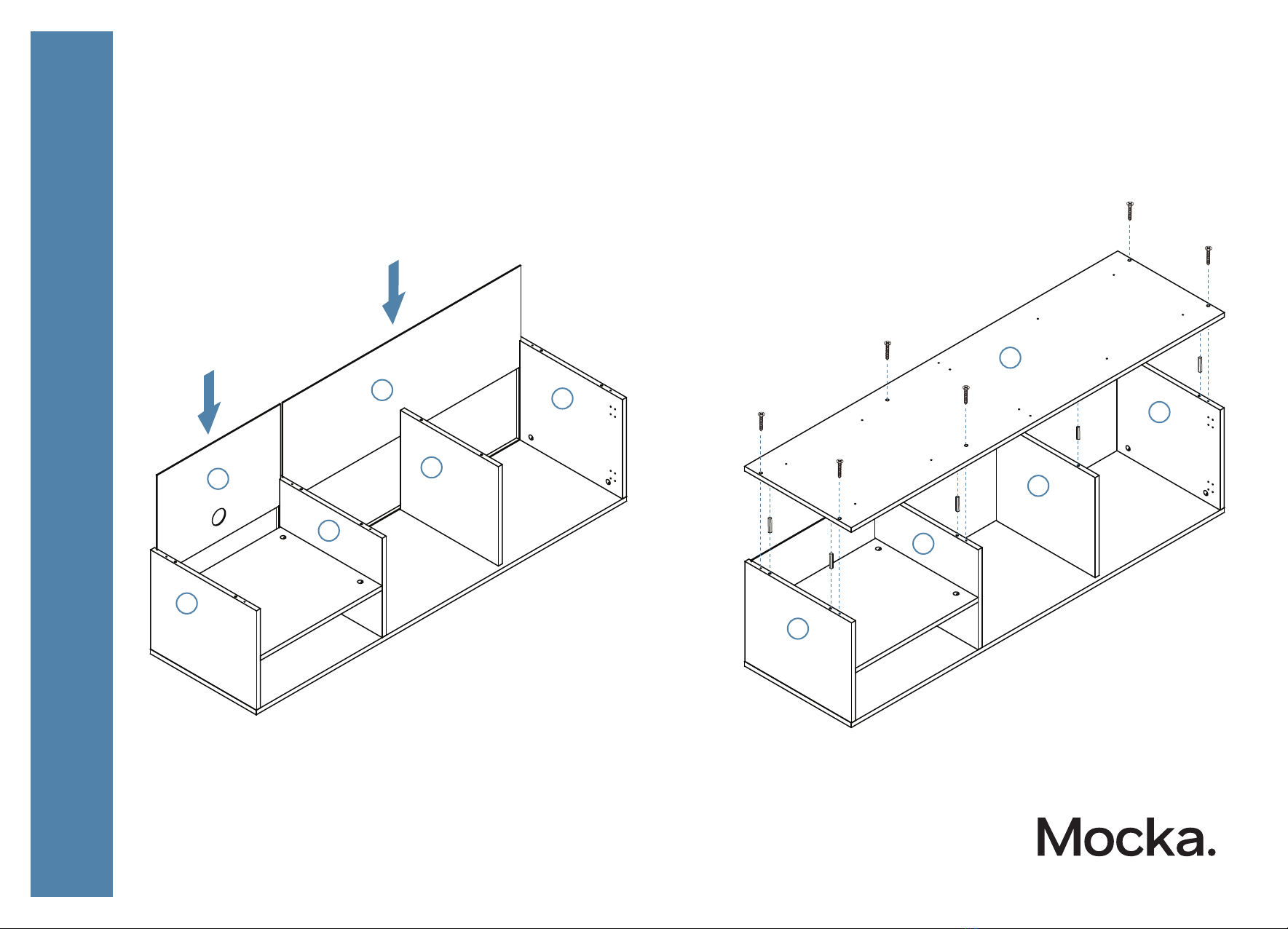

Slide panels [8] and [9] down along the grooves between panels [3],
[4] and [5] to form the back of the unit as shown.
Attach panel [2] to panels [3], [4], [5] and [6] with 6x big dowels (A)
and 2x dowels (P) and secure with 6x screws (B).
Tighten with a screwdriver.
4
4
8
9
55
6
6
2
33
B
A
B
A
B
B
A
P
B
B
A
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

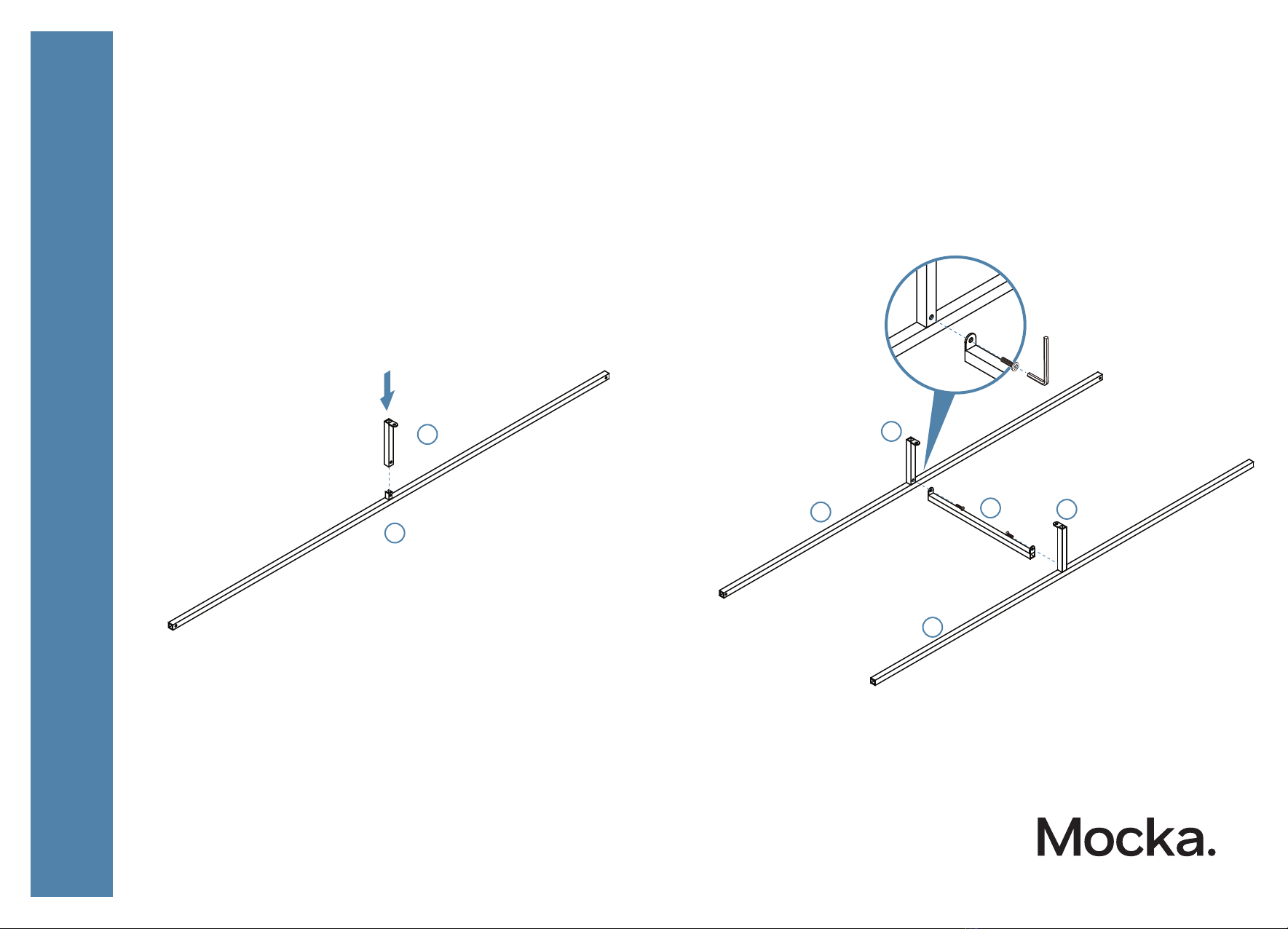

Attach panel [11] to panel [10]. Attach panels [10] and [11] to panels [12] and secure with 2x bolts (L).
Tighten with an Allen Key (O).
7 8x2
10
10
10
11 11
11
L
12
L
L
O
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

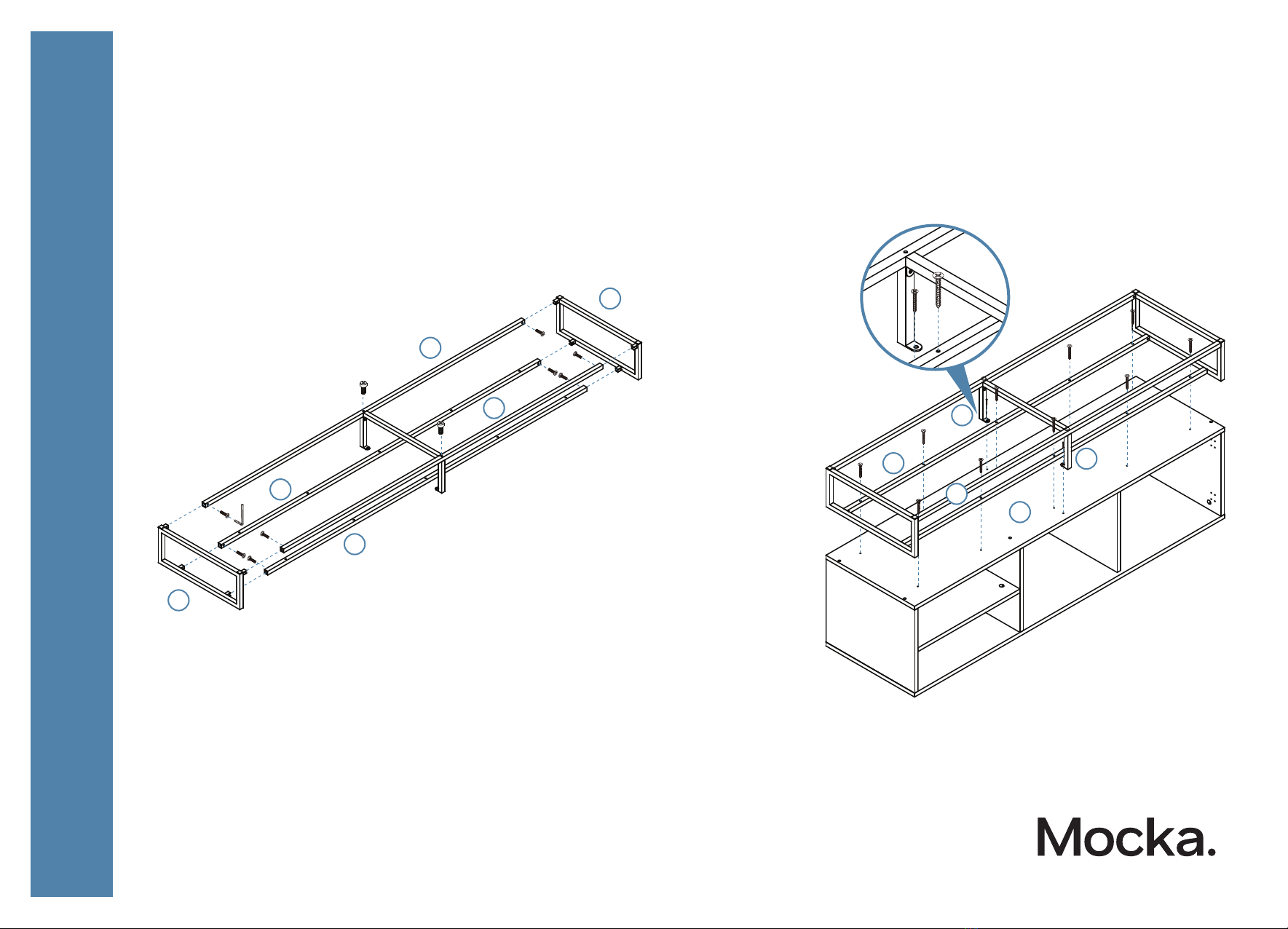

Attach panels [13] to panels [10] and [14] and secure with 8x
bolts (L). Tighten with an Allen Key (O). Attach 2x height
adjuster (I) to panels [10] as shown.
Attach panels [14] to panel [2] and secure with 10x screws (E).
Attach panels [11] to panel [2] and secure with 2x screws (H).
Tighten with a screwdriver.
109
2
10
10
13
13
14
14
14
L
O
L
L
L
L
L
I
I
E
E
H
E
E
E
E
E
E
E
E
H
E
14
3
11
11
11
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

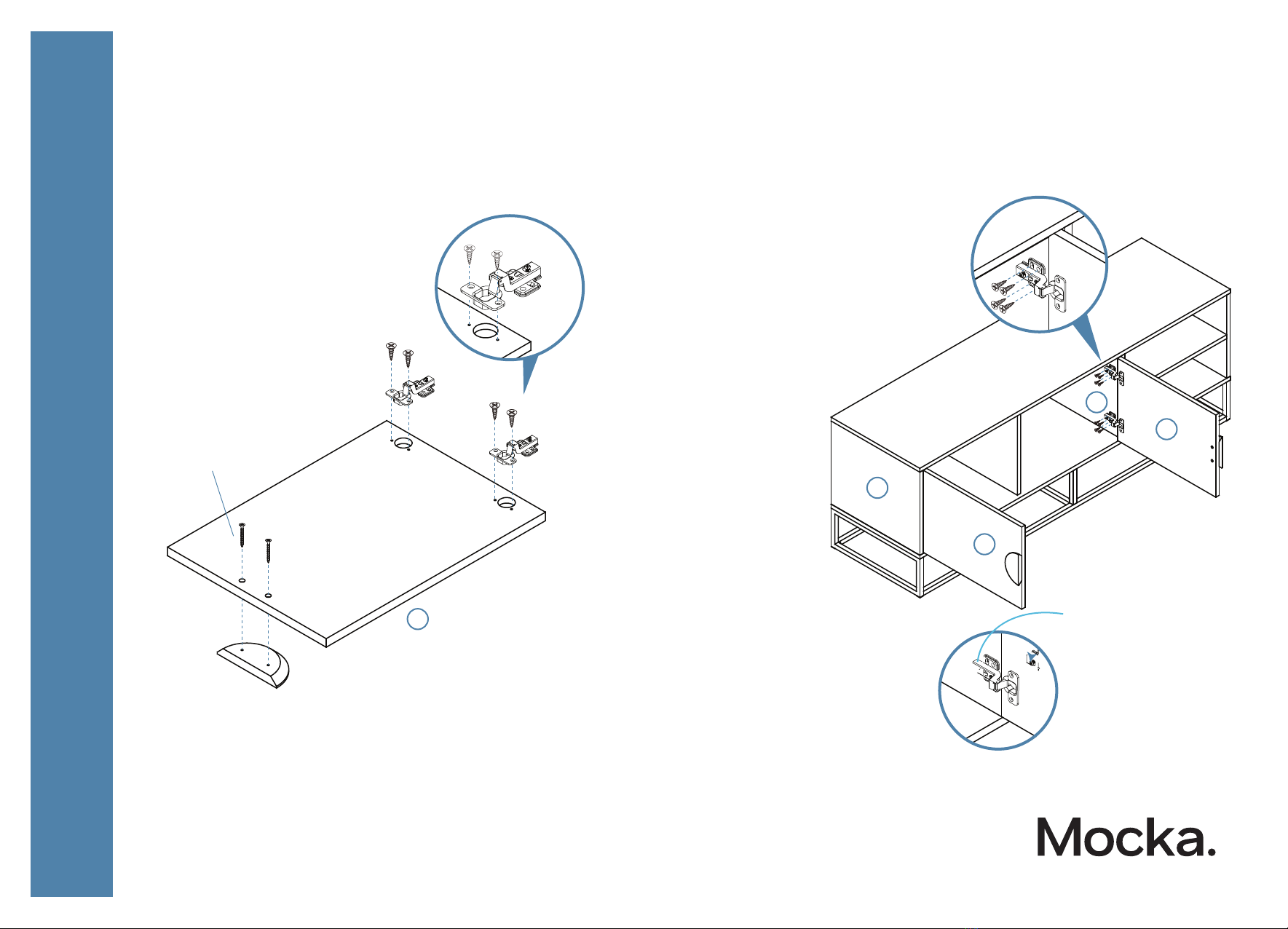

Attach 2x hinges (G) to panel [15] using 4x screws (F),
and attach 1x handle (M) to panel [15] and secure with
2x screw (N). Tighten with a screwdriver.
Attach hinges on panels [15] to panels [3] and [5] and secure
with 16x screws (F). Tighten with a screwdriver.
Ensure the doors open and close easily.
12
x2
Tighten the
screws 90%..
FF
G
FF
G
FF
G
M
NN
F
F
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
F
15
3
15
3
15
3
5
3
13
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

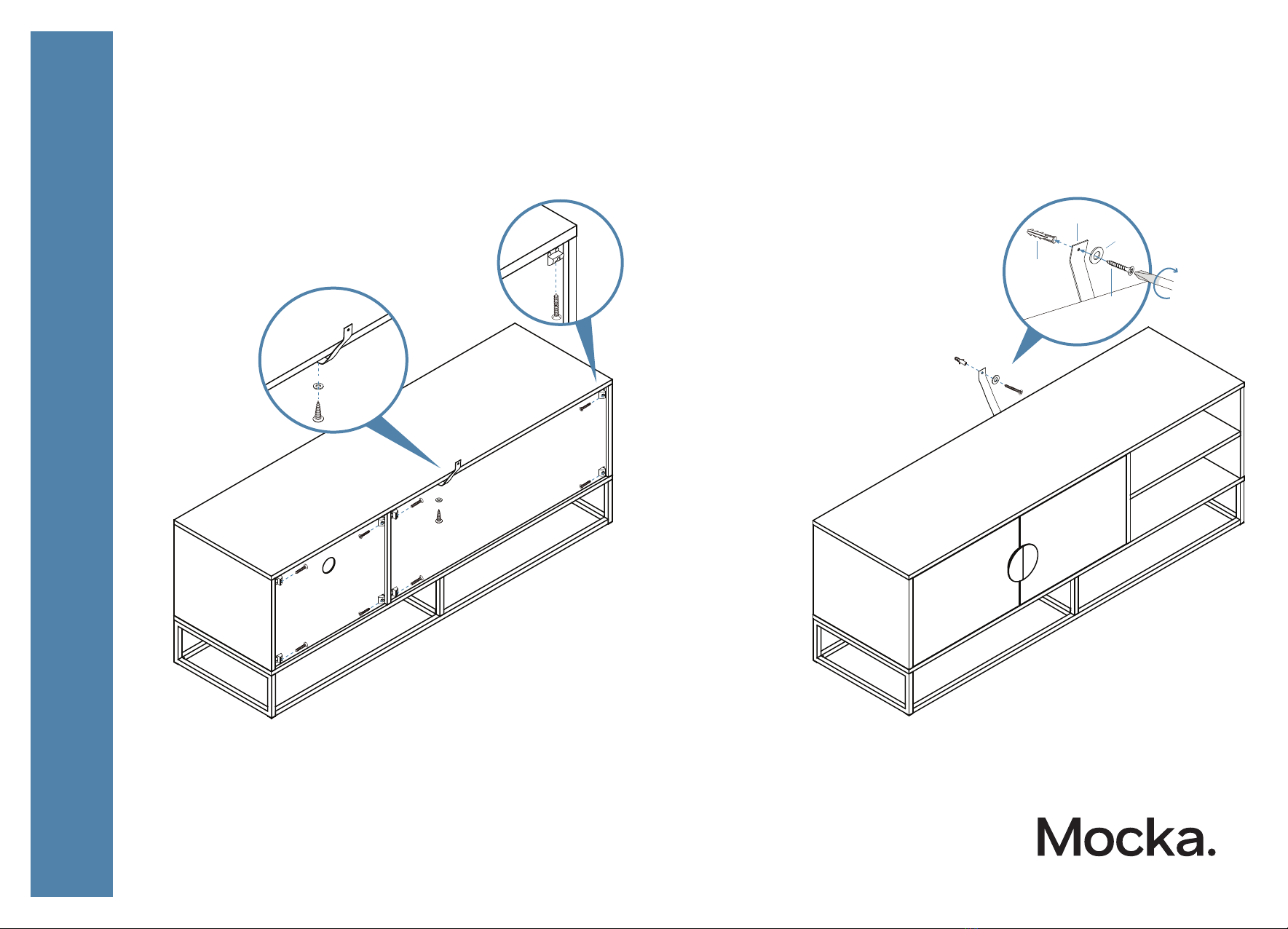

Attach 8x wedges (J) into the corners of the back of the unit and secure
with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z)
and 1x screw (W). Tighten with a screwdriver.
Once assembled lift furniture into place, do not drag. Use a drill to create
a small hole lining up with the top of the safety strap (V). Fasten to the wall
using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is
balanced and steady before use.
You’re done, enjoy!
14
V
Z
W
V
Z
W
K
J
X
Y
Z
anchor
wall
screw
strap
washer
15
Eclipse
Entertainment Unit
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

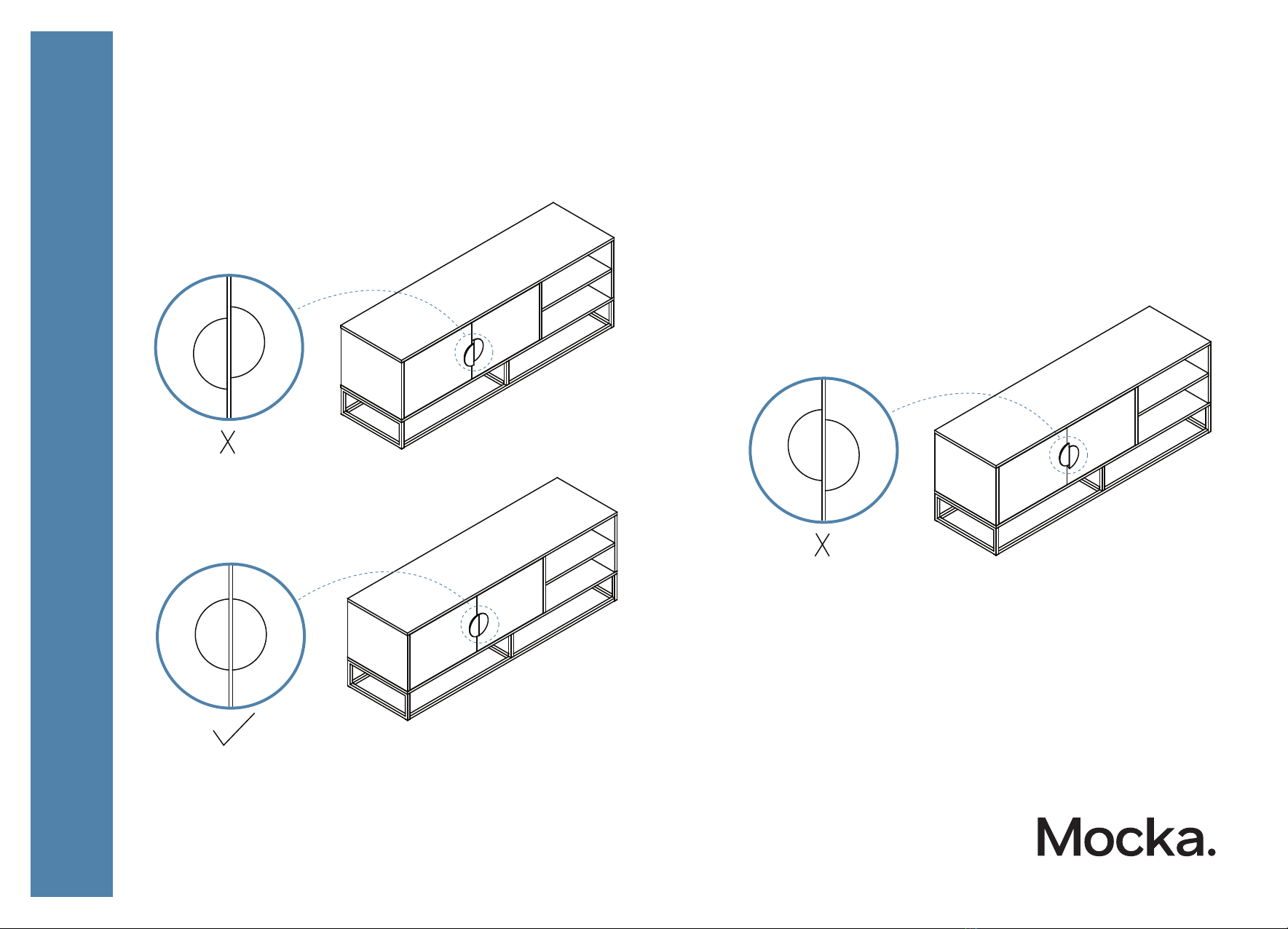

After installation, if the two handles are not aligned, loosen
the screws in the back, adjust the two handles to align them,
and then tighten the screws back up.
MM
MM
MM
