Mocka Locka Bedside Table Manuale utente
Phillips screwdriver required
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
A B C
Hardware Supplied
handle
x1
bolt
x2
w
D
door hinge
x 1
E
door lock
x 1
all mount
kit x1
Locka Bedside Table
1
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
12
2
Slide the legs [2] into the bottom of panel [1] until they click into place.
Locka Bedside Table
2
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions
2
2
1
34
Slide panel [3] down into the legs [2] until they click into place. Slide panel [4] down between panels [1] and [3] as shown.
4
3
1
2
2
3
1
Locka Bedside Table
3
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Assembly Instructions
5 6
Bend down the metal tabs on each side of panel [4] with a screwdriver
as shown.
Insert panel [5] to form the base of the unit as shown.
5
4
3
2
4
3
2
Locka Bedside Table
Assembly Instructions
4
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
2x
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
78
Insert the shelf panel [6] as shown. Attach the top panel [7] as shown.
6
5
6
5
7
Locka Bedside Table
Assembly Instructions
5
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
4 x
7
8
910
Secure the top panel [7] by clicking into place as shown. Attach the handle (A) to door panel [8] using 2x bolts (B). Tighten with
a screwdriver.
Locka Bedside Table
Assembly Instructions
6
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
2 x A
B
B
8
11
12
Attach 1 x door hinge (D) to base as shown. Ensure it is facing in the
correct direction.
Locka Bedside Table
Assembly Instructions
7
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
D
D
D
1 x
Attach panel [8] to hinge (D) as shown.
1 x
13 14
Locka Bedside Table
Assembly Instructions
8
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
13 14
8
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
Attach 1 x door lock (E) to door as shown, ensuring it clicks into place.
CLICK!
EEE
13 14
Wall Mount
Lift the completed unit into place, do not drag. Mark its height on the
wall with a pencil. Attach one end of the wall mount strap (C) to the
back of the unit with a 1x screw (C).
Screw the other end into the wall at the marked height with a wall screw
(not supplied). You’re done, enjoy!
C
C
Locka Bedside Table
Assembly Instructions
8
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
15 16

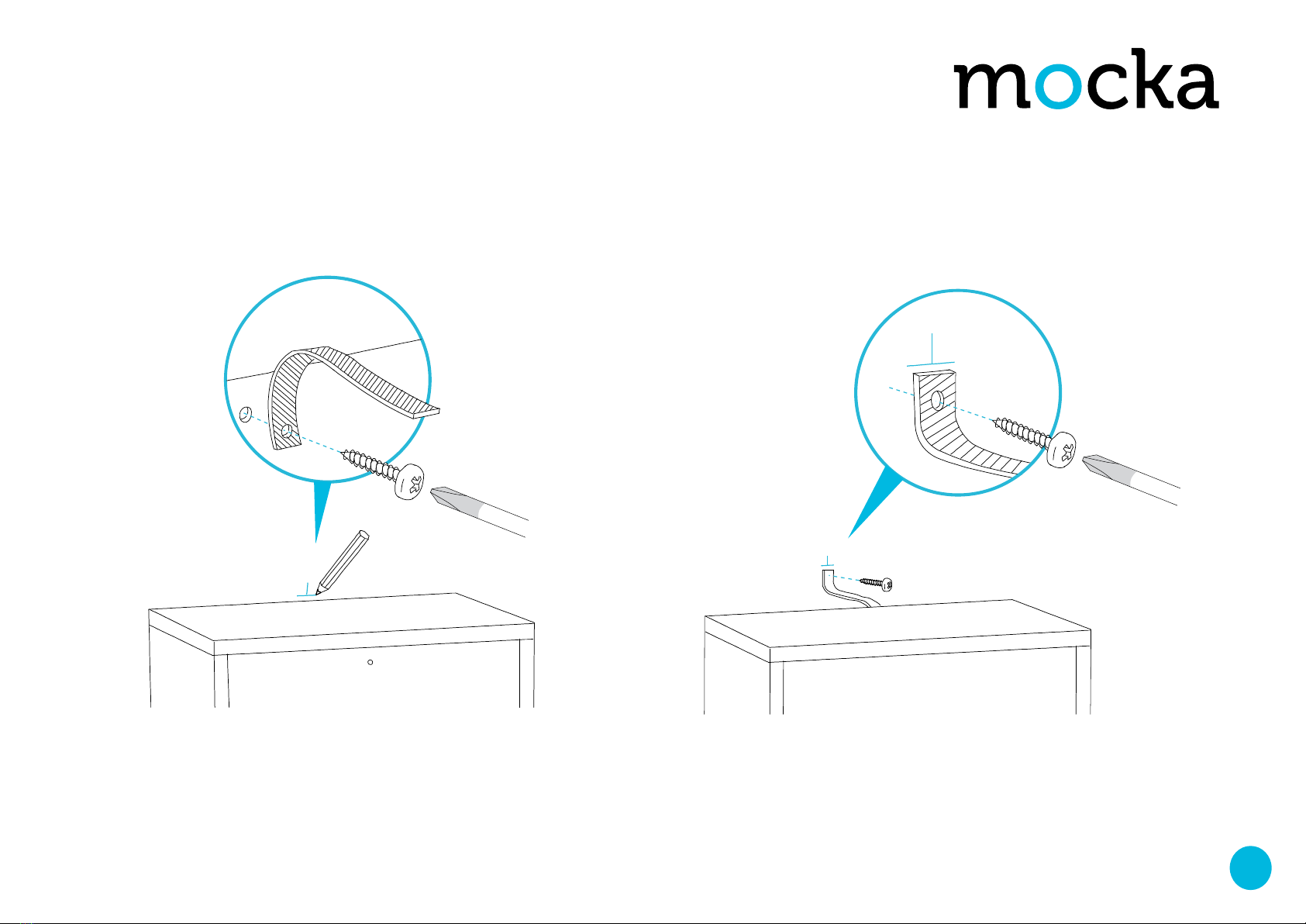

Wall Mount
Lift the completed unit into place, do not drag. Mark its height on the
wall with a pencil. Attach one end of the wall mount strap (C) to the
back of the unit with a 1x screw (C).
Screw the other end into the wall at the marked height with a wall screw
(not supplied).
C
C
Locka Bedside Table
Assembly Instructions
9
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
