Moduspace MAX140 Plus Manuale utente
Version 2.0
Bespoke Showcase Engineers

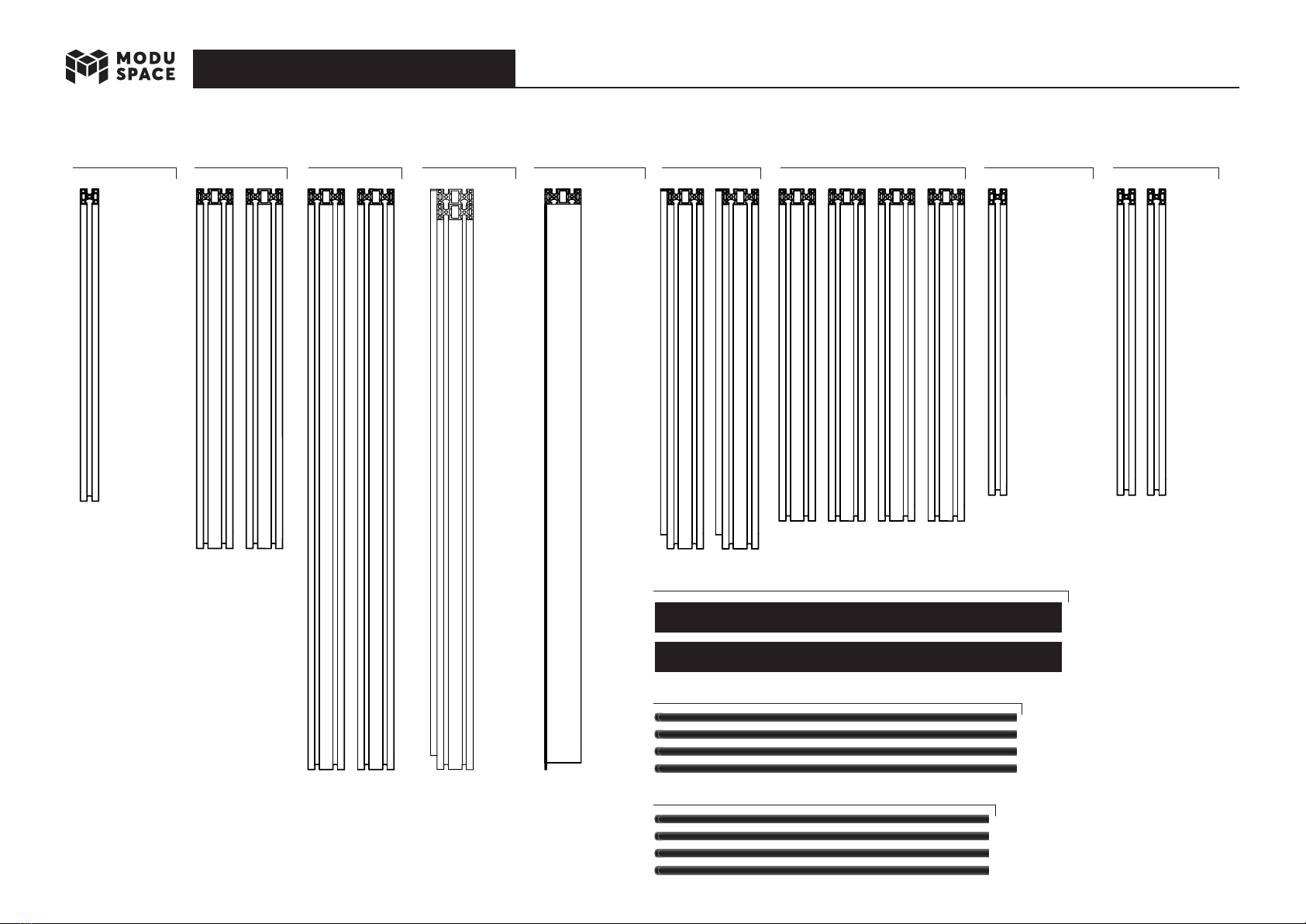

MAX140 Plus Assembly Guide
Top
Middle Bar x1
Conduits x 2
Front Frame
Top Bar x1
Front Frame
Bottom Bar x1
Vertical C-Channel x 4
Horizontal C-Channel x 4
Bottom
Middle Bars x 2
BarsMAX140 Plus Assembly Guide
Bespoke Showcase Engineers
1
Side Frame
Back Bar x 2
Back Frame Top
Bottom Bar x 2
Back Frame
Middle Bar
Side Frame
Front Bar x 2
Side Frame Top
Bottom Bar x 4
M5-Long Screw x 44 M5 Washer x 44
M5 T-Handle
Allen Key x 1
Front Panel
Safety Screw x 1
M4 Allen
Key x 1
Foot Pad x 4
M5-Short Screw x 8M4 Stacking Screw x 8
Stacking Bracket x 4
M5 Nuts x 8
Horizontal Bracket x 4
Accessories for connecting display cases
Attention: If you are connecting multiple display cases, please refer to
“Connecting Display Cases” assembly guide before commencing.
Bespoke Showcase Engineers
2

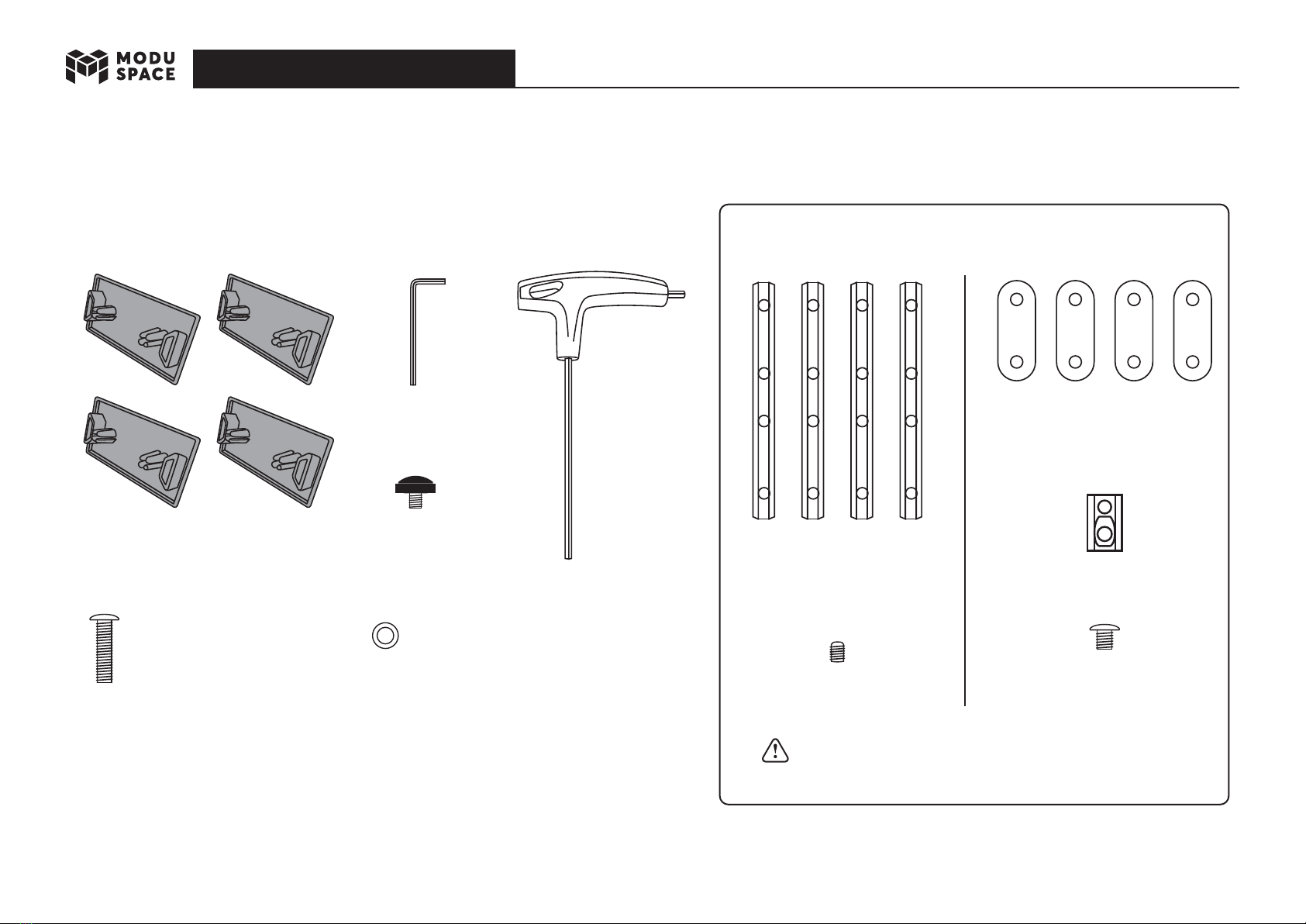

ToolkitMAX140 Plus Assembly Guide

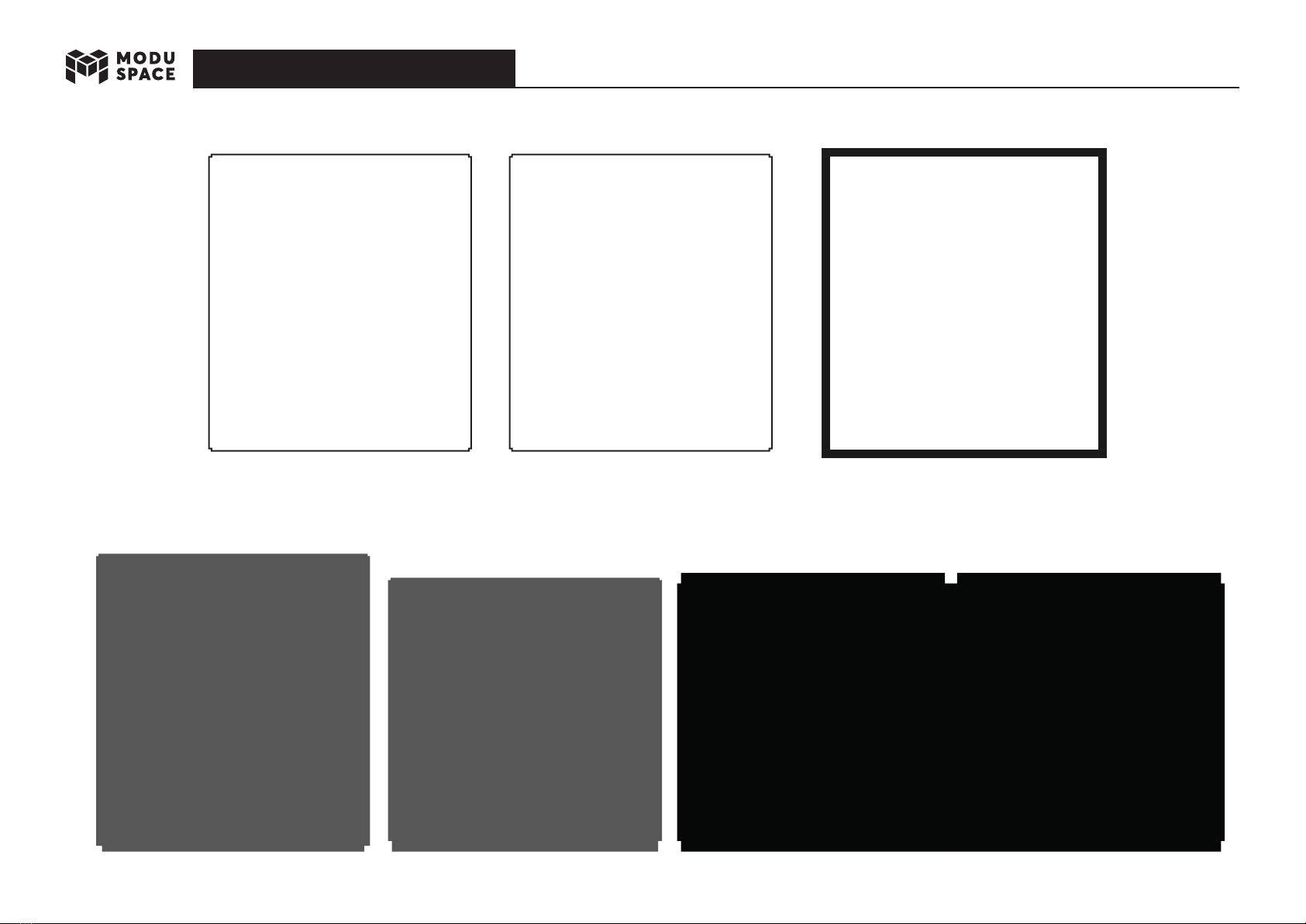

Back Panel x 2
Top Panel x 2 Laminate Base x 1
Plexiglass Side Panel x 2 Plexiglass Front Panel x 1
Bespoke Showcase Engineers
3
PanelsMAX140 Plus Assembly Guide
Plexiglass
Side Panel
Plexiglass
Side Panel
Magnet
Safety Pilot Hole
Back Panel Back Panel
Top Panel Top Panel
Plexiglass Front Panel
Back Frame Top Bottom Bar
Bespoke Showcase Engineers
4

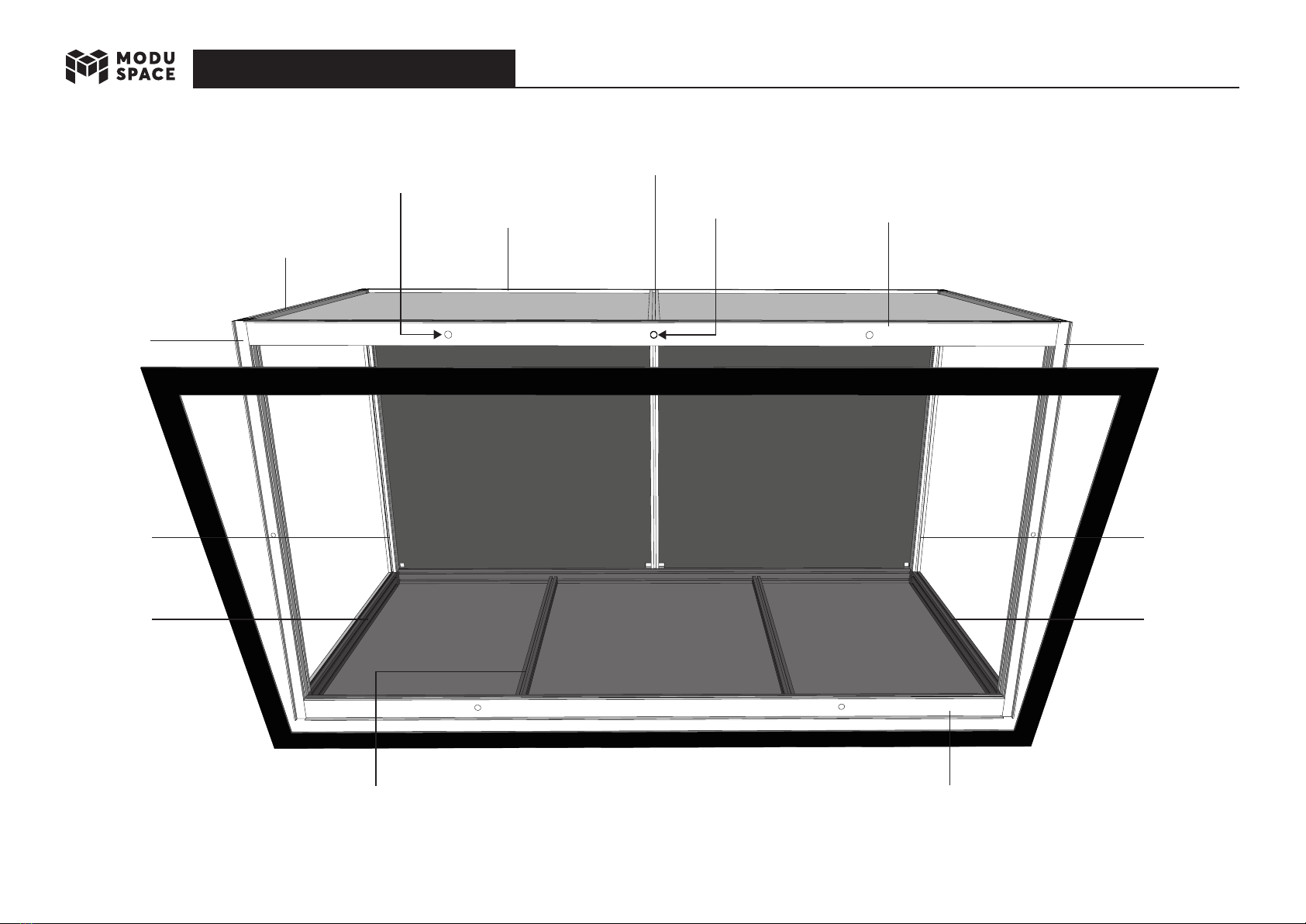

OverviewMAX140 Plus Assembly Guide
Laminate Base
Side Frame
Back Bar
Side Frame
Top Bottom Bar
Side Frame
Front Bar
Side Frame Top Bottom Bar
Top Middle Bar
Front Frame Top Bottom Bar
Side Frame
Top Bottom Bar
Side Frame
Front Bar
Side Frame
Back Bar
Front Frame Top Bottom BarTop Bottom Middle Bar
Bespoke Showcase Engineers
5

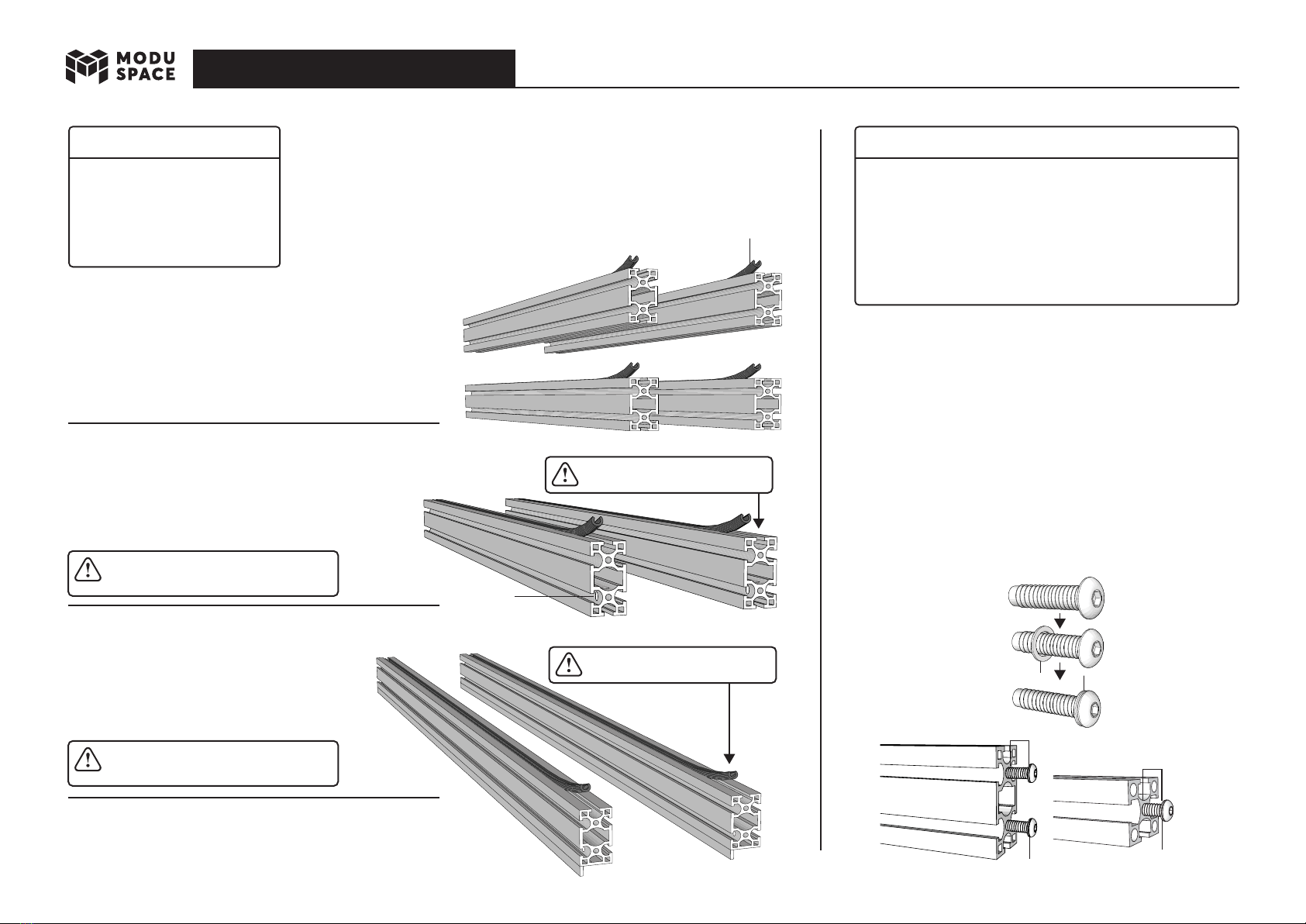

Preparation WorkMAX140 Plus Assembly Guide
You will need
15mm
15mm
M5 Washer
M5 Washer
M5 Washer
M5 Washer
Steps to insert M5-Long Screw
Step 1. Insert the M5-Long Screw fully into the M5-Washer.
Step 2. Position the screw with washer into the pilot hole on
the left side of the bar. Turn clockwise to tighten the
screw. Leave a 15mm gap between the washer and bar.
Step 3. Repeat steps 1-2 for the other side of the bar.
Step 4. Repeat steps 1-3 for
• Side Frame Horizontal Bar x 4
•Top Middle Bar x 1
• Bottom Middle Bar x 2
• Back Frame Middle Bar x 1
• Back Frame Top Bottom Bar x 2
•Front Frame Top Bar x 1
• Front Frame Bottom Bar x 1
You will need
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
If you are joining the display cases
horizontally, do not insert the C-Channel
on the connecting bar.
Please make sure the C-channel
does not cover the pilot hole.
Please make sure the C-channel
does not cover the pilot hole.
• Side Frame Top Bottom Bar x 4
•Side Frame Back Bar x 2
•Side Frame Front Bar x 2
• Horizontal C-Channel x 4
• Vertical C-Channel x 4
Side Frame Top Bottom Bar
Position the bar on any side. Install a Horizontal
C-Channel into the top slit of the bar. Repeat for all bars.
Side Frame Front Bar
Place a bar with the magnets facing down.
Install a Vertical C-Channel into the top slit.
Repeat for all bars.
Side Frame Back Bar
Position the bar with the pilot holes facing
the flat surface. Install a Vertical C-Channel
into the top slit of the bar. Repeat for all bars.
C-Channel
Pilot Hole
Steps to install C-Channel
Step 1. Flatten one end of the C-Channel by
pressing the open edges together.
Step 2. Push the compressed tip into the slit
of the bar.
Step 3. Press down the rest of the C-Channel
• M5-Long Screw x 44
• M5-Washer x 44
• Side Frame Top Bottom Bar x 4
•Top Middle Bar x 1
• Bottom Middle Bar x 2
• Back Frame Middle Bar x 1
• Back Frame Top Bottom Bar x 2
• Front Frame Top Bar x 1
• Front Frame Bottom Bar x 1

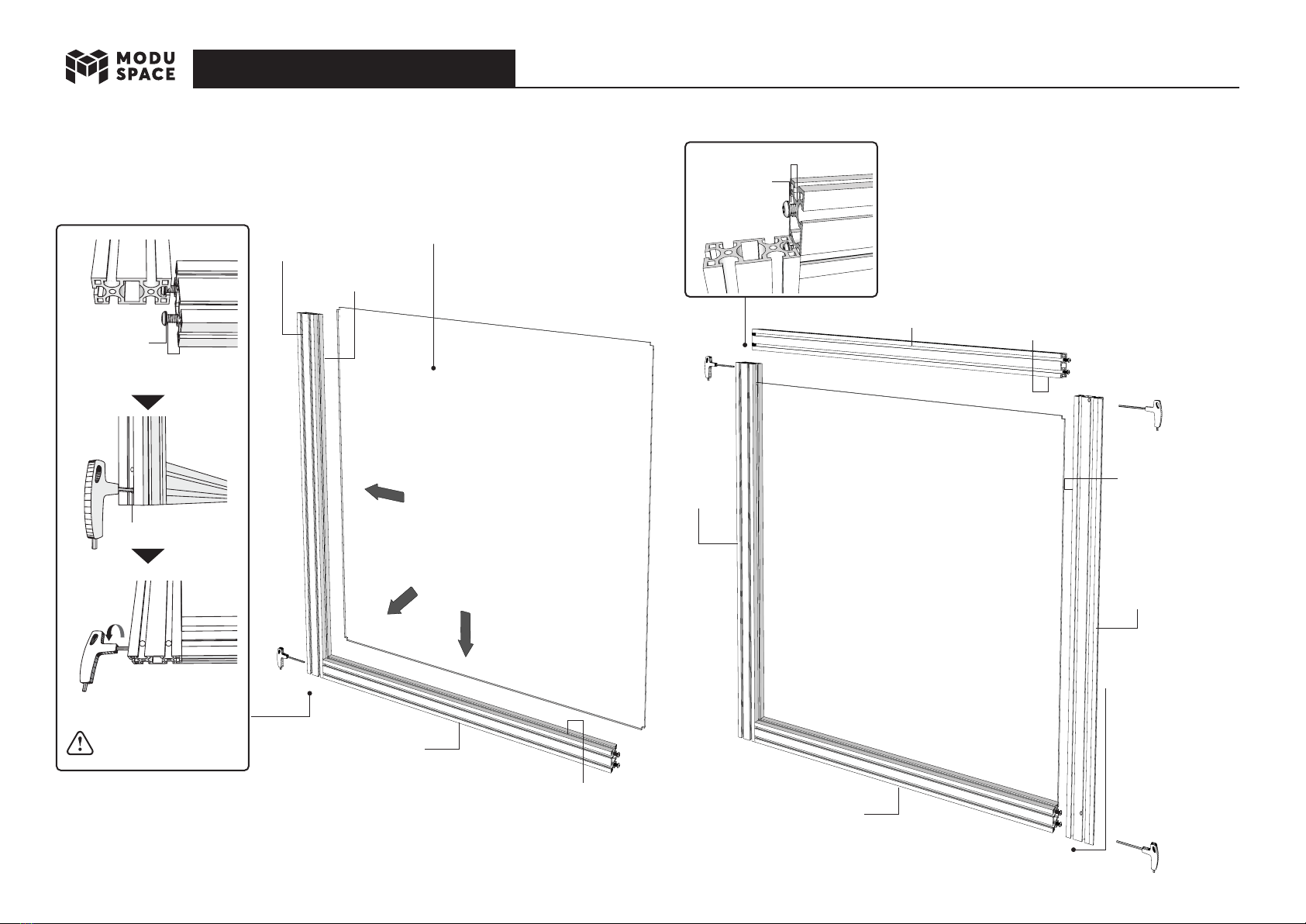

Left Side PanelMAX140 Plus Assembly Guide
Bespoke Showcase Engineers
6
Side Frame
Top Bottom Bar
Side Frame
Back Bar
Side Frame
Back Bar
Side Frame
Front Bar
Side Frame
Top Bottom Bar
Side Frame
Top Bottom Bar
Step 2.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
Plexiglass Side Panel Plexiglass Side Panel
C-Channel
C-Channel
Check that the pilot holes
are facing outwards.
15mm
M5 Washer
15mm
M5 Washer
Pilot Hole
C-Channel
C-Channel
Step 1.
Connect Side Frame Back Bar to Side Frame
Top Bottom Bar. Tighten the connecting
screw using the T-Allen Key.
Step 3.
Connect Side Frame
Front Bar to Side Frame
Top Bottom Bar (Refer to
Step 1). Tighten the
connecting screw using
the T-Allen Key.
Step 4.
Press down the Side Frame Top Bottom Bar
into the Plexiglass Side Panel. Tighten the
connecting screw using the T-Allen Key.

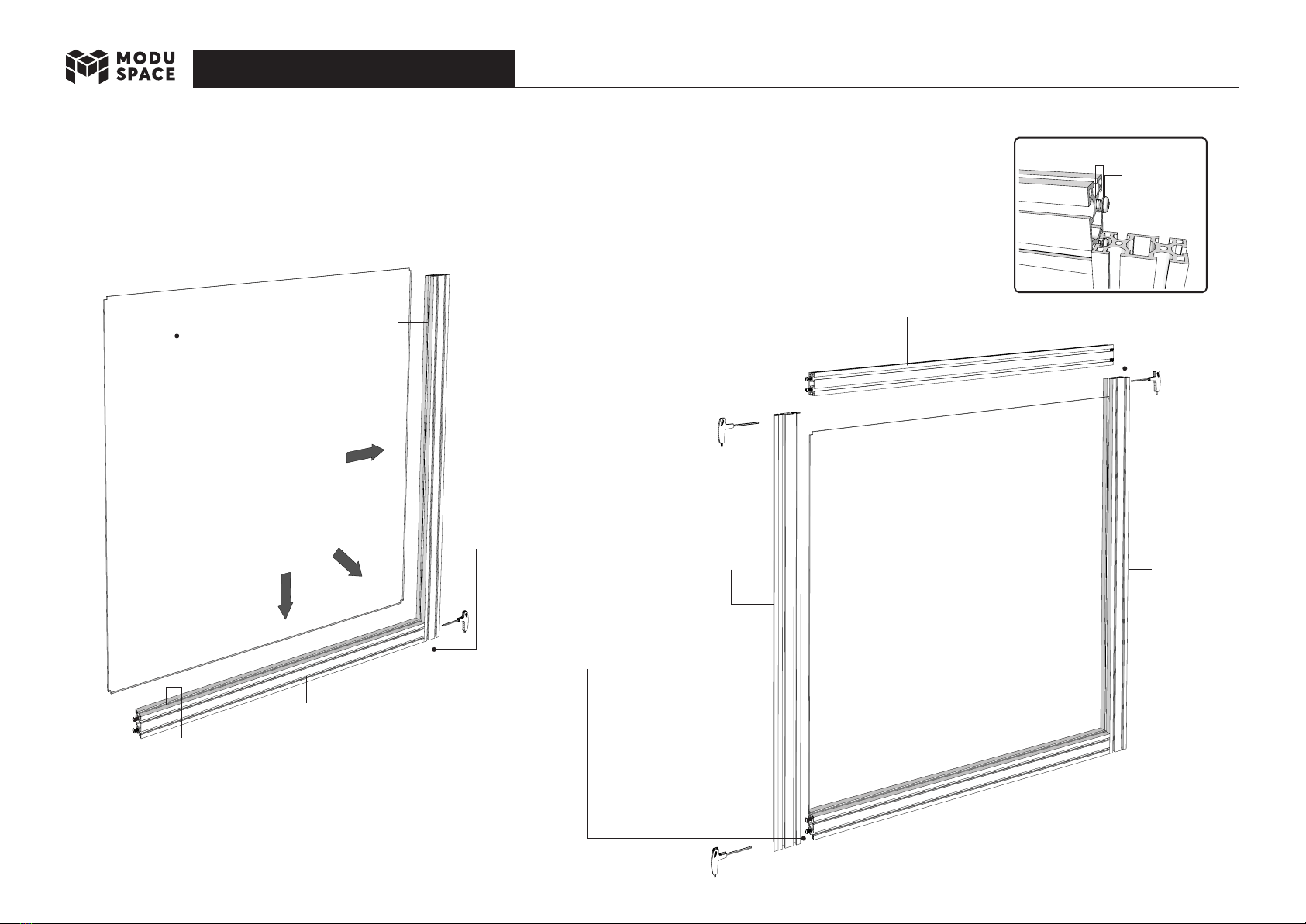

Right Side PanelMAX140 Plus Assembly Guide
Bespoke Showcase Engineers
7
Plexiglass Side Panel
Plexiglass Side Panel
Step 6.
Slide in the Plexiglass Side Panel
diagonally into the C-Channels of
the bars.
C-Channel
C-Channel
15mm
M5 Washer
Side Frame
Back Bar
Side Frame
Front Bar
Side Frame
Top Bottom Bar
Side Frame
Top Bottom Bar
Side Frame
Top Bottom Bar
Side Frame
Back Bar
Step 5.
Connect Side Frame Back Bar to
Side Frame Top Bottom Bar.
Tighten the connecting screw
using the T-Allen Key.
Step 8.
Press down the Side Frame
Top Bottom Bar into the
Plexiglass Side Panel.
Step 7.
Connect Side Frame
Front Bar to Side
Frame Top Bottom
Bar (Refer to Step 1).

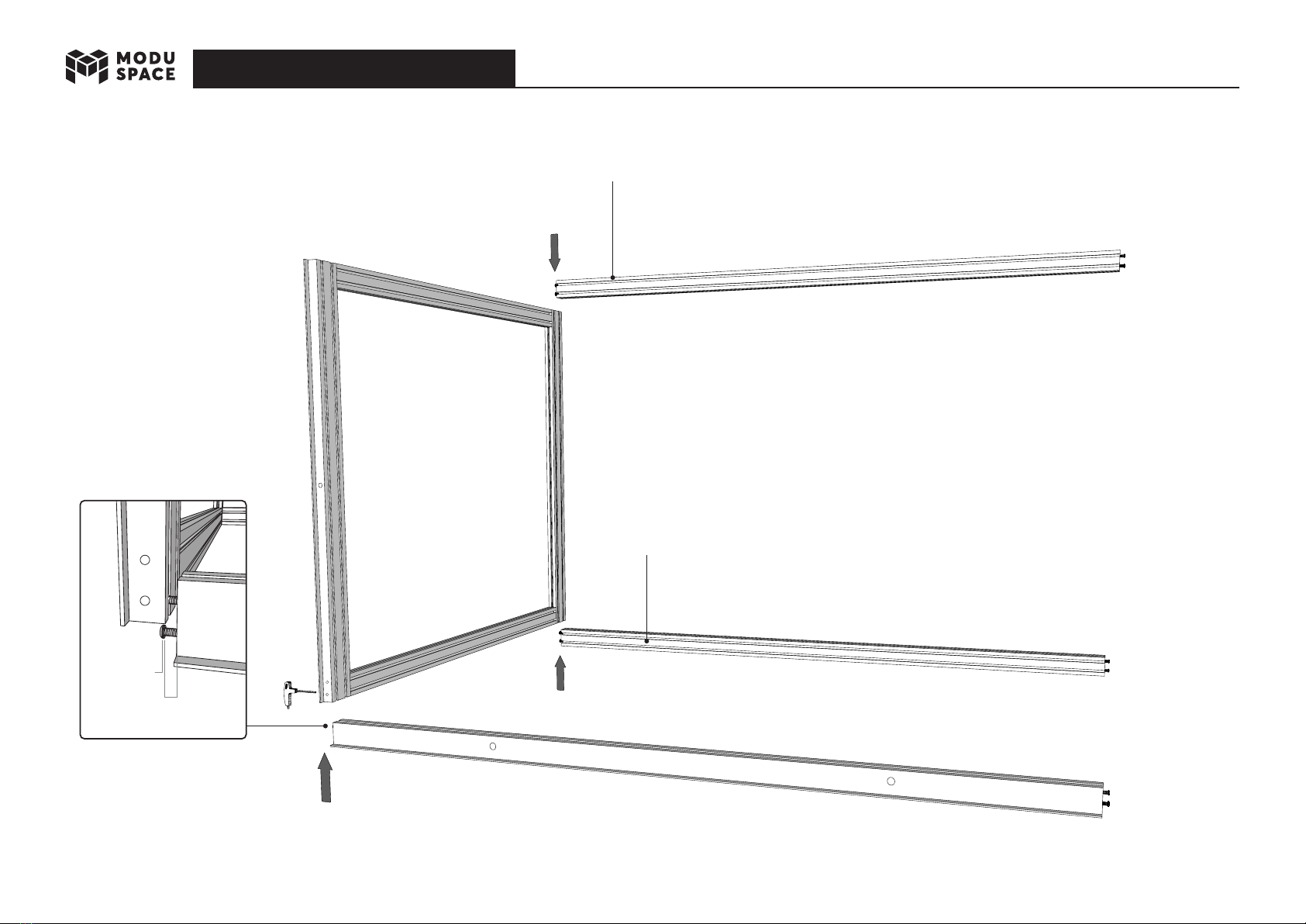

Base FrameMAX140 Plus Assembly Guide
Bespoke Showcase Engineers
7
15mm
M5 Washer
Step 11.
Press Back Frame Top Bottom Bar
into Back Panel.
Step 10.
Connect Back Frame Top
Bottom Bar to Left Side Panel.
Step 9.
Connect Front Frame Top
Bottom Bar to Left Side Panel.
Plexiglass
Left Side Panel

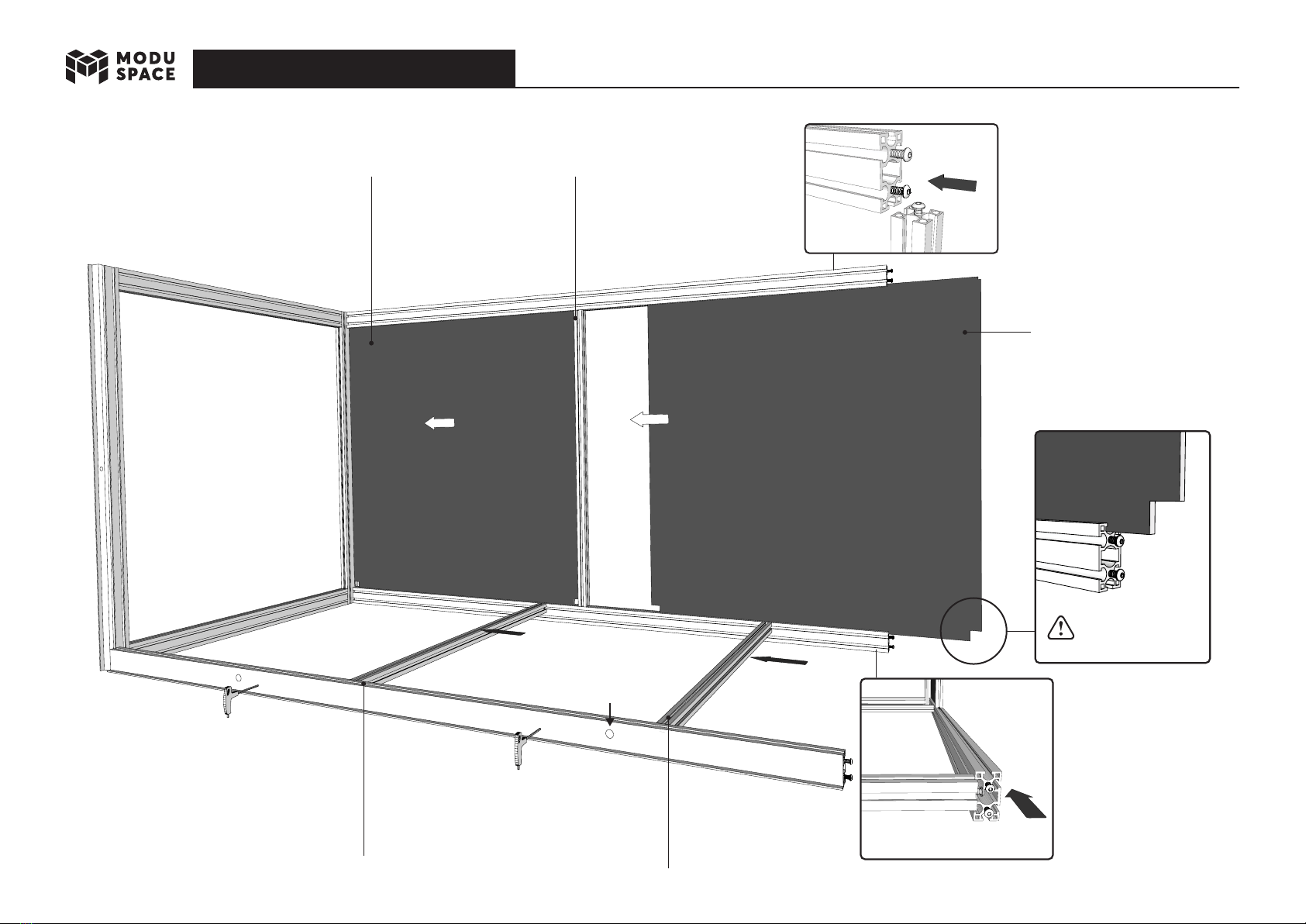

Back PanelMAX140 Plus Assembly Guide
Bespoke Showcase Engineers
8
Back Panel Back Panel
Plexiglass
Side Panel
Magnet
Please ensure the longer
notch is at the bottom.
Step 16.
Slide in Top Bottom Middle
Bar and position it to the right
of Back Frame Middle Bar.
Step 12.
Slide in one Back Panel
between the bars.
Step 14.
Slide in one Back Panel
between the bars.
Step 13.
Slide in Back Frame Middle Bar
and position it to the pilot hole.
Tighten the connecting screw
using the T-Allen Key.
Step 15.
Slide in Top Bottom Middle Bar and
position it to the left of Back Frame
Middle Bar. Tighten the connecting
screws using the T-Allen Key.
