Modway EEI-2221 Manuale utente

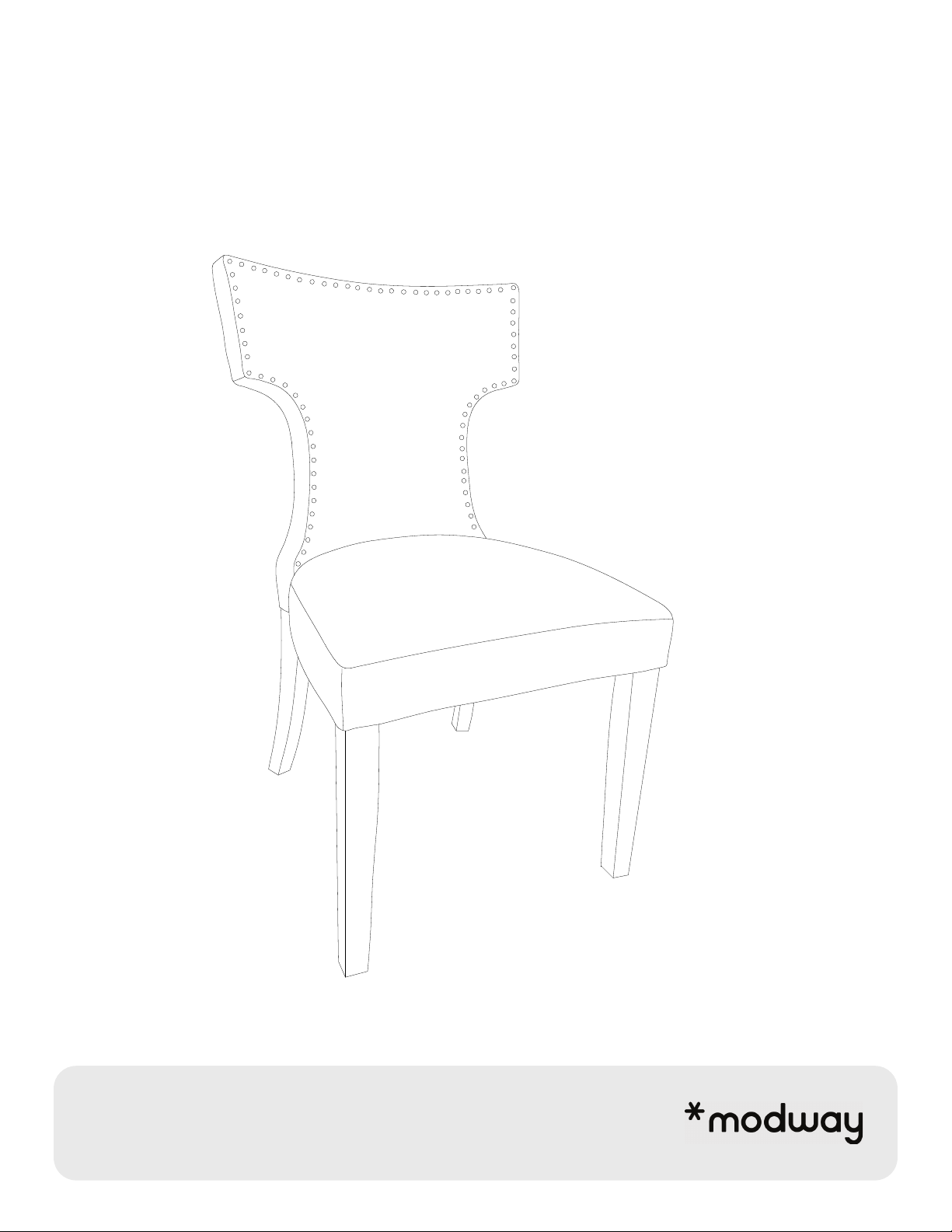

ASSEMBLY INSTRUCTIONS

EEI−2220/2221

V1.09.28.21

Questions? Contact us!

609.256.9000 • cs@modway.com

www.modway.com

PAGE 2 OF 5

Bolt M8x57mm

Flat Washer M8

Allen Key

Provided hardware:

Furniture components:

Missing parts or hardware? Need assistance?

609.256.9000 • cs@modway.com

Only use hand tools to assemble this item. Do not use power tools.

Do not tighten bolts or screws completely until all hardware is lined up

and inserted into the holes.

Do not over-tighten screws and bolts to avoid stripping the hardware

or cracking the item.

Assemble your item on a ﬂ at, carpeted area, with plenty of space to work.

This will prevent damage and scratches to your ﬂ oors or the item while

you’re assembling the product.

Keep all components and packaging out of reach of children or animals

to avoid risk of choking or suﬀ ocation.

Approx. 30 minutes

assembly time

2 people recommended

for assembly

Care instructions are

listed in the last step

of this manual

Read through all of

the instructions

before starting

Make sure you have all

parts and components

before discarding any

packing materials

Let’s get started!

Chair Back

Chair Seat & Frame

Front Legs

Spring Washer M8

Bolt M8x90mm x4

PAGE 3 OF 5

Chair Back

Bolt M8x57mm

Spring Washer M8

Flat Washer M8

Allen Key

Chair Seat & Frame

HARDWARE

COMPONENTS

Step 1

Step 2

Dx1

Ex1

Chair Back

Bolt M8x90mm

Spring Washer M8

Flat Washer M8

Allen Key

Chair Seat & Frame

HARDWARE

COMPONENTS

Dx4

Ex1

70%

NOTE : Do not fully tighten the bolt

70%

NOTE : Do not fully tighten the bolt

C D

Step 3

Bolt M8x57mm

Spring Washer M8

Flat Washer M8

Allen Key

Chair Back

Chair Seat & Frame

Front Legs

HARDWARE

COMPONENTS

Dx4

Ex1

70%

NOTE : Do not fully tighten the bolt

Step 4

NOTE :To assist with leveling the chair, place

a heavy object or have an adult sit on the

Chair Seat (2) to pressure the chair for

leveling and fully tighten all bolts with Allen

Key (E) to secure all legs.

100%

PAGE 4 OF 5

PAGE 5OF 5

CARING FOR YOUR ITEM

Indoor use only.

Not contract grade.

Spot clean using a non-abrasive

cloth and a mild cleaner.

Never use harsh chemicals, as they

could damage the ﬁ nish or integrity

of the item.

CONNECT WITH US!

Tag us @modway_furniture and #modway

for a chance to be featured.

Your chair is complete and ready to enjoy.

Great job!
