AM43 Blind Drive Motor
Manual Instruction
Enjoy Our Smart Life
1.Features
Motor can set upper & bottom limit positions and limits can be saved even
when motor power off;
Tow running modes: tilt & lift mode. Default mode is tilt;
Smart phone APP control;
Zigbee Bi-direction technology, instant shades status can be showed on APP;
Motor speed is adjustable on the APP;
Large battery capacity supports long time working;
Powered by charger or solar panel, the solar panel with built in light
sensor for auto-control;
1
2
3
4
5
6
7
AM43-0.45/40-ES-EZ(TY)
Model Input Power Solar panel
specs Lock-rotor
current Speed Range Torque Rated Current Battery Capacity
DC charger 8.4VDC 12V/0.3W 1.8A 20-50rpm 0.45Nm 1A 7.4VDC/1000mAh
2.Motor Specifications
3.Motor llustration
Setting button
Charging port Solar & sensor connecting port
UP Indicator DOWN
4.Installation
Do not exposure it under strong direct sunshine.Keep the
blind engine far away from high temperture or wet place
for using or storing.
1
Remove the cover plate of driving gear
Choose compatible driving gear
Thin cord strings and
small bead chains
Thick cord
strings Large bead chains
2
Tighten the cords or chains to driving gear.
3
Please leave 3-5mm space
between the bottom position
and support bracket during
installation.
Blind engine fixing plate installation options
1.3M adhesive 2.Screw fixing
4
Remove the teeth where from the cord or chains come out on cover plate;
then lock the cover up
5
Connect the solar panel or sensor to blind engine; Please pay attention
the wires in case wires wrapping.
6
Protection
teeth
Correct installation
1
2

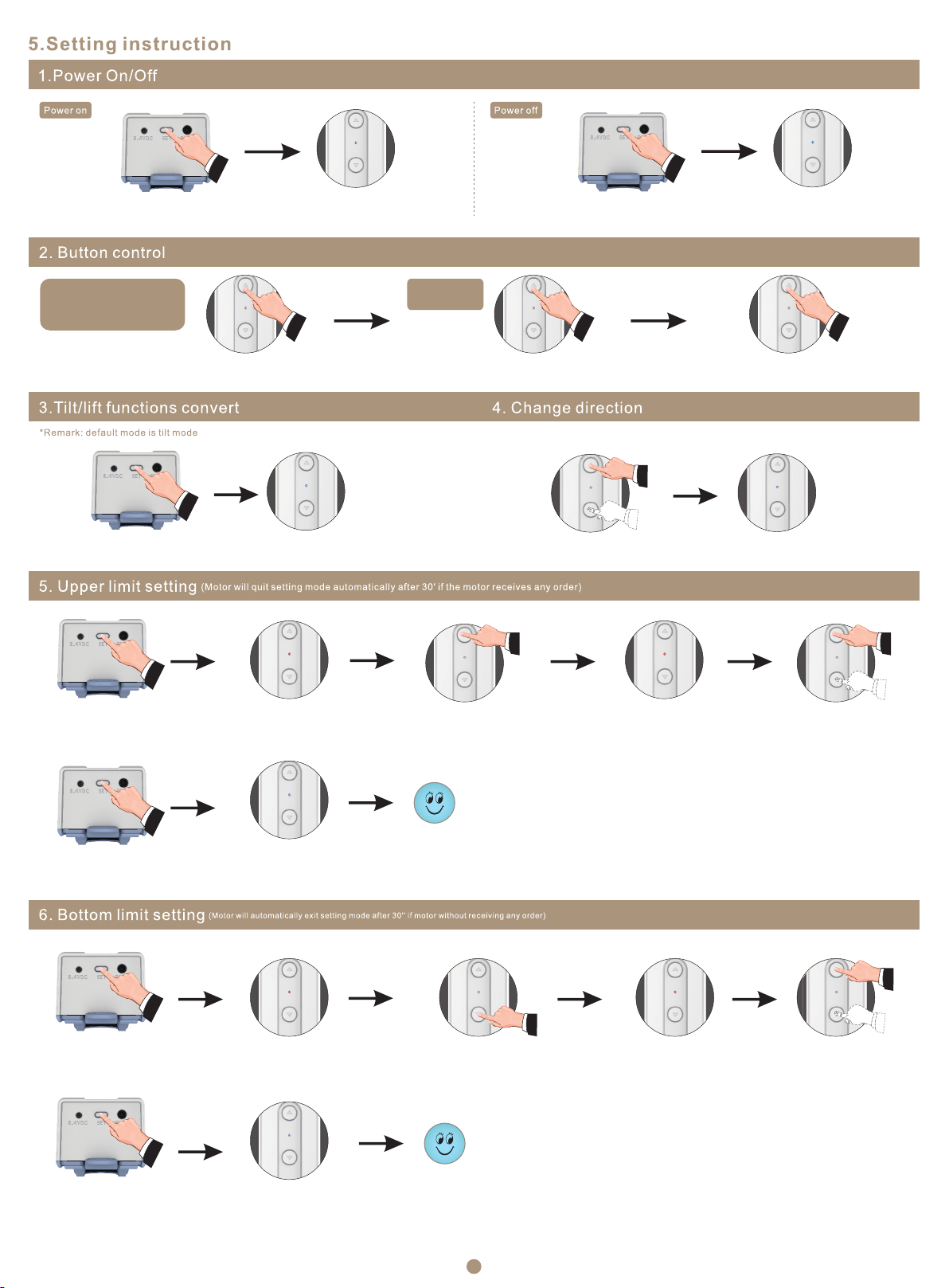

Press the setting button for 1' Press the setting button for 7' Blue indicator flashes slowly
for 3 times (1' on, 1'off)
Blue indicator flashes for 2'
Dot move mode
(apply to venetian blinds,
dual shades,triple shades)
Continuous
driving mode
Hit the button <1.5’,motor
stops where you release the button;
keep hitting the button >1.5’,motor moves continuously
Hit the button for 1’,
motor moves continuously
Hit the button again,
motor stops
Hit the setting button 5 times
(each hit no more than 1')
Blue indicator flashes 3
times, convert is done.
Hit the up and down button
at the same time for 3'
Blue indicator flashes 3 times,
direction changing is done
Hit the setting button for 3",
motor enter into setting mode
Hit the setting button for 3' Blue indicator flashes 3 times
Now motor saves
the upper limit
Indicator turns red Press UP button enters
into limit setting mode
Red indicator flashes quickly Move the curtain to
desired position
Hit the setting button for 3",
motor enter setting mode
Hit the setting button for 3' Blue indicator flashes 3 times
Now motor saves
the bottom limit
Indicator turns red Press Down button gets
into limit setting mode
Indicator flashes
red quickly
Move the curtain to
desired position

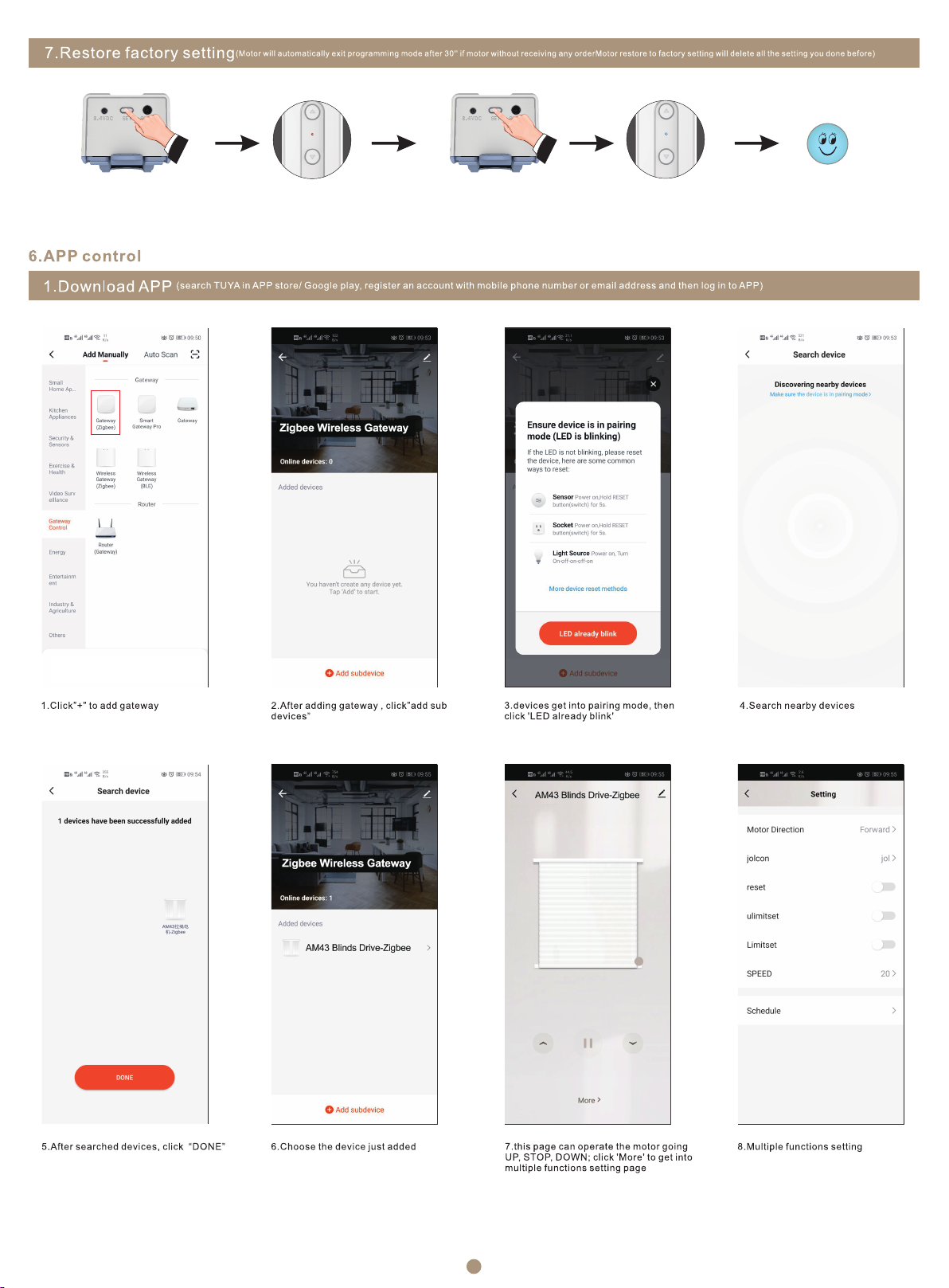

Hit the setting button for 3 , motor
gets into programming mode
Indicator turns red Hit the setting button for 7' Blue indicator flashes
quickly 3 times
Now motor restores
to factory setting

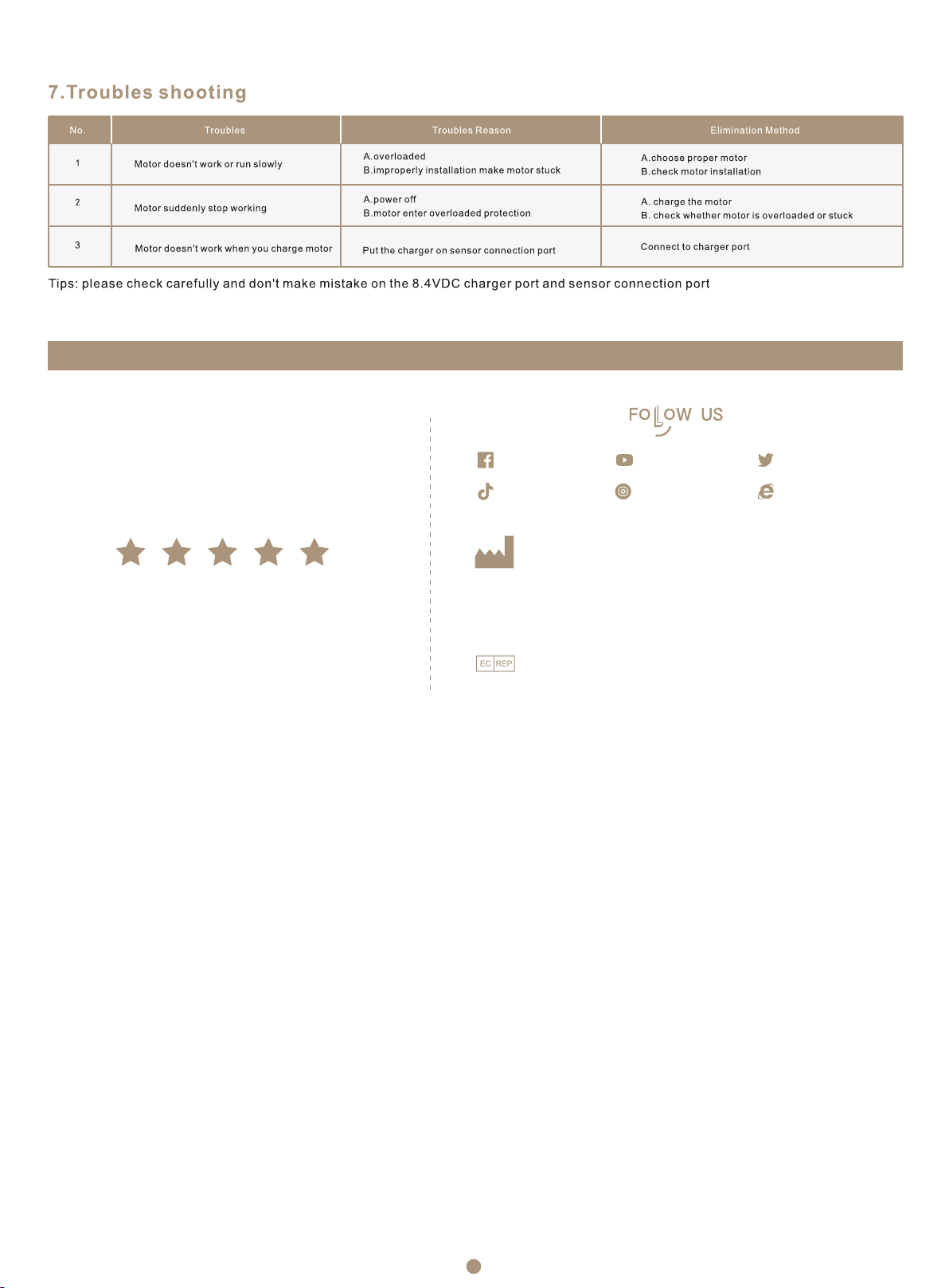

3
