Moen Aromatherapy IN208C2 Guida all'installazione
1
INS10980 - 3/20
Aromatherapy Combination Shower
Please Contact Moen First
For Installation Help, Missing or Replacement Parts
(USA)
1-800-BUY-MOEN
(1-800-289-6636)
WWW.MOEN.COM
(Canada)
1-800-465-6130
WWW.MOEN.CA
Installation & Usage Guide
BEFORE INSTALLATION
Register Your Product at Moen
INSTALLATION
ASSISTANCE
WARRANTY
ACTIVATION
EXCLUSIVE
SPECIAL OFFERS
REGISTER.MOEN.COM
(Mexico)
011 52 (800) 718-4345
WWW.MOEN.COM.MX
2
Table of Contents
Parts List ...................................................................... 3
Combination Shower Features ............................... 4-5
Combination Shower Installation Instructions.... 6-7
Inserting an INLY™Shower Capsule ....................... 8
Aromatherapy Dilution ............................................ 9
Removing the INLY™Shower Capsule ....................10
Warranty ......................................................................11
Cleaning ...................................................................... 12
Para Instrucciones en español ................................ 13
Para Instrucciones en francés .................................. 25
English
Visit moen.com/aromatherapy to re-order
your favorite INLY™shower capsules and for
additional product information.
Aromatherapy Combination Shower
An incredible shower every day; an aromatherapy
shower when you need it.
F
**
*
B
C
E
D1
D2
A
A1
A2
A. Rainshower with 3 Function Diverter
A1. Threaded Fitting
A2. Adjustment Nut
B. INLY™Aromatherapy Shower Capsule *
* Items may be sold separately ** Items not included
Helpful Tools
For safety and ease of shower replacement, Moen recommends the use of these helpful tools.
Parts List
English
3
C. Handshower
D. Hose Washers (x2)
E. Hose
F. Shower Arm **
4
Combination Shower Features
Add an INLY™ shower capsule to your routine and infuse
the shower with essential oils.
English
The dilution lever will
not move o the“o”
position without a
shower capsule in position.
Rainshower with
6.75”Diameter
Spray Face
Handshower with
5.6”Diameter
Spray Face
4 Setting Scent
Dilution Lever
6 Spray Setting
Push Button
60”Metal
Hose
5
Combination Shower Features
Ability to ow each shower head separately or
combined for more coverage.
English
3-Function
Diverter
INLY™ Technology:
Aromatherapy
Infusion Dial
INLY™ Aromatherapy
Shower Capsule
6
Remove existing showerhead.
Use wrench if necessary.
Loosen Adjustable Nut (A2) to allow
Threaded Fitting (A1) to rotate.
1. Attach Rainshower (A) to Shower
Arm (F).
2. Rotate Threaded Fitting (A1) to Shower
Arm (F).
A1
A2
Combination Shower Installation
Instructions
2211
A
A1
F
1
2
33
Tighten Threaded Fitting (A1) with a
wrench.
A1
44
English
Hand tigthen Adjustable Nut (A2) to
secure Rainshower until nut stops.
Hand tighten hose and washers to the
Rainshower (A) and Handshower (C).
Your combination shower is now ready
to use. Select from 6 handshower spray
modes with the push of a button to
customize your experience.
A
C
Combination Shower Installation
Instructions
66
A2
55
77
Turn 3 function diverter lever on the
Rainshower to desired shower mode.
32
11
88
English
7
1. Rainshower Only
2. Combination - Rainshower & Handshower
3. Handshower Only
8
Open the infusion dial by rotating it counterclockwise; this will allow
the device to accept the shower capsule.
11
Inserting an INLY™ Shower Capsule
Shake the shower capsule.
22
Insert the shower capsule
into the infusion dial.
33
Lock the shower capsule into place by rotating the infusion dial
clockwise until the indicator notches align.
44
A shower capsule can be inserted into the infusion dial on the handshower
before or during your shower; even while the water is running.
Helpful Tips:
Essential oils will not infuse into the shower water until a dilution level is selected (see next page).
The dilution lever will not move until a shower capsule is inserted and locked into the infusion dial.
•
•
English
9
Starting the Aromatherapy Experience
Once a shower capsule is locked into place and water is owing from the
handshower, begin your sensory experience by selecting a dilution setting.
Helpful Tips:
The dilution lever will not move o the“o”position without a shower capsule in position.
Water must be owing from the handshower and a dilution setting selected (III, II, I) to begin your
aromatherapy experience.
Aromatherapy experience duration will vary based on selected dilution setting.
For an optimal experience, ensure the shower water is at your desired temperature before selecting a
dilution level.
•
•
•
English
•
Dilution Settings
NO FRAGRANCE HIGH FRAGRANCE
MEDIUM FRAGRANCE LOW FRAGRANCE
10

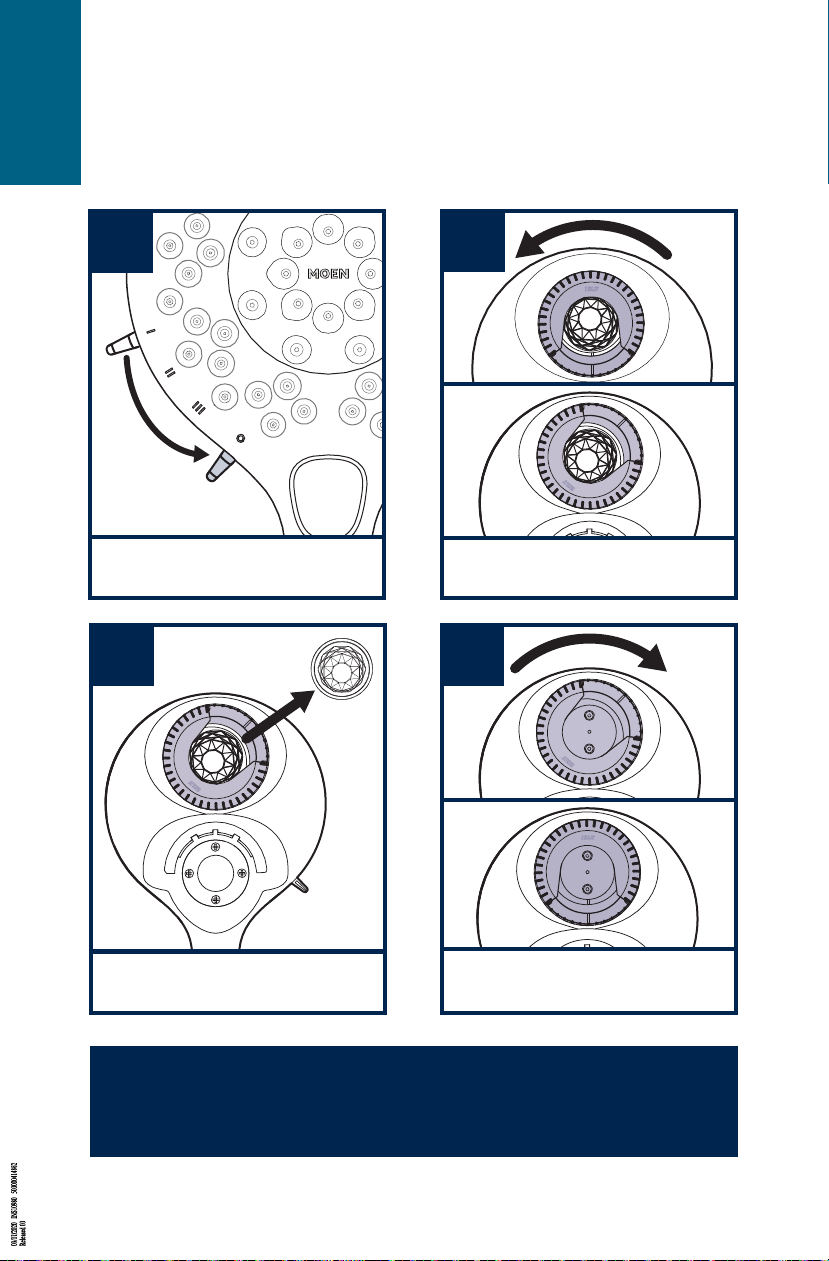

Removing the INLY™ Shower Capsule
To remove shower capsule, shift
dilution lever to the“o”position.
55
Remove empty shower capsule.
77
•
Helpful Tips:
Dilution lever must be in the“o”position to remove a shower capsule.
It is normal for residual water to be inside the shower capsule when removing from the handshower.
For the best aromatherapy experience, use one shower capsule per shower.
•
•
•
English
Rotate the infusion dial
counterclockwise.
66
Rotate the infusion dial clockwise.
88
