Moixa Smart Battery
Technical File part 03E:
Maintenance Manual
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
2 |
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
| 3
0207 734 1511
www.moixa.com
System Maintenance procedures for the
Moixa®Smart Battery.
For technical support relating to your Smart Battery,
please contact Moixa:
introduction
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
4 |
Issue
Draft
Draft V2
Released
Date
30/09/2016
04/10/16
12/10/16
Comment
Draft
Draft V2
V.1.0
Signed O by
CW
CW
CW
Authors Date
Chris Wright , CTO, Moixa Technology 12/10/2016
Dan Mason
Albert Miralles
Notes on the Maintenance / Operations Manual
1. Maintenance manual for guidance and subject to revision and version updates
2. Commercial condential and copyright Moixa Technology Ltd
3. This document is not for publication or online use without Moixa approval
4. You must have attended the approved installer program to carry out maintenance
on the Moixa Smart Battery unit
technical file
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
| 5
Contents
03E.01 Tools required
03E.02 Fitting a 3G dongle or changing a WiFi Dongle
03E.03 Upgrade unit from Wi to TP link connection
03E.04 Swap SD card in Moixa Smart Battery
03E.05 Replace battery modules on Moixa Smart Battery unit
03E.06 Recharge battery modules on Moixa Smart Battery unit
03E.07 Swap Moixa Smart Battery unit for a replacement
03E.08 Check non-invasive meter locations
03E.09 Connecting a unit WiFi
03E.10 Updating Sub-Pic
03E.11 Installing the Moixa Install App
P.06
P.07
P.12
P.18
P.21
P.24
P.27
P.31
P.38
P.41
P.47
contents
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
6 |
03E.01 Tools required
List of tools required for basic maintenance:
Tool Description Extra Information
1. Hex sey set To screws the battery and remove the covering
Screws: Hex head M4 8mm, socket counter-
sunk
2. Box end wrench Wi and 3G dongle pig tail: 8mm head
Inverter tray to moixa unit: 9/32 Inches
(7.14mm) Fixing unit: 10mm
3. Common screw drivers: • slot • phillips
4. AC clamp meter
5. Battery kit:
• Extension cable • Charger • Charger meter
6. Connectivity Kit:
• SD card: with last software • WIFI kit: anten-
na+ dongle • 3G kit: antenna + dongle
• Ethernet cable: cat5 • TP-Link Pair with 2x
ethernet cables
This can be acquired at Moixa Technology.
tools required
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
| 7
03E.02 Fitting a 3G dongle or replacing a WiFi Dongle
Description:
There is an issue with either a 3G or WiFi connection from a Moixa Smart Battery,
and the connection dongle needs to be replaced
This will involve:
a) Launch the Moixa maintenance App to record details of the job
b) Shutdown and Isolate the Moixa Unit.
c) Remove the 2 battery modules and the base cover - 7 allen keys screws, swap-
ping the SD card in the Pi module.
d) Replace the communications Dongle plugged into the USB socket of the Pi.
Replace the cover and the battery modules. Turn on the Unit. For WiFi you will
need to then set the Wi password on the Moixa Smart Battery by logging in – as
described in Section 03E.09
e) Check that the unit is online and reliably sending data, to do this you will need
to Ring Moixa technical team, report that work is complete and request that they
login to the unit to check that it is working correctly.
f) Press submit on the Moixa app to send details of the job to the Moixa team.
Timing:
Approx 40mins will be required for this work.
fitting/replacing 3g/wifi dongle
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
8 |
3G dongle kit denition:
1. 3G antenna
2. Pig tail
3. 3G dongle
4. SIM card
5. Male to female USB adapter
12
3
4
5
fitting/replacing 3g/wifi dongle
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
| 9
WIFI dongle denition:
1. WIFI Antenna
2. Dongle
3. Pig tail
2
31
fitting/replacing 3g/wifi dongle
DC READY®, MOIXA®are registered trademarks, logos, illustrations are property of
Moixa Energy Holdings Ltd. Registered in England and Wales. © Moixa Technology Ltd 2016.
www.moixa.com
Moixa Technology Ltd,
One Fellmongers Path,
London SE1 3LY
10 |

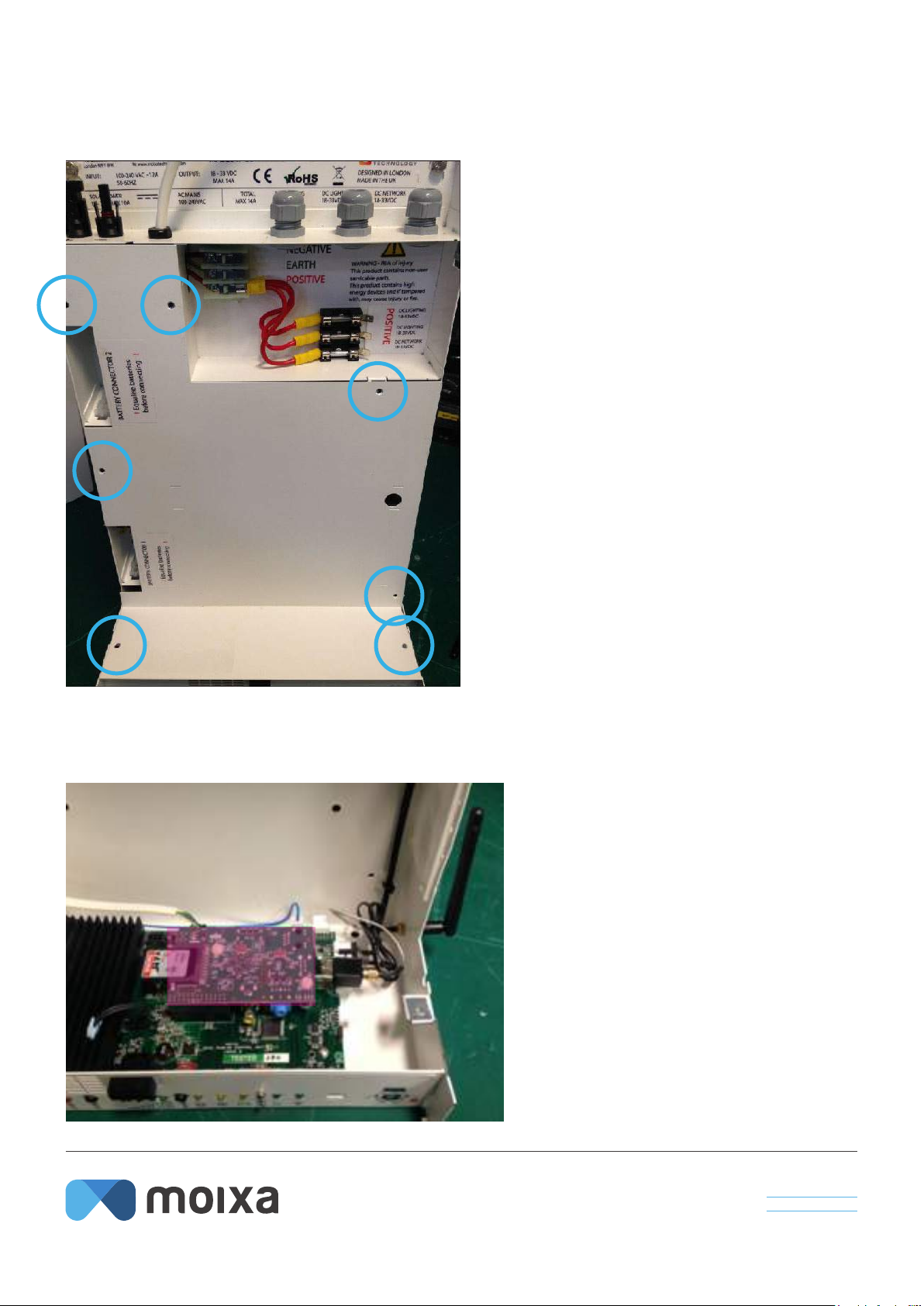

A. Unscrew the bolts and remove the cover
B. Identify the dongle
WIFI and 3G dongle is USB connected to the right side of the “PI” board
fitting/replacing 3g/wifi dongle
Pi
