A.S.04.03.15/ISSUE D

FILENAME: SD-69020-0500

ARBOR PRESS FIXTURE

PART No. 69020-0500

FOR MOLEX PRODUCT ENG. No. 90075 4 & 6 way

DESCRIPTION

This fixture is used to terminate 90075 4/4,6/4 & 6/6 way

connectors onto pre-cut and stripped cable.

FEATURES

1. This fixture can only be used in a standard Arbor Press part

No. 69020-0660.

2. For loose piece terminals only.

SPECIFICATION

SIZE: 100mm x 100mm x 20mm

WEIGHT: 3Kg

WORKING SERVICES: None

A.S.04.03.15/ISSUE D

FILENAME: SD-69020-0500

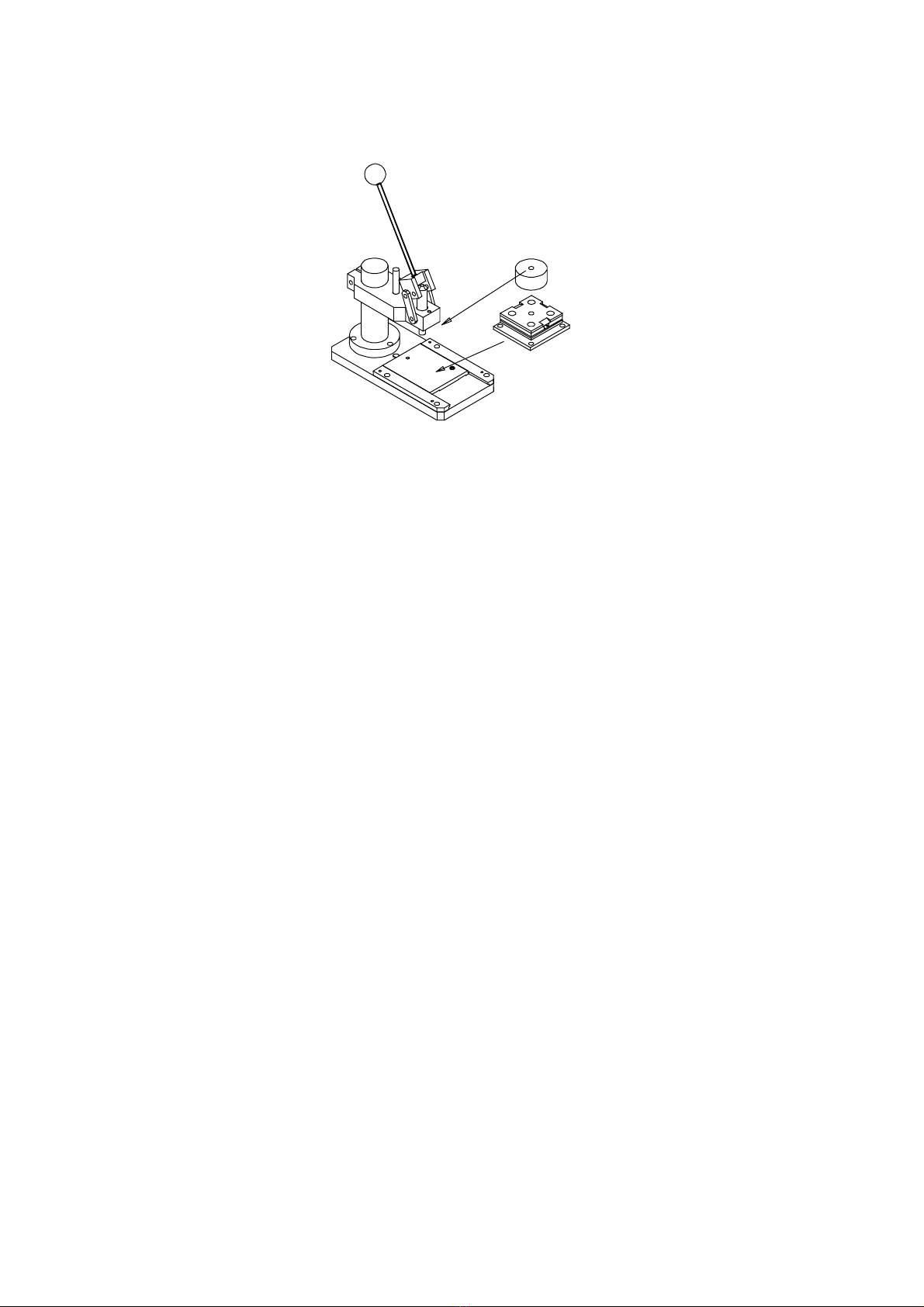

SET-UP

1) Fix upper block onto Arbor Press spindle and tighten locking

screw.

2) Place lower termination fixture onto mounting platform of

Arbor Press.

3) Make a few samples following the next section (operation)

and then check termination heights. If adjustment is

required see adjustments section.

OPERATION

1) Prepare cable in accordance with product specification

(e.g.: PS-90075).

2) Push pre-stripped cable into connector.

3) Insert connector into lower termination block.

4) Pull handle of Arbor Press down fully to terminate

connector.

5) Return handle to start position.

6) Release connector latch and remove cable assembly from

fixture.

A.S.04.03.15/ISSUE D

FILENAME: SD-69020-0500

ADJUSTMENTS

1) If termination height is incorrect then follow the procedure

below.

2) Loosen the stud nuts in the centre of the Arbor Press.

3) Loosen clamp bolt to column at the rear of the Arbor Press.

4) Adjust upper part of Arbor Press up or down using the nuts

on the central stud.

5) Re-tighten nuts and clamp bolt.

6) Recheck termination height.

MAINTENANCE

1) Keep fixture clean at all times.

2) Clean fixture with brush.

3) Oil moving parts weekly, when in use.

4) Store in a clean dry environment.

SPARE PARTS

Insertion Punch 4 way 69020-0505

Insertion Punch 6 way 69020-0506

Latching Punch 4 way 69020-0511

Latching Punch 6 way 69020-0512

A.S.04.03.15/ISSUE D

FILENAME: SD-69020-0500

QUALITY

Check termination quality against the Molex wire

termination specification for relevant product being

terminated e.g.: PS-90650.

A quality procedure should be in place to monitor output

from this fixture.

LIMITATIONS

This Arbor Press can only be used for product stated in

the description section of this leaflet.
