molex 207129 Series Manuale utente
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 1 of 6
Revision: A Revision Date: 08-18-10
Application Tooling
Specification Sheet
Modular Crimp ead
Order No. 63823-2670
and Crimp Tool
Order No. 63823-2600
FEATURES
% A full cycle ratcheting hand tool ensures complete crimps
% Ergonomically designed soft handles
% Precisely designed crimping profiles with simple contact positioning
% Easy handling due to outstanding force ratio
% odular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
% Can also be used in the Battery Powered Tool Order No. 63816-0200 (110 V) or 63816-0250 (220 V)
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: Sabre Female Flat Blade Crimp Terminals, 18-20 AWG, UL1015 wires.
Terminal
Series No.
Terminal
Order No.
Wire Size and Type Insulation Diameter
Strip Length
AWG
mm²
Type mm In. mm In.
43375 43375-2001
18 0.80 UL1015
2.85 ax .112 ax
3.96-5.54
.156-.218
20 0.50
UL1015
2.54 ax .100 ax
Insulation crimp to meet IPC/WH A-A-620 Class 2 compliance.
Note: Terminal will accommodate the UL1015 wires.
For UL1007 wires use Hand Tool 63823-2500.
Customer to cut off terminal from reel: 0.30mm (.012”) maximum Cut-off Tab.
TYPE 4A
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 2 of 6
Revision: A Revision Date: 08-18-10
INSULATION CRIMP
BRUS
STRIP LENGT
BELL MOUT
CONDUCTOR
CRIMP EIG T
BEND
DOWN
BEND UP
ROLLING
CONDUCTOR CRIMP
TWISTING
CUT-OFF TAB
SEAM
DEFINITION OF TERMS
CRIMP SPECIFICATION
Terminal Series No. Bell mouth Conductor Brush Max.
mm In. mm In.
43375 0.20-0.50 .008-.020 0.76 .030
Terminal Series No. Bend up Bend down Twist Roll Seam
Seam shall not be open
and no wire allowed out
of the crimping area
Degree Degree
43375 3 3 4 8
After crimping, the conductor profile should measure the following.
Terminal Series No. Wire Size Conductor Crimp Pull Force Minimum Profile
eight Width
AWG
mm2 mm In. mm In. N Lb. 18 AWG
20 AWG
43375 18 0.80 1.16-1.26 .046-.050 2.00-2.10 .079-.083 89.0 20.0 X
20 0.50
1.10-1.20 .043-.047 2.00-2.10 .079-.083 57.9 13.0 X
Terminal Series No. Wire Size Insulation Crimp
eight (Max) Width
AWG
mm2 mm In. mm In.
43375 18 0.80 3.20 ax .126 ax 3.20-3.40 .126-.134
20 0.50
2.90 ax .114 ax 3.20-3.40 .126-.134
Pull Force should be measured with no influence from the insulation crimp.
The above specifications are guidelines to an optimum crimp.
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 3 of 6
Revision: A Revision Date: 08-18-10
Figure 2
WIRE
TERMINAL
LOCATOR
INSULATION
PUNC
INSULATION
ANVIL
WIRE STOP
BLADE
CONDUCTOR
ANVIL
CONDUCTOR
PUNC
WIRE
INSULATION
PUNC
TERMINAL
WIRE STOP BLADE
Figure 1
OPERATION
Open the tool by squeezing the handles together, at the end of the
closing stroke, the ratchet mechanism will release the handles, and
the hand tool will spring open.
Crimping Terminals
1. Place the terminal into the correct die profile until the terminal
stopped by the locator.
2. Bring the wire stop blade down; make sure the wire stop located
behind the conductor grip.
3. Place a pre-striped wire into the terminal until the end of wire
touching the wire stop. See Figure 2.
4. Close the tool until the ratchet releases, the tool handles will then spring open.
5. Carefully remove the crimped terminal.
Note: The tamper proof ratchet action will not release the tool until it has been fully closed.
Maintenance
It is recommended that each operator of the tool be
made aware of, and responsible for, the following
maintenance steps:
1. Remove dust, moisture, and other contaminants
with a clean brush, or soft, lint free cloth.
2. Do not use any abrasive materials that could
damage the tool.
3. ake certain all pins; pivot points and bearing
surfaces are protected with a thin coat of high
quality machine oil. Do not oil excessively. The tool
was engineered for durability but like any other
equipment it needs cleaning and lubrication for a
maximum service life of trouble free crimping. Light
oil (such as 30 weight automotive oil) used at the oil
points, every 5,000 crimps or 3 months, will
significantly enhance the tool life.
4. Wipe excess oil from hand tool, particularly from
crimping area. Oil transferred from the crimping
area onto certain terminations may affect the electrical characteristics of an application.
5. When tool is not in use, keep the handles closed to prevent objects from becoming lodged in the crimping dies,
and store the tool in a clean, dry area.
Miscrimps or Jams
Should this tool ever become stuck or jammed in a partially closed position, Do Not force the handles open or
closed. The tool will open easily by lifting the ratchet release lever. See Figure 6.
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 4 of 6
Revision: A Revision Date: 08-18-10
Warranty
This tool is for electrical terminal crimping purposes only. This tool is made of the best quality materials. All vital
components are long life tested. All tools are warranted to be free of manufacturing defects for a period of 30
days. Should such a defect occur, we will repair or exchange the tool free of charge. This repair or exchange will
not be applicable to altered, misused, or damaged tools. This tool is designed for hand use only. Any clamping,
fixturing, or use of handle extensions voids this warranty.
CAUTION: Repetitive use of this tool should be avoided.
CAUTIONS:
1. anually powered hand tools are intended for low volume or field repair. This tool is NOT intended for
production use. Repetitive use of this tool should be avoided.
2. Insulated rubber handles are not protection against electrical shock.
3. Wear eye protection at all times.
4. Use only the olex terminals specified for crimping with this tool.
Notes:
1. This tool should only be used for the terminals and wire gauges specified on this sheet.
2. This tool is not adjustable for crimp height; however crimp force is adjustable (See instructions above).
Variations in tools, terminals, wire stranding and insulation types may affect crimp height.
3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all
insulation sizes.
4. olex does not repair hand tools (see warranty above) The replacement parts listed are the only parts
available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
5. Pull force should be used as the final criteria for an acceptable crimp. Pull force is measured with no
influence from the insulation crimp. The insulation should be stripped long (1/2 in.) so the insulation grips
on the terminal do not grip the wire insulation or the conductor. Refer to olex Quality Crimping
Handbook 63800-0029 for additional information on crimping and crimp testing.
6. olex does not certify crimp hand tools.
CAUTION: olex crimp specifications are valid only when used with olex terminals and tooling.
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 5 of 6
Revision: A Revision Date: 08-18-10
MODULAR
CRIMP
EAD
BATTERY
POWER
CRIMP
ADAPTER
LOCKING
PINS
LOCKING PINS
BATTERY
POWERED
TOOL
AIR
POWER
TOOL
MODULAR
CRIMP EAD
LOCKING
PINS
LOCKING
PINS
AIR
POWER
CRIMP
ADAPTER

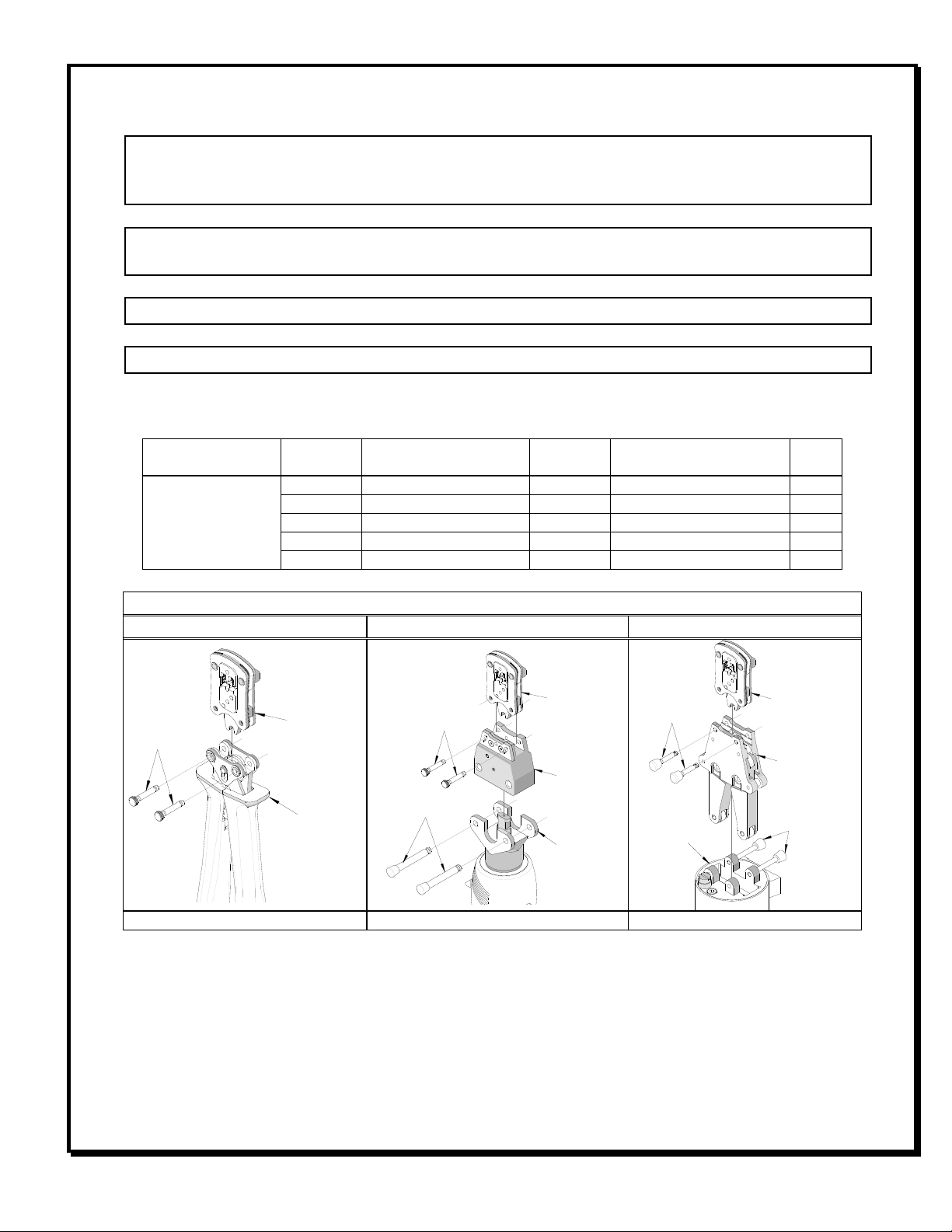

Applications for the Modular Crimp ead
WARNING: NEVER operate, service, install, or adjust this odular Crimp Head without proper instruction
and without first reading and understanding the instructions in the proper anual or Specification Sheet.
See Chart below for the correct anual or Specification Sheet.
WARNING: NEVER install tooling or service this tool while it is into any power source. Disconnect the
power by unplugging or turn off the Actuator from its power source.
CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause severe injury.
CAUTION: Wear safety glasses when operating or serving this tool.
The chart below shows all applications for this odular Crimp Head.
Modular Crimp ead
Order No.
Tool
Order no.
Tool
Description
Adapter
Order No.
Adapter
Description
Figure
No.
63823-2670
63816-0000
Hand Crimp Frame (Short) N/A N/A 3
63816-0050
Hand Crimp Frame (Long) N/A N/A 3
63816-0200
Battery Power Tool (110 V)
63816-0600
Battery Power Crimp Adapter
4
63816-0250
Battery Power Tool (220 V)
63816-0600
Battery Power Crimp Adapter
4
63816-0100
Air Power Tool 63816-0700
Air Power Crimp Adapter 5
Applications for the Modular Crimp ead
and Crimp Tool Battery Powered Tool Air Powered Tool
Figure 3 Figure 4 Figure 5
MODULAR
CRIMP
EAD
LOCKING
PINS
AND CRIMP
FRAME LONG
OR S ORT
Hand Crimp Tool for Sabre Female Flat Blade Crimp Terminals
Doc No: ATS-6382326H Release Date: 08-18-10 UNCONTROLLED COPY Page 6 of 6
Revision: A Revision Date: 08-18-10
RATC ET
RELEASE LEVER
ANDLE
SPRING
CRIMPING
SPRING (2)
3
6
4
Figure 6
M4 X 14mm
LONG B CS
2
5
1
PARTS LIST
and Crimp Tool 63823-2600
Item
Order Number
Description Quantity
1 63823-2670 odular Crimp Head 1 (Ref)
2 63816-0050 Hand Crimp Frame (Long)
1 (Ref)
3 63823-2675 Locator 1
4 63816-0001 Locking Pin 2
5 63600-0525 Handle Spring 1
6 63600-0520 Crimping Spring 2
http://www.molex.com
