molex 207129 Series Manuale utente
AS.04.03.15/ Issue C
FILENAME:SD-69008-0250b
CHANGEHEAD
PART No. 69008-0250
DESCRIPTION
Changehead for terminating Molex products Eng Nos. 5320;5321 ,
90635 and 40312 onto pre cut cable.
FEATURES
1. Fits onto pistol 69008-0949.
2. Terminates pre-cut ribbon cable into connector in one
action.
3. For jumper and daisy chain style harnesses.
4. Designed for prototype, small batch and field repair
applications only.
SPECIFICATION
SIZE: 85mm x 78mm x 40mm
AS.04.03.15/ Issue C
FILENAME:SD-69008-0250b
WEIGHT: 0.2Kg
MATL: Plastic Construction
OPERATION PROCEDURE
1. Slide changehead onto pistol 69008-0949.
2. Slide connector into changehead.
3. Insert ribbon cable over wire guide and into connector.
4. Operate pistol to compress connector fully.
5. Release pistol and remove harness.
MAINTENANCE PROCEDURE
1. Keep changehead clean at all times.
2. Look into track and check for any damage, dirt or plastic
shavings -
Clean using a brush or similar.

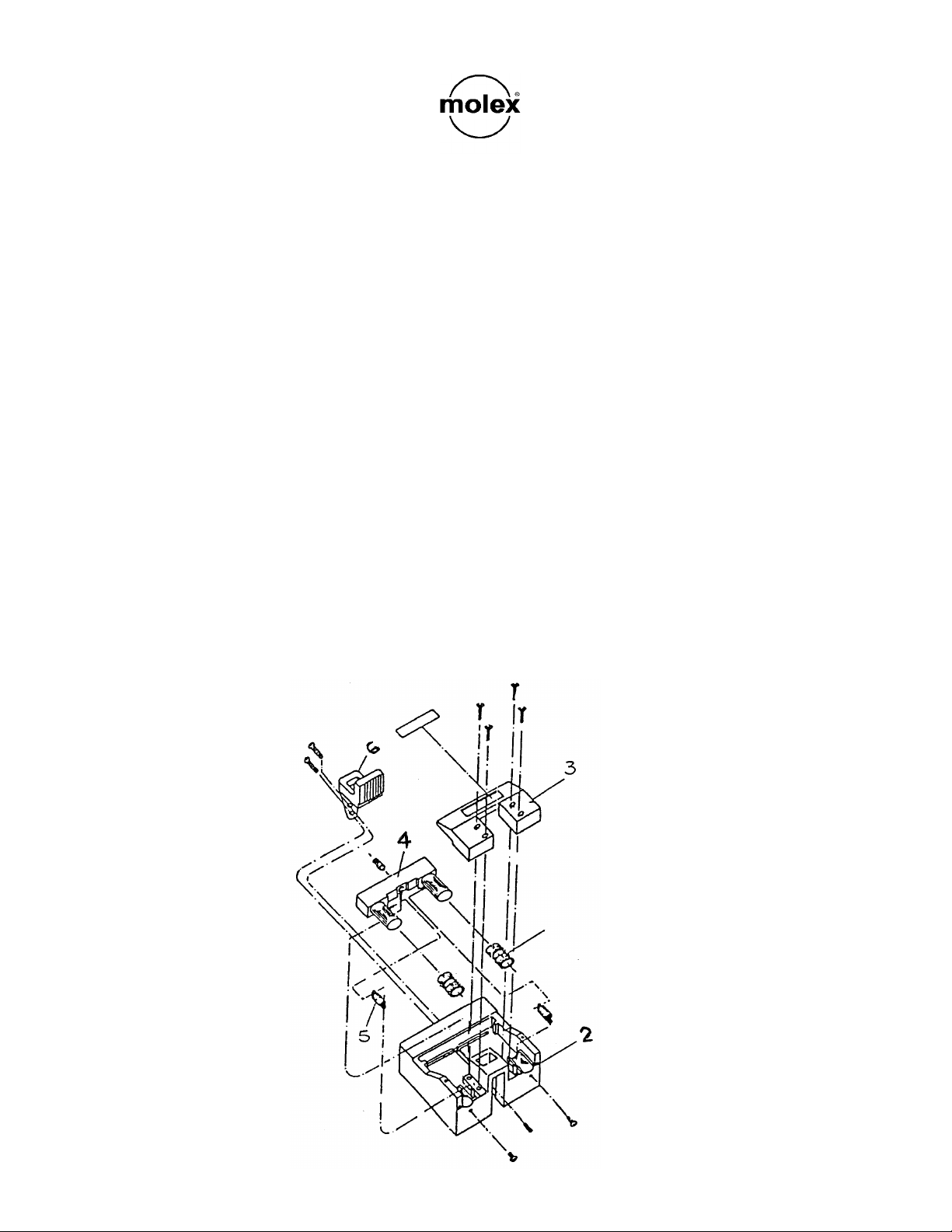

EXPLODED VIEW
AS.04.03.15/ Issue C
FILENAME:SD-69008-0250b
PARTS LIST FOR CHANGEHEAD
Item Part No. Description
1 69008-0250 Changehead
2 69008-0251 Body Moulding
3 69008-0252 Cover Plate
4 69008-0253 Pressure Part
5 69008-0254 Spring
6 69008-0255 Locator
7 69018-7048 Bush
ADJUSTMENTS
TERMINATION DEPTH
To adjust termination depth of connector, remove the changehead
from the pistol. A small screw can be seen in the mounting slot
rotate clockwise to decrease insertion depth.
PISTOL 69008-0949
This tool is factory set to give a stroke of 11.7mm and does not
need adjusting.
QUALITY
Check termination quality against the Molex wire termination
specification for relevant product being terminated eg: PS-90650.
A quality procedure should be in place to monitor output from
this changehead.
SAFETY
This pistol changehead should be used in accordance with the
operation procedure. Any misuse may cause injury to operator.
Suitable training should be given to indicate good working
practice.
