Page 1 of 2

Molex Japan Co., Ltd.

INSTRUCTION MANUAL

IS-0076E

ISSUED

1993-10-19

REVISED

2007-02-23

REV.

Tool Name: Mi2 HAND TOOL

Tool Number：57290-5000

1. Specifications

Connector name

Product number

Circuit number

Mi2 Single row receptacle

52484

2-15

Mi2 Single row board-in right angle

52693

2-15

2. Operation steps

Operation steps

Explanation figure

Set a “connector (1)”in the “holder (4)”, push

the “locator (2)”, and fix it with the “knob (3)”.

Install the “holder (4)”in the main body as

shown in figure and insert it in the position in

which the plunger enters the first dent of the

back of a holder.

Insert a “wire (5)”from the wire insertion

entrance until bumps to the wall and confirm

that the wire point touches to the wall.

In the state, the termination of a wire is

executed grasping the “handle (6)”strongly.

Next, shift the holder to the next circuit.

“Note”Please do not use this tool except the termination work of the specified connector.

OPERATING MANUAL

Locator (2)

Holder (4)

Knob (3)

Connector (1)

Install in the main

body

Wire (5)

Touch the point to

the wall.

Wire (5)

Grasp strongly.

Page 2 of 2

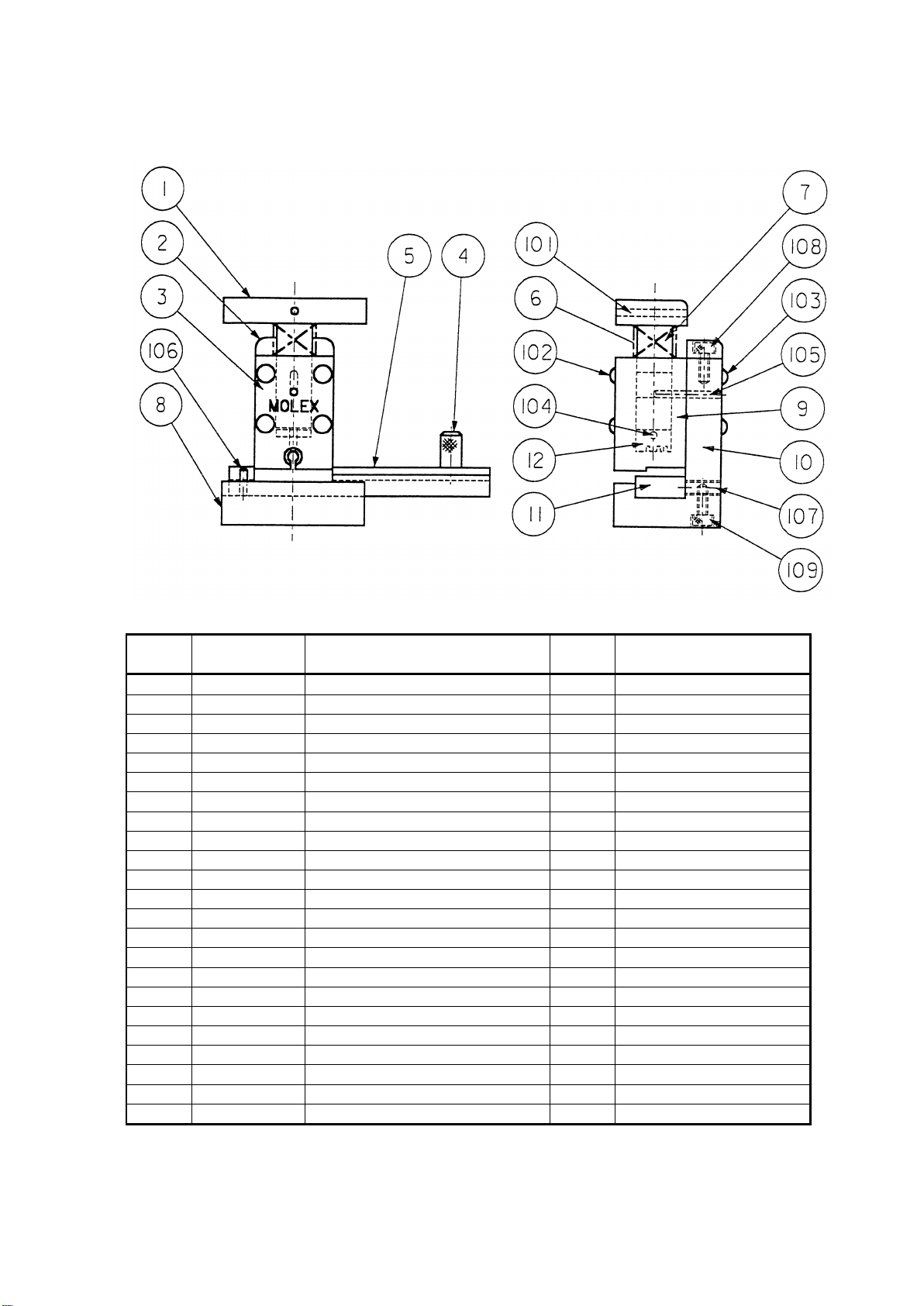

3. Parts List

No.

Parts number

Parts name

Q’ty

Remarks

57290-1001

Handle

57290-1002

Stopper

57290-1003

Front Plate

57290-1004

Knob

57325-1001

Holder

57290-1006

Spring

57290-1006

Spring

57290-1007

Ram

57325-1002

Base

57325-1003

Housing

57290-1010

Frame

57290-1011

Locator

57325-2001

Punch

101

Spring Pin

Phi 2x20L

102

Pan Head Socket Screw

M3x14L

103

Pan Head Socket Screw

M3x12L

104

Spring Pin

Phi 2x8L

105

Spring Pin

Phi 3x20L

106

Dowel Pin

Phi 2x10L

107

Ball Plunger

M4x9L

108

Socket Cap Screw

M3x8L

109

Socket Cap Screw

M4x16L
