Thank you for choosing MOMAN product. Please read this manual carefully before use and
follow all instructions mentioned herein.
User Manual
MOMAN
H3
Headset Helmet Intercom
Single Pack
Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to prevent
mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any malfunctions
happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Caring For Your MOMAN Product
Intercom x1
Screw Driver x1
Back Clip x1
USB Cable x1 Headphone Velcro x4
1 Pair of Speakers with
Microphone x1
Hook and Loop Fasteners x1 Manual x1
Velcro Clip x1
Package List
Product Introduction
① BT Key
② M Key
③ On/Off Key
④ Knob
⑤ Function Key
⑥ Charging Interface
⑦ Headset Interface
⑧ Indicator Light
⑨ Speaker
⑩ Headset Plug
⑪ Butterfly Sticker
⑫ Hard Microphone
⑬ Soft Microphone
Operation
1. Power On/Off
2. Pairing
ON: Press the On/Off Key for 4 seconds. When you hear voice prompt,
the blue indicator flashes twice.
OFF: Press the On/Off Key for 4 seconds. When you hear voice
prompt, the red indicator flashes twice.
2.1 Pairing with Mobile Phone
Method 1:
(1) In power-off state, long press the On/Off Key for 6 seconds until the red and blue indicator
flashes alternatively.
(2) Turn on Bluetooth function in the phone and search the signal. Choose “MOMAN H3” and
MOMAN
connect. The voice prompts when it is connected successfully.
※ The distance between intercom and mobile phone should be
within 1 meter.
※ If the intercom has pairing record with the mobile phone, they
will be connected after power on, provided that the Bluetooth is
turned on.
for 6 seconds
Method 2:
After power on, long press the Function Key and On/Off Key at the
same time for 4 seconds until the red and blue indicator flashes
alternatively. Search Bluetooth signal in the phone and choose to
connect.
※ Method 2 works for group intercom connection or music
sharing.
2.2 Pairing Between Two or More Intercoms
Between two intercoms (within 1 meter):
(1) Long press the On/Off Keys of intercom A & B for 4 seconds and the blue indicators flash
slowly. Long press the BT Keys of intercom A & B for 4 seconds until the blue indicators flash
quickly.
(2) Short press the BT Key of intercom A. When intercom A searches B signal, the blue
indicators flash slowly and you hear “Du”. After one second, the blue indicator of intercom B
flashes quickly to search the next device, and flashes slowly to stop searching. Short press the
BT Key of intercom to send the order and build the network. When your hear “Du”, it means
the network is built. Press the BT Key to start intercom. (When intercom B is searching the next
device, pressing the BT Key of intercom A can stop searching.)
※ a) When two intercoms are connected successfully, no need to pair repeatedly. After power-
on, pressing BT Key can enter intercom mode.
b) When two intercoms are connected successfully, pressing the Function Key and On/Off Key
can connect phone by Bluetooth. Press the BT Key of any intercom to intercom.
c) During intercom, there is automatic reconnect within 10 minutes after disconnection. Also
you can short press the BT Key to manually connect.
d) During intercom, press the BT Key to disconnect.
2.3 Pairing with Headphone of Other Brands
(1)Long press the On/Off Key for 4 seconds and the blue indicator flashes slowly. In standby
mode, long press the Function Key and the On/Off Key for 4 seconds until the red and blue
indicator flashes alternatively. Turn on your headphone and make it enter pairing mode. Short
press the Functional Key and On/Off key of H3, and connect them until you hear voice prompt.
(2)When you hear “beep”, the blue indicator flashes slowly, which means the connection is
successful. Press the BT Key again and start to intercom.
3. Music Sharing
Turn on: Restore factory settings of two intercoms. After pairing intercom A and intercom B
successfully, connect intercom A with phone Bluetooth. Short press the BT Key and play music.
Long press the Function Key for 2 seconds to enter music sharing pairing, with blue indicator
flashing quickly. The intercom B prompts and means sharing is successful.
Turn off: Randomly long press the Functional Key of intercom A or B.

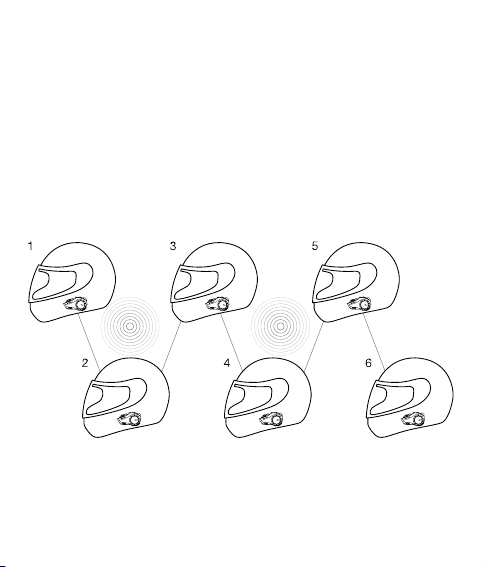

Between More Intercoms (within 1 meter):
(1) Long press the On/Off Keys of all intercoms for 4 seconds and the blue indicators flash
slowly. Long press the BT Keys of all intercoms for 4 seconds until the blue indicators flash
quickly.
(2) Short press the BT Key of one intercom (define as NO. 1). NO.1 enters auto-pairing mode.
When it is connected with the other intercom (define as NO. 2), the blue indicators of NO. 1
and NO. 2 flash slowly, which means the connection are successful. After one second, the
blue indicator of NO. 2 flashes quickly, searching the next intercom. When it connects to NO. 3
intercom, the blue indicators of NO. 2 and NO. 3 flash slowly, which means the connection are
successful.
(3) Press the BT Keys of all intercoms (firstly press NO. 1) to create group network. Press the
BT Keys again to begin to intercom.
Notes: After group network is completed, short pressing the On/Off Key will report “The
equipment is No. ✳”.
※ Due to using environment and exterior interference, it is recommended to create intercom
group network of 4 users to the most within 1000 meter.
End/Restart:
Press the BT Keys to end the intercom. It’s recommended to restore the factory settings for
each machine before pairing. Clear method: In the power on state, press and hold the M Key
and On/Off Key for 6 seconds at the same time.
for 4 seconds
EQ Audio Mode Switching:
During music playing, press the M Key and switch EQ Audio mode: “Pop”, “Rock”, “Jazz”,
“Classic” and “Country”.
Music Control
(1) Under Bluetooth connection mode, press the Function Key to play/pause music.
(2) Next Music: turn the Knob clockwise.
(3) Previous Music: turn the Knob counterclockwise.
EQ Audio Mode Switching Play / Pause music Next / Previous Music
