Monessen • MONAL Dual Overhead Accent Light Kit Installation Manual • 4607-904 Rev. A • 4/18

Dual Overhead Accent Light Installation Instructions

Model: MONAL

NOTE: This kit is designed to work manually with the dim-

mer control supplied.

BEFORE YOU BEGIN

The instruction sheet is ONLY for models listed below;

carefully inspect the contents for shipping damage. If any

parts are missing or damaged, immediately contact the dealer

from whom you purchased this kit.

This kit is designed for use with the LCUF32CR-B,

LCUF36CR-B, LCUF42CR-B reboxes.

KIT CONTENTS:

• Two (2) light socket assemblies

• One (1) Rheostat dimmer

• One (1) 6 ft. power cord

• One (1) light join wire harness

• Two (2) light bulbs (35 watt)

• Two (2) light covers with clear lens

• One (1) fastener pack

TOOL REQUIRED:

Phillips head screwdriver or battery drill

WARNING: Turn appliance OFF and allow to cool before servicing. Only a qualied service

person should service and repair this insert. A qualied service person must connect and

disconnect the insert to/from the gas supply. Follow all local codes.

For use with LCUF Series Firebox

WARNING

Electrical Grounding Instructions:

This appliance is equipped with a three-

prong (grounding) plug for your protection

against shock hazard and should be

plugged directly into a properly grounded

three prong receptacle.

Electrical connections should only be

performed by a qualied licensed electrician.

Main power supply must be turned off

before connecting kit.

CAUTION

Installation Instructions - Wiring

1. Before installing the lighting kit, wire the junction box

into an electrical circuit. This should be done before

framing the replace. Wire with minimum 60°C wire in

accordance with prevailing codes.

2. Remove the two (2) screws for the junction box cover,

loosen romex connector and slide up wire. Connect

wires to junction box wires securely. Slide junction box

cover down to unit and reattach to rebox and tighten

romex connector to wire. Junction box was installed at

the factory. See Figure 1.

IMPORTANT: Always check local building codes.

This installation must comply with local regulations as well

as the National Electric Code.

FP1912

Junction box wiring

8/08

Junction Box

120V AC

60Hz

Factory Supplied

Not Supplied

Figure 1 - Junction Box Wiring Diagram

Monessen • MONAL Dual Overhead Accent Light Kit Installation Manual • 4607-904 Rev. A • 4/18

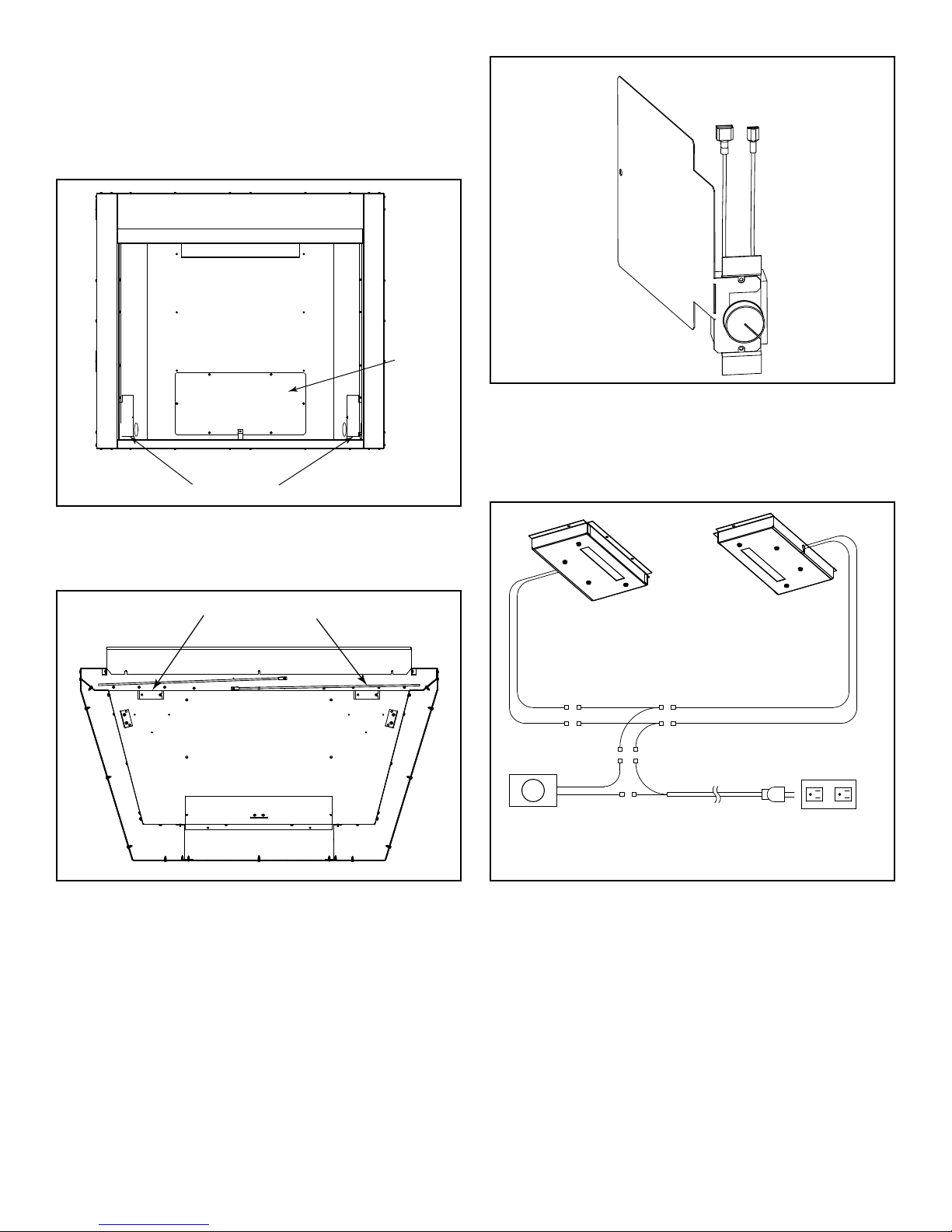

Installation Instructions - Light Kit

1. Remove burner and log set from rebox if previously

installed.

2. Remove rebrick if previously installed.

3. Remove both side access panels and rear access pan-

el. See Figure 2.

Side Access Panel

Rear Access

Panel

Figure 2 - Access Panels

4. Remove bulb delete plates on left and right side at front

of rebox. See Figure 3.

Bulb Delete Plates

Figure 3 - Bulb Delete Plates

5. Insert wire from light socket through opening from bulb

delete and direct toward side of rebox. As wire drops

to side, it should become visible through the side ac-

cess panel, seat bulb socket into opening. Attach with

two (2) screws removed from bulb delete plate. Repeat

steps for opposite side.

6. Remove knob from rheostat dimmer, using two (2)

screws from fastener pack, attach dimmer to side ac-

cess panel. See Figure 4.

Figure 4 - Rheostat Dimmer

7. Attach wires from light sockets from each side into the

light join harness. Two (2) male spades from each light

socket should attach into the paired female spades of

the light join harness. See wiring diagram Figure 5.

Figure 5 - Wiring Diagram

Light Box Light Box

Tan Black Ta n

White

Black

White

Black 6ft. Power Cord

Dimmer

Control

Junction Box

Note: Images of light box may not be

representative of your model.

Monessen • MONAL Dual Overhead Accent Light Kit Installation Manual • 4607-904 Rev. A • 4/18

Monessen, a brand of Hearth & Home Technologies

7571 215th Street West, Lakeville, MN 50044

www.monessenhearth.com

8. When routing wires, lift the blower base through the rear

access panel and route all wires under the blower base.

9. Use wire ties and wire management clips from fastener

pack to secure wires.

10. Install bulbs into each socket. Use gloves to avoid di-

rect contact with the bulbs as the oil residue from hands

will shorten the life of the bulb.

11. Remove two (2) screws in front of each of the bulb sock-

ets and install the light cover with the two (2) removed

screws. Use three (3) additional screws from hardware

pack to attach the light cover to the rebox top (1 each

side, 1 at back). Repeat steps for opposite side. See

Figure 6.

Light Covers

Figure 6 - Light Covers

12. Plug power cord into junction box.

13. Reattach the rear access panel with six (6) screws pre-

viously removed.

14. Reattach the side access panel without the dimmer

switch with one screw previously removed.

15. Reattach the side access panel with the dimmer switch

by adjusting the rheostat to align with the hole in the

venting support so that the stem of the rheostat sticks

through. Attach with one screw previously removed.

See Figure 7.

16. Reattach knob onto stem of rheostat.

17. Reinstall rebrick panels, burner and log set if previ-

ously installed. Refer to burner/log set instructions for

correct placement.

Rheostat

Positioning

Figure 7 - Rheostat Positioning
