Monitor Audio ASW100 Manuale utente

24 Brook Road, Rayleigh, Essex SS6 7XL. England.

Tel: +44 (0) 1268 740580 Fax: +44 (0) 1268 740589

info@monitoraudio.co.uk

www.monitoraudio.co.uk

SUBWOOFER OWNERS MANUAL

ASW100/FB110/FB210

SUBWOOFER OWNERS MANUAL

Monitor Audio Subwoofers

Thank you for purchasing your Monitor Audio subwoofer, we trust it will enable you

to have hours of continuous pleasure.

All our speakers are hand crafted from top to bottom in our factories in England.

Established in 1972, Monitor Audio has extensive experience in the use of

traditional woodworking skills for our cabinets and state of the art technology for

our drive units.

Music is and should be a natural enhancement of life. It stimulates the imagination,

changes your mood, helps you relax, and provides endless hours of entertainment.

Now in the 21st century we pride ourselves in the quality and versatility of our

loudspeakers. Monitor Audio have removed the need for compromise by offering

attractive solutions for both stereo and hometheatre applications.

IImmppoorrttaanntt::

Owing to the sophisticated construction of the subwoofer drive units, a running in

period of approximately 60 hours should be expected before the optimum

performance is achievable.

Guarantee and Service

Valid upon completion of the guarantee card and its return within 30 days of

purchase.

This equipment has been fully tested prior to despatch from the factory. Both the

craftmanship and the performance of this product is guaranteed against

manufacturing defects for the period of one year from the date of purchase (see

conditions below) and that the product was supplied by an authorised Monitor

Audio retailer under the consumer sale agreement.

(The words ‘consumer sale’ shall be construed in accordance with section 15 of the

supply of goods act 1973).

Monitor Audio accepts no responsibility for defects arising from accident; misuse,

abuse, wear and tear, modification or operation outside of that specified within this

instruction manual. Neither will responsibility be accepted for damage or loss

occurring during transit to or from the parties claiming under this guarantee.

This guarantee covers both labour and parts. The liability of Monitor Audio is

limited to the cost of repair or replacement of the defective parts (at the discretion

of Monitor Audio) and under no circumstances extends to consequential losses or

damage.

Claims under this guarantee

The equipment should be returned in its packing to the original supplier where

possible, or to any other authorised Monitor Audio dealer. If it is not possible to

return the equipment by hand, then it should be sent carriage prepaid via a

reputable carrier. If the original packing is not available replacement packing can be

purchased from Monitor Audio. If you have any difficulties complying with these

requirements please contact us at the following address:

Monitor Audio Ltd

24 Brook Road, Rayleigh, Essex SS6 7XL England

Tel: +44 (0) 1268 740580

Fax: +44 (0) 1268 740589

Email: info@monitoraudio.co.uk

Web: www.monitoraudio.co.uk

You may wish to visit our website which gives full details of our complete range of

products.

This guarantee does not affect the statutory rights of the consumer under UK law.

Monitor Audio reserve the right to alter specifications without notice if considered

an improvement can be made to the product.

Contents

What we have provided in this Owners Manual

Page

2Unpacking and Installation

3-4 Safety Instructions

5Mains Connection

6-8 Subwoofer Controls and Connections

9Standard amplifier - speaker cable connection

10 Satellite Speaker wiring option 1

11 Speaker level high pass filter

12 Main/Satellite speaker wiring option 2

13 Wiring with a pre amp and separate power amp

14 Plugging in the Subwoofer

14 Fine tuning

15 Trouble shooting

16 Specifications

17 Guarantee and Service

17 Claims under Guarantee

Unpacking & Installation

Lift out the subwoofer unit from the packaging, care must be taken not to depress

the drive unit cones as this could result in permanent damage. Fix the four feet to

the underside with the screws provided. The subwoofer unit should be positioned

in the most suitable position, preferably not in the corner of a room as this may

cause a pronounced boom. It is important to position the subwoofer initially to have

easy access to the control panel.

After you have chosen your desired connection method it is important to note that

all your cables will reach easily. Leave the subwoofer unplugged until the

installation and initial set-up procedure is complete.

The optimal control settings will depend entirely on your system configuration.

For initial trials set the controls as follows:

Gain should be set to the minimum position.

Frequency should be set to approximately 60 Hz, if you have large main speakers.

If you have small main speakers or satellites, this should be set to

approximately 100Hz.

Phase should be set to initial 0 degrees.

Mode If you prefer an audio quality performance the mode switch should be

left in audio. If you are installing a predominately home cinema

system it may be more effective to set mode switch to video position.

Note: This Subwoofer unit is fitted with a switchable voltage selector, which

should be factory set. If you are in any doubt as to your mains supply voltage spec-

ification you must consult the dealer from where you purchased the product. Under

no circumstances should the voltage selector be altered.

See: Mains voltage chart under specifications on page 16.

Note: If the Subwoofer is not likely to be used for long periods, it is wise to switch

off at the mains. This is a recommended safe practice in order to reduce the risk of

electrical fire.

Monitor Subwoofers

Safety Instructions

1Read Instruction

All the safety and operating instructions in this Manual should be read before

the appliance is operated.

2Retain Instructions

Retain this Owners Manual for future reference.

3Note Warnings

All warnings on the appliance should be adhered to.

4Follow the Instructions

All operating instructions should be followed

5Water and Moisture

The appliance should not be used near water - for example, bathtub, wash

bowl, kitchen sink, washing machine, in a wet basement or near a swimming

pool. Under no circumstance should plants or fish bowls be placed on the

appliance.

6Positioning

The appliance has been designed for floor mounting only.

7Ventilation

The appliance should be situated so that its location or position does not

interfere with its own proper ventilation. For example, the appliance should

not be situated on a sofa, bed, rug or similar surface that may impair any

ventilation openings. It should not be placed in any purpose built location

without suitable ventilation being provided.

8Heat

The appliance should not be placed near any heat source such as radiators,

open fires, stoves, direct sunlight and any other appliance that produces heat.

9Power Sources

The appliance should be connected to a power supply only of the type

described in the operating instructions or as marked on the product.

10 Power Cord Protection

Power supply cords should be routed so that they are not likely to be stepped

on or pinched by items placed upon or against them, paying particular

attention to cords at plugs, convenience receptacles and the point where the

cable exits the appliance.

11 Non Use Periods

The power cord of the appliance should be unplugged from the mains outlet

when left unused for a long period of time.

12 Cleaning

While cleaning is in progress the AC mains power lead should be unplugged

from the AC supply. The appliance can be cleaned with a soft dry cloth.

13 Liquid Entry

Care should be taken to ensure that no liquid is spilt on the appliance,

especially near the rear panel where the power cord enters the appliance.

14 Damage Requiring Service

Qualified personnel should service the appliance when:

aThe power cord or the plug has been damaged.

bLiquid has been spilt on to the rear panel of the appliance.

cThe appliance does not appear to operate normally or exhibits a marked

change in its performance.

dThe appliance has been dropped or the enclosure damaged.

15 Servicing

The user should not attempt to service the appliance beyond that specified in

the operating instructions. Qualified service personnel should carry out all

other servicing requirement.

Mains Connection

Important

Check the voltage setting. Do not connect the appliance to an incorrect power

supply, as serious damage may occur. Do not connect the power supply until all

other connections have been made.

Position/Location

Your Monitor Audio Subwoofer should perform well in just about any room location.

In fact unless your ear is within a couple of feet of the subwoofer, the bass should

seem to radiate from your main speakers.

Your Monitor Audio Subwoofer is not magnetically shielded and therefore should

not be located too close to your television set, leave a distance of at least 2-3 feet.

Failure to do so will result in your television set’s tube becoming magnetised and

this will cause a distortion of the picture, together with a change of colour. Should

this occur, consult your Television service agent for advice.

No matter where you place your subwoofer, you must allow sufficient spacing for

ventilation of the rear panel. The rear panel has a heat sink mounted onto it and will

therefore generate heat, when in use.

Do Not

aPlace your subwoofer directly against a wall, leave at least a minimum of 15cm

(6 inches) and preferably 30cm (12 inches).

bPlace against a radiator, panel heater or forced air heating outlet

cPlace outdoors or in a humid environment

dPlug into an AC mains outlet until all your system wiring is completed.

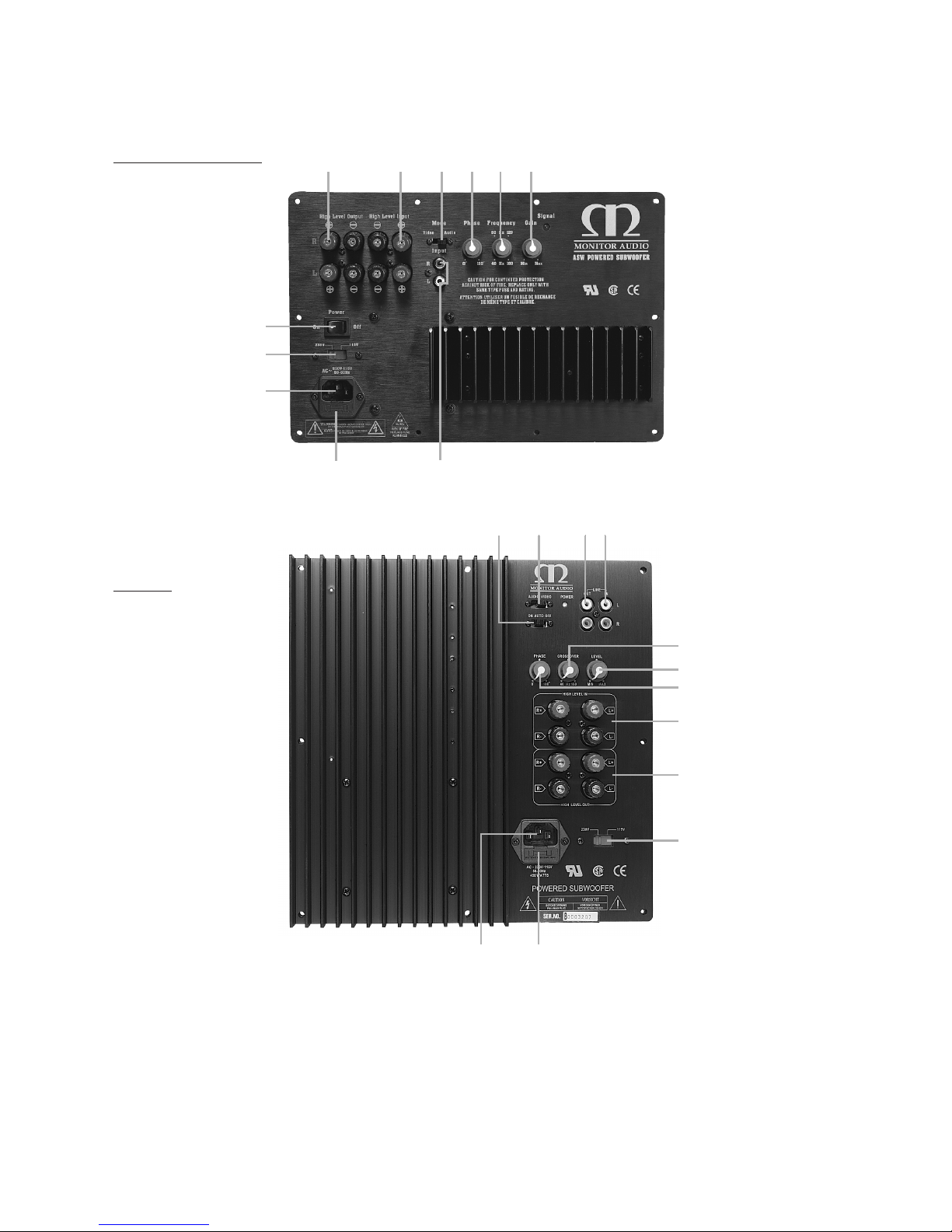

Subwoofer Controls and Connections

ASW 100 / FB110

FB 210

9 8 2 5 4 3

11 10

7RCA Phono inputs

8High level inputs

9High level outputs

10 Fuse

11 Mains connection

12 Voltage Selector 115/230V

1Power switch with auto off facility

2Mode switch

3Level/Gain control

4Crossover/Frequency control

5Phase control

6RCA Phono outputs
