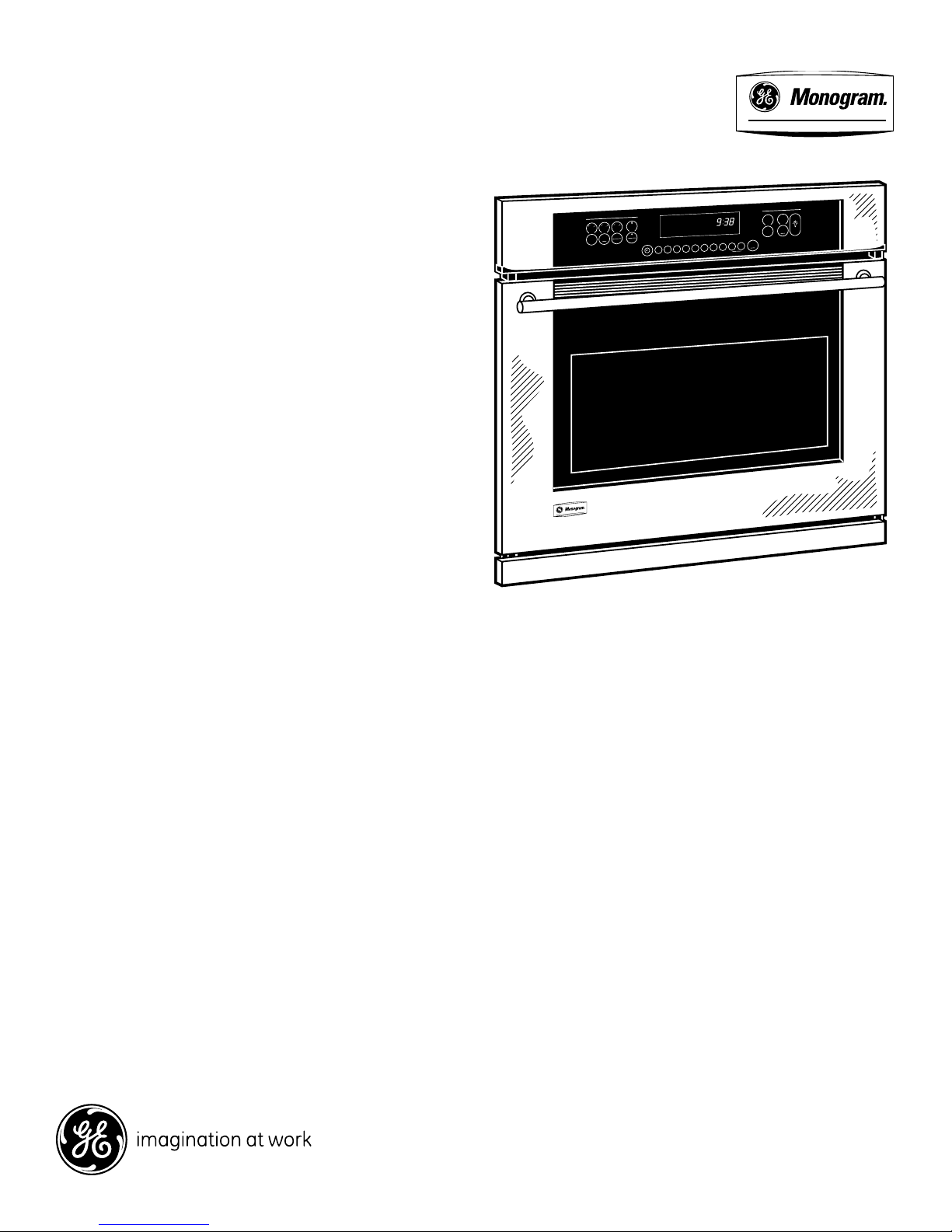

Monogram Monogram ZEK938BM Manuale

Listed by

Underwriters

Laboratories

KW Rating

240V 3.4

208V 2.6

Breaker Size

240V 20 Amps

208V 20 Amps

For answers to your Monogram® appliance

questions, visit our website at monogram.com

or call GE Answer Center®service,

800.626.2000.

Installation Flexibility

These ovens may be installed below a countertop and

beneath approved cooktops. They may also be installed

in combination with an Advantium oven and a warming

drawer. This oven is not approved for stackable, one over

another installations, or side-by-side installations.

Note: Cabinets installed adjacent to wall ovens

must have an adhesion spec of at least a 194°F

temperature rating.

Installation Information: Before installing, consult

installation instructions packed with product for current

dimensional data.

Dimensions and Installation Information (in inches)

ZEK938SM/BM

Monogram 27” Built-In Single Oven

23-1/2"

Min.

27"

32-1/2"

Locate Electrical Outlet Within 10"

of Left Side of Opening 22" Above

Cutout Floor or 5" Below Cutout Floor

605Dia94

25" Min.

25-1/4" Max.

27-5/8" Min.

28-1/8" Max.

29"

26-5/8"

23-1/4"

Recessed

Depth

130185

Specification Revised 5/07

Note: Install the

oven only with

specific models

listed on the label

located on top of

the oven.

2 (5.1 cm) Min.

Per Advantium or

Microwave Oven

Requirement

Per Warming Drawer

Requirement

The solid bottom or runners must be level with the bottom of the

cutout, or the bottom trim may not install correctly and could

interfere with the door opening. If the cabinet does not have a

solid bottom, two braces or runners must be installed level with

the bottom of the cutout to support the weight of the oven. The

runners and braces must support 150 lbs. (68 kg).

23-1/2"

Min.

27"

32-1/2"

Locate Electrical Outlet Within 10"

of Left Side of Opening 22" Above

Cutout Floor or 5" Below Cutout Floor

605Dia94

25" Min.

25-1/4" Max.

27-5/8" Min.

28-1/8" Max.

29"

26-5/8"

23-1/4"

Recessed

Depth

Features and Benefits

• Electronic Glass Touch Controls - A gentle touch

allows you to easily select the desired cooking

function: convection bake or roast, variable or

closed-door broiling, 24-hour delay bake, warm

mode or proof mode

• Self-Cleaning Oven Racks - Porcelain-coated

racks are designed to be left in the oven during

the self-clean cycle for effortless cleaning

• 3.8 Cu. Ft. Capacity – Easily accommodates even

the largest meals

• True Hidden Bake Element – Concealed beneath

the oven floor, allowing additional capacity and

improved cleanability

• Reverse-Air Convection System - Uses an

innovative fan that reverses direction for optimal

air and heat circulation, providing even cooking

and multi-rack baking capability

• Certified Sabbath Mode - Allows you to keep

cooked foods warm on the Jewish Sabbath and

Jewish holidays

• Signature Tubular Handles - Are smooth, sleek and

easy to grasp

• Hand-Finished Edges – Reflect the meticulous quality

and craftsmanship for which Monogram products

are renowned

• Large Viewing Window – Allows you to view your

culinary work in progress

• Model ZEK938SMSS – Stainless steel

• Model ZEK938BMBB – Black

ZEK938SMSS

OVEN

CONV

BAKE

MULT

CONV

BAKE

1RACK

CONV

ROAST START

BAKE BROIL WARM

PROOF

CLEAR

OFF

OPTIONS

HIGH

LOW

PROBE

SELF

CLEAN

STD

LOW

TIMER

OFF

LOCK

DELA

START

COOK

TIME

1 2 34 5 6 7 890

Specification Revised 5/07

ZEK938SM/BM

Monogram 27” Built-In Single Oven

130185
