Monoprice 39668 Manuale utente
Blackbird™ 4K 4x4 HDMI® Matrix with HDBaseT™ Out
P/N 39668
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying
extra attention to these safety warnings and guidelines. Please
keep this manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind.
Do not place drinks or other containers with moisture on or
near the device. If moisture does get in or on the device,
immediately unplug it from the power outlet and allow it
to fully dry before reapplying power.
•Do not touch the device, the power cord, or any other
connected cables with wet hands.
•Do not expose this device to excessively high
temperatures. Do not place it in, on, or near a heat source,
such as a fireplace, stove, radiator, etc. Do not leave it in
direct sunlight.
•Do not place or install this device in an area where it can
be exposed to excessive amounts of dust, humidity, oil,
smoke, or combustible vapors.
•Use only in a well-ventilated area. Do not use in close,
confined spaces.
3
•Prior to operation, check the unit and power cord for
physical damage. Do not use if physical damage has
occurred.
•Before plugging the unit into a power outlet, ensure that
the outlet provides the same type and level of power
required by the device.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not
allow it to become crimped, pinched, walked on, or
become tangled with other cords. Ensure that the power
cord does not present a tripping hazard.
•Never unplug the unit by pulling on the power cord.
Always grasp the connector head or adapter body.
•Ensure that power is turned off and disconnected before
making any electrical connections.
•Remove the batteries from the controller if it will go
unused for a lengthy period of time.
•Clean using a soft, dry cloth only. Do not use chemical
cleaners, solvents, or detergents. For stubborn deposits,
moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt
to open, service, or modify this device.
4
INTRODUCTION
This Blackbird™ 4K 4x4 HDMI® Matrix allows you to distribute any
of four HDMI source devices to any of four HDMI displays. It
supports video resolutions up to 4K@60Hz YCbCr 4:4:4, including
1080p@120Hz and all 1080p@60Hz 3D HDMI display modes. It is
compliant with the HDMI 2.0b and HDCP™ 2.2 specifications and
delivers up to 18Gbps bandwidth. The kit includes three
HDBaseT™ receivers, allowing extension of the video signal to
distances up to 70 meters over a single Cat6 Ethernet cable. It
supports High Dynamic Range (HDR) and includes smart EDID®
management.
5
FEATURES
•Distribute any of four HDMI® source devices to any of four
HDMI displays
•Fully compliant with the HDMI 2.0b, HDCP™ 2.2, and HDCP
1.4 specifications
•Supports video resolutions up to 4K@60Hz YCbCr 4:4:4,
including 1080p@120Hz and 3D 1080p@60Hz
•Extends 1080p@60Hz 36-bit Deep Color signals to
distances up to 70 meters over a single Cat6 Ethernet cable
•Extends 1080p@60Hz 48-bit Deep Color, 1080p@120Hz 24-
bit Deep Color, 4K@60Hz YCbCr 4:4:4 and 4:2:0 signals to
distances up to 40 meters over a single Cat 6 Ethernet
cable
•Supports up to 7.1 channel pass-through audio
•Supports digital and analog audio de-embedding from any
of the four outputs
•Supports the 24V Power over Cable (PoC) feature
•Supports High Dynamic Range (HDR) and smart EDID®
management
•Built-in Web GUI and RS-232 computer control options
6
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to
ensuring that your ordering, purchasing, and delivery experience
is second to none. If you have any problem with your order,
please give us an opportunity to make it right. You can contact a
Monoprice Customer Service representative through the Live
Chat link on our website www.monoprice.com or via email at
[email protected]. Check the website for support times
and links.
7
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you
have all the items listed below. If anything is missing or damaged,
please contact Monoprice Customer Service for a replacement.
1x Blackbird™ 4K 4x4 HDMI matrix
3x HDBaseT receivers
2x Matrix mounting ears
6x Receiver mounting ears
4x Euroblock terminals
8x Wideband IR receivers
8x Wideband IR transmitters
1x IR remote control
1x AC power adapter (24 VDC, 2.7A)
1x User's manual
8
PRODUCT OVERVIEW
Front Panel
1. POWER LED: The LED illuminates red when power is
applied and is off when in standby mode.
2. DISPLAY: The four-digit display shows the selected input
for each output channel.
3. IR RECEIVER: IR "eye" for receiving signals from the included
IR remote control.
4. POWER: Press the button to turn the matrix on or put it in
standby mode.
5. OUT: Press any of the buttons to cycle through the
available inputs for the corresponding output.
9
Rear Panel
1. INPUT: Four HDMI® ports for connecting the video source
devices.
2. OUTPUT: One HDMI port for connecting a local display and
three RJ45 jacks for connecting the HDBaseT™ receivers
using Cat6 Ethernet cables (not included).
3. AUDIO OUT: One digital optical S/PDIF output and one
3.5mm stereo analog output for connecting an external
amplifier or powered speakers for playback of audio de-
embedded from one of the outputs.
4. IR EXT: 3.5mm jack for connecting one of the included IR
receivers in the event that the front panel IR receiver is
blocked or the matrix is installed in a cabinet.
5. IR INPUT: Five 3.5mm jacks for connecting the included IR
receivers for control of the displays. The four numbered
jacks send the IR signal to the corresponding output, while
the ALL jack sends the IR signal to all outputs.
10
6. IR OUTPUT: Five 3.5mm jacks for connecting the included IR
transmitters for control of the video source devices. The
four numbered jacks send the IR signal to the
corresponding source device, while the ALL jack sends IR
signals to all source devices.
7. CONTROL: One RJ45 jack for connecting a computer for
Ethernet control and one RS-232 Euroblock terminal for
RS-232 computer control.
8. DC 24V: DC barrel connector for connecting the included
AC power adapter.

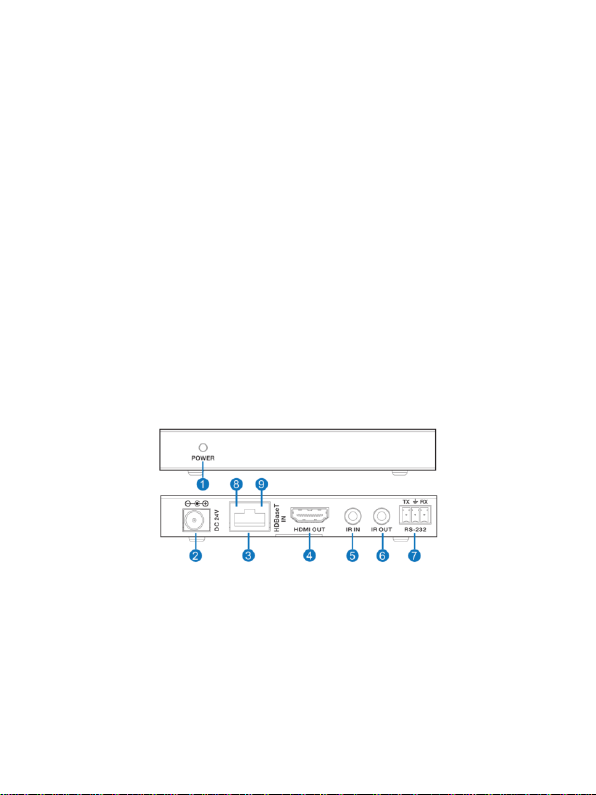

Receivers
1. POWER: The LED illuminates red when power is applied.
2. DC 24V: DC barrel connector for attaching an AC power
adapter. The receivers support the Power over Cable (PoC)
feature, which allows them to draw power from the matrix
