11N Wireless Broadband Router User Guide
Contents
CHAPTER 1 PRODUCT INTRODUCTION .......................................1
1.1 Package Contents .......................................................1
1.2 LED Indicators and Port Description ..............................2
CHAPTER 2 PRODUCT INSTALLATION .........................................4
CHAPTER 3 PREPARING TO ACCESS THE INTERNET...............6
3.1 Setup the Network Configuration on Your PC..................6
3.2 Log in to the Router .................................................. 10
3.3 Fast Internet Access.................................................. 11
3.4 Fast Encryption......................................................... 13
CHAPTER 4 ADVANCED SETTINGS...............................................14
4.1 System Status.......................................................... 14
4.2 WAN Settings........................................................... 15
4.3 LAN Settings ............................................................ 19
4.4 MAC Clone ............................................................... 19
4.5 DNS Settings............................................................ 20
4.6 WAN Medium Type.................................................... 21
4.7 Bandwidth Control .................................................... 22
4.8 Traffic Statistics........................................................ 25
4.9 WAN Speed.............................................................. 26
CHAPTER 5 WLAN SETTINGS.........................................................27
5.1 Wireless Basic Settings.............................................. 27
5.2 Wireless Security Settings.......................................... 31
5.2.1 WPS Settings ................................................................31
5.2.2 WPA-PSK ......................................................................33
5.2.3 WPA2-PSK ....................................................................34
5.2.4 WEP.............................................................................35
5.3 Wireless Access Control ............................................. 35
5.4 Connection Status..................................................... 36
CHAPTER 6 DHCP SERVER..............................................................37
11N Wireless Broadband Router User Guide
6.1 DHCP Server ............................................................ 37
6.2 DHCP Client List........................................................ 38
CHAPTER 7 VIRTUAL SERVER.......................................................39
7.1 Port Range Forwarding .............................................. 39
7.2 DMZ Settings ........................................................... 41
7.3 UPNP Settings .......................................................... 42
CHAPTER 8 SECURITY SETTINGS ................................................43
8.1 Client Filter Settings.................................................. 43
8.2 MAC Address Filter.................................................... 45
8.3 URL Filter Settings .................................................... 47
8.4 Remote Web Management ......................................... 48
CHAPTER 9 ROUTING SETTINGS..................................................49
9.1 Routing Table........................................................... 49
9.2 Static Routing........................................................... 49
CHAPTER 10 SYSTEM TOOLS.........................................................52
10.1 Time Settings ......................................................... 52
10.2 DDNS .................................................................... 52
10.3 Backup/Restore ...................................................... 53
10.4 Restore to Factory Default........................................ 55
10.5 Upgrade................................................................. 55
10.6 Reboot the Router................................................... 56
10.7 Password Change.................................................... 56
10.8 Syslog ................................................................... 57
APPENDIX 1 GLOSSARY...................................................................58
APPENDIX 2 PRODUCT FEATURES...............................................59
APPENDIX 3 FAQ ................................................................................59
APPENDIX 4 DELETING THE WIRELESS CONFIGURATION
FILE........................................................................................................61
APPENDIX 5 REGULATORY INFORMATION...............................63
11N Wireless Broadband Router User Guide
1
Chapter 1 Product Introduction
Thank you for purchasing the Monoprice Wireless N Broadband Router!
This easy-to-use router provides a simple configuration interface, which allows you to
configure it with ease. It is based on the latest IEEE802.11n standard and is backwards
compatible with devices using the IEEE802.11b/g standards.
The Monoprice wireless router provides router, wireless AP, four-port switch, and firewall
functions in one package. It provides a powerful online monitor function and supports URL
and MAC filtering. With the WDS function, it can repeat and amplify wireless signals to
expand wireless network coverage area. It fully supports UPnP and WMM for better video
streaming and VOIP quality. With the QoS function it can efficiently manage bandwidth
availability for connected clients. Wireless ISP functionality allows this router to wirelessly
connect to anAccess Point and provide wired access to client computers.
1.1 Package Contents
Please verify the following items are in the package:
One Wireless N Broadband Router
One Quick Installation Guide
One Power Adapter
One Software CD
If any of the listed items are missing or damaged, please contact Monoprice for immediate
replacement.
2
1.2 LED Indicators and Port Description

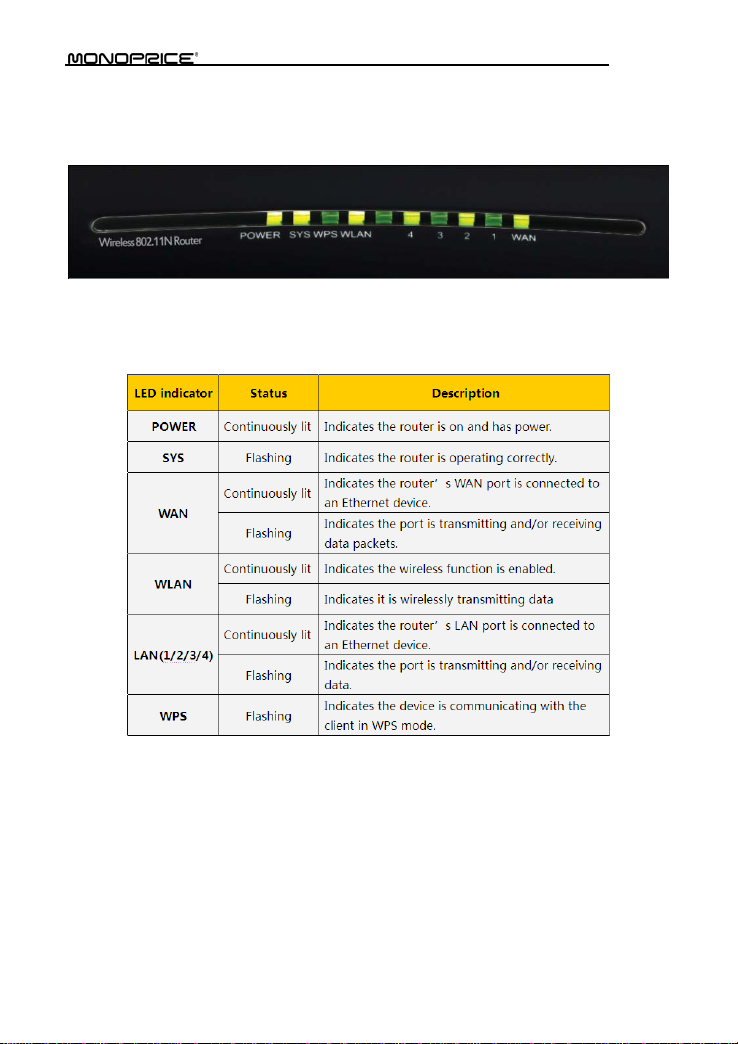

Panel and LED indicators show:
LED indicator description on the front panel
3

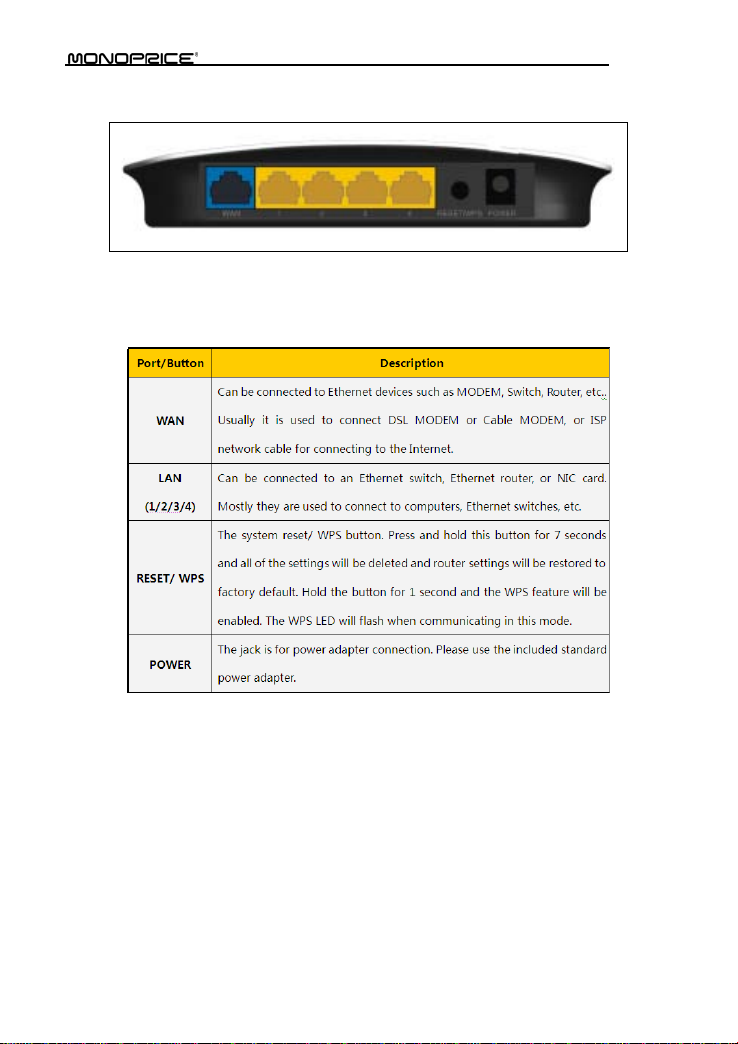

Back panel ports
Back panel port description
4
Chapter 2 Product Installation
1. Warning! Use only the included power adapter to power your router. NOTE: Use of an
unmatched power adapter could cause damage to this product.

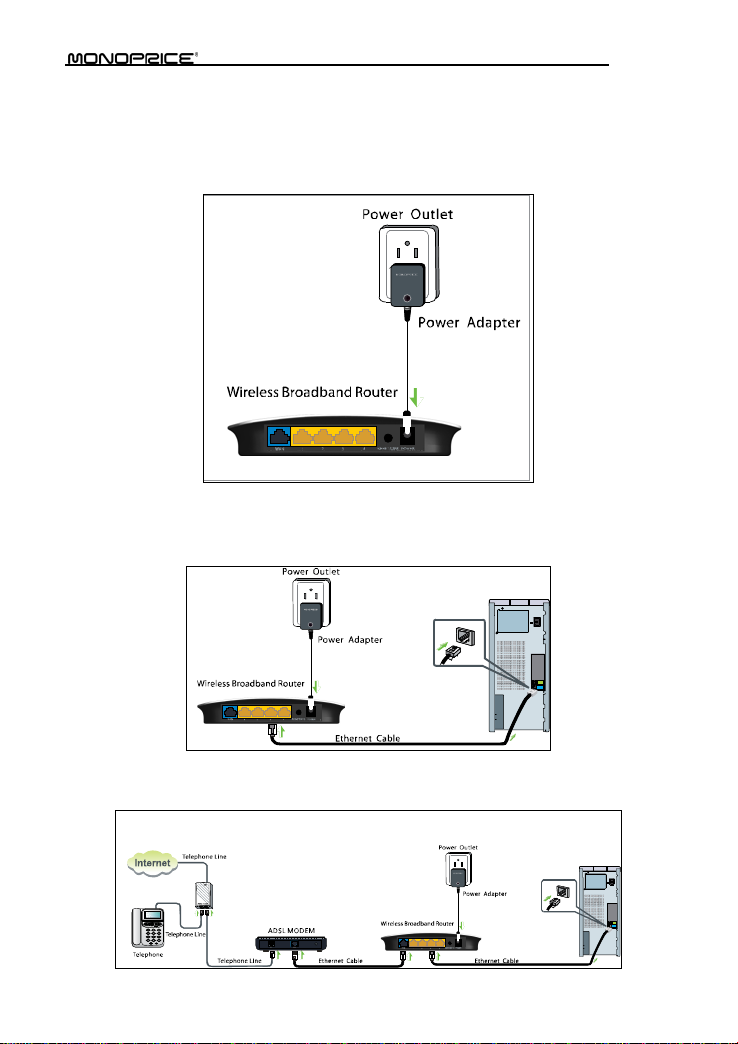

2. Connect the router's LAN port to your computer with an Ethernet cable as shown
below.
3. Connect your broadband line provided by your ISP to the router's WAN port.
5
4. Insert the included software CD into the CD drive of your computer. After the disc has
loaded double click the Setup icon and follow the instructions to complete the
installation. You can also use the router's Web-based Utility to complete the
configuration.
