USER MANUAL – THE FIRST
V1.1-2020
August

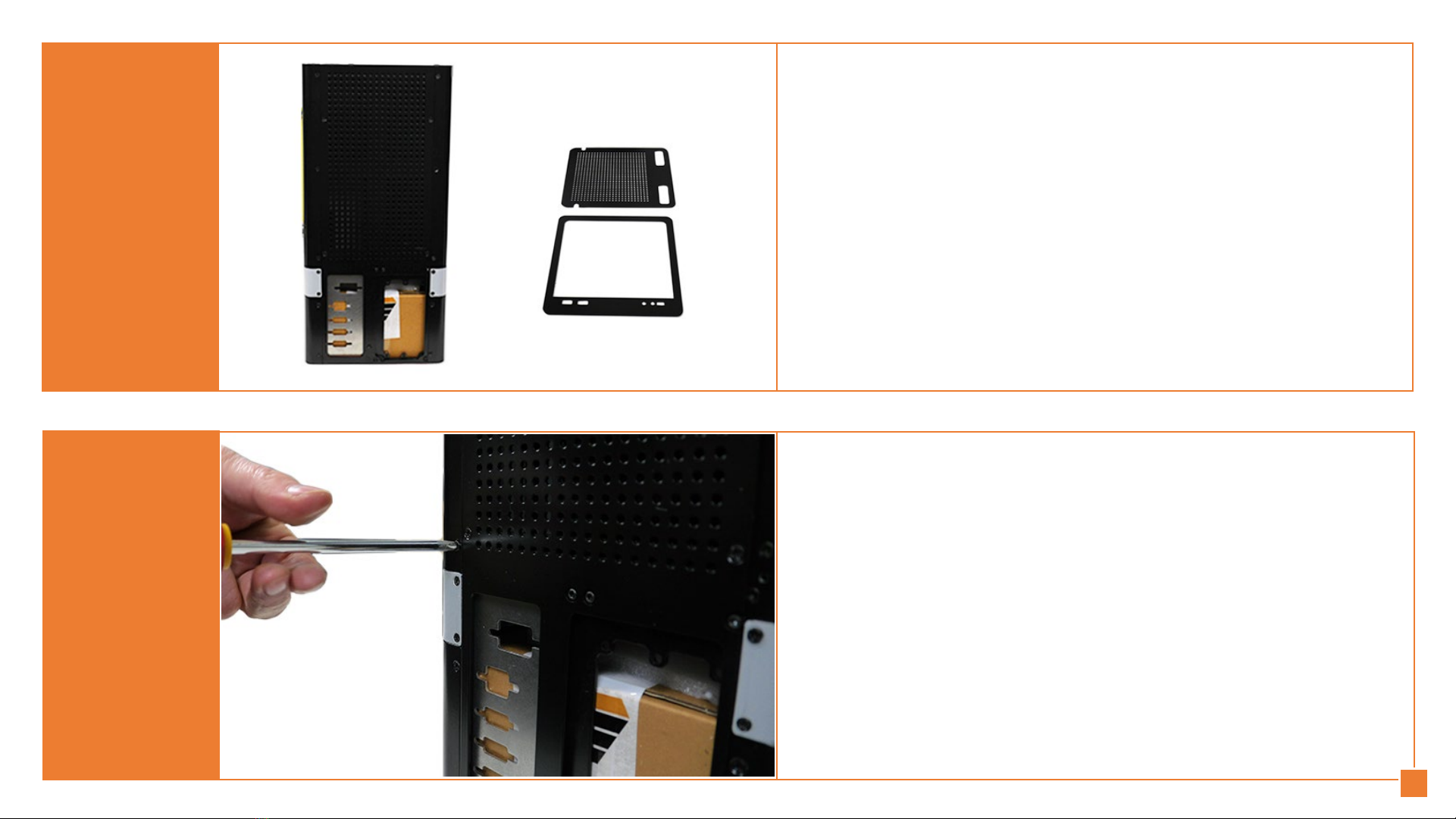

Prepare your tools:
Screwdriver, wrench and cutter.
Take off the top skin and the top mesh.
Reserve the power button.
Unscrew the 3 aesthetic skins –screws are
at the back of the case.
STEP 1
STEP 2
1

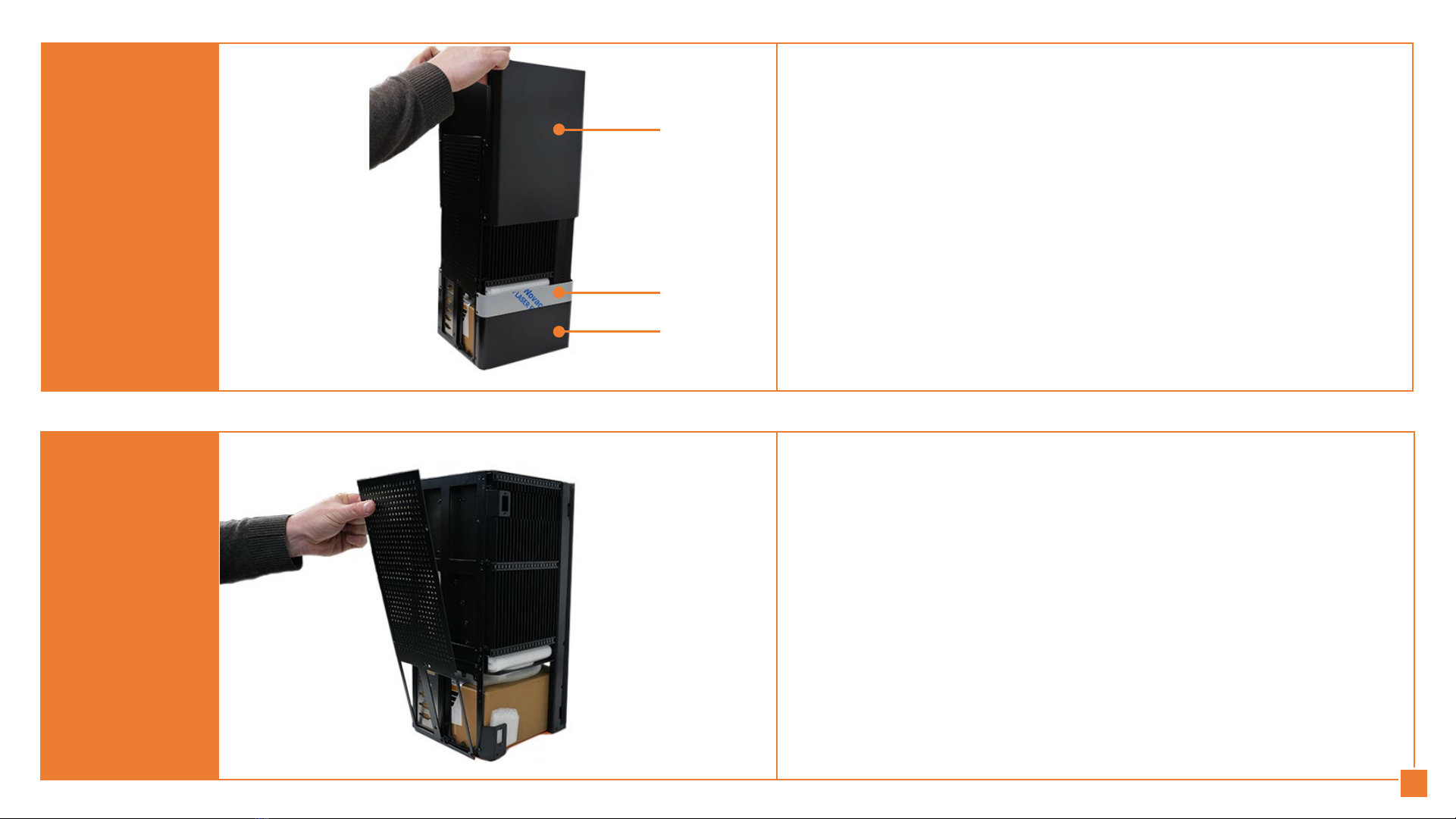

Take off the 3 aesthetic skins.
Unscrew the back skin and remove the skin.
STEP 4
STEP 3
2

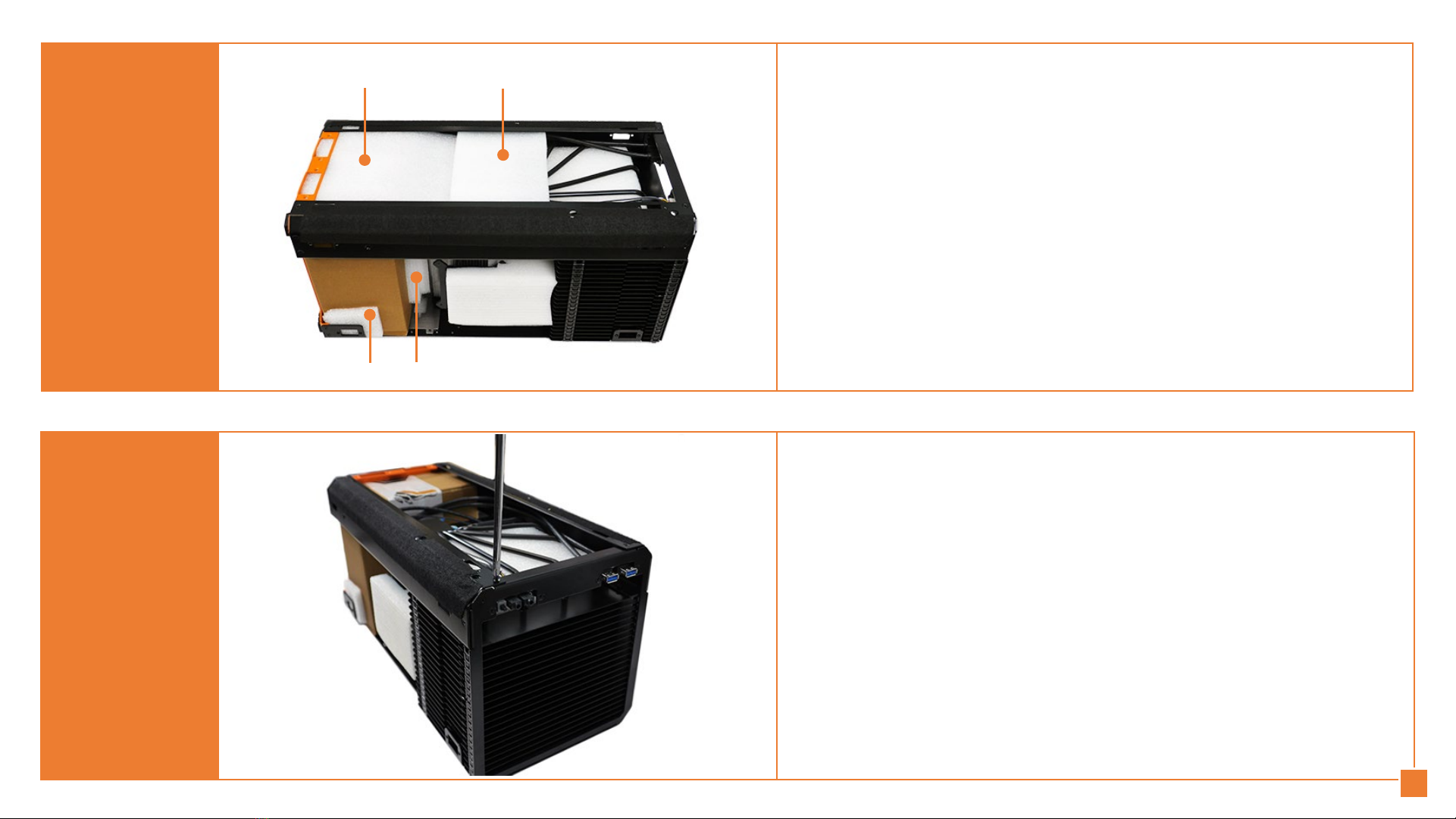

Place The First horizontally with the GPU
cooler face up and remove accessible
foams.
Remove the adhesive taps on the metal
stud between GPU cooler and CPU cooler.
Reserve if you want to place it back. The
adhesive taps are used to prevent scratches
during transport. Unscrew the 5 screws on
the metal stud.
STEP 6
STEP 5
3
Remove the 2 screws that fix the metal stud
onto the heatsink –wrench is required.
The First should look like this without the
metal stud.
STEP 8
STEP 7
4
If you have a box of accessories into your
case, remove it.
STEP 10
STEP 9 Remove carefully the foams that protect the
CPU cooler and GPU cooler.
5
Place your First vertically. Unscrew the fan
slot (4 screws).
STEP 12
STEP 11

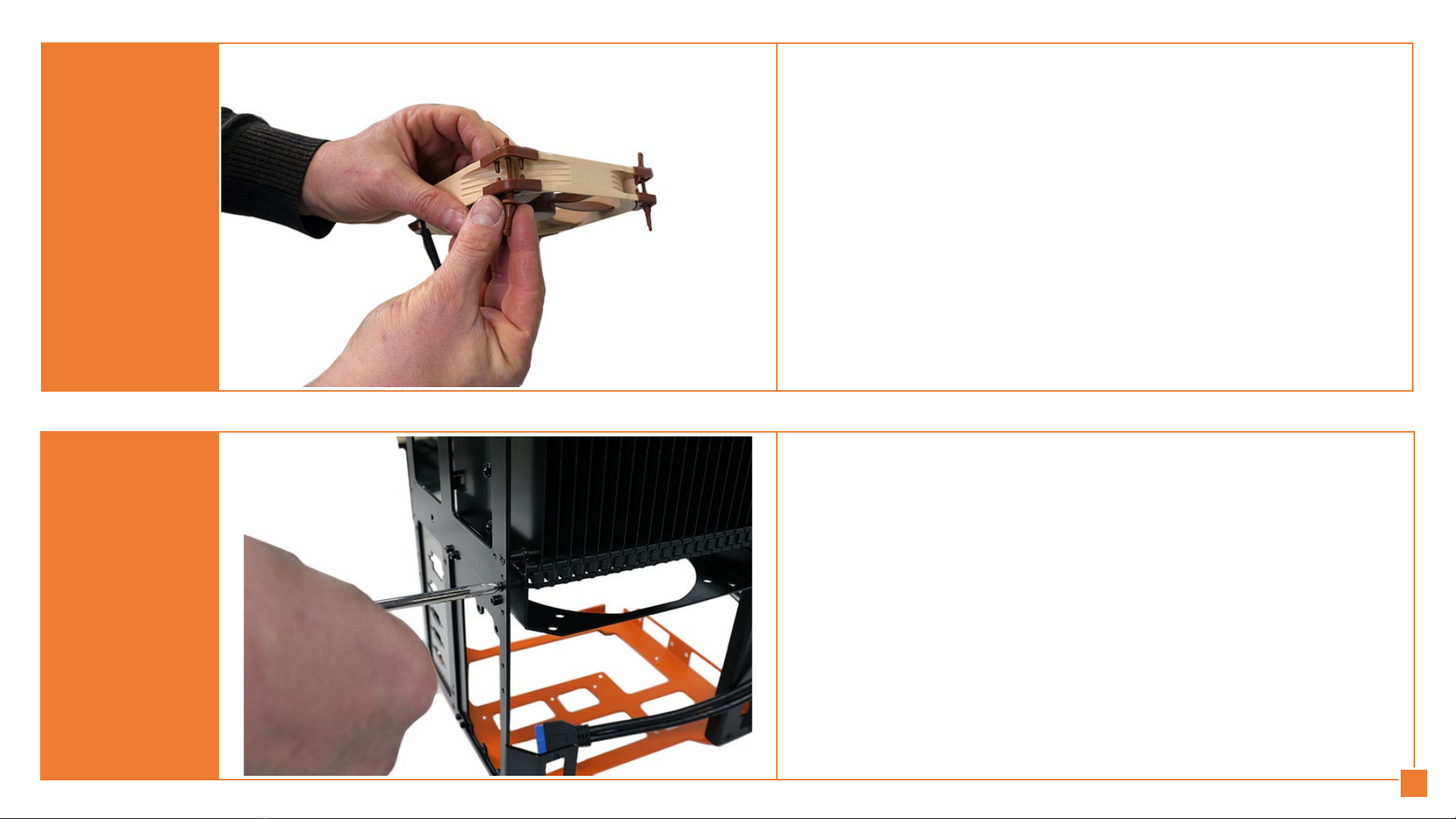

If you plan to mount a fan into your case,
prepare your fan with the dedicated fixtures
provided in the bag « HDD, Fan & Power ».
Only possible with a SFX power supply.
Only possible with a SFX power supply.
6
Screw the slot fan into the case.
Cut the fan silicon fixtures if needed.
STEP 14
STEP 13 Fix the fan into the slot fan.
Only possible with a SFX power supply.
Only possible with a SFX power supply.
7
If you mount a SFX power supply, simply
screw it on the dedicated part at the back
of the case. Screws are provided in the bag
«screws ».
STEP 16
STEP 15 Start the mounting of your power supply.
Do not prewired.
8
STEP 18
STEP 17
If you plan to mount an ATX power supply,
first remove the compatible plate for SFX
power supply. Then, mount the power
supply with screws provided in the bag
«screws ».
Prewired your HDD and mount it with the
screws provided in the bag « screws » and
anti-vibration kit provided in the bag « HDD,
Fan & Power ».
9
