MonsterShop Chimenea Manuale utente
27845
Chimenea
INSTRUCTION MANUAL
www.monstershop.co.uk
02
PRODUCT DESCRIPTION
SPECIFICATION

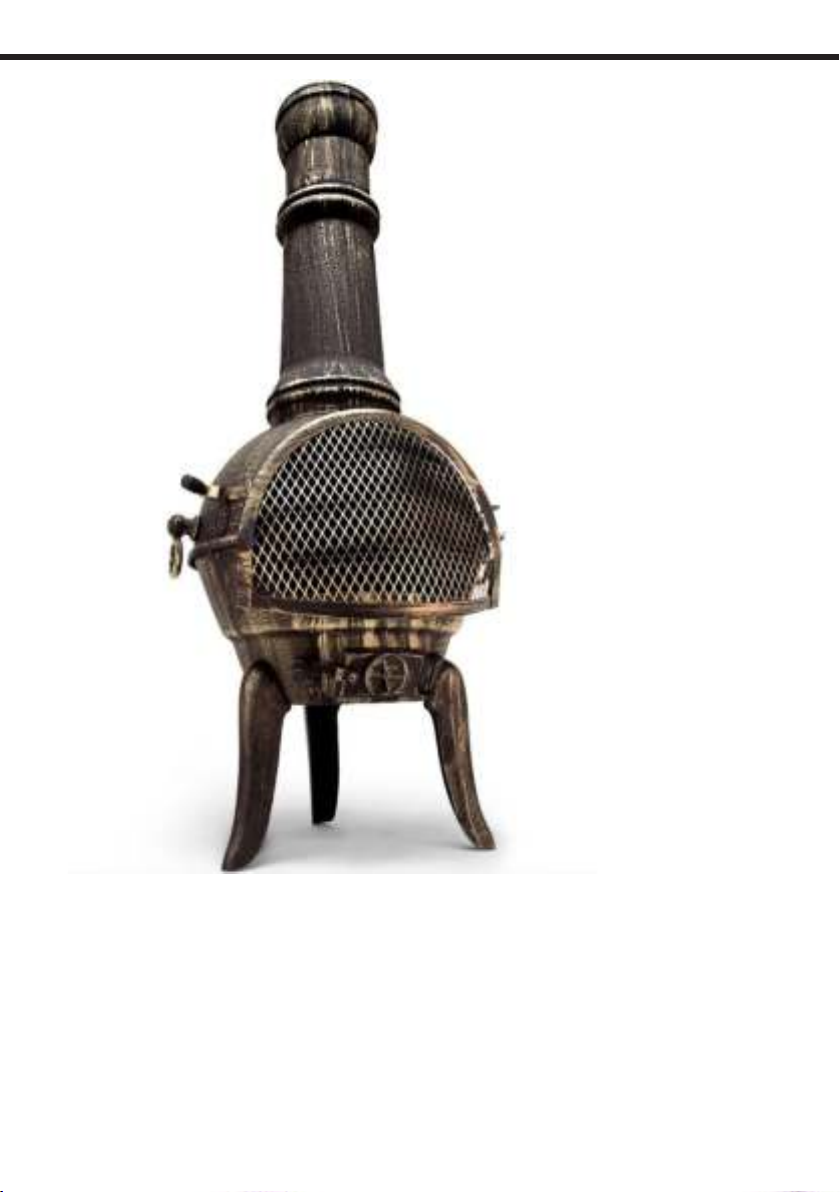

The Monster Chimenea will aid in warming up your garden and patio space in the chilly
summer evenings and nights. Whether you plan small gatherings in your back-yard, or
larger BBQ parties, you will make an impression with your new heat source! With its
sturdy and robust build, this chimenea can burn wood, coal and charcoal.
PRODUCT SPECIFICS
Metal, cast iron finish
112 (H) cm
28KG
MATERIAL:
DIMENSIONS:
WEIGHT:
ITEM CONTENTS
Part No. Description Quantity
1Leg X 3
2 Base bowl X 1
3 Air vent X 1
4 Air vent lock X 2
5 Bracket X 3
6 Cover bowl X 1
7 Handle X 2
8 Mesh door frame X 1
9 Coal grate X 2
When first unpacking your new chimenea, check each part against this list to
ensure that they are all present. If any are missing contact us before attempting
to assemble.
03
27845 - CHIMENEA
SPECIFICATION
PRODUCT DESCRIPTION
Monster Group UK Limited’s liability will be limited to the commercial value of the
product only.
10 Door frame lock X 1
11 Door frame plate X 1
12 Chimney (base) X 1
13 Chimney X 1
14 Chimney cover X 1
15 Screw M6*L25 X 6
16 Screw M5*L60 X 1
17 Screw M6*L15 X 27
18 Nut M6 X 25
19 Nut M5 X 1
20 Grill shelf X 2
21 Grill X 1
22 Grill handles X 2
23 Poker X 1
04
E
D
A
B
H
I
K
J
C
G
F
SPECIFICATION
PRODUCT FEATURES

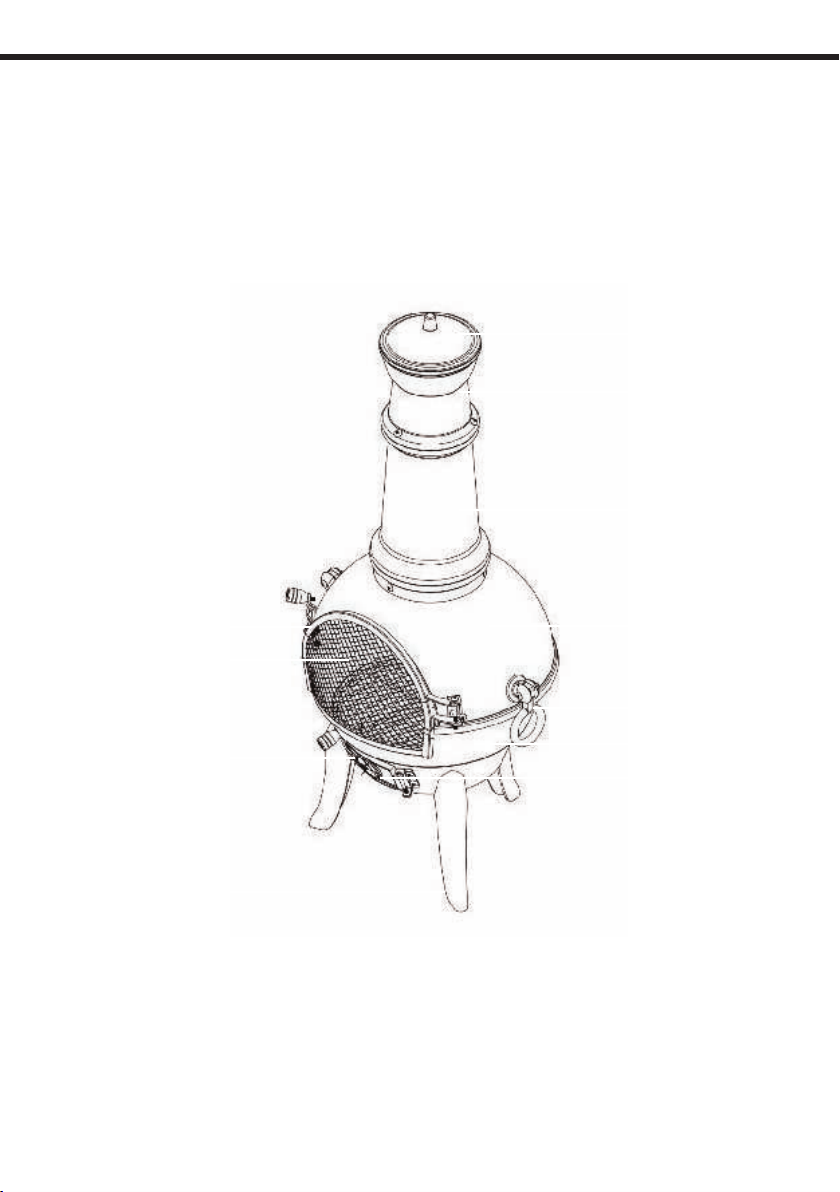

A. Leg
B. Base bowl
C. Air vent
D. Air vent lock
E. Cover bowl
F. Handle
G. Mesh door frame
H. Door frame lock
I. Chimney (base)
J. Chimney
K. Chimney cover
05
SAFETY ADVICE
SAFE WORKING PRACTICE
Please read through the Safe Working Practice to ensure prevention of injury or
damage to the device.
• Do not use the chimenea for anything other than its intended purposes.
• Ensure you have read and fully understood the instruction manual and safety advice
before using the chimenea.
• Do not leave the chimenea unattended.
• Keep away from children and pets.
• Never use the chimenea indoors.
• Ensure the chimenea is placed outside, on a flat, non-flammable surface. Keep away from
anything flammable such as grass, sheds, trees and bushes.
• Please do not overload the chimenea with fuel.
• Please remove the chimney cover when starting a fire, so the smoke can escape through
the chimney and not through the mouth of the chimenea.
• The product will get very hot during use. Please do not touch it during use.
• The chimenea can remain hot for several hours aer use. Please allow the chinemea to
cool down completely before handling or moving it.
• Please do not cover the chimenea with the rain cover until the chimenea is completely
cooled down aer use.
27845 - CHIMENEA
USER GUIDE
06
ASSEMBLY INSTRUCTIONS
1. Check you have each part that is needed to
assemble the Chimenea.

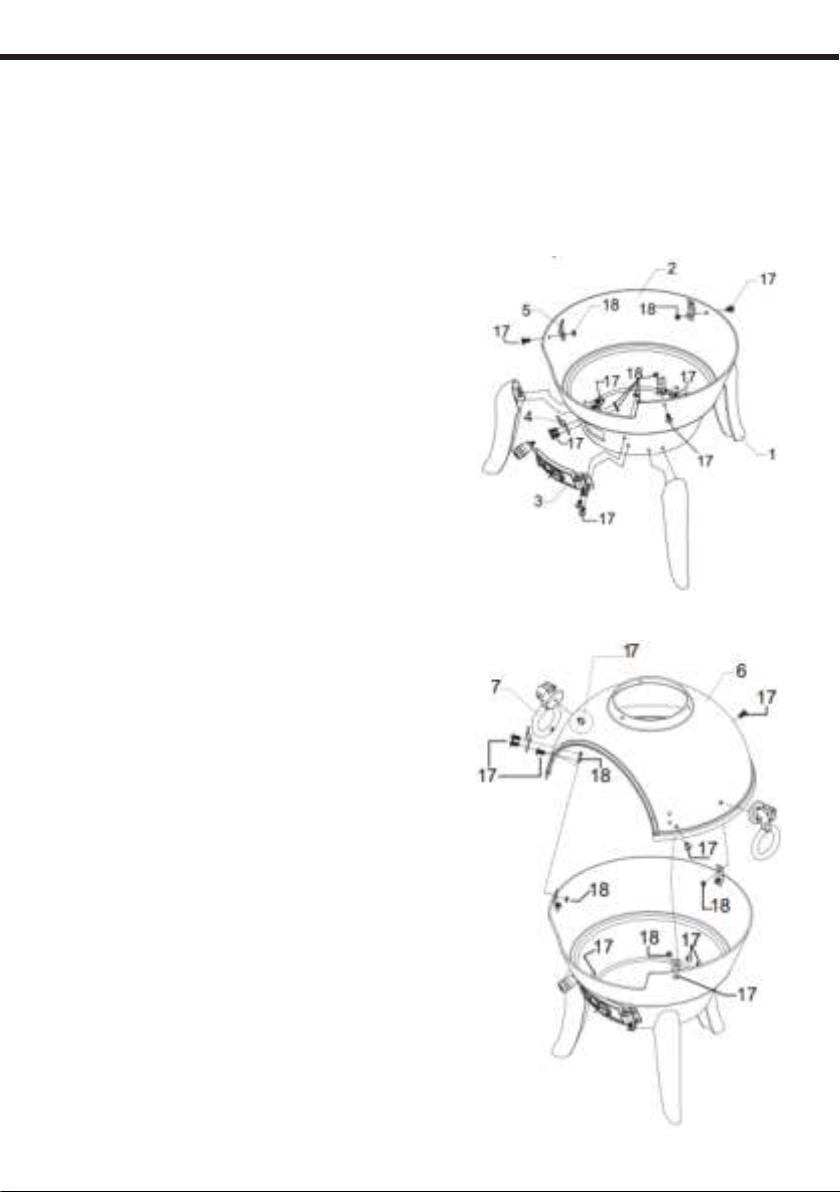

2. Start by attaching the 3 legs (1) to the base (2)
using the screws (17) provided.
3. Now, screw the 3 brackets (5) in place, as shown
in the diagram. Screw them in place by using
three of the screws (17) and three nuts (18).
4. Attach the air vent (3) underneath the door frame
indent in the base (2) on the right side, and then
the air vent lock (4) on the le side, using the
screws (17) and nuts (18) provided.
5. Place the cover bowl (6) on top of the base (2),
and align the pre-made holes to line up with the
remaining holes in the brackets. Use three screws
(17) and three more nuts (18) to securely lock the
cover in place.
6. Continue by attaching the handles (7) to each
side of the chimenea. Screw the handles on tight
using the screws (17).
7. Place the 2 coal grate parts (9) together at the
bottom of the base (2).
8. Attach the mesh door frame (8) to the cover
bowl (6) by first screwing the door frame plate
(11) in place using the screws (17) and nuts (18)
provided. Then attach the mesh door frame (8)
to the plate (11) by using the long screw (16) and
the nut (19) provided.
9. Next, screw the door frame lock (10) in place with
the provided screws (17) and nuts (18).
07
USER GUIDE
ASSEMBLY INSTRUCTIONS

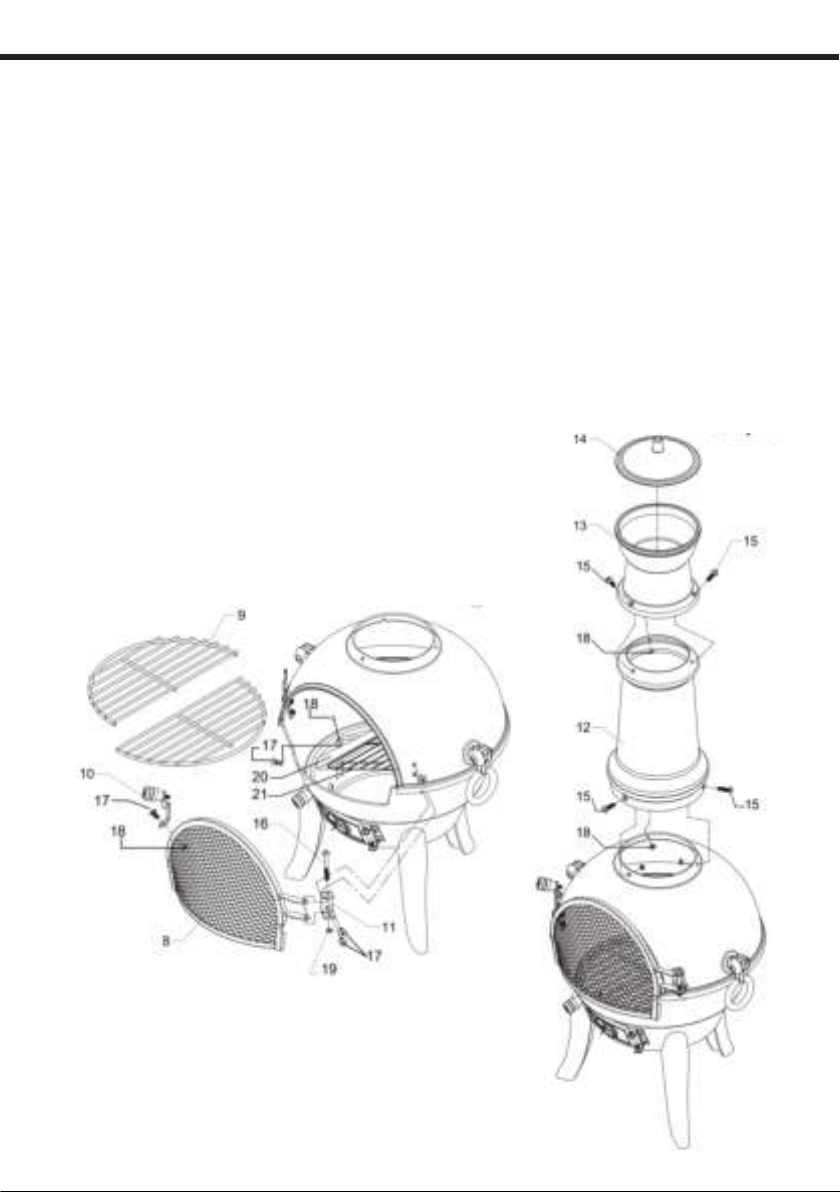

10. Inside the chimenea and above the coal grate, attach the shelves (20) on the right and
le side, using the screws (17) and nuts (18). Proceed by placing the grill (21) between
the shelves (20).
11. To complete the chimenea, connect the chimney base (12) to the cover bowl (6), and
then connect the chimney (13) to the chimney base (12). Use the screws (15) and
nuts (18) to attach these parts.
27845 - CHIMENEA
12. Lastly, place the chimney cover (14) on top of the
assembled chimney.
08
USER GUIDE
MAINTENANCE
CLEANING
To ensure the appearance of your chimenea, clean the surface with a so cloth. Apply a
chimenea surface oil with a rag if desired. Do not use a wire bursh to clean the surface, as
this may scratch or damage the surface material.
STORING
Cover the chimenea with its rain cover when not in use, to protect it against harsh weather
conditions. Preferably, bring the chimenea inside over winter time. Please allow the
chimenea to cool down completely before covering it with its rain cover.
CORROSION
Rusting may happen to all cast iron products. To avoid this as much as possible ensure the
above storing measures are followed, and that the chimenea is not overfired. If corrosion
has already happened, high temperature paints may be used to touch up the rusting on
the chimenea.
09
TROUBLESHOOTING
RESOLUTION GUIDE
If there appears to be any part missing from your order, contact our friendly and helpful
Customer Support Team within 7 days of receipt.
WHAT DO I DO IF THERE ARE MISSING PARTS FROM MY ORDER?
FOR ALL OTHER ISSUES, PLEASE CONTACT OUR
CUSTOMER SUPPORT TEAM.
27845 - CHIMENEA
