Montpellier SFO60LED Manuale utente

Installation

and

Operating

Instructions

MODEL: SFO60LED

Built-In Oven

Please

read

these

instructions

carefully

before

attempting

install

use

this

appliance.

It is

advisable

keep

these

instructions

safe

place

for

future

reference.

roduc

ion

Thank you for choosing this

montpellier branded appliance. It

has been designed to give years of trouble-free use provided

it is installed and maintained correctly.

Please read these instructions carefully before installing or

using your appliance. It is advisable to keep your purchase

and

installation receipts with these instructions in a safe place for

future reference. Included is some important safety information

in addition to guidelines and recommendations that will enab

you to take full advantage of all the functions available.

his

quali

applian

has

been

and

ied

all

applicable UK electrical and safety standards.

This appliance must be installed and connected in

accordance with current regulations.

After unpacking the appliance ensure that there is no visib

damage. If the appliance has been damaged during transit,

do not use it, contact your retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof of

purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

·Any appliance not correctly installed and operated in accordance with the manufacturer's

instructions.

·Any appliance that is used for anything other than domestic purposes.

·Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

·Cost of Call-out where a fault cannot be found with the appliance.

·Cost of Call-out for work covering routine maintenance, such as, but not exclusively,

cleaning of filters or defrosting.

·Cost of Call-out for work required to correct the alignment of doors following door reversal

procedures carried out by you.

·Use of the appliance by anyone other than the Householder.

·Use in any commercial environment.

·Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items

which require routine replacement.

·Repair costs incurred that have not been authorised by Repairtech and/or carried out by a

non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it with a

stamp affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial

number, date of purchase and your retailers’details before registering a fault.

Your service call cannot progress without this information.

Description

the

Appliance

1. Control Panel

2. Handle

3. Oven Door

4. Child Lock

5. Tray

6. Lower Heating Element

7. Upper Heating Element

8. Wire Grill

9. Racks

10. Oven Light

11. Turbo Heating Element

12. Fan

13. Air Outlet Shutters

CONTENTS:

Section 1. Safety Advice

Section 2. Installation

Section 3. Operating the Appliance

Section 4. Maintenance

Section 1. Safety Advice

-Please read this booklet thoroughly before installing and switching on the

appliance. The manufacturer accepts no responsibility for incorrect

installation and usage.

-This appliance is guaranteed for domestic use only.

-The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning the use of the appliance by a person responsible for their

safety. Children should be supervised to ensure that they do not play with

the appliance.

-This appliance must only be used for cooking/heating foods and liquids.

Do not use it for any other purpose.

-If using an adaptor, this must be used in accordance with the

manufacturers instructions and ensure that the electrical circuit is not

overloaded as this could cause overheating.

-Do not twist or bend the cables, and keep them away from hot surfaces.

-Following installation make sure that the power cable is not trapped

underneath the appliance.

-Keep the appliance surfaces clean. Failure to do this could lead to the

appliance malfunctioning.

-The surface of this appliance will get hot during use. The surface of this

appliance will remain hot after it has been turned off.

-If the power supply cord is damaged, it must be replaced by a qualified

person in order to avoid a hazard.

Section

Installation

-Remove all packaging and protective film from the appliance.

-Position the appliance in a dry atmosphere.

- The following dimensions are provided as a guide for installation –your installer will

carry out the installation in accordance with the current regulations.

- Your installer will connect the power cable in accordance with the current regulations.

To install this appliance, please proceed as follows:

2.1 Choosing a location for your oven

When choosing a location for your oven, ensure that there are no flammable or

combustible materials in the close vicinity, such as curtains. You may be required to

make changes to the area surrounding your built-in oven. These recommendations

can be seen in the image below.

Do not site your oven next to a cooling appliance.

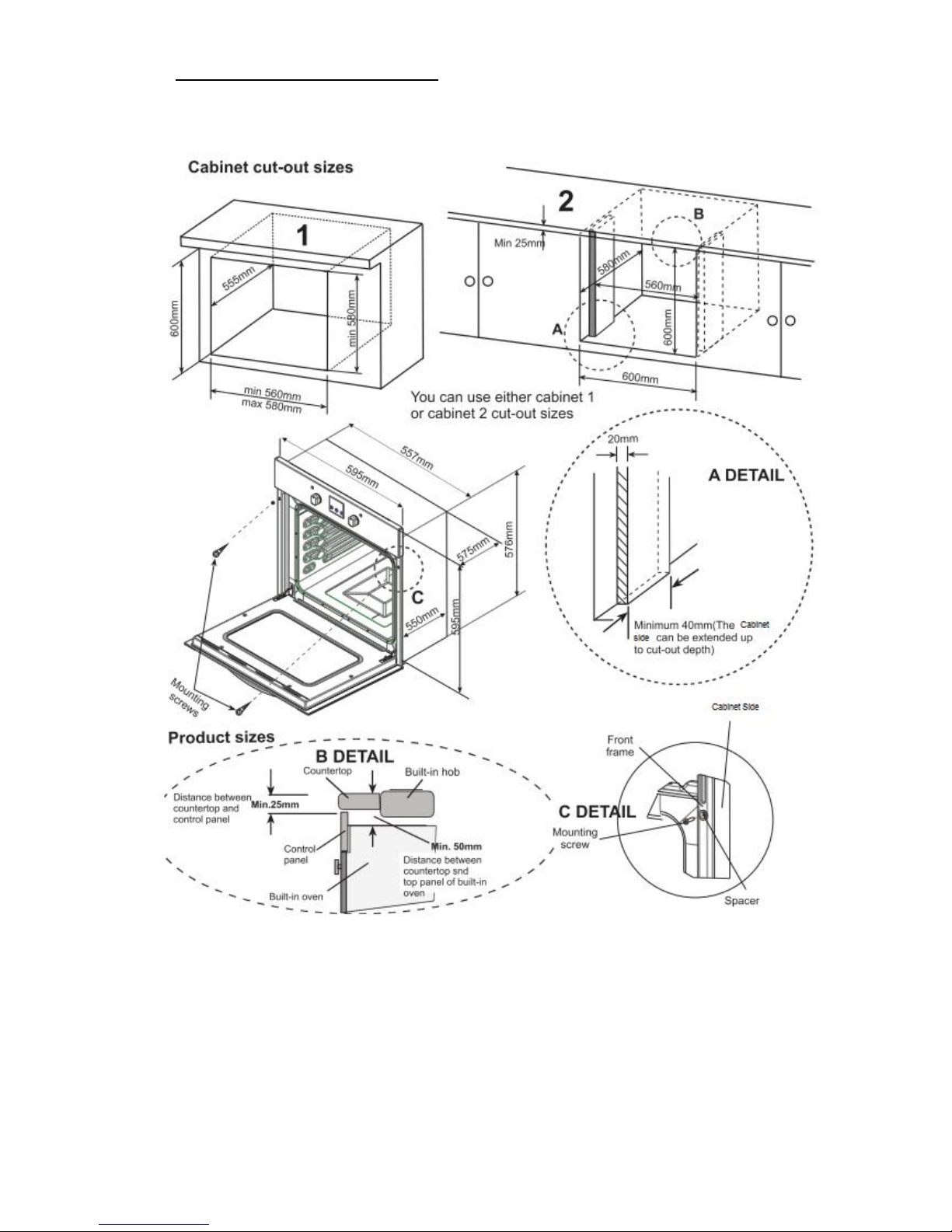

2.2 Installing your Built-in Oven

Insert the oven into the cabinet by pushing it forward. Open the oven door and insert

2 screws into the holes located on the oven frame. When the product frame touches

the wooden surface of the cabinet, tighten the screws.

Installing your Built-in Oven Continued.

Contact with electrical or insulated parts must be prevented. Insulating parts must be

fitted in a way that ensures they cannot be removed using any kind of tool. We do not

recommend installing this appliance near a refrigerator or freezer as the performance

of those appliances will be affected due to residual heat. After removing your

appliance from its packaging ensure that there is no damage. If you suspect any

damage to the appliance, do not use it and contact your retailer immediately.

2.3 Electrical Connection

This appliance can be fitted with a 13 amp plug and plugged into a standard 13 amp

socket.

However, we recommend that it is ‘hard wired’to a suitable fused point adjacent to

the appliance housing and protected with a 20 amp fuse. Please note that a

switchable spur should be accessible above the work surface to allow the power to

be turned off by the user.

Your installer will connect this appliance in accordance with current regulations.

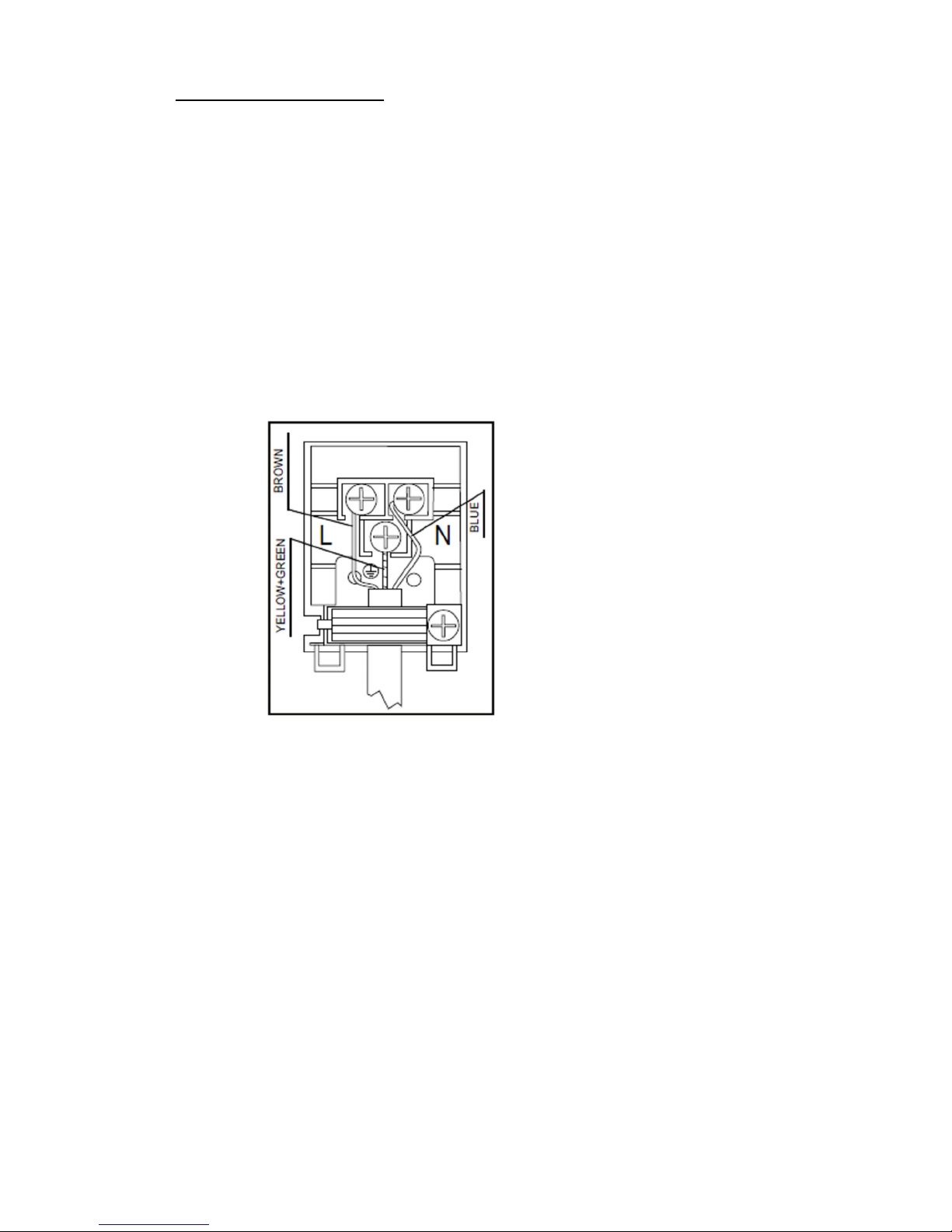

The wires in the mains lead are coloured in accordance with the following code:

Brown = L (Live), Blue = N (Neutral), Green/Yellow = Earth

If not supplied with a fitted cable, you should connect the power supply to the

appliance as follows:
