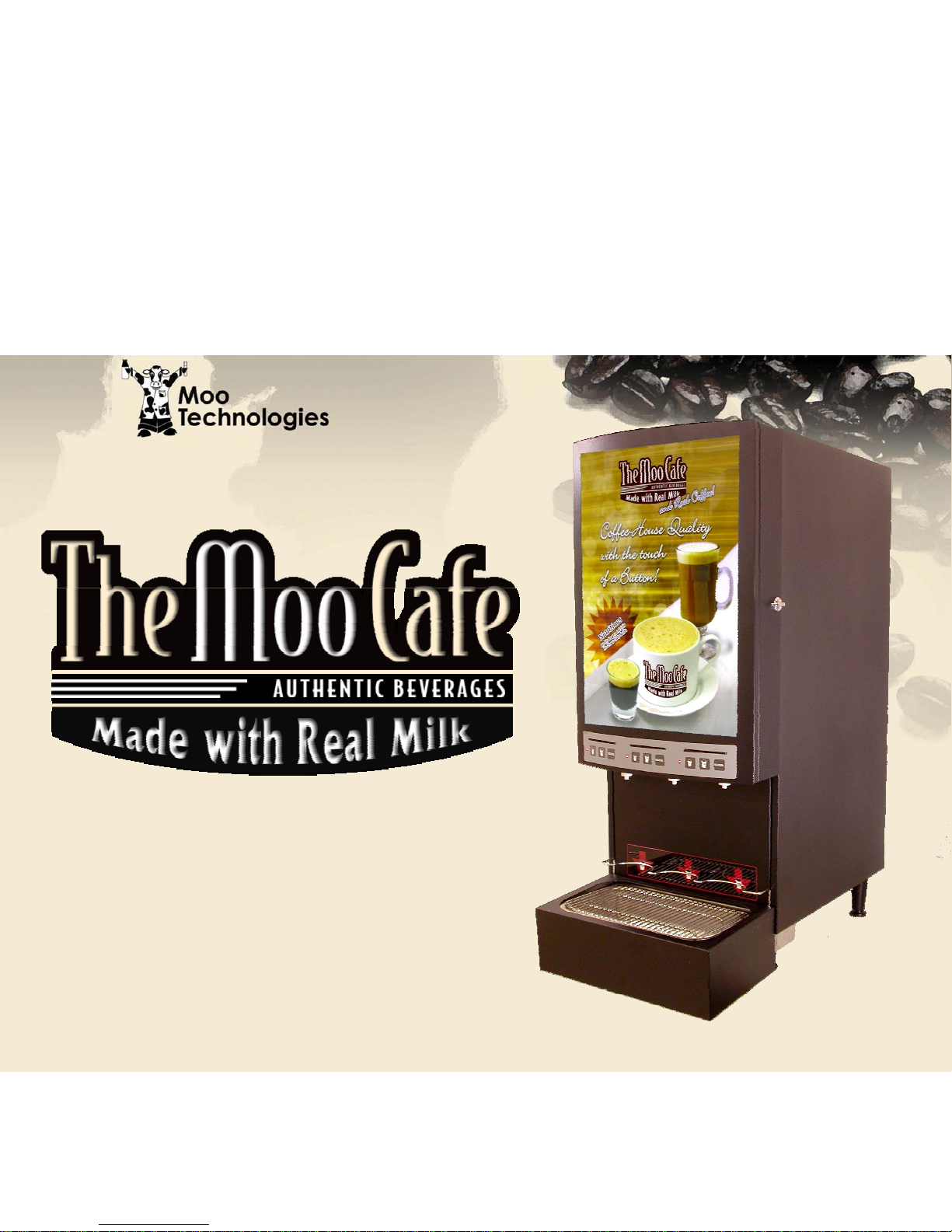

Moo Technologies Moo-Cafe Manuale utente
INSTALLATION
INSTALLATION
PROCEDURE
PROCEDURE
September 2006

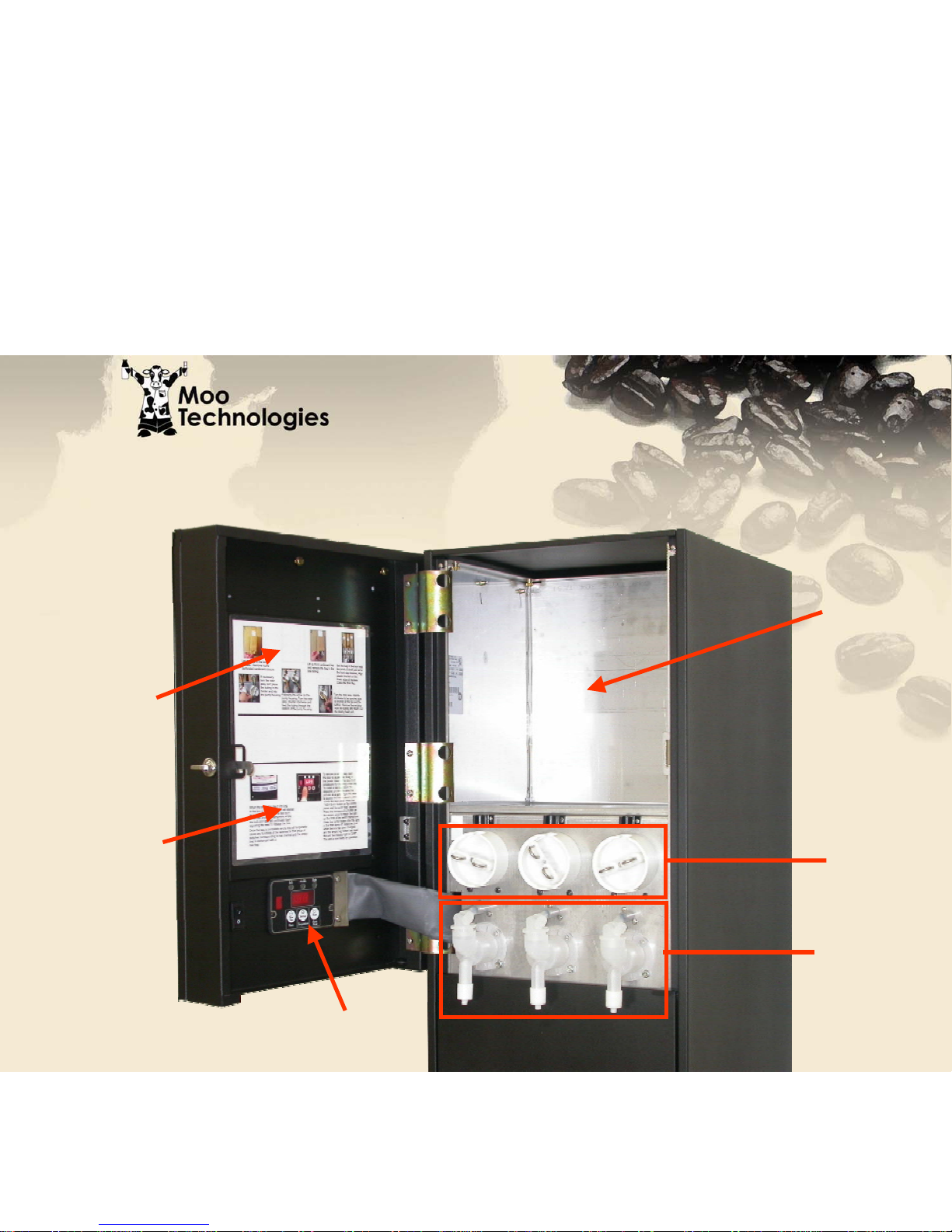

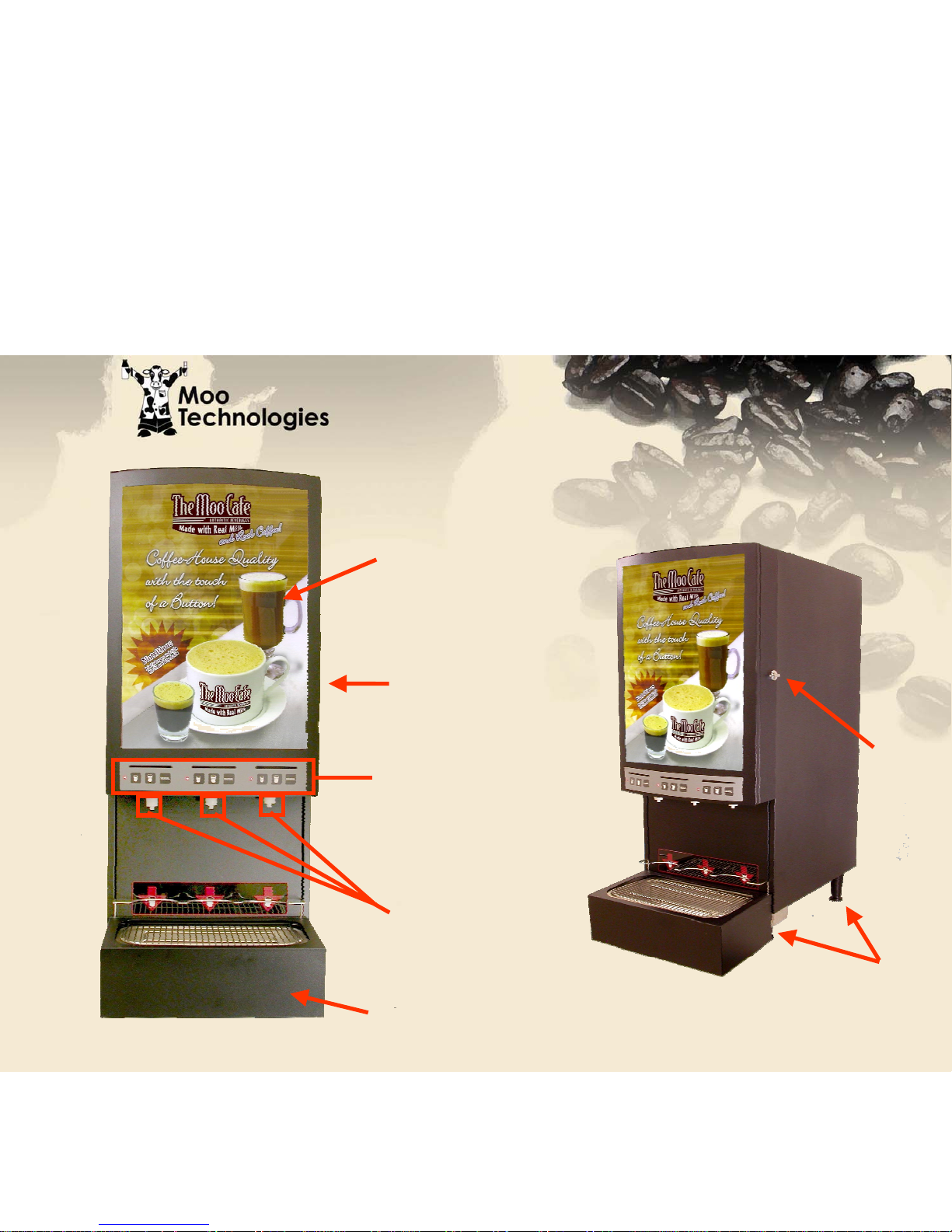

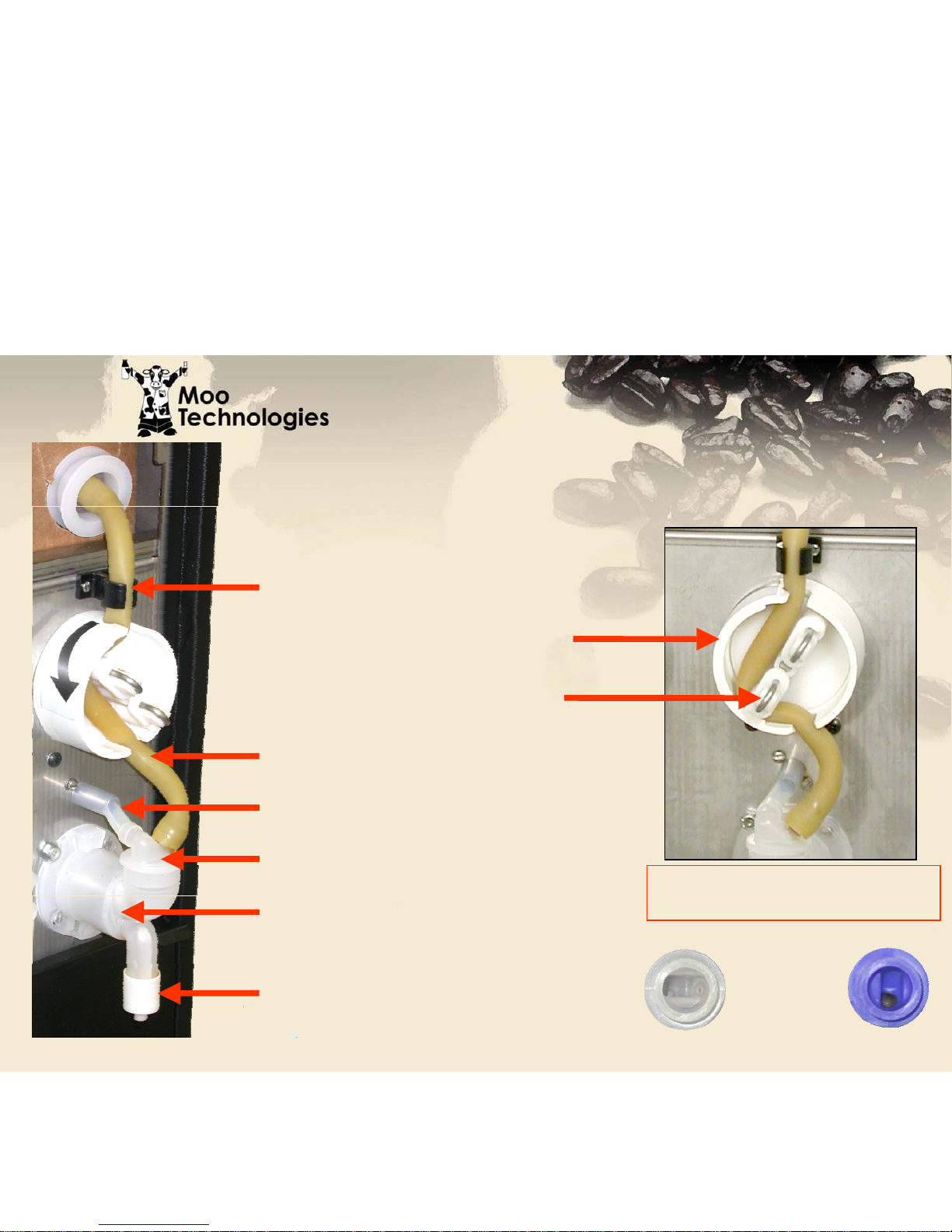

Unit Overview
Unit Overview
Drip Tray and
Drain Assembly
Dispensing
Nozzles
Programmable
Dispense Buttons
Legs
(4)
Translucent
Door Graphic
Cabinet
Door
Door
Latch
Display
Board
BIB
Installation
Instructions
Programming
Instructions
BIB
Cabinet
Whipper
Assemblies
Pump
Assemblies
Unit Overview
Unit Overview
Whipper Restrictor
Whipper Chamber
Whipper Dosing Head
BIB Product Tube
Plastic Tubing Holder
Pump Housing
Pump Rotor
Note: Pump Rotor should only
be rotated counter-clockwise
Unit Overview
Unit Overview
Water Supply Tube
Dosing
Heads
Moo Expresso

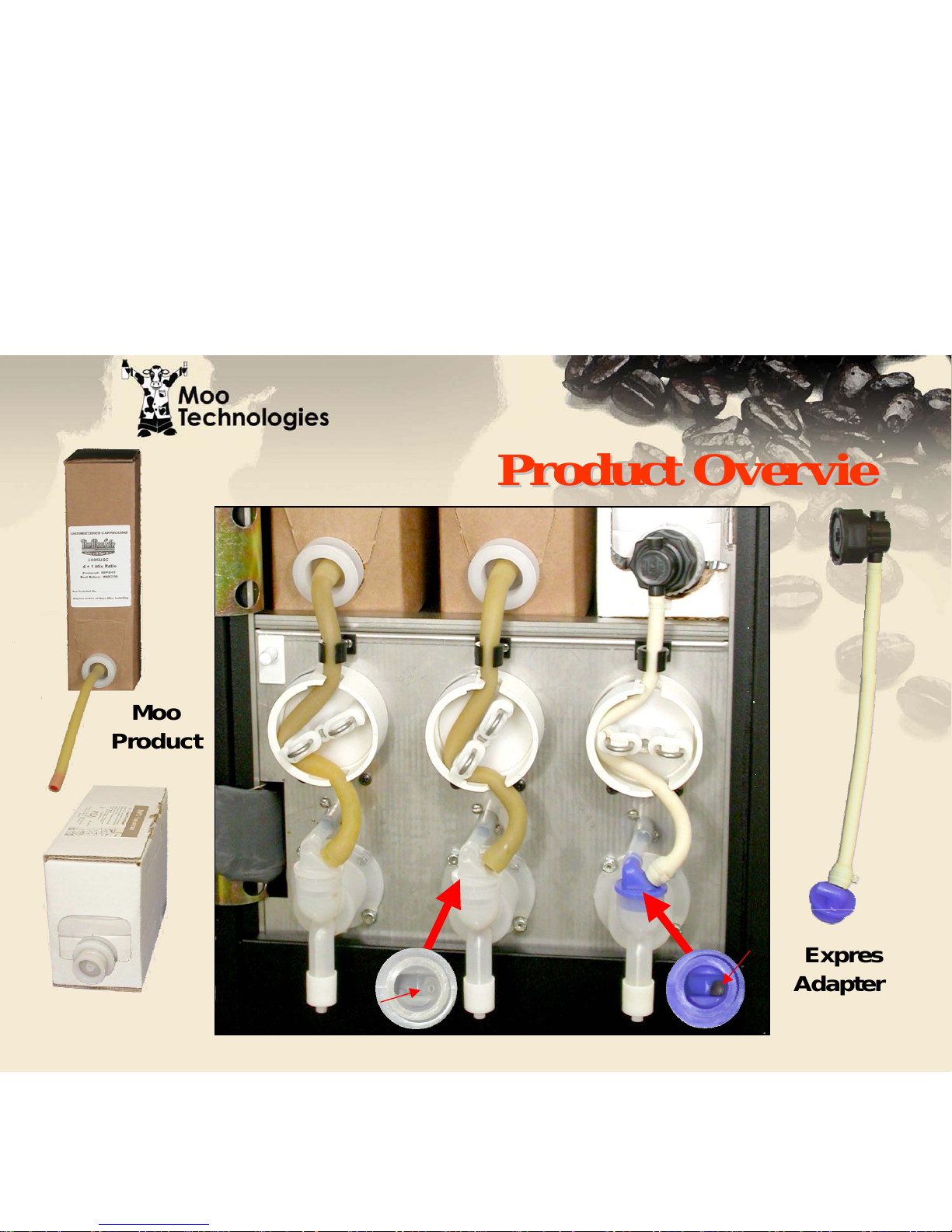

Product Overview
Product Overview
Expresso
Adapter Kit
Expresso
Product
Moo
Product
Moo Dosing Head Expresso Dosing Head
Check
Valve
No
Check
Valve
Shipping Carton Contents
Shipping Carton Contents
• MCM-Combo Unit
• Drip Tray Assembly (drain hose included)
• Water Filter (with shut-off & mounting hardware)
• Four Inch Plastic Legs (4)
• Fluorescent Tubes (2)
• Translucent Door Graphic

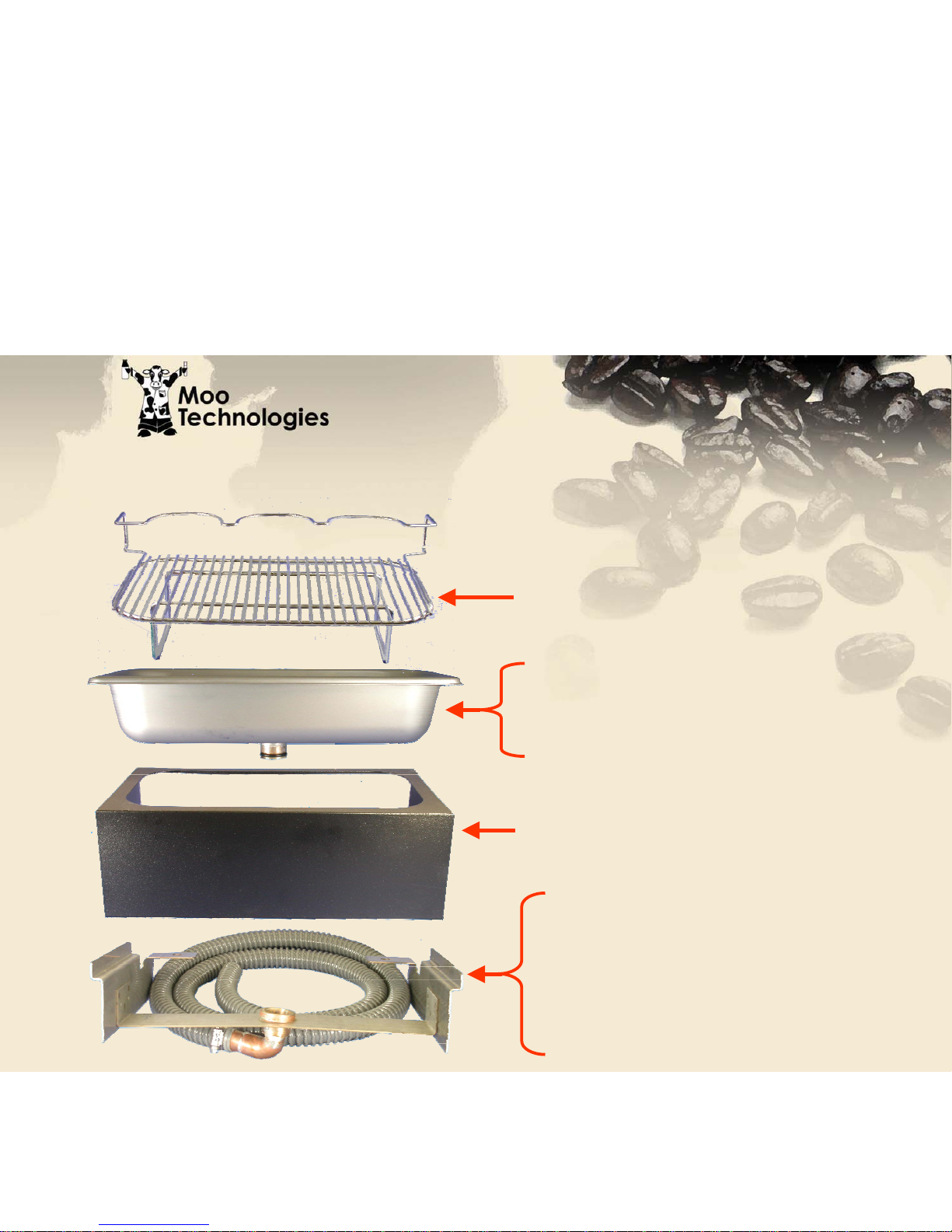

103420-BPC Drip Tray Housing
103417 Drain Support Bracket
103424 Drain Receptacle
103455 Drain Hose
103452 Hose Clamp
103415 Drain Pan
103425 Drain Pan Fitting
02-0158 O-Ring
103426 Cup Rest
Drip Tray Assembly
Drip Tray Assembly

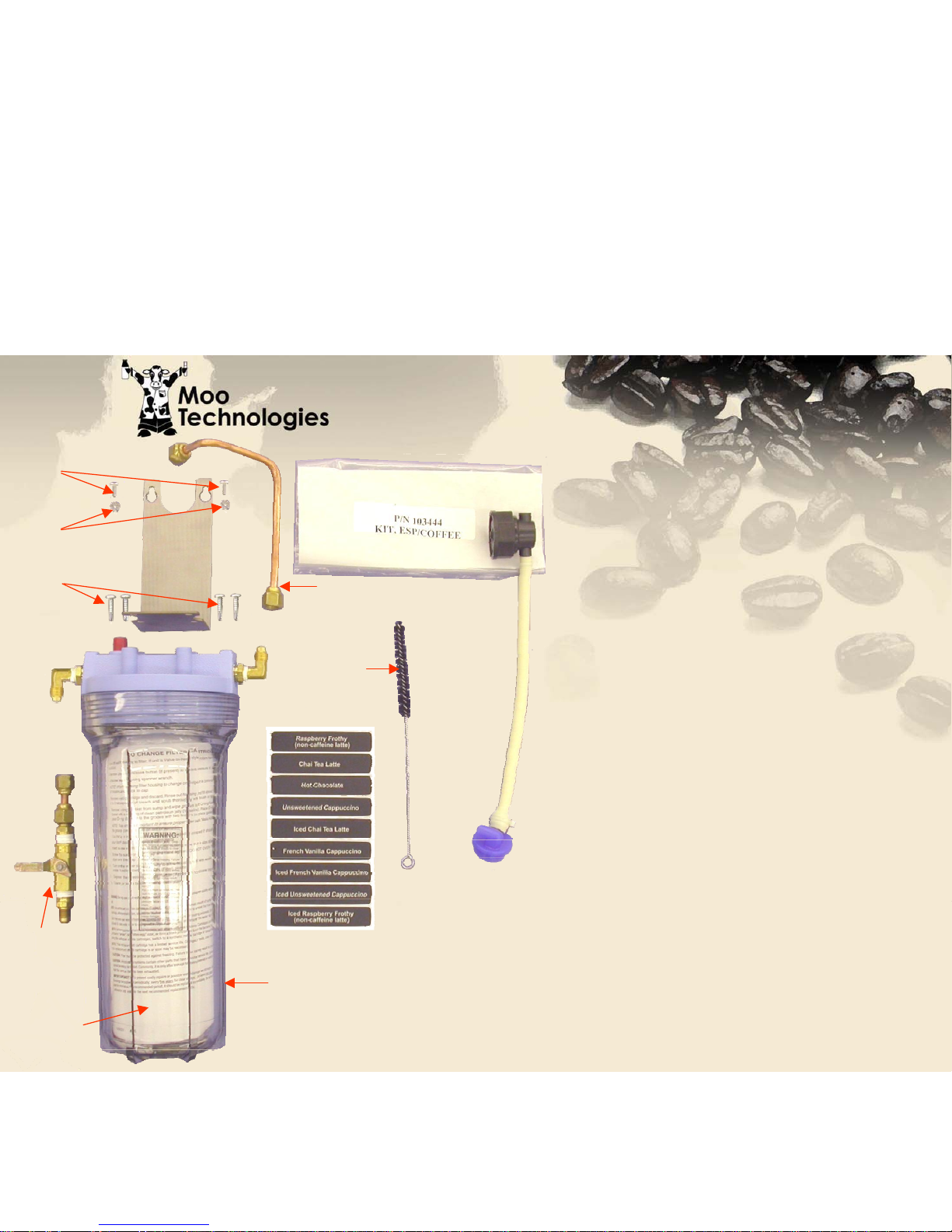

Water Filter
Shut-off Assembly
Water Filter Bracket
Bracket (Filter) Mounting Screws (4)
Bracket (Unit) Mounting Screws (2)
Product Labels
Nozzle Brush
Espresso Product Packing Adapter
Filter to Unit Water Line
Water Filter
Water Filter
Accessories Bag
Accessories Bag
511027
100054
100754
103382
107038
107018
103485 100626
111622
103457

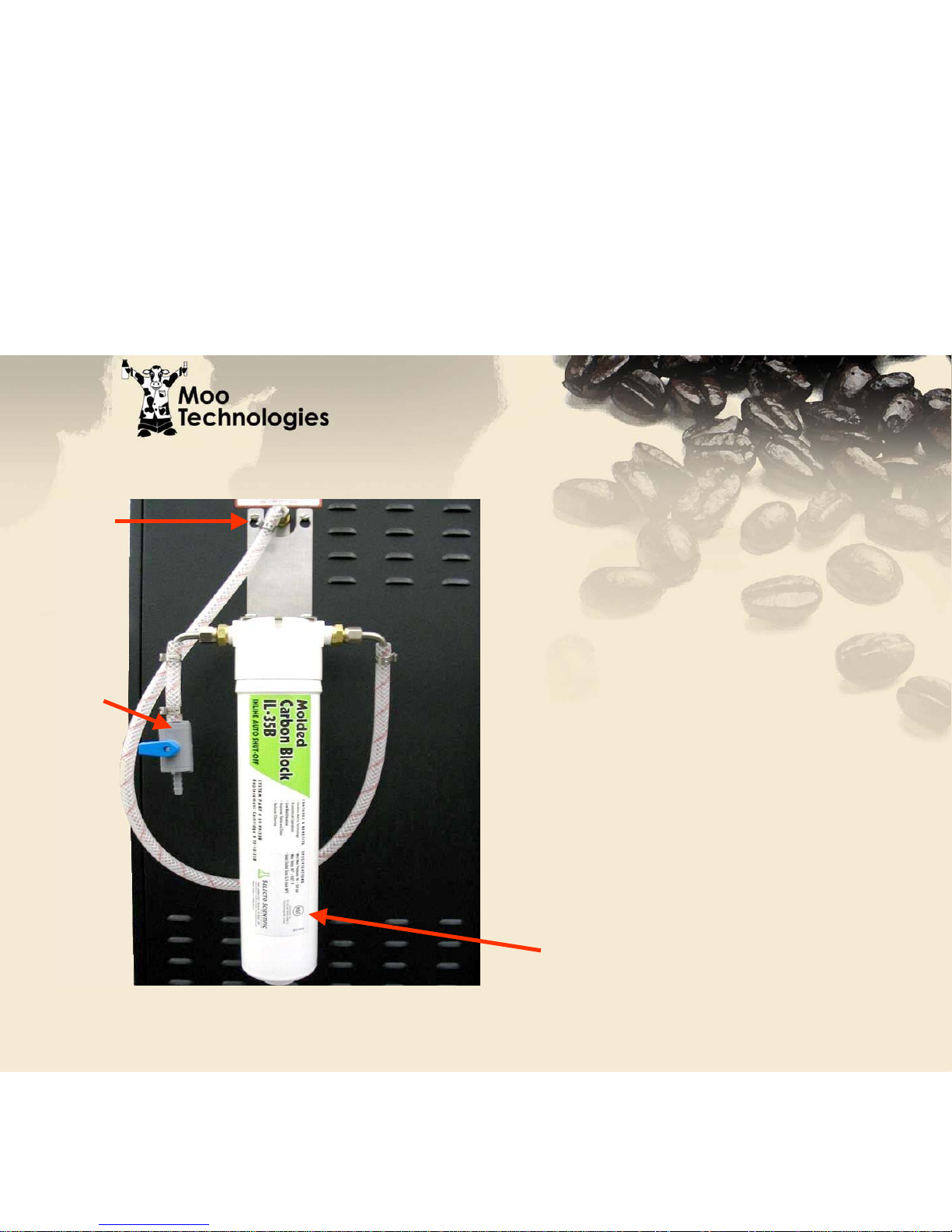

New Water
New Water
Filter Assembly
Filter Assembly
Shut-off
Bracket
Filter cartridge
New units will be shipped with
an upgraded water filter
assembly. The installation will
be exactly the same as the
previous filter assembly,
however some of the parts
(shutoff, filter, & bracket) may
look slightly different.

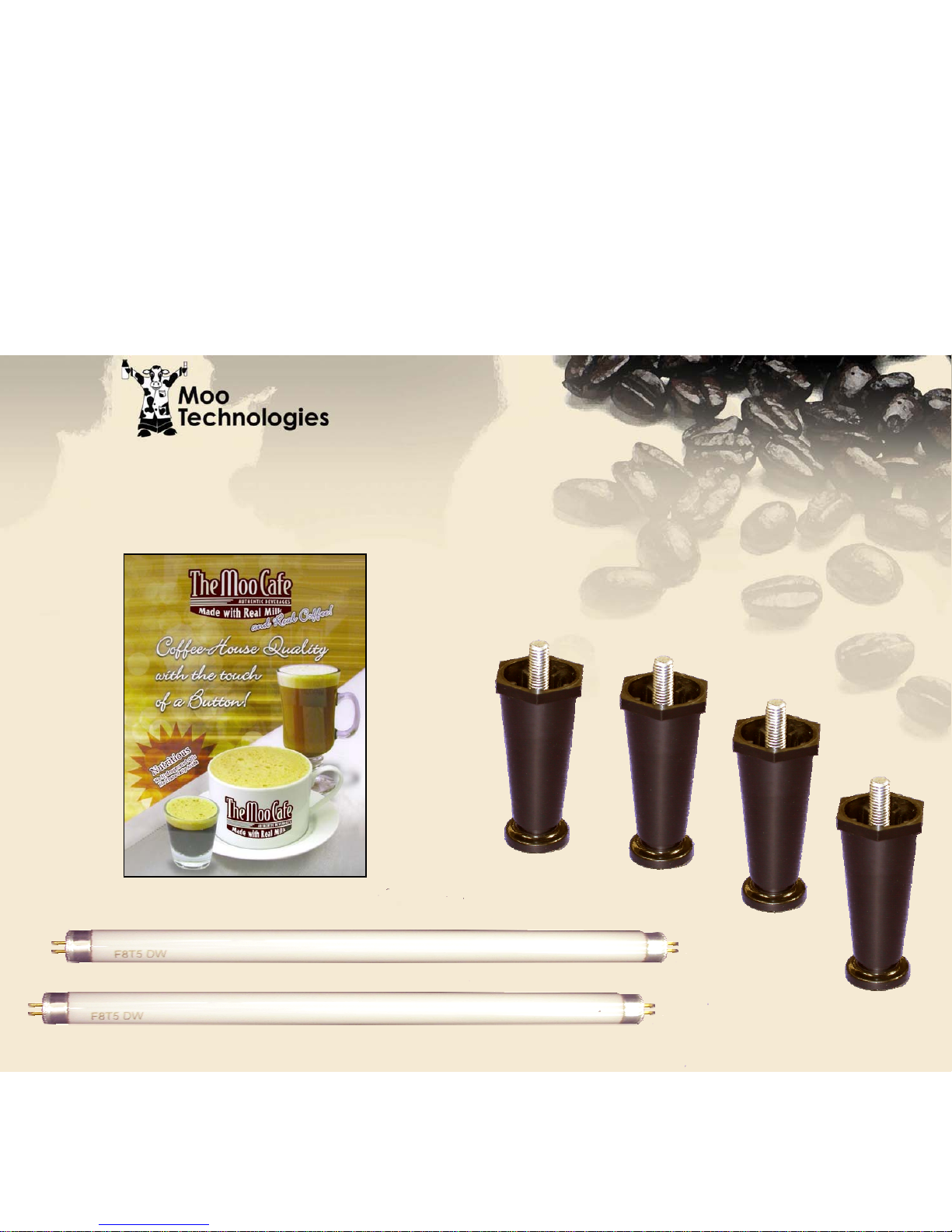

Plastic Legs, Fluorescent Tubes and
Plastic Legs, Fluorescent Tubes and
Translucent Door Graphic
100542
103377
102062
