Moog Videolarm WS5-50NF Manuale utente
5" 2.5"
5"
24
4
Vandal Resistant
Cameras
Product specifications are subject to change without notice.

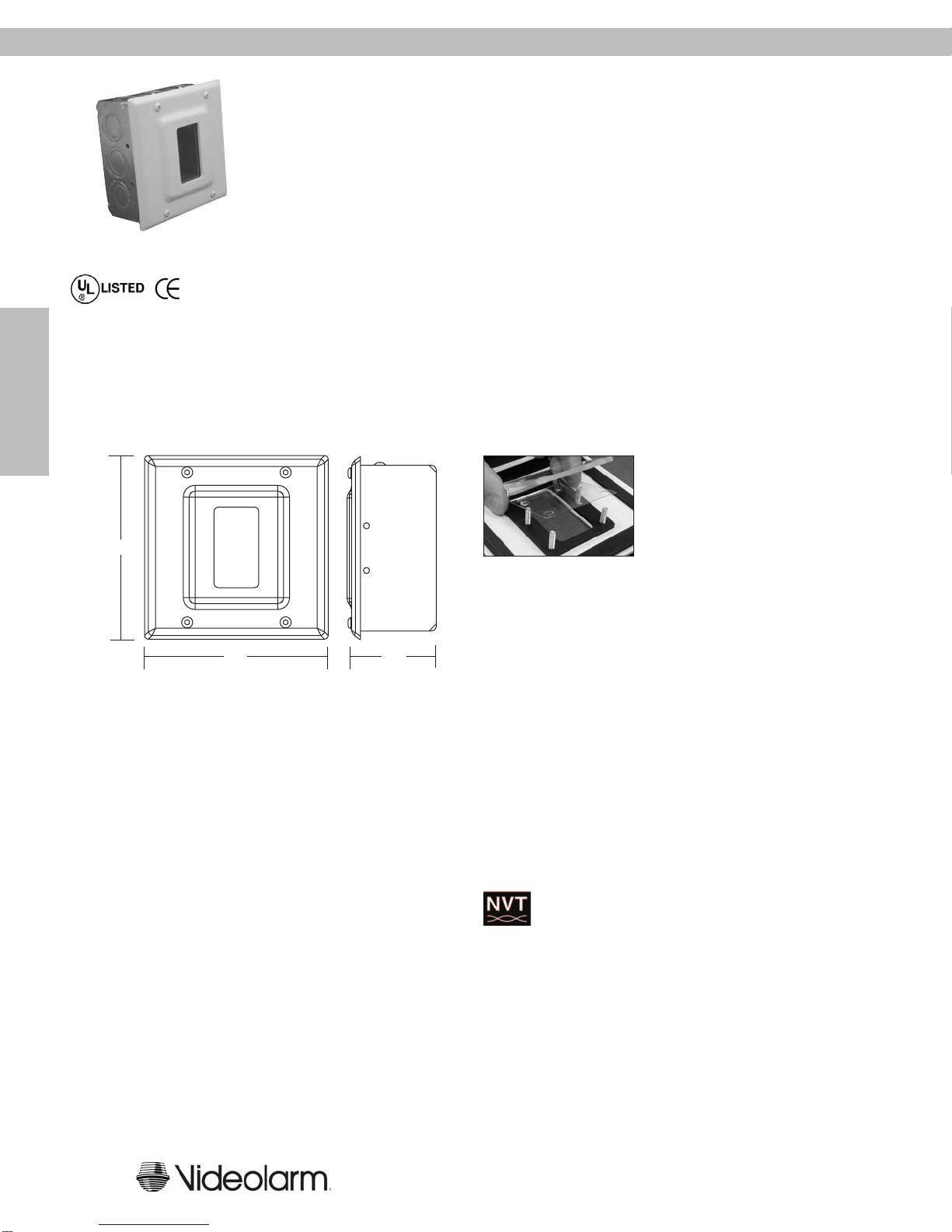

VANDAL RESISTANT CAMERAS - WS5 Recessed Wall Mount
DESCRIPTION
The WS5 is a recessed wall unit featuring a 12-gauge steel, powder coated front cover.The window is
1/8” thick polycarbonate with a scratch resistant coating andVideolarm’s Window Guard™ paint shield.
A double gang box with multiple conduit knockouts houses the camera inside the wall. A day/night
camera is also available.
FEATURES
• 12-gauge steel front plate, powder coated
• Optional stainless steel face plate
• Adjustable camera bracket,
• Window Guard™ paint shield
• 3/4” and 1/2” conduit knockouts in 15-gauge steel
double gang box
ARCHITECTURAL/ENGINEERING SPECIFICATIONS
The WS5 housing shall include a 15-gauge steel double gang box with multiple 3/4” and 1/2”conduit knockouts.The front cover shall be 12-gauge
steel, powder coated in off-white.The viewing window shall be constructed of 1/8” polycarbonate and shall include a scratch resistant coating and
Window Guard™ paint shield. A metal mounting bracket shall be included which will allow 15º manual tilt above and below the horizon. Available
with hi-res black and white, hi-res color, or hi-res day/night cameras.A factory installed NVT twisted pair module shall be available as an option.
MECHANICAL SPECIFICATIONS
Cable Entry 3/4” and 1/2” conduits on sides and
base of double gang box
Pan/Tilt Manual; 15˚ tilt above and below
horizon
CONSTRUCTION 12-gauge steel faceplate
1/8” polycarbonate viewing window
FINISH Off-white powder coat, brass, or
stainless steel
DIMENSIONS
Housing 5” (H) x 5” (W) x 3.75” (D)
Window 2.5” (H) x 1.25” (W)
ELECTRICAL SPECIFICATIONS
Input Voltage 12 - 28 VDC or 15 - 28VAC
Must be a regulated power supply
Current Draw 12 VDC - 350mA;24 VAC - 202mA
Power Requirements
Camera 12 VDC - 4.2W;24 VAC - 4.8W
Video Connector BNC
CAMERA/LENS CHOICES
•Hi-res b/w
•Hi res color
• Hi-Res day/night
• 3.6mm and 2.5mm fixed lens included
• NVT twisted pair transmitter module (customer must
purchase video receiver from NVT)
CERTIFICATIONS
ADDITIONAL OPTIONS
• WSLP68 - Lens combination pack (6 mm, 8 mm)
• PS12 - 12VDC power supply
• WS3PS - Additional paint shields
FACTORY INSTALLED OPTIONS
SHIPPING SPECIFICATIONS
Model Unit Weight Shipping Weight Shipping Box Dim.
WS5 3 lbs 4 lbs 9 x 9 x 8
* Shipping weights depend on box dimensions.
Videolarm’s exclusive Window Guard
Paint Shield™ helps protect housing
windows from vandals using spray paint
or paintball guns.
ENVIRONMENTAL SPECIFICATIONS
Temperature Range 0º to 110º F
CAMERA SPECIFICATIONS - see page 29
Focal Length
Format Size
Relative
Aperture (F)
2.5mm
1/3"
2.0
3.6mm
1/3"
2.0
6mm
1/3"
2.0
8mm
1/3"
2.0
Focal Length
Format Size
Relative
Aperture (F)
FIXED LENSES
VARIFOCAL LENSES
4-8mm
fixed
1/3"
2 - 2.6
4-9mm
auto iris
1/3"
1.6 - 2.4
16mm
1/3"
2.0
12mm
1/3"
2.0
WS1C-20NF3-X12
Warrior Series
Warrior 1, 2, 7, & 8
20 - Hi-Res B/W
50 - Hi-Res Color
70 - Hi-Res Day/Night
N - NTSC
P - PAL
F - Fixed Lens (20 and 50 only)
A - Auto Iris Vari-focal (All models)
2 - 2.5mm Lens
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
1 - Heater
2 - NVT Twisted Pair
3 - IFS Fiber Board
Option
Some options may not be available on all models
12 - 12mm Lens
16 - 16mm Lens
C - Clear Dome
T - Tinted Dome
Warrior Pan/Tilt
1 - Surface Mount
C - Clear Dome
20 - Hi-Res B/W
2 - 2.5mm Lens
F - Fixed Lens (20 and 50 O
n
N - NTSC
* Not available with Day/Night
or Digital Zoom
WP7C-20NF3
7 - Pendant Mount
8 - Ceiling Mount
T - Tinted Dome
50 - Hi-Res Color
55 - Hi-Res Color Digital Zoom
70 - Hi-Res Day/Night (Fixed only)
P - PAL
3 - 3.6mm Lens
6 - 6mm Lens
8 - 8mm Lens
A - Auto Iris*
12 - 12mm Lens
16 - 16mm Lens
WS5(B)-20NF-X2
Warrior Series
20 - Hi-Res B/W
50 - Hi-Res Color N - NTSC
P - PAL
F - Fixed Lens
2 - NVT
Twisted Pair
Option
E - Satin Brass Faceplate
S - Stainless Steel Faceplate
Signal System
Imager
Scanning
System
Synchronizing
System
Horizontal
Resolution
Signal-to-Noise
Ratio
Minimum
Illumination
Video
Output
Gain Control
Electronic Iris
Auto Iris
Control
Switchable
Shutter Speed
White Balance
Flickerless
Backlight
Compensation
Lenses
Hi-Resolution
B/W Camera Hi-Resolution
Color Camera Hi-Resolution
Day and Night Camera
EIA or CCIR
2:1 Interlaced
12 VDC internal
570 TV Lines
1/3” CCD
More than 48 dB
0.08 Lux (F1.2)
1Vp-p 75 ohm
composite
1/50 1/60 - 1/100,000 sec.
N/A
Auto
2.5,3.6,6,8,12,16mm Fixed3
3.5-8mm Auto-Iris Varifocal1,2
NTSC or PAL
1/4” CCD
2:1 Interlaced
Internal
480 TV Lines
More than 50dB
0.75 Lux (F1.2)
1Vp-p 75 ohm
N/A
N/A
ON/OFF
selectable dip switch
Auto Tracking White Balance
2.5,3.6,6,8,12,16mm Fixed3
NTSC or PAL
1/4” CCD
2:1 Interlaced
480 TV Lines
1Vp-p 75 ohm
ON/OFF
selectable dip switch
ON/OFF
selectable dip switch
DC Drive Iris Control
w/adjustable level
Auto
DC Drive Iris Control
w/adjustable level
N/A
Auto
ON/OFF
selectable dip switch
Internal
More than 50dB
Color - 0.75 Lux (F1.2)
B/W - 0.05 Lux (F1.2)
Switches to B/W at 0.6 Lux
N/A
1/60 sec.Fixed (flickerless off)
1/100 sec.Fixed (flickerless on)
Auto Tracking White Balance
4-9mm Auto-IrisVarifocal1,2
ON/OFF
selectable dip switch
DC Drive Iris Control
w/adjustable level
ON/OFF
selectable dip switch
Pan/Tilt/Zoom Hi-Res
Color Camera4
ON/OFF
selectable dip switch
NTSC or PAL
1/3” CCD
2:1 Interlaced
12 VDC internal
480 TV Lines
More than 48 dB
0.4 Lux (F1.2)
1Vp-p 75 ohm
composite
Selectable, RS232C
controllable
Selectable, RS232C
controllable
Selectable, RS232C
controllable
2.5,3.6,6,8,12,16mm Fixed
3x Digital Zoom
Selectable, RS232C
controllable
N/A
1 - Not available onWarrior 5 and 6 2- Not available onWarrior Pan/Tilt 3 -Warrior 5 and 6 2.5mm and 3.6mm only 4 - Warrior 1, 7, and 8 only
29
4
Product specifications are subject to change without notice.
Vandal Resistant
Cameras
VANDAL RESISTANT CAMERAS - Camera and Lens Specifications
WARRIOR 1-4, 7-8 MODEL CHART
WARRIOR 5 AND 6 MODEL CHART WARRIOR PAN/TILT MODEL CHART
WARRIOR CAMERA SPECIFICATIONS
WARRIOR LENS SPECIFICATIONS
