Moon METEOR VORTEX Manuale utente

METEOR VORTEX

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

The light is locked for shipment, refer to OPERATION instruction to unlock.

Read this manual carefully before using and keep for future

reference. Visit www.moon-sport.com for manual updates.

Contents

LX-BAT-2600 (LG LI-ION Battery)

RB-25 (HANDLEBAR BRACKET)

LX-BC (MAGNETIC COVER)

USB-C (USB CABLE)

Optional accessories:

RB-28 (GoPro mount adapter)

LX-BAT-3350 (LG Lithium ion battery 3350 mAh)

RB-16 (Helmet Bracket)

Operation

ON / OFF : Hold for 1s

MODE SELECT : Click

BOOST MODE : Double click

LOCK/UNLOCK : 1. Power off

2. Press for 6s: Locked Unlocked

Flash 1 time Flash 2 times

* Lock system: Lock the light to prevent accidentally turned on.

* Mode memory: The light resumes previous mode upon next usage.

Mode indicator

Modes

Boost Mode 1 Mode 2

mode Blue Green

Flash 1 Steady FL Day FL S.O.S.

Flashing Flashing Flashing Flashing

Blue Green Red Red & Green

Variable Lumen system

1. Select desired mode.

2. Press and hold to set lumen

3. Release when reaching desired lumen.

Light flashes once when reaching the MAX or MIN lumen level.

Restore default setting: Release battery and click

Mode memory: The light resumes previous VLS setting upon next usage.

Runtime

* Steady Flash Mode: High lumen flashing plus low lumen steady beam for safety

purpose.

Use the SOS sign for real emergency only!

BOOST

MODE1

MODE2

FLASH1

STEADY

FLASH

DAY

FLASH

SOS

LUMEN

1000 700 100 100 200 400 40

H:MIN

1:45 3:00 14:00 70:00 30:00 61:00 87:00

LUMEN

-700-20 700-20 700-20 700-20 700-20 -

H:MIN

3:00-

70:00

3:00-

70:00

10:00-

240:00

15:0050:00

59:00-

300:00

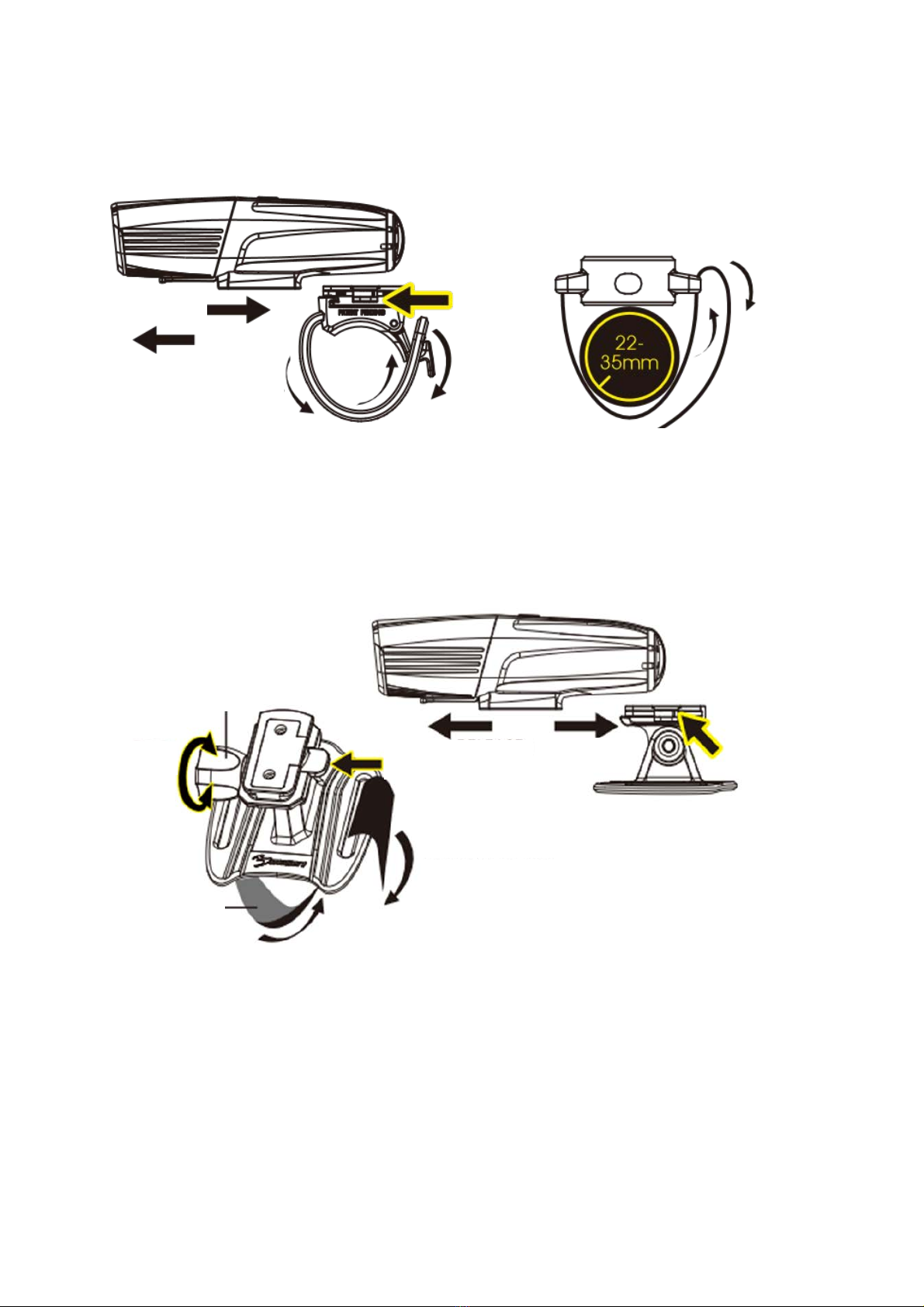

Handlebar mounting

Helmet mount (Optional)

Handle

Release

Wrapping

Press

Handlebar mount

Remote switch mount

Screw knob

Open

Belt

Helmet mount

Press

Release

Install

Press

Overheat protection

The overheat protection device can ensure the bicycle light in a good running

temperature condition, so that to protect the LEDs without burning case. If the light is in

high temperature during operation, it will dim the light output.

Charging

1. Power off.

2. Plug USB cable to USB port.

3. Unplug after fully charged.

*Do not charge over 5V.

*Keep away from flammable objects while charging.

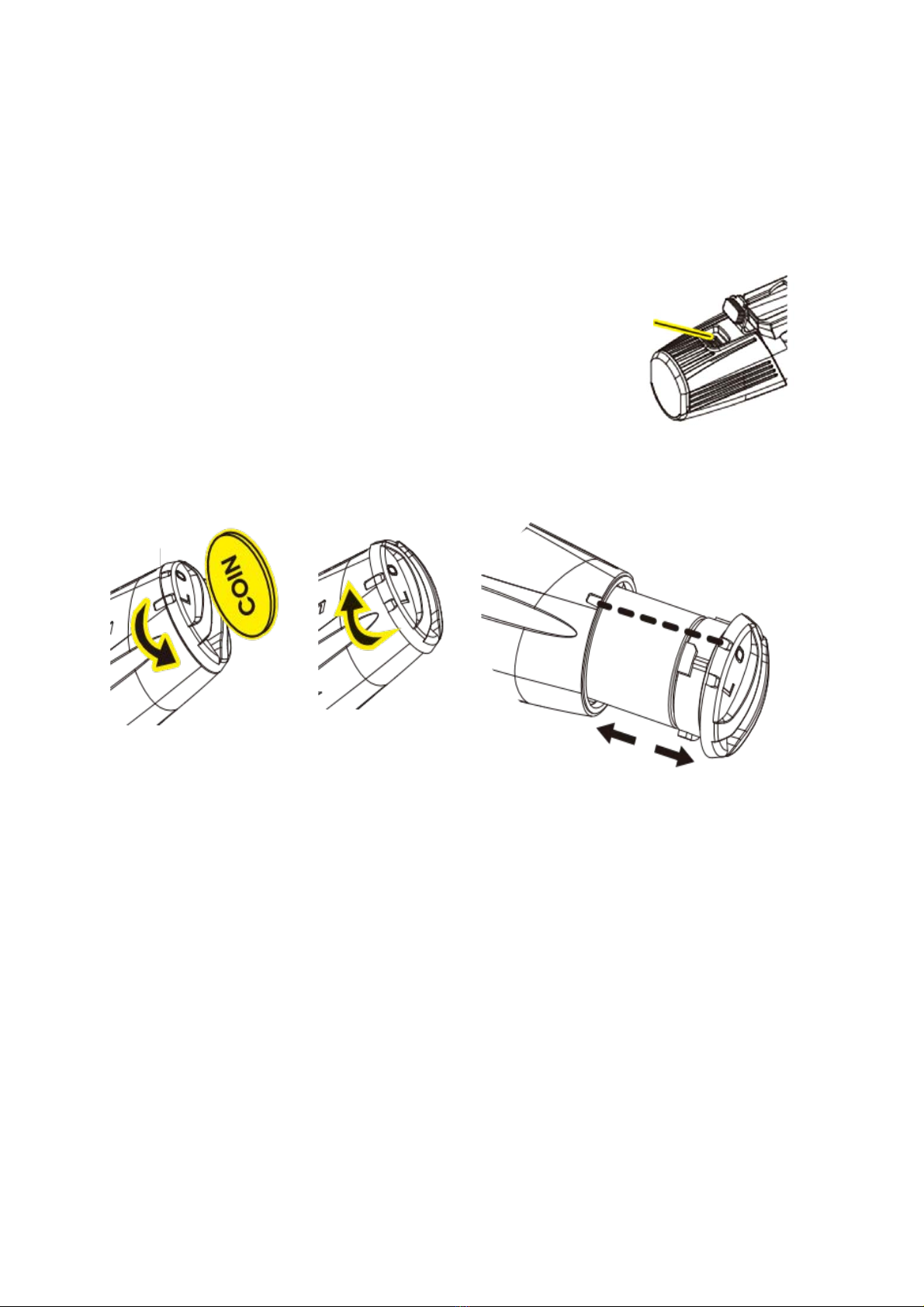

Battery installation

Install

Release

Lock

Open

USB port

Battery capacity and charging indicator

Battery indicator

Charging indicator

Charged indicator

Battery installed

indicator RED
