Morningstar TriStar TS-MPPT-30 Manuale utente

Installation and Operation Manual

Solar - Wind Charging System Controller

www.morningstarcorp.com

Solar-Wind Battery Charger

With

TrakStarTM Maximum Power Point Tracking Technology

Models:

TS-MPPT-30

TS-MPPT-45

TS-MPPT-60

TRISTAR MPPT 150V TM

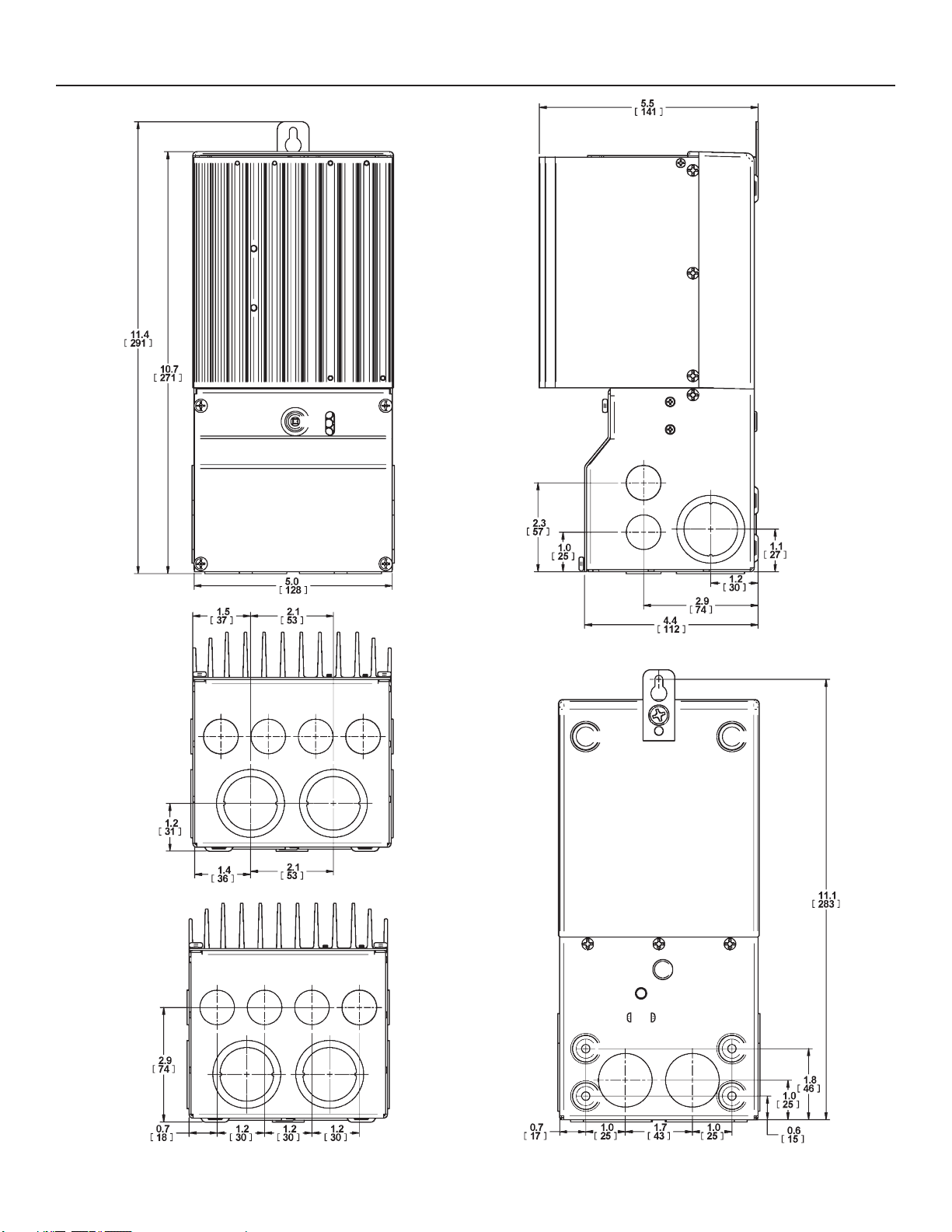

Dimensions in Inches [Millimeters]

TABLE OF CONTENTS

1.0 Important Safety Instructions 4

2.0 Getting Started 8

2.1 Overview 8

2.2 Versions and Ratings 8

2.3 Features 9

2.4 Regulatory Information 11

2.5 Optional Accessories 12

3.0 Installation 13

3.1 General Information 13

3.2 Controller Installation 15

4.0 Operation 30

4.1 TrakStarTM MPPT Technology 30

4.2 Battery Charging Information 32

4.3 Push-button 40

4.4 LED Indications 41

4.5 Protections, Faults & Alarms 43

4.6 Inspection and Maintenance 46

5.0 Networking and Communication 47

5.1 Introduction 47

5.2 Morningstar MeterBusTM 48

5.3 Serial RS-232 49

5.4 EIA-485 (formerly RS-485) 51

5.5 Ethernet 52

6.0 Troubleshooting 55

7.0 Warranty and Claim Procedure 57

8.0 Specications 58

4Important Safety Instructions

Save These Instructions

This manual contains important safety, installation and operating instructions for the

TriStar MPPT 150V solar controller.

The following symbols are used throughout this manual to indicate potentially dangerous condi-

tions or mark important safety instructions:

WARNING:

Indicates a potentially dangerous condition. Use extreme caution when performing

this task.

CAUTION:

Indicates a critical procedure for safe and proper operation of the controller.

NOTE:

Indicates a procedure or function that is important for the safe and proper operation

of the controller.

AVERTISSEMENT :

Indique une condition potentiellement dangereuse. Faites preuve d’une prudence

extrême lors de la réalisation de cette tâche.

PRUDENCE :

Indique une procédure critique pour l’utilisation sûre et correcte du contrôleur.

REMARQUE :

Indique une procédure ou fonction importante pour l’utilisation sûre et correcte du

contrôleur.

Safety Information

• Read all of the instructions and cautions in the manual before beginning installation.

• There are no user serviceable parts inside the TriStar MPPT 150V. Do not disassemble or

attempt to repair the controller.

• Disconnect all sources of power to the controller before installing or adjusting the

TriStar MPPT 150V.

• There are no fuses or disconnects inside the TriStar MPPT 150V. Do not attempt to repair.

• Install external fuses/breakers as required.

Informations de sécurité

• Liseztouteslesinstructionsetlesavertissementsgurantdanslemanuelavantdecom-

mencer l’installation.

• Le TriStar MPPT 150V 150V 150V ne contient aucune pièce réparable par l’utilisateur. Ne

démontez pas ni ne tentez de réparer le contrôleur.

• Déconnectez toutes les sources d’alimentation du contrôleur avant d’installer ou de régler

le TriStar MPPT 150V 150V 150V.

• Le TriStar MPPT 150V 150V 150V ne contient aucun fusible ou interrupteur. Ne tentez pas

de réparer.

• Installez des fusibles/coupe-circuits externes selon le besoin.

1.0 Important Safety Instructions

5TriStar MPPT Operator’s Manual

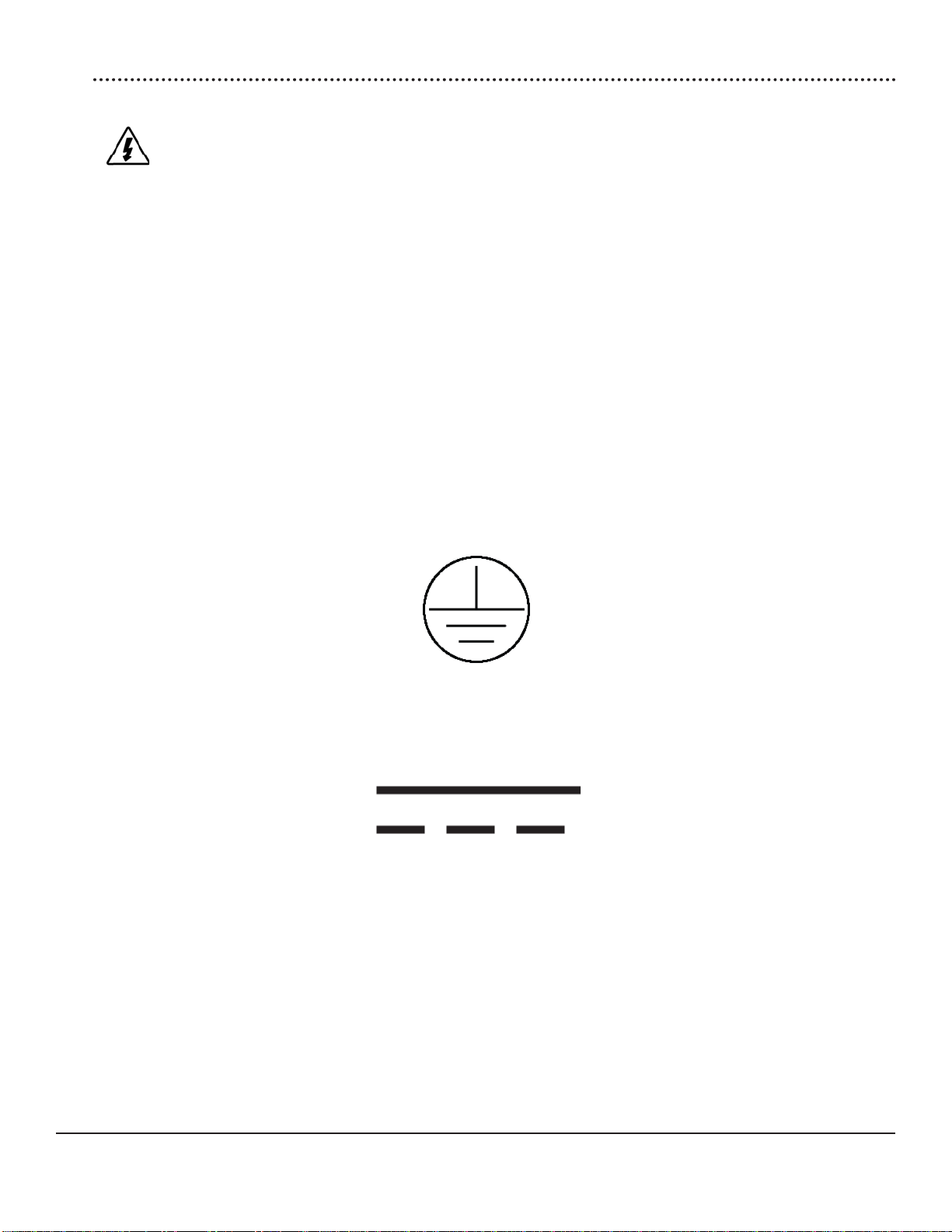

Installation Safety Precautions

WARNING:

This unit is not provided with a GFDI device. This charge controller must be used with an

external GFDI device as required by the Article 690 of the National Electrical Code for

the installation location.

• Mount the TriStar MPPT 150V indoors. Prevent exposure to the elements and do not allow

water to enter the controller.

• Install the TriStar MPPT 150V in a location that prevents casual contact. The

TriStar MPPT 150V heatsink can become very hot during operation.

• Use insulated tools when working with batteries.

• Avoid wearing jewelry during installation.

• The battery bank must be comprised of batteries of same type, make, and age.

• Do not smoke in the vicinity of the battery bank.

• Power connections must remain tight to avoid excessive heating from a loose connection.

• Use properly sized conductors and circuit interrupters.

• Thegroundingterminalislocatedinthewiringcompartmentandisidentiedbythesym-

bol below.

Ground Symbol

• This charge controller is to be connected to DC circuits only. These DC connections are

identiedbythesymbolbelow.

Direct Current Symbol

6Important Safety Instructions

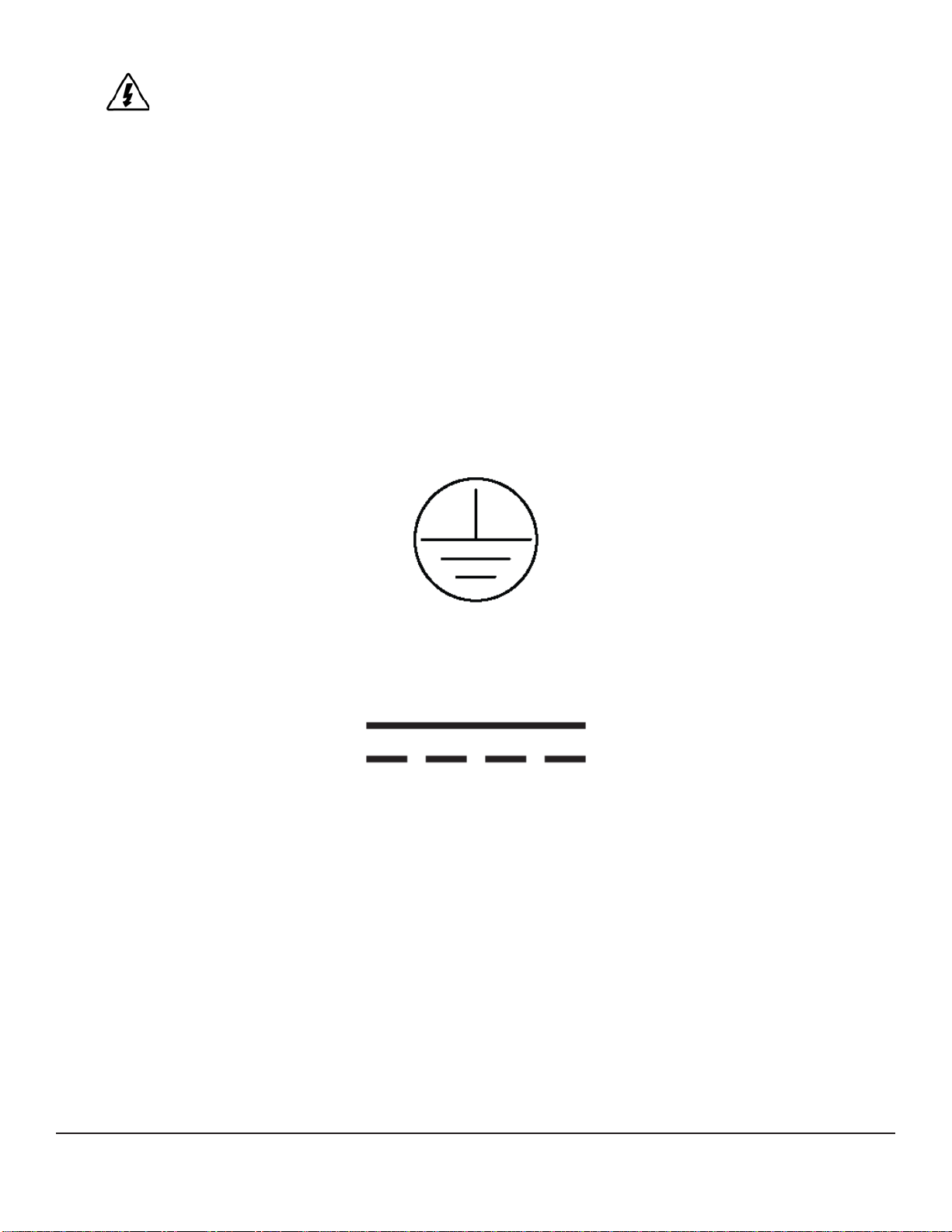

AVERTISSEMENT :

L’appareil n’est pas fourni avec un dispositif GFDI. Ce contrôleur de charge doit être

utilisé avec un dispositif GFDI externe tel que requis par l’Article 690 du Code électrique

national de l’emplacement de l’installation.

• Montez le TriStar MPPT 150V 150V 150V à l’intérieur. Empêchez l’exposition aux élé-

ments et la pénétration d’eau dans le contrôleur.

• Utilisez des outils isolés pour travailler avec les batteries.

• Évitez le port de bijoux pendant l’installation.

• Le groupe de batteries doit être constitué de batteries du même type, fabricant et âge.

• Ne fumez pas à proximité du groupe de batteries.

• Les connexions d’alimentation doivent rester serrées pour éviter une surchauffe excessive

d’une connexion desserrée.

• Utilisez des conducteurs et des coupe-circuits de dimensions adaptées.

• Labornedemiseàlaterresetrouvedanslecompartimentdecâblageetestidentiée

par le symbole ci-dessous.

• Ce contrôleur de charge ne doit être connecté qu’à des circuits en courant continu. Ces

connexionsCCsontidentiéesparlesymboleci-dessous.

LecontrôleurTriStarMPPT150V150V150Vdoitêtreinstalléparuntechnicienqualiéconfor-

mément aux règlementations électriques du pays où est installé le produit.

Un moyen d’assurer la déconnexion de tous les pôles de l’alimentation doit être fourni. Cette

déconnexiondoitêtreincorporéedanslecâblagexe.

À l’aide de la borne de mise à la masse du TriStar MPPT 150V 150V 150V (dans le comparti-

mentdecâblage),unmoyenpermanentetabledemiseàlaterredoitêtrefourni.Laxationde

lamiseàlaterredoitêtrexéecontretoutdesserrageaccidentel.

Les ouvertures d’entrée au compartiment de câblage du TriStar MPPT 150V 150V 150V doivent

être protégées avec un conduit ou une bague.

7TriStar MPPT Operator’s Manual

WARNING: A battery can present a risk of electrical shock or burn from large amounts

ofshort-circuitcurrent,re,orexplosionfromventedgases.Observeproperprecautions.

CAUTION:Whenreplacingbatteries,useproperlyspeciedsizes,types,andratingsbased

on application and system design.

CAUTION: Proper disposal of batteries is required. Refer to local regulations or codes for

requirements

AVERTISSEMENT: Une batterie peut présenter a risque de choc électrique ou de brûlure de

grandes quantités de court-circuit curlouer, incendie ou explosion de ventilé gaz.

PRUDENCE: Observer les précautions adéquates. Quand remplacer l’utilisation de piles

correctement spécifié tailles, types, et cotes fondées sur l’application et conception des

systèmes.

PRUDENCE: Élimination appropriée des batpiles est nécessaire. Se ré férer au local

. règlements ou codes pour exigentments

About this Manual

This manual provides detailed installation and usage instructions for the TriStar MPPT 150V con-

troller.Onlyqualiedelectriciansandtechnicianswhoarefamiliarwithsolarsystemdesignand

wiring practices should install the TriStar MPPT 150V. The usage information in this manual is

intended for the system owner/operator.

8TriStar MPPT Operator’s Manual

Getting Started2.0

2.1 Overview

Thank you for selecting the TriStar MPPT 150V solar charge controller with TrakStarTM MPPT

Technology. The TriStar MPPT 150V (TS-MPPT) is an advanced maximum power point tracking

solarbatterycharger.Thecontrollerfeaturesasmarttrackingalgorithmthatndsandmaintains

operation at the solar array peak power point, maximizing energy harvest.

The TriStar MPPT 150V battery charging process has been optimized for long battery life and

improved system performance. Self-diagnostics and electronic error protections prevent damage

when installation mistakes or system faults occur. The controller also features eight (8) adjustable

settings switches, several communication ports, and terminals for remote battery temperature

and voltage measurement.

Please take the time to read this operator’s manual and become familiar with the controller. This

will help you make full use of the many advantages the TriStar MPPT 150V can provide for your

PV system.

2.2 Versions and Ratings

There are three versions of TriStar MPPT 150V controller:

TriStar-MPPT-30

• maximum 30 amps continuous battery current

• 12, 24, 36, and 48 Volt dc systems

• maximum 150 Volt dc solar input voltage

• RS-232 and MeterBusTM communication ports

TriStar-MPPT-45

• maximum 45 amps continuous battery current

• 12, 24, 36, and 48 Volt dc systems

• maximum 150 Volt dc solar input voltage

• RS-232 and MeterBusTM communication ports

TriStar-MPPT-60

• maximum 60 amps continuous battery current

• 12, 24, 36, and 48 Volt dc systems

• maximum 150 Volt dc solar input voltage

• RS-232, EIA-485, MeterBusTM, and Ethernet communication ports

To comply with the National Electric Code (NEC), the current rating of the controller must be

equal to or greater than 125% of the solar array’s short circuit current output (Isc). Therefore, the

maximum allowable solar array input to the TriStar MPPT 150V controller for compliance with the

NEC is:

TS-MPPT-30: 24 amps Isc*

TS-MPPT-45: 36 amps Isc*

TS-MPPT-60: 48 amps Isc*

*Solar array Isc @ STC

9TriStar MPPT Operator’s Manual

2.3 Features

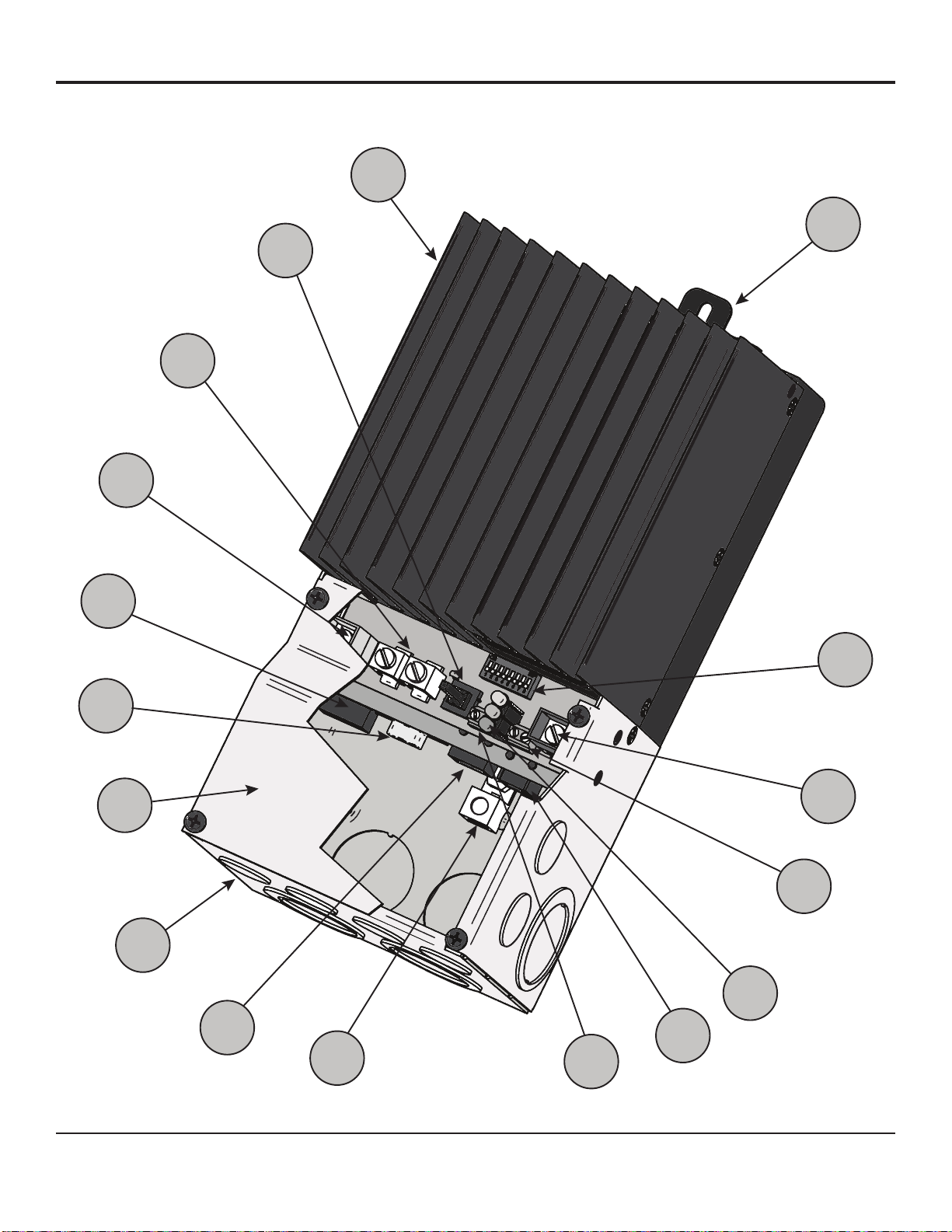

The features of the TriStar MPPT 150V are shown in Figure 2-1 below. An explanation of each

feature is provided.

10 7

Figure 2-1. TriStar MPPT 150V features

10 Getting Started

1 - Heatsink

Aluminum heatsink to dissipate controller heat

2 - Mounting Hanger

Keyhole slot for mounting

3 - Settings Switches

Eight(8)settingsswitchestocongureoperationoftheTriStarMPPT150V

4 - Battery Positive Terminal (red)

Power connection for Battery (+)

5 - Remote Temperature Sensor Terminals

Connection point for a Morningstar RTS (optional) to remotely monitor battery temperature

6 - LED Indicators

Three state of charge (SOC) LED indicators show charging status and controller faults

7 - MeterBusTM Port

RJ-11 socket for Morningstar MeterBusTM network connections

8 - Battery Voltage Sense Terminals

Terminals for battery voltage input provide accurate battery voltage measurement

9 - Ground Terminal

A chassis ground terminal for system grounding

10 - Ethernet Port

RJ-45 socket for LAN/internet connections (TS-MPPT-60 model only)

11 - Wiring Box with Conduit Knockouts

Termination points for wiring conduit and wire glands

12 - Wiring Box Cover

Sheet metal wiring box cover protects power connections

13 - Serial RS-232 Port

9-pin serial connector (female)

14 - EIA-485 Port

Four (4) position screw terminal for EIA-485 bus connections (TS-MPPT-60 model only)

15 - Solar Positive Terminal (yellow)

Power connection for Solar (+)

16 - Common Negative Power Terminals

Two (2) negative terminals for negative system cable termination

17 - Push-button Switch

Manually reset from an error or fault, also used to start/stop a manual equalization.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Morningstar Controllori

Morningstar

Morningstar TriStar TS-60M Manuale utente

Morningstar

Morningstar ProStar MPPT Series Manuale utente

Morningstar

Morningstar SUNSAVER SS-10-12V Manuale utente

Morningstar

Morningstar SunSaver-10 Manuale utente

Morningstar

Morningstar ESSENTIAL Series Manuale utente

Morningstar

Morningstar SunGuard Manuale utente

Morningstar

Morningstar EcoBoost MPPT EB-MPPT-20 Manuale utente

Morningstar

Morningstar SunSaver SS-6 Manuale utente

Morningstar

Morningstar SunSaver Series Guida

Morningstar

Morningstar MC6 MkII Manuale utente

Morningstar

Morningstar TriStar TS-60 Manuale utente

Morningstar

Morningstar SUNSAVER DUO Manuale utente

Morningstar

Morningstar GenStar GS-MPPT-60 Manuale utente

Morningstar

Morningstar TriStar TS-45 Manuale utente

Morningstar

Morningstar REAKSTAR GenStar GS-MPPT-60M-200V Manuale utente

Morningstar

Morningstar ProStar MPPT TRAKSTAR PS-MPPT-15 Manuale utente

Morningstar

Morningstar SunSaver SS-6 Manuale utente

Morningstar

Morningstar ProStar PS-15 Manuale utente

Morningstar

Morningstar ProStar MPPT Series Manuale utente

Morningstar

Morningstar TrakStar TriStar TS-MPPT-60M Manuale utente

Morningstar

Morningstar ProStar PS-15M-48V Manuale utente

Morningstar

Morningstar SunSaver Duo SSD-25RM Manuale utente

Morningstar

Morningstar SunSaver MPPT Meter Map Manuale utente

Morningstar

Morningstar SHS-6 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
