Morphy Richards EG820C2LP-PM Istruzioni di montaggio

Version 2 31/03/2021

MICROWAVE

OVEN

Installation & User Instructions –

Please keep for future reference

EG820C2LP(F)-PM

Version 2 31/03/2021

Contents

Safety infor

mation……………………………………………………

Installation…………………………………………………............…

Parts and assemb

ly……………………………………………………

Control panel………………………………………………..............……

Setting the clock…………………………………………………...

Stop cooking / Cancel…………………………………………

Control panel lock………………………………………………

Kitchen Timer………………………………………………......

Selecting microwave oven power……………………………

Express microwave mode ……………………………………

…………

Microwave cooking……………………………………………….........……

Defrosting

…………………………………………………………………

Grill cooking……………………………………………………………………

Multistage cooking…………………………………...……………

Memory cooking……………………………………………………

Auto cook function……………………………………………………

Cleaning your oven…………………………………………........…

Materials suitable for use in the ov

en…………………............….

General microwave cooking ad

vice……………………..............5....……

Troub

leshooting……………………………………………………

Tec

hnical Specification……………………………………..........….

Recyc

ling electrical products……………………………................…

Plug re

wiring…………………………………………………............…

Guar

antee………………………………………………………………………………

Combination cooking

…………………………………………………

Version 2 31/03/2021

Safety information

Important –Please read these instructions fully before

installation

•WARNING: It is hazardous for anyone other than a

competent person to carry out any service or repair

operation that involves the removal of a cover that gives

protection against exposure to microwave energy. Servicing

of this appliance must only be carried out by a qualified

electrician.

•WARNING:If the door or door seals are damaged, the oven

must not be operated until it has been repaired by a

competent person. Do not operate this appliance if

damaged or modified in any way.

•Keep the appliance and its cord out of reach of children less

than 8 years.

•When operating in combination or grill modes, the oven

becomes extremely hot. Do not allow children to use the

appliance without adult supervision

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children unless they are aged from 8 years and above and

supervised.

•Switch off and unplug before cleaning or servicing the

appliance.

•Keep microwave, cable and plug dry and away from areas

where it is likely to get splashed. Never immerse in water.

Never clean with a steam cleaner.

•Do not pull on the cable to disconnect from the mains supply.

Version 2 31/03/2021

•This oven must be positioned so that the plug is accessible

and the plug socket is within easy reach of the power cord.

•Do not operate the microwave if damaged or after it

malfunctions. In the event the supply cord is damaged, it

must only be replaced by a qualified service engineer, with a

suitably approved part.

•Do not place items with naked flames or containers with

liquids on this appliance.

•The mains plug shall be connected into a mains socket outlet

with a protective earth connection.

•All microwaves are tested and approved in accordance with

current electromagnetic safety and compatibility regulations

and standards. As a precautionary measure, pacemaker

manufacturers recommend wearers to keep a minimum

distance of 20-30 cm between an operating microwave oven

and the pacemaker in order to avoid possible interference

with the pacemaker. If you suspect there may be interference,

turn the microwave off immediately and contact the

manufacturer of the pacemaker.

WARNING!

•This appliance is not intended to be used in: staff kitchen

areas in shops, offices and other working environments; farm

houses; by clients in hotels, motels and other residential

type environments; bed and breakfast type environments.

•This appliance must not be operated by a timer or a separate

remote control system.

•Liquids and other foods must not be heated in sealed

containers since they are liable to explode.

•Microwave heating of beverages can result in delayed

eruptive boiling; therefore care must be taken when handling

the container.

•If you are preparing food or liquid for a baby stir or shake

the contents and check the temperature before consumption

in order to avoid burns.

Version 2 31/03/2021

WARNING! (continued)

•

Never cook or heat eggs in their shell or whole hard boiled

eggs, as they may explode even after cooking in the

microwave has been completed.

The oven should be cleaned regularly and any food deposits

removed – see page 23 for details. Failure to maintain the

oven and seals in a clean condition could lead to

deterioration of the surface or seals, adversely affect the life

of the oven and possibly result in a hazardous situation.

Never operate the oven when empty and avoid leaving

unattended during use.

Do not cover and allow adequate ventilation – see page 7 for

clearance required.

The surfaces of the oven and the containers inside

will become hot during and immediately after use;

wear oven gloves when handling.

Check regularly during cooking cycle especially when using

plastic or paper containers to ensure food and containers do

not ignite.

If smoke is emitted, switch off or unplug the appliance and

keep the door closed in order to stifle any flames.

Do not use oven on, near or under flammable or heat

sensitive items.

Do not place foil wrapped food, metal containers or

containers with metal parts or trim when using the

microwave or combination oven.

Do not use with a cracked or missing turntable or without

the turntable ring.

The microwave oven is intended for heating food and

beverages. Drying of clothing and heating of warming

buttons, slippers, sponges, damp cloth and similar may lead

to risk of injury, ignition or fire.

Always check for container and utensil suitability before

using in the microwave oven - see page 24 for advice.

The appliance must not be placed in a cabinet.

Version 2 31/03/2021

FOOD SAFETY

•Do not cook raw meat or raw shellfish in a microwave, due

to the possibility for uneven heating.

•Do not use microwave for home canning or bottling.

Improperly canned or bottled foods may spoil and be

dangerous to eat.

•Always check the temperature of food before serving.

•Food cooking times will vary with microwave wattage (MAFF

rating). When following recipes and on pack cooking

instructions always check the MAFF rating / wattage of the

appliance being used (marked on the front of the microwave)

and follow the corresponding cooking advice.

Version 2 31/03/2021

Installation

•This microwave is designed to be free standing and is not

intended to be used ‘built in’ or in a cabinet.

•Select a level surface away from televisions, cookers and

other heat producing appliances.

•Ensure adequate ventilation and allow a clearance of

➢at each side of the oven20cm

➢0cm clearance above the oven3

➢10cm at the rear of the oven

➢The minimum installation height is 85cm

•Ensure that the cable is not close to any sharp or hot

surfaces, or where it is likely to cause a trip hazard.

20cm

30cm

20cm

min85cm

0cm1

Version 2 31/03/2021

Parts and assembly

1. Interlocking catches

3. Turntable shaft

4. Control panel

5. Door with viewing panel

6. Glass turntable

7. Grill Rack

8. Grill element

9. Door release button

2. Turntable roller

7 8

•Ensure all packaging materials, protective film and adhesive

tape are removed and check the oven and door for any

damage. Do not remove the waveguide cover.

•Assemble as shown above and ensure that the glass

turntable is correctly positioned on the shaft and roller.

•When using the microwave do not fit the grill rack.

•When using the grill, place the grill rack onto the glass

turntable.

•Always check for damage before using the grill rack. It is

not advised to use the rack when microwave or

combination cooking.

• The grill rack is not allowed to be used in combi cooking.

Version 2 31/03/2021

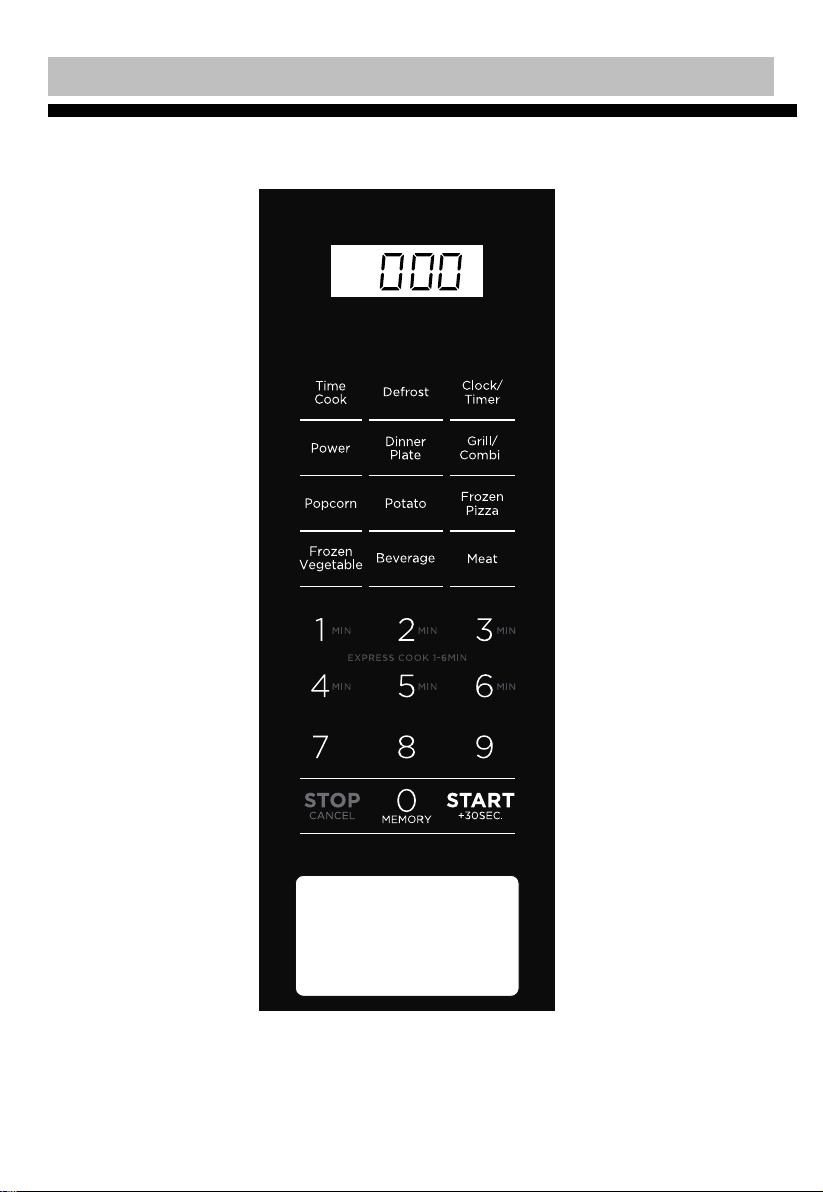

Control panel

•

Version 2 31/03/2021

Setting the clock

Stop cooking / Cancel

1. Fully unwind the cable, plug in and switch on. The microwave will emit

a single bleep and the display will show 0:00.

2. Press CLOCK/TIMER pad once, 00:00 will display.

3. Press the number pads to enter the correct time. For example, the

time is 8:15 now, please press 0-8-1-5 in turn.

4. Press CLOCK/TIMER to save the setting.

Notes:

• It is a 24-hour clock.

• In the process of clock setting, if the STOP/CANCEL pad is pressed or if

there is no operation within 1 minute, the oven will go back to the

former setting automatically.

• If the oven is unplugged or turned off at the mains the clock setting will

be lost.

• To check the time during oven operation, press the CLOCK/TIMER pad

and the time will display briefly before returning to the countdown

timer.

The oven can be stopped at any time by pressing the STOP/CANCEL

pad or by opening the door.

If the oven door is OPEN, press the STOP/CANCEL pad ONCE to clear

all settings.

If the oven door is CLOSED, press the STOP/CANCEL pad TWICE to

clear all settings.

•
