The Specialist In Drum Handling Equipment
Kit # 4556M-P
Kit, Bracket Assembly, MORCINCHTM, SR
Operator’s Manual for Morse MORCINCHTM Bracket Assembly Kit with Spark Resistant Parts
Part # 4556M-P
Serial Number 0209 to ____ (MMYY)
Copyright 2019 - Morse Mfg. Co., Inc. Form PL4556M (0209-____) (Updated 17 Jun, 2019 4:07 PM) 1
ITEM QTY. PART # DESCRIPTION
1 1 1371M-P HOLD DOWN, BRACKET ASM, SR
2 1 1372-P TEE HANDLE, BRACKET ASM, 1-1/2
3 3 1169-P NUT, 3/8-16 REV HEX LOCK
4 3 82-P HHCS, 3/8-16 X 2-1/4 GR2
5 1 5108M-P WELD, BRACKET, 35” SR
6 1 4556M-P KIT, BRACKET ASM, MORCINCH, SR
7 2 1315-P HHCS, 3/8-16 X 2-3/4 GR2
INSTALLATION INSTRUCTIONS
for MORCINCHTM Drum Holder
Bolt bottom bracket (item 5) to drum holder, using 2 bolts1.
(item 4) and 2 nuts (item 3), bolt in place through the 2
lowest holes on bottom bracket.
Slide hold down (item 1) down over top of bottom bracket2.
and tighten in place with tee handle (item 2).
Fasten stop bolt (item 4) and nut (item 3) into top hole of3.
bottom bracket.
INSTALLATION INSTRUCTIONS
for Drum Holder with Socket Tube
Slide bottom bracket (item 5) up through socket tube and,1.
using 2 bolts (item 7) and 2 nuts (item 3), bolt in place
through the 2 lowest holes on bottom bracket.
Slide hold down (item 1) down over top of bottom bracket2.
and tighten in place with tee handle (item 2).
Fasten stop bolt (item 4) and nut (item 3) into top hole of3.
bottom bracket. Use bottom hole for 195 Series starting
with serial number 0207.
Syracuse, NY, 13208 U.S.A.
morsedrum.com (315) 437-8475
The Specialist In Drum Handling Equipment
Kit # 4556M-P
Kit, Bracket Assembly, MORCINCHTM, SR
Operator’s Manual for Morse MORCINCHTM Bracket Assembly Kit with Spark Resistant Parts
Part # 4556M-P
Serial Number 0209 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL4556M (0209-____) (Updated 17 Jun, 2019 4:07 PM) 2
OPERATING INSTRUCTIONS
TO SECURE DRUM:
Position drum holder assembly so bottom bracket (item 5)1.
rests on oor.
Loosen tee handle (item 2) and slide hold down (item 1) up2.
to highest position. Tighten tee handle.
Load drum onto bottom bracket and into drum holder with a3.
hand truck.
Loosen tee handle and slide hold down to meet top of drum.4.
Tighten tee handle. (see Figure 1)
Secure drum with chain and ratchet mechanism. Drum is5.
now ready to be lifted and tilted.
TO RELEASE DRUM:
Lower drum to oor in upright position.1.
Release chain from ratchet mechanism by applying2.
pressure to ratchet handle in a clockwise direction with one
hand and opening pawl to free ratchet with other hand.
Remove chain link from ratchet.
Loosen tee handle and slide hold down up to highest3.
position. Tighten tee handle.
Remove drum with hand truck.4.

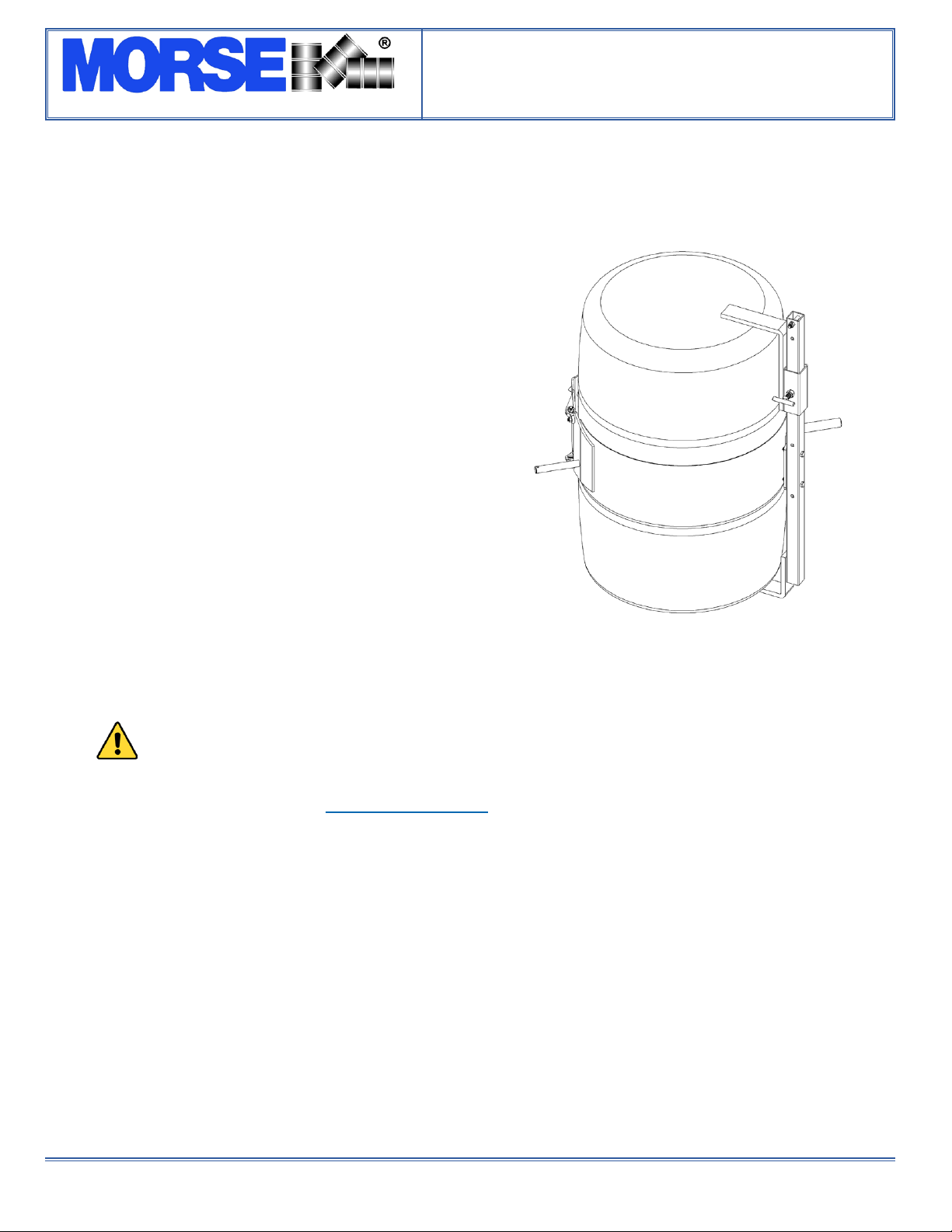

Figure 1
Plastic drum being lifted with
part number 4556M-P Bracket
Assembly Kit installed.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and
2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to
the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
