MOTION BLINDS CM-03-E Manuale utente

Motionblinds Manual

User Manual

Roller Blind

Motor CM-03-E

Con

forms to

UL Std. 325

Cleaning

Follow these general rules when cleaning the

outside of the device and its components:

Use a damp, soft, lint-free cloth. Avoid getting

moisture in openings.

Do not use aerosol sprays, solvents, alcohol, or

abrasives.

Service & Support

Do not perform repairs yourself. Do not attempt to

open the device or disassemble it. You run the risk

of electric shock and voiding the limited warranty.

No user-serviceable parts are inside.

Warranty Service

First follow the advice in this manual. If the product

appears to be damaged or does not function

properly, go to your local dealer for instructions on

how to obtain warranty service.

Recycle

This marking indicates that this product should

not be disposed with other household wastes

throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled

waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To

return your used device, please use the return and

collec-tion systems or contact the retailer where

the product was purchased. They can take this

product for environmental safe recycling.

Read the instructions carefully

before assembling and using

the product. Assembly can be

completed by non-professionals.

For indoor use only.

Young children can strangle

themselves with the loop of

pull cords, chains and tapes,

and cords that operate window

coverings.

To avoid strangulation and

entanglement, keep cords out

of reach of young children.

Cords may ensnare a child’s

neck.

Move beds, cots and furniture

away from window covering

cords.

Do not tie cords together.

Make sure cords do not twist

together and form a loop.

WARNING

USB-C charging port

LED (Battery/Reset indicator)

End position button

Reset/Program button

Pull control

Buttons and functions

ENGLISH

MN180 020_20 180713

1/4

2 x 2 x 2 x 4 x

Max. 1/8 "

Bracket Motorized

Opening width

Inside mount Outside mount

Outside mount

Inside mount

Deduct 1 1/4 inch from opening

width for screw positions

Install the blind

Activate the blind

Follow the steps in the installation instructions to install the blind.

To activate the blind, connect it to a standard USB-C 5V power supply via a USB-C cable.

This can be your smartphones power adapter, for example.

1234-567-8901

Add Eve MotionBlinds to your platform

Add Eve MotionBlinds to the platform of your choice and make sure to

have a compatible Thread Border Router.

More information : motionblinds.com/eve/matter

Now you can easily add Eve MotionBlinds to your smart home in just a few steps by scanning

the Matter Setup Code using the app of your favorite platform. Scan the Matter Setup Code

to add it your platform.

Eve MotionBlinds needs end positions to work properly. End positions can be programmed in

two ways. In the Eve app or by the end position programming button on your blind. (Step 5)

After scanning you can hide your Matter Setup Code.

Setup the blind

ENGLISH

5Set end positions

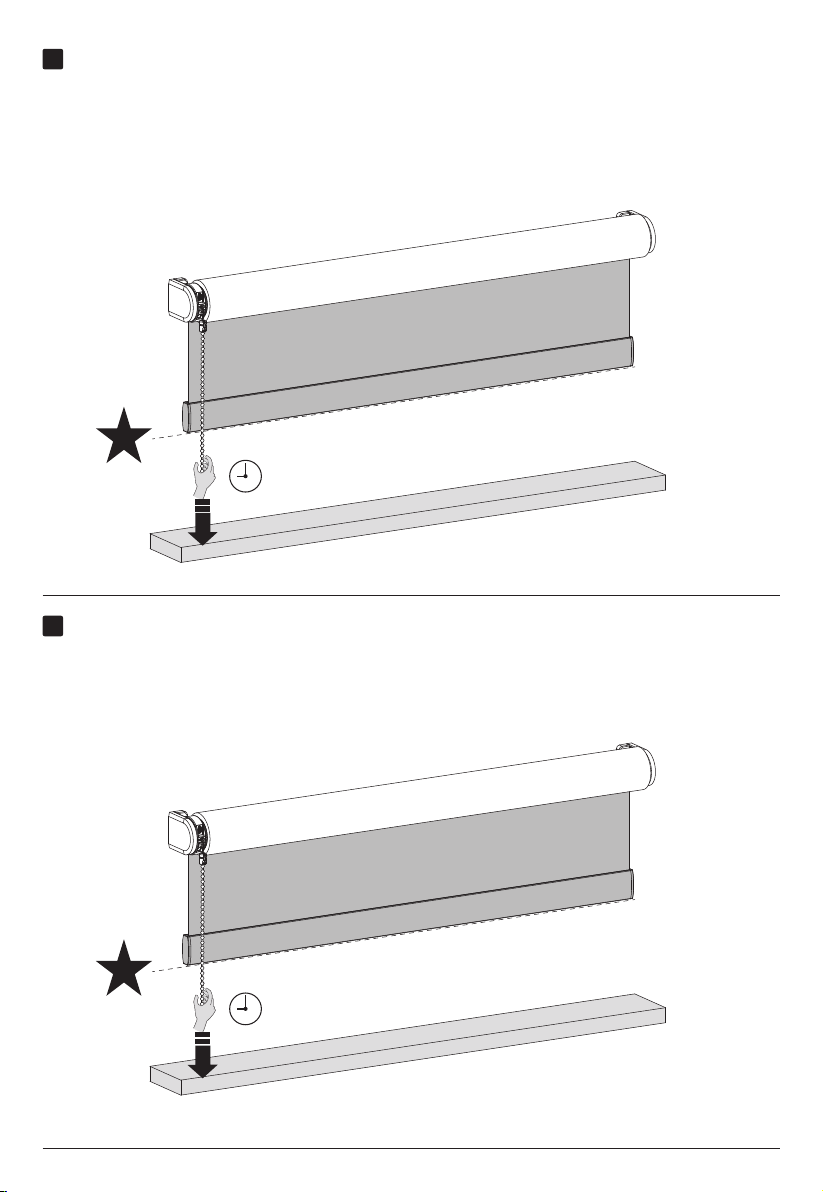

Beside setting the end positions by the app you are able to set the end positions by

pressing the button on the motor. Pull and hold the chain until the blind has reached

the bottom position. If the blind moves in the opposite direction, release the chain and

pull and hold again.

Adjust until the desired bottom position has been reached.

Save your bottom position

When your blind is positioned at your bottom position hold the button until the blind moves up

and down to save your bottom position.

7Move your blind to the top position

Save your top position

Pull and hold the chain until the blind has reached the top position.If the blind

moves in the opposite direction, release the chain and pull and hold again.

Adjust until the desired top position has been reached.

When your blind is positioned at your top position hold the button until the blind moves up

and down to save your top position.

ENGLISH

3 s

Remove your (bottom/top) position

Hold the end position program button for 3 seconds to remove your (bottom/top) position. The

blind will step up and down once to confirm that your end position has been removed. You are

now able to set a new (bottom/top) position.

Adjust your end positions

To adjust one of your end positions you need to place your blind at the end position

you want to adjust. Pull and wait until the blind has reached the end position you want

to adjust.

Move your blind to the new (bottom) position

Pull and hold the chain until the blind has reached the bottom position.If the blind

moves in the opposite direction, release the chain and pull and hold again.

Adjust until the desired bottom position has been reached.

Save your (bottom) position

When your blind is positioned at your bottom position hold the button until the blind moves up

and down to save your bottom position.

ENGLISH

5 s

7 s

Control your blind to favorite position

When your blind is not positioned at the favorite position hold the pull for 5 seconds and your

blind will move to it’s favorite position.

Save the favorite position

When there is no favorite position programmed you need to position your blind at your

favorite position. When the blind is at your favorite position hold the pull until the blind

steps up and down once .(Approximately 7 seconds)
