Motorola HHLN4125 Manuale utente

Accessories

Radio

Adapter (RBA)

6880309K16-O

for the Professional Radio Series

Model HHLN4125

and MOTOROLA are registered trademarks of Motorola, Inc.

The BLUETOOTH trademarks are owned by Telefonaktiebolaget LMEricsson,

Sweden, and licensed to Motorola, Inc.

TABLE OF CONTENTS

Safety and General Information. . . . . . . . . . . . . . . . .3

Electromagnetic Interference/Compatibility

Facilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Aircraft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Medical Devices. . . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety and General

Use While Driving . . . . . . . . . . . . . . . . . . . . . . . . .9

Bluetooth Wireless Technology Overview . . . . . . . . .6

Getting Started

Installing the Radio Bluetooth Adapter (RBA) . . . .8

Removing the Radio Bluetooth Adapter (RBA) . . .9

Turning ON the RBA. . . . . . . . . . . . . . . . . . . . . . . .9

Establishing the Bluetooth Wireless

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Connection Verification . . . . . . . . . . . . . . . . . . . .10

Lost Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Turning OFF the RBA . . . . . . . . . . . . . . . . . . . . . .11

Disconnecting the Bluetooth Wireless

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . .12

LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . .13

Operation

Operational Range . . . . . . . . . . . . . . . . . . . . . . . .14

Receiving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Transmitting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . .15

VOX (Voice Activated Transmission) . . . . . . . . . .15

Battery

Low Battery Alert . . . . . . . . . . . . . . . . . . . . . . . . .16

Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Temperature Effects On Your RBA . . . . . . . . . . . . . .16

RBA Replacement Parts Lists . . . . . . . . . . . . . . . . .17

Service and Support. . . . . . . . . . . . . . . . . . . . . . . . .17

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Replacing the HHLN4125 Side Connector Board. . .18

SAFETY AND GENERAL INFORMATION

IMPORTANT INFORMATION ON SAFE AND

EFFICIENT OPERATION.

READ THIS INFORMATION BEFORE USING

YOUR RADIO.

Users are not permitted to make changes or

modify the device in any way. Changes or modifi-

cations not expressly approved by the party

responsible for compliance could void the user’s

authority to operate the device. See 47 CFR Sec.

15.21.

This device complies with Part 15 of the U.S.

FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interfer-

ence, and (2) this device must accept any inter-

ference received, including interference that may

cause undesired operation. See 47 CFR Sec.

15.19(3).

ELECTROMAGNETIC INTERFERENCE/

COMPATIBILITY

OTE: Nearly every electronic device is sus-

ceptible to electromagnetic interference

(EMI) if inadequately shielded, designed

or otherwise configured for electromag-

netic compatibility.

Facilities

To avoid electromagnetic interference and/or

compatibility conflicts, turn off your device in any

facility where posted notices instruct you to do so.

Hospitals or health care facilities may be using

equipment that is sensitive to external RF energy.

Aircraft

When instructed to do so, turn off your device

when on board an aircraft. Any use of your device

must be in accordance with applicable regula-

tions per airline crew instructions.

Medical Devices

Pacemakers

The Health Industry Manufacturers Association

recommends that a minimum separation of 6

inches (15 centimeters) be maintained between a

wireless device and a pacemaker. These recom-

mendations are consistent with the independent

research by, and recommendations of, Wireless

Technology Research.

Persons with pacemakers should:

•ALWAYS keep the wireless device more

than 6 inches (15 centimeters) from their

pacemaker when the device is turned ON.

•not carry the device in the breast pocket.

•use the ear opposite the pacemaker to min-

imize the potential for interference.

•turn the device OFF immediately if you

have any reason to suspect that interfer-

ence is taking place.

Hearing Aids

Some digital wireless radios may interfere with

some hearing aids. In the event of such interfer-

ence, you may want to consult your hearing aid

manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device,

consult the manufacturer of your device to deter-

mine if it is adequately shielded from RF energy.

Your physician may be able to assist you in

obtaining this information.

BLUETOOTH WIRELESS TECHNOLOGY OVERVIEW

At Motorola we believe that easy portable com-

munication is the key to creating a safer environ-

ment. That’s why we designed this exciting new

two-way communication device called the Radio

Bluetooth Adapter (RBA). The RBA represents

another breakthrough in applying Bluetooth wire-

less technology by Motorola. This adapter allows

your radio to send and receive audio from a wire-

less accessory such as a Remote Speaker Micro-

phone (RSM) without wires.

This RBA uses a new protocol based on state-of-

the-art Bluetooth technology specifications,

which result in simplifying the use of your radio.

Bluetooth wireless technology is an open stan-

dard, connecting wireless devices within a short

range. The range for this particular adapter

(RBA) and the Bluetooth audio accessory is

approximately 30 feet in ideal line-of-sight condi-

tions. It is important to be aware that the specific

Bluetooth technology was designed and engi-

neered for use between your radio and special

Bluetooth audio accessories. Your Bluetooth

audio accessory will not operate with other non-

Motorola two-way radio Bluetooth products.

If your radio is VOX (voice activated transmission)

capable, the Bluetooth wireless functionality will

continue with your adapter and a VOX capable

Bluetooth wireless headset.

We’re confident that once you try the Bluetooth

wireless adapter and accessories, you’ll wonder

how you survived with all those attachment wires

in the first place!

Figure 1. Radio Bluetooth Adapter

BLUE Button Latch

Screw

PTT

(Push-To-Talk)

LED

Indicator

GETTING STARTED

Installing the Radio Bluetooth Adapter (RBA)

OTE: The RBA is designed to clip onto the back

of specially designed radio batteries.

1. Place the bottom of the RBA to the battery.

Press the top latch of the RBA to the battery

until it snaps into place. Refer to Figure 2.

2. Attach the side connector to the radio’s

accessory connector. Secure the side con-

nector with the metal screw using a coin or

thin bladed screwdriver.

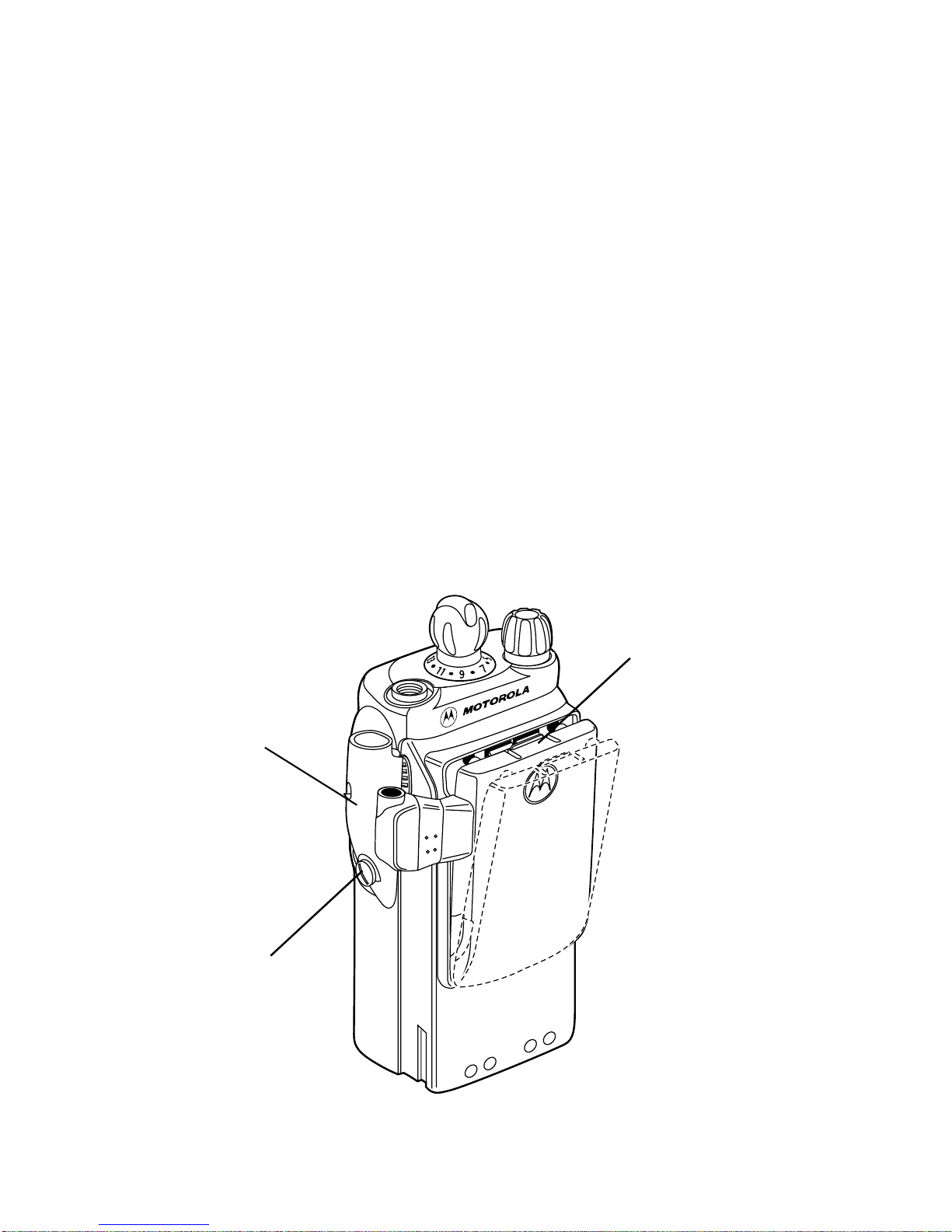

Figure 2. RBA and Radio Attachment

Latch

Metal

Screw

Side

Connector
