Motorola DROID X Istruzioni per il montaggio

Motorola Droid X

Screen Repair Guide

Touch Screen & LCD Screen Repair

For more instructional repair guides for other makes or models, view our full catalog of Repair Guides!

This is the Droid X take apart repair guide. Following this guide will help you take apart the Droid X fairly easily in a step

by step manner giving you a chance to replace faulty parts. Once you have replaced the parts you want, the guide can be

used in reverse to put everything back together again.

This guide should help you replace the following parts:

•Motorola Droid X Touch Screen Digitizer

•Motorola Droid X LCD Screen Replacement

•Motorola Droid X Replacement Battery

Tools:

•Small Phillips Screwdriver

•Safe Open Pry Tool

•Heat Gun/Hair Dryer

Motorola Droid X Take Apart Repair Guide:

•The first step is to power down the phone and slip open the battery door so that the battery of the Droid X can be

removed.

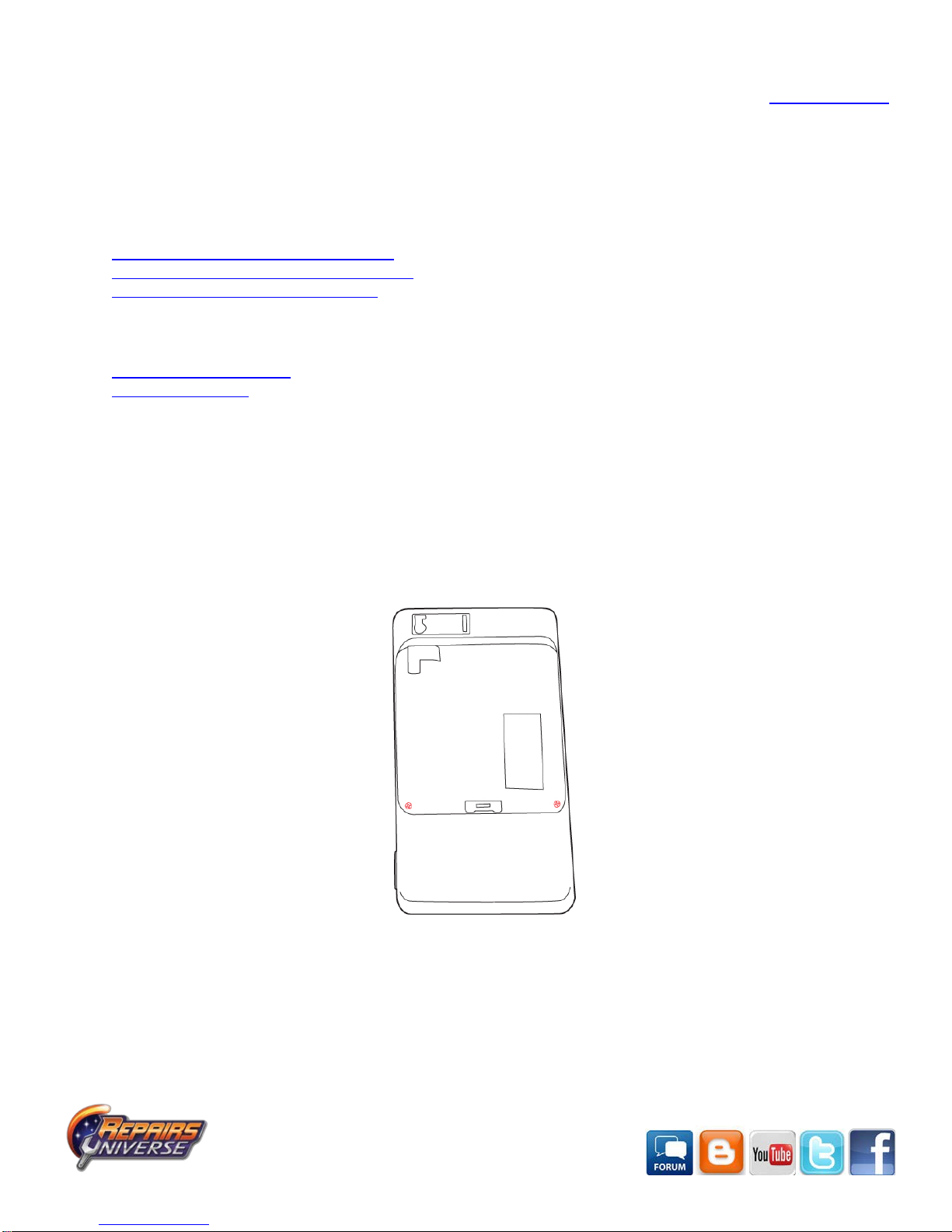

•Removing the U-cover and the top cover is the first task at hand which can be achieved by unscrewing the two

screws to using the Small Phillips Screwdriver as shown in the figure below.

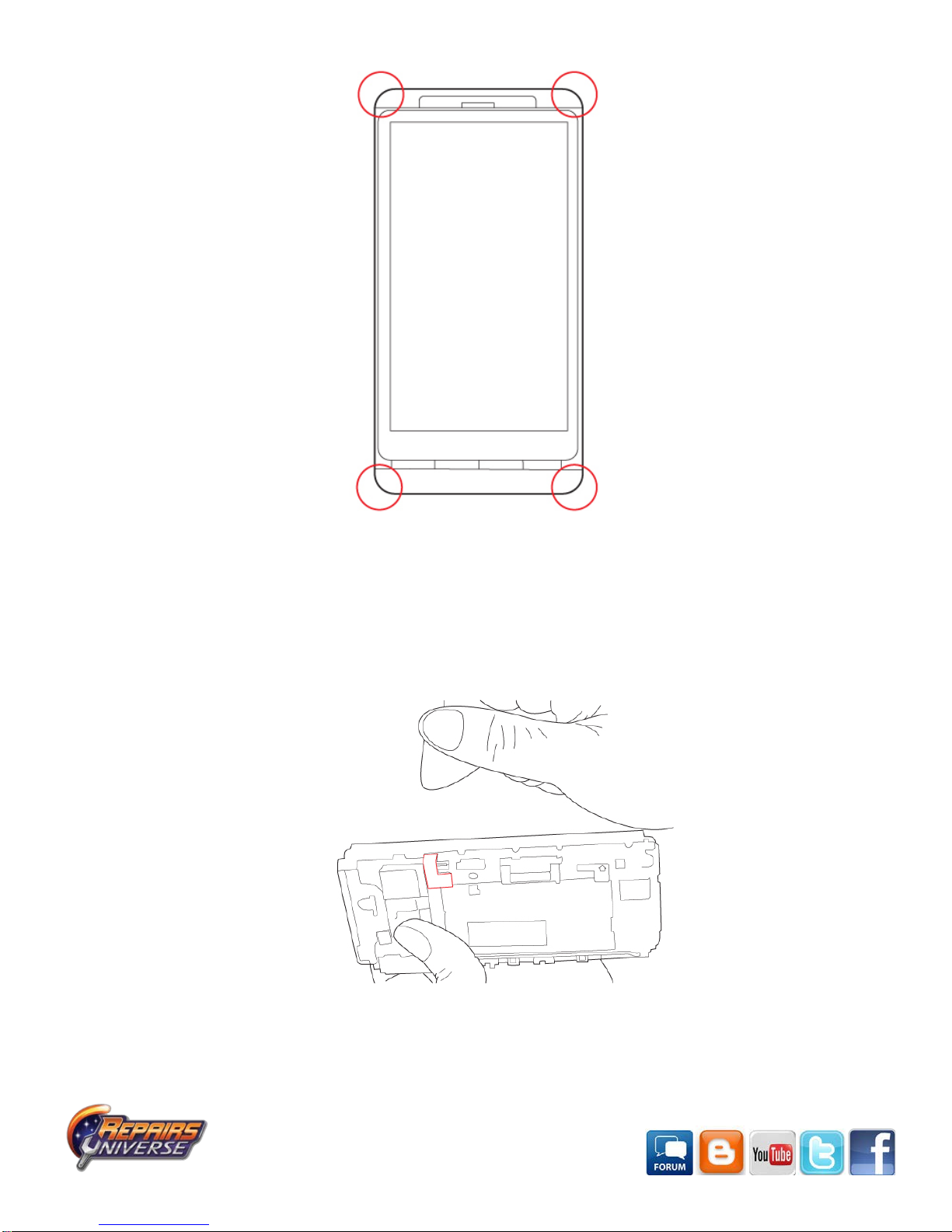

•This next step involves locating and removing the four screws (2 on the top and 2 on the bottom) on the front end

of the phone. These screws are hidden behind covers which should be removed by inserting the safe open pry

tool into one end of the phone twisting it to one side till you hear a click which signals that the plastic latch has

been unlocked do this for all three sides of each of the two covers. You should also now be able to remove the U-

Cover located on the bottom of the phone using the safe open pry tool.

•The next task at hand is to remove the back housing of the Droid X. This can be achieved by inserting the safe

open pry tool into one end of the phone and running it along its edges. However be careful because the digitizer

cable and the flex cable are hidden under the back cover which can easily be damaged if you apply too much

force.

•You will now need to remove the motherboard of the Droid X which begins with disconnecting the flex cable and

digitizer cable (on the right of the phone) from the motherboard using the safe open pry tool. The flex cable can

be pried right off while the digitizer cable will first need to be unhooked and then pulled out.

•The motherboard pops right out, but be careful because there is a cable attached to the other end of the board

which will need to be unfastened prior to being able to completely remove the motherboard. You can use the safe

open pry tool to disconnect that cable as you slightly dangle the motherboard to insert the pry tool through.

•In this next step you will have to take apart the digitizer and LCD assembly which are separated by a middle plate.

There are around thirteen screws securing the middle plate to the digitizer and LCD which need to be removed

using the small Phillips screwdriver prior to prying out the middle plate. Also make sure that there aren't any small

clips attached to the plate prior to pulling it out.

•Once you separate the LCD and digitizer the Droid X is now completely disassembled.

Your Motorola Droid X is now disassembled and ready for replacement of part(s). Reverse the

instructions above to reassemble your Droid X.
