Welcome

WELCOME

ongratulations on purchasing your Motorola iDEN

500

plus

data-capable, multi-service, digital portable phone. Superior

features and state-of-the-art technology help to keep you in

constant touch with all your business and personal contacts.

The

500

plus

offers:

•

Phone Mode

–for cellular phone operation.

See page 8.

•

Private Mode

–for two-way radio use to talk with one person.

See page 18.

•

Group Mode

–for two-way radio use to talk with several people.

See page 23.

•

Mail Services

–for message, voice, and net mail.

See page 25.

Optional Features

With optional wireless access to the Internet, you can check on the

latest news and weather, get stock quotes, send and receive e-mail,

and download information from your computer. Wireless features

include:

•

Net Mode

–to access the built-in microbrowser.

•

Fax and Data Transfer

–to send and receive faxes and transfer

ﬁles.

•

TTY Access

–for assisting hearing-impaired users. See the

Wireless Data Services User’s Guide

for information about data

calls and TTY access.

This manual provides information about how Net Mode works with

various features of your

500

plus

. For information on using the

microbrowser and other components of Net Mode, see the

Net Mode

User’s Guide.

NOTE:

This guide describes the features of the

500

plus

as they were set up by Motorola.

However, your carrier or your organization may

have changed or added features.For more

information, check with your carrier or your

organization.

i500plus User’s Guide

Features ofYour

500

plus

*These features are available in the Net Mode browser.

NOTE:

• Remove the plastic lens protector from the

display before initial use.

• Some keys have multiple uses. For more

information, see the

Net Mode User’s Guide

• Press any key or button to turn on the

keypad backlight.

wxyz

mno

def

5jkl

tuv

abc

pqrs

ghi

Mode

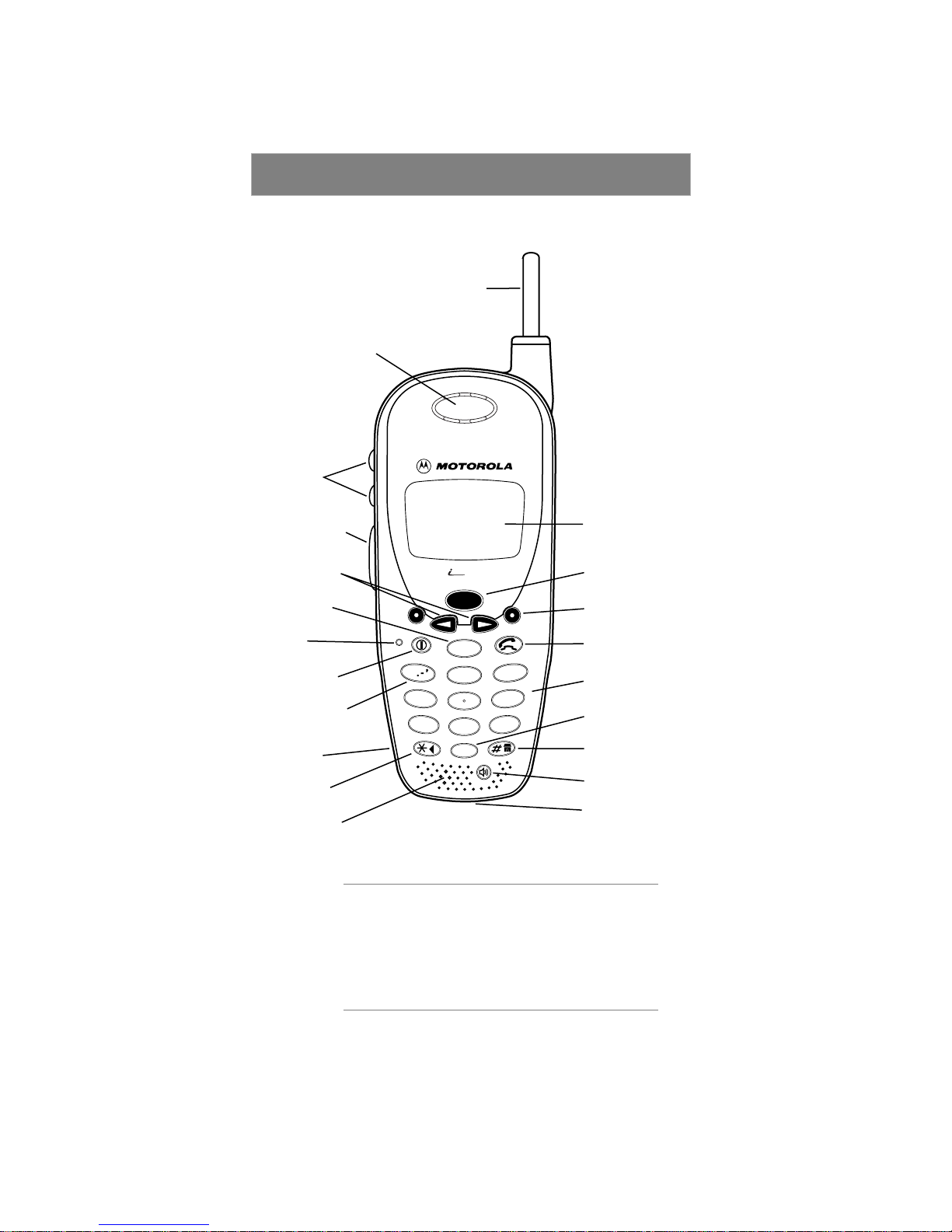

1. Antenna

8. On/Off Key

9. Punctuation

Key

4. Push-To-Talk

(PTT) Button

3. Volume

Control

Buttons

6. Mode Key

7. LED

2. Earpiece

5. Scroll Keys

12. Microphone

11. Back Key

14. Menu Key

18. Next Key

17. Alphanumeric

Keypad

16. Send/End Key

13. Alphanumeric

Display

15. Option Keys

21. Bottom

Accessory

Connector

19. Home Key

20. Speaker Key

10. Side Charging

Jack

500 plus

Welcome

Antenna

Extend for optimal signal.

2. Earpiece

Hold to your ear to hear the other party.

3. Volume Control

Buttons

Press to adjust volume levels in Phone,

Private, and Group modes.

4. Push-To-Talk

(PTT) Button

Transmit a Private or Group Call, or a Call

Alert. Press and hold the PTT button to talk;

release it to listen.

5. Scroll Keys

Press the left key to scroll backward or the

right key to scroll forward through menu

options and lists.

6. Mode Key

Press to change modes.

7. LED (Light

Emitting Diode)

Check the phone’s status. See

Table 2 on

page 5

for more information.

8. On/Off Key

Press and hold to turn your

500

plus

on or off.

9. Punctuation Key

Add punctuation in the Net Mode browser

(within T9™ Text Input).

10. Side Charging

Jack

Attach charging accessories.

11. Back Key

Return to the previous browser screen.

12. Microphone

Use to speak during calls.

13. Alphanumeric

Display

View up to four lines (12 characters per line)

or six lines (16 characters per line) on the

display.

14. Menu Key

Press to scroll through menu options.

15. Option Keys

Press the right or left option key to select the

menu option that appears directly above the

key.

16. Send/End Key

Press to answer an incoming Phone call.After

entering a phone number, press to begin an

outgoing Phone call or to redial the entered

phone number. Press to end Phone calls.

17. Alphanumeric

Keypad

Enter telephone numbers, Private Call IDs,

and alphanumeric characters.

18. Next Word Key

Press to display the next word choice in the

browser (within T9 Text Input).

19. Home Key

Press to return to the browser Home menu.

20. Speaker Key

Press to hear incoming calls through the

earpiece or the speaker during private and

group conversations.

21. BottomAccessory

Connector

Connect accessories and the data cable.

i500plus User’s Guide

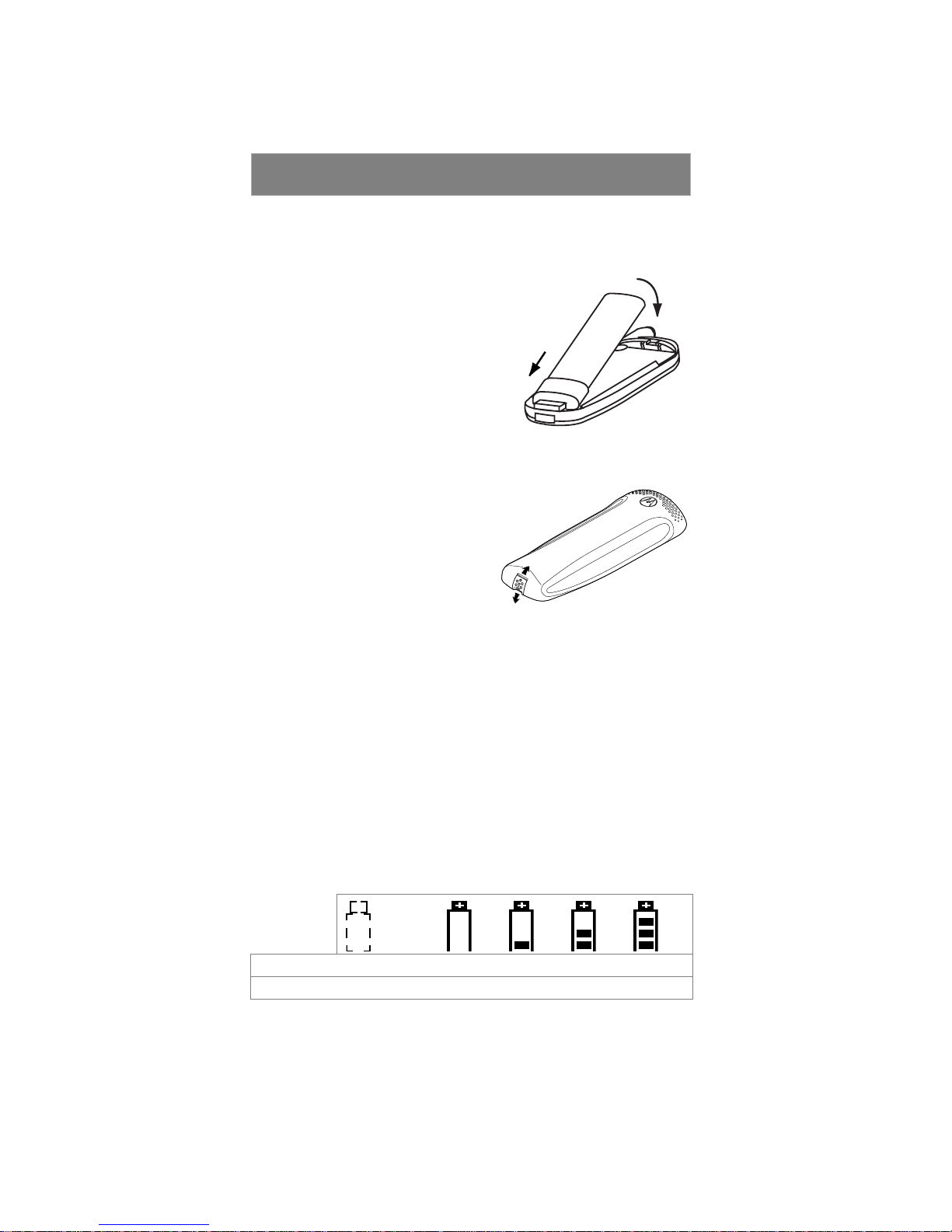

Attaching and Charging the Battery

Attaching the Battery

1. Release the lock located at the

bottom of the battery door by

pressing up on the latch, and

remove the door.

2. Insert the battery with the “+” and

“-” at the top, per the ﬁgure. Install

the battery bottom ﬁrst, then press

down on the battery to secure it.

3. Replace the battery cover and lock

by pressing down on the latch.

Detaching the Battery

1. Release the battery door by sliding

the battery door latch upward.

2. Remove the battery door housing

and remove the battery from the

phone.

Charging the Battery with the Standard Travel Charger

Attach the Charger to the

500

plus

via the Side Charging Jack, and

plug the Charger into an electrical outlet. For more information about

Chargers, see

“Accessories” on page 37.

To get the maximum use from the battery, charge it overnight before

you use it for the ﬁrst time.

See

Table 1

for battery charging status.

Battery and Charging Status

A low battery is indicated by a short, chirp-like sound through the

speaker. The battery strength indicator icon shows the remaining

charge in your battery. Three bars indicate full charge.As the charge is

reduced through use, the bars disappear. The indicator ﬂashes when

you have less than ﬁve minutes of talk time.

Table 1: Battery Charging Status

Icon

Flashes

Charging Low Battery 0-30% 31-60% 61-90% 91-100%

Discharging Low Battery 0-10% 11-40% 41-70% 71-100%

Altri manuali per I500 PLUS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Telefono cellulare

Motorola

Motorola 6809512A76-A Manuale utente

Motorola

Motorola ATRIX Manuale utente

Motorola

Motorola cd 160 Manuale utente

Motorola

Motorola 388 Manuale utente

Motorola

Motorola TimePort P8767 Manuale utente

Motorola

Motorola CHARM Manuale utente

Motorola

Motorola Stature i9 Manuale utente

Motorola

Motorola MOTO VE538 Manuale utente

Motorola

Motorola V551 Manuale di istruzioni

Motorola

Motorola MOTOKRZR K1m Manuale utente

Motorola

Motorola ES400 Manuale utente

Motorola

Motorola moto VE 240 Manuale utente

Motorola

Motorola Inpulse verizon MOTORAZR V3c Manuale utente

Motorola

Motorola DROID BIONIC Manuale utente

Motorola

Motorola EX212 Manuale utente

Motorola

Motorola MOTORAZR V9 - AT&T Manuale utente

Motorola

Motorola Quantico Istruzioni operative

Motorola

Motorola MOTO Q9H GLOBAL Manuale utente

Motorola

Motorola CE0168 Manuale utente

Motorola

Motorola iDEN i99cl Manuale utente

Motorola

Motorola MOTO EM330 Manuale utente

Motorola

Motorola MOTOKRZR K1m Manuale utente

Motorola

Motorola XT1789-04 Manuale utente

Motorola

Motorola cd 160 Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Nokia

Nokia Lumia 620 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente
