ES400

Quick Start Guide

Motorola reserves the right to make changes to any product to improve reliability, function, or design.

Motorola does not assume any product liability arising out of, or in connection with, the application or use

of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or

patent, covering or relating to any combination, system, apparatus, machine, material, method, or

process in which Motorola products might be used. An implied license exists only for equipment, circuits,

and subsystems contained in Motorola products.

MOTOROLA, the Stylized M Logo and Symbol and the Symbol logo are registered trademarks of

Motorola, Inc. Other product names mentioned in this manual may be trademarks or registered

trademarks of their respective companies and are hereby acknowledged.

Motorola, Inc.

One Motorola Plaza

Holtsville, N.Y. 11742-1300

http://www.motorola.com/enterprisemobility

Warranty

For the complete Motorola hardware product warranty statement, go to:

http://www.motorola.com/enterprisemobility/warranty.

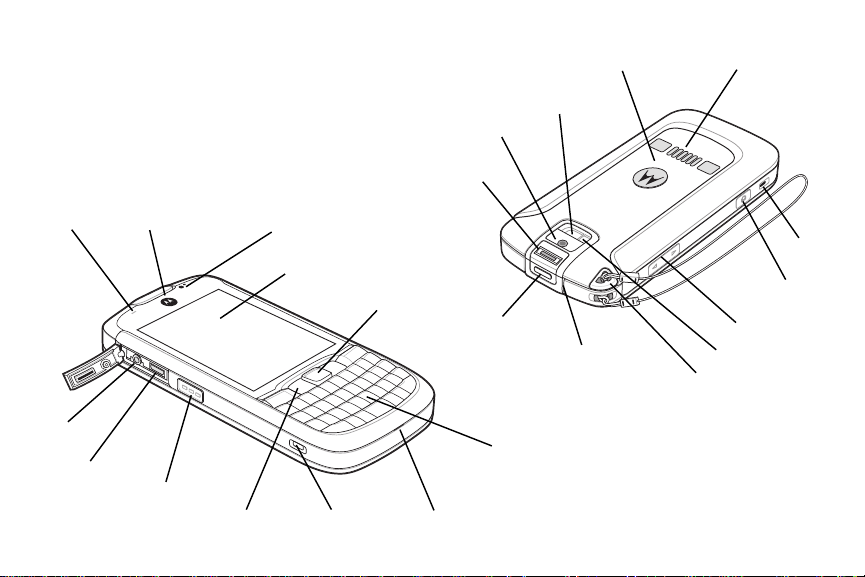

Power Button

Receiver

Touch Screen

Volume Buttons

Scan Button

Programmable

Button

Headset

Port

microUSB

Port

Camera Button

LED Indicator

Illumination

Light

Camera Lens

Charging/Communication

Contacts

Ambient Light/Proximity Sensor

Finger Print Reader

Battery Cover

LED Aimer

400

PrimaryMicrophone

(Handset Mode)

Secondary

Microphone

(Speakerphone Mode)

Speaker

Optical Nav Pad

Keypad

Stylus

Features

The ES400 offers the following features:

Motorola Home Screen

The Motorola Home Screen provides faster and

easier access to features and applications and

allows users to tailor the interface to improve their

unique workflow and maximize efficiencies.

Fingerprint Reader

The ES400 provides a biometric sensor to un-lock

the device and ensure only authorized access to

the device and network.

Bluetooth

The ES400 supports Bluetooth communication

with headsets, printer, etc.

Wi-Fi

The ES400 has a built-in 802.11 a/b/g radio for

connecting to wireless networks.

Accelerometer

The ES400 responds to movement using a built-in

accelerometer. When you rotate the ES400 from

portrait to landscape, the accelerometer detects

the change and rotates the display accordingly.

Holster Switch

The ES400 automatically senses when it is placed

in the optional soft holster and goes into suspend

mode to extend battery life.

Keypads

The ES400 offers three keypad configurations,

QWERTY, QWERTZ and AZERTY, to support

global enterprise deployments.

Dual WAN

The ES400 provides user-selectable dual 3.5G

broadband WAN radio (GSM HSPA and

CDMA-EVDO Rev A).

Getting Started for the First Time

The activation process is dependent upon your

carrier. If you are using a GSM carrier, you must

install a SIM card prior to installing the battery.

To get started:

• Remove the battery cover.

• Install an microSD card (optional)

• Install a SIM card (GSM Only)

• Install the battery.

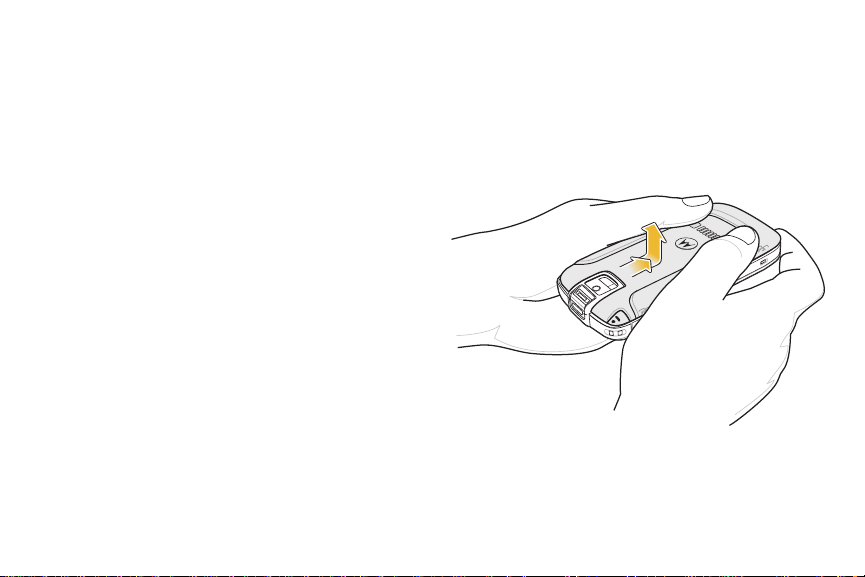

Remove the Battery Cover

To remove the battery cover:

1. Hold the ES400 firmly in two hands as shown.

2. With thumbs, push battery cover toward the

bottom of the ES400.

3. Lift the battery cover off the ES400.

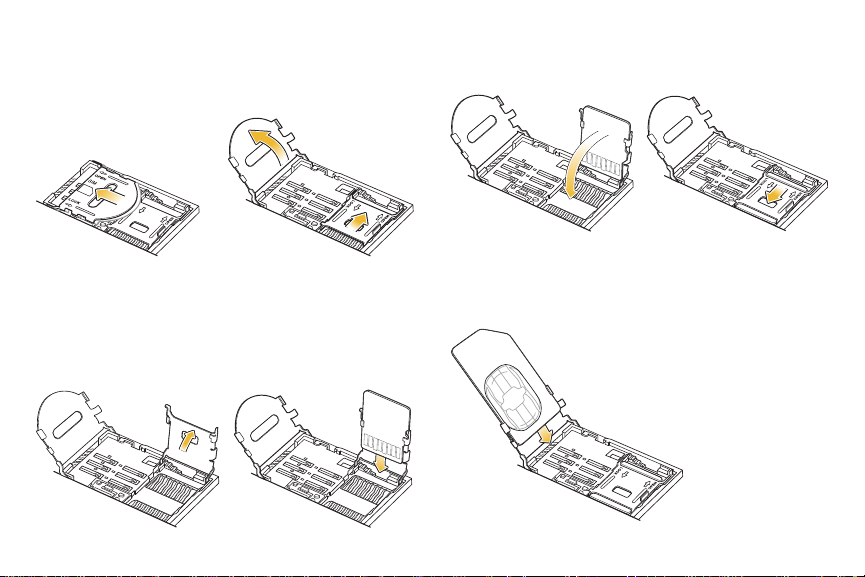

Install a microSD Card (Optional)

1. Slide the SIM card holder up to unlock.

2. Lift the SIM card holder.

3. Slide the microSD card holder to the right to

unlock.

4. Lift the microSD card holder.

5. Insert the microSD card into the holder as

shown.

6. Close the microSD card holder.

7. Slide the microSD card holder to the left to lock.

Install a SIM Card (GSM Only)

1. Slide the SIM card into SIM card holder as

shown.

2. Close the SIM card holder.

3. Ensure that the SIM card is fully seated and

flat.

4. Slide the SIM card holder toward the bottom of

the device to lock.

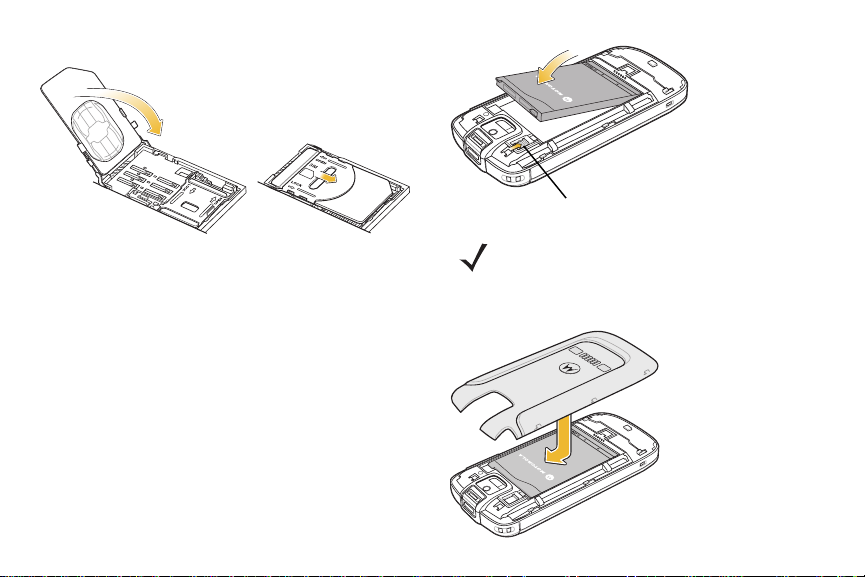

Install the Battery

1. Remove the battery from the packaging.

2. Locate the battery contacts.

3. Insert the battery into the battery well with the

contacts facing down and to the right.

4. Press the top of battery into place.

5. Slide the battery lock latch down to secure the

battery.

6. Replace the battery cover.

NOTE The ES400 will not turn on with the

battery cover removed.

1540 mAh Battery Shown

Battery Lock Latch

Charge the Battery

To charge the battery:

1. Select the appropriate

clip plug for your

country.

2. Slide the clip plug into

the power supply until

it locks into place.

3. Plug the included

Rapid Charge USB cable into the rectangular

slot in the power supply.

4. Plug the power supply into AC wall outlet.

5. Lift rubber flap on the side of the ES400.

6. Plug the micro-USB connector into the USB

port.

7. The LED indicator blinks green indicating that

the battery is charging. When the battery is fully

charged the LED indicator becomes solid

green.

Rapid Charge USB

Cable

Power Supply

Carrier Activation

GSM/UMTS Activation

Upon start up, the ES400 looks for an installed

SIM card.

If a SIM card from a supported carrier is installed,

the ES400 detects the installed SIM card and

activates on the GSM/UMTS network and

configures the data connections.

If a SIM card from an unsupported carrier is

installed, the ES400 detects the installed SIM card

and activates on the GSM/UMTS network, but the

data connection and MMS connection information

must be manually configured.

Refer to the ES400 User Guide for more

information.

CDMA Activation

To activate the ES400 on a CDMA network:

1. Tap Start > Settings > Connections > Phone

Network Setup.

2. On the Band tab, select CDMA Only from the

Network type option.

3. On the CDMA Setup tab, select a carrier from

the preferred network option.

4. Tap the Start Activation button.

5. Tap Yes to activate.

6. For a new account, call the carrier from an

existing phone to request over-the-air

activation.

7. Press Activate Now button.

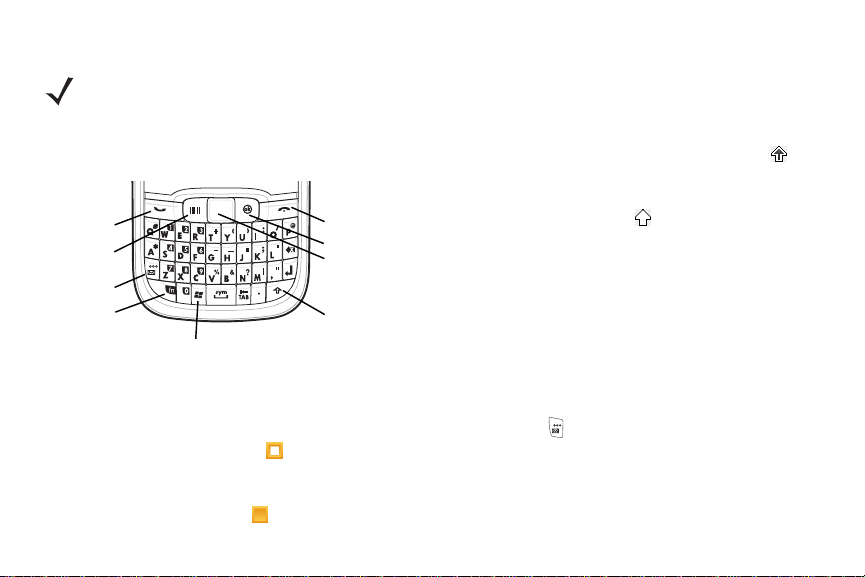

Keypad

Use the orange fn key to access the secondary

layer of characters and actions (shown on the

keypad in orange). Press the Orange fn key once

to activate this mode temporarily, followed by

another key. This displays the icon at the

bottom of the screen, until a second key is

pressed. Press the Orange fn key twice to lock

this mode. This displays the icon at the bottom

of the screen. Press the Orange fn key a third time

to unlock.

The Shift key changes the state of the alpha

characters from lowercase to uppercase. Press

the Shift key to activate this mode temporarily,

followed by another key. This displays the icon

at the bottom of the screen, until a second key is

pressed. Press the Shift key twice to lock this

mode. This displays the icon at the bottom of

the screen. Press the Shift key a third time to

unlock.

Optical Nav Pad

The optical nav pad is a small touchpad that lets

users start applications and move the cursor on

the screen. By default the cursor highlights text

and items. The cursor can be changed to an arrow

similar to a cursor on a PC. Press the orange fn

key then the key to toggle between highlight

and arrow cursors. See the ES400 User Guide for

configuration information.

Press the optical nav pad to select items and

launch applications.

NOTE If switching from one carrier to another,

refer to the ES400 User Manual for detailed

information.

Shift Key

End Call Key

OK Key

Optical Nav Pad

Email Key

Call Key

Scan Key

Orange fn Key

Start Key
