Motorola 89333N Manuale utente

Quick Start Guide

motorola H520

your headset

Take a moment to familiarize yourself with your new

H520 Headset.

Earhook

Charging

Port

Volume

Buttons

Call

Button Power

Switch

Ear

Speaker

Indicator

Light

Microphone

charge it

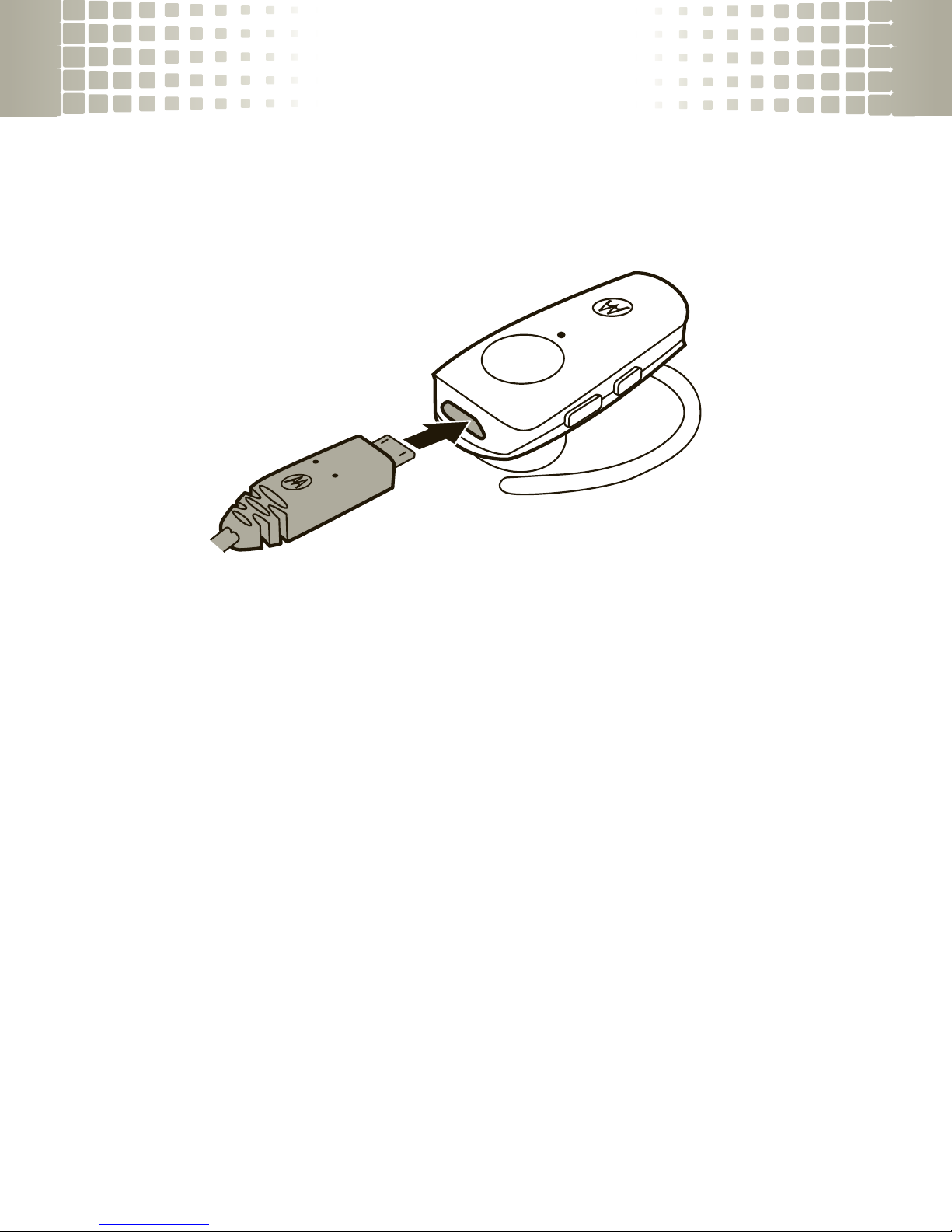

You’ll need to charge your headset overnight before

using it. Plug the charger into the charging port on your

headset and a wall outlet.

The indicator light is red or purple while the battery is

charging. When the battery is fully charged, the indicator

light turns blue.

Note:

Before first time use, leave headset charging

overnight.

Note:

Headset is not functional while charging.

Note:

Your battery is designed to last the life of your

product. It should only be removed by a recycling facility.

Any attempt to remove or replace your battery will

damage your headphones.

pair & connect

Let’s get your headset paired and connected to your

Bluetooth phone.

Turn off any Bluetooth devices previously paired with

your headset.

Turn on the Bluetooth feature on your phone.

Turn on your headset (see page 8 for help).

The indicator light becomes steadily lit in blue.

Set your phone to search for Bluetooth devices.

Select

Motorola H520

from the search results on

your phone.

Select

Ye s

to pair your headset with your

phone.

Note:

When prompted for the passkey, enter

0000

The indicator light rapidly flashes blue and purple to

indicate successful pairing and connecting with your

phone.

pair & connect

reconnect

After initially pairing and connecting your phone and

headset, you don’t need to do it again.

For daily use, make sure your headset is turned on, and

your phone’s Bluetooth feature is on. Your headset and

phone will connect automatically!

test your connection

Place the headset over your ear.

On the phone, dial a number and press

Call/Send

key.

If your phone and headset are successfully connected,

you hear ringing on the headset.

put it on

You can wear your headset using either an earhook or ear

cushion.

wear with earhook

Remove and install all the supplied earhooks to find

a good fit.

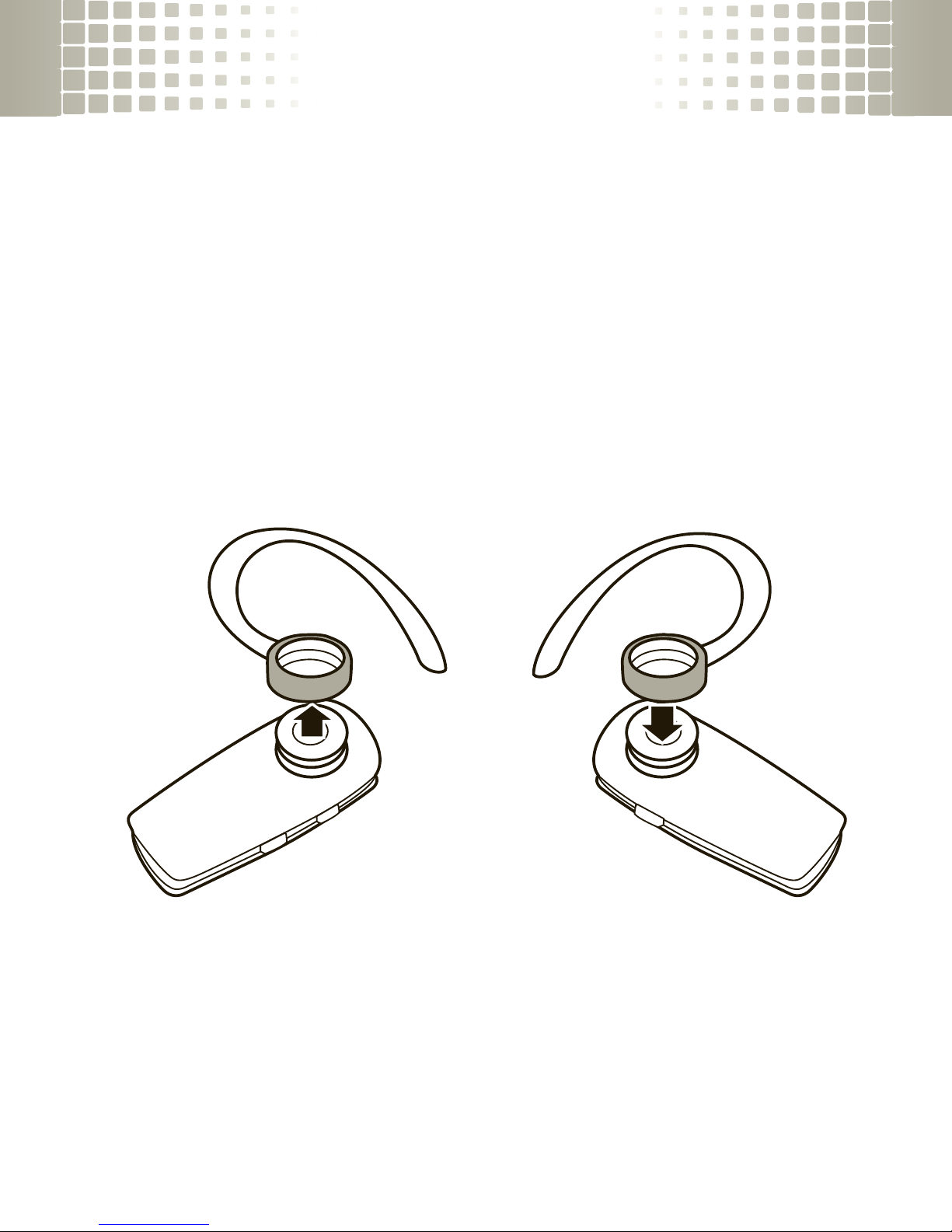

Your headset comes ready for your right ear. To

change for your left ear:

FromRight Ear To Left Ear

put it on

Flex the earhook and loop it over your ear.

wear with ear cushion

Remove earhook from headset.

put it on

Try out all the supplied ear cushions to get a good fit.

set volume buttons

Turn the headset power off.

Press and hold the Volume button you want to

assign as the "volume up" button and slide the Power

switch on. The indicator light flashes blue three

times. When connected, it will flash blue/purple.

Indicator

Light

Volume

Buttons

turn on & off

turn on

Slide the Power switch to the on position (no red is

shown under the switch). The indicator light flashes blue

three times, then flashes in blue and purple (if connected

with a device) or is steadily blue (if ready to be paired).

turn off

Slide the Power switch to the off position (red is shown

under switch). The indicator light flashes three times

then turns off.
