iM1100

Wireless Modem

for WindowsTM 95,

WindowsTM 98, Windows 2000,

and WindowsTM NT

User’s Guide

@NNTN4180B@

NNTN4180B

CUSTOMER SUPPORT

For technical support, contact your service provider. Before you call, make a

note of the exact problems and error messages you encountered.

NOTE

Additional information for iDEN Wireless Data Services can

be found on the Motorola iDEN web site at:

http://www.mot.com/iDEN

Table of Contents

iM1100 Wireless Modem...................................................................................1

iM1100 Wireless Modem Hardware ................................................................1

Data Connectivity ..............................................................................................7

Setting Up Your Modem ...................................................................................8

Using the Modem .............................................................................................26

Getting Status Information.............................................................................32

SIM Card Personal Identification Number (PIN) ........................................37

Uninstalling Modem Software ........................................................................40

Accessories........................................................................................................41

Saftey and General Information.....................................................................42

Limited Warranty Motorola Communication Products..............................52

Limited Warranty Motorola Communication Products (International)....56

Limited Warranty Motorola Communication Products (Canada).............60

Patent and Trademark Information ..............................................................65

IMPORTANT!

Read “Safety and General Information” on page 42

before using your iM1100 Wireless Modem.

Information for Advanced Users

Information for advanced users, including instructions

for setting up windows components, reconfiguring

modem settings, and setting hyperterminal, can be

found on the iM1100 Wireless Modem Installation

and Application Software CD-ROM.

DECLARATION OF CONFORMITY

Per FCC CFR 47 part 2 Section 2.1077(a)

Hereby declares that the product:

Conforms to the following regulation:

FCC Part 15, subpart B

Class B Digital device

Date: October 11, 2001

Responsible party name: Motorola Inc.

Address: 8000 West Sunrise Boulevard,

Plantation, FL 333328 USA

Phone number: 1 (800) 453-0920

Product name: iM1100

Model Number: H54UAA6RR1AN

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

iM1100 Wireless Modem

iM1100 WIRELESS MODEM

Thank you for purchasing the Motorola iM1100 Wireless Modem.

The iM1100 Wireless Modem provides you with the capability of

performing your most important laptop computer activities, like connecting

to the internet or corporate intranets, from outside your office or home.

The iM1100 Wireless Modem offers access to the internet over packet data

and circuit data networks.

iM1100 WIRELESS MODEM

HARDWARE

The iM1100 Wireless Modem is inserted in your laptop’s Type II PCMCIA

slot.

The modem’s antenna transmitsand receives data. The antenna is on a hinge

and can be repositioned. The antenna can be removed if you want to attach

the modem to an external antenna.

The modem requires a SIM card to function. The SIM card can be removed

and replaced.

The modem is powered by its own battery. It draws only a small amount of

power from your laptop’s battery.

Inserting the iM1100 Wireless Modem

The iM1100 Wireless Modem is inserted in your laptop’s Type II PCMCIA

slot. The location of this slot may vary from one type of laptop to another.

Refer to the documentation that came with your laptop for more

information.

Moving, Removing, and Replacing the Antenna

Figure 1. Antenna

To move the iM1100 Wireless Modem antenna, rotate it backwards or

forwards.

To remove the antenna, hold the part of the antenna that joins the modem

and gently pull it out of the antenna opening.

NOTES

To maintain FCC RF exposure compliance, position the

antenna and the radio product at least one inch (2.5 cm)

from any part of the body of the user or bystanders when

using the supplied antenna. When using any approved

accessory antenna, position it at least eight inches (20 cm)

from any part of any person.

Handle the antenna with care. Do not remove it or replace it

unnecessarily.

iM1100 Wireless Modem Hardware

Removing the antenna enables you to connect an external antenna to your

iM1100 Wireless Modem (see “Accessories” on page 41).

To replace the antenna:

1. Hold the antenna so that it is pointing straight upward, at a right

angle to the bottom of the modem.

2. Snap it back into the antenna opening.

Replacing a SIM Card

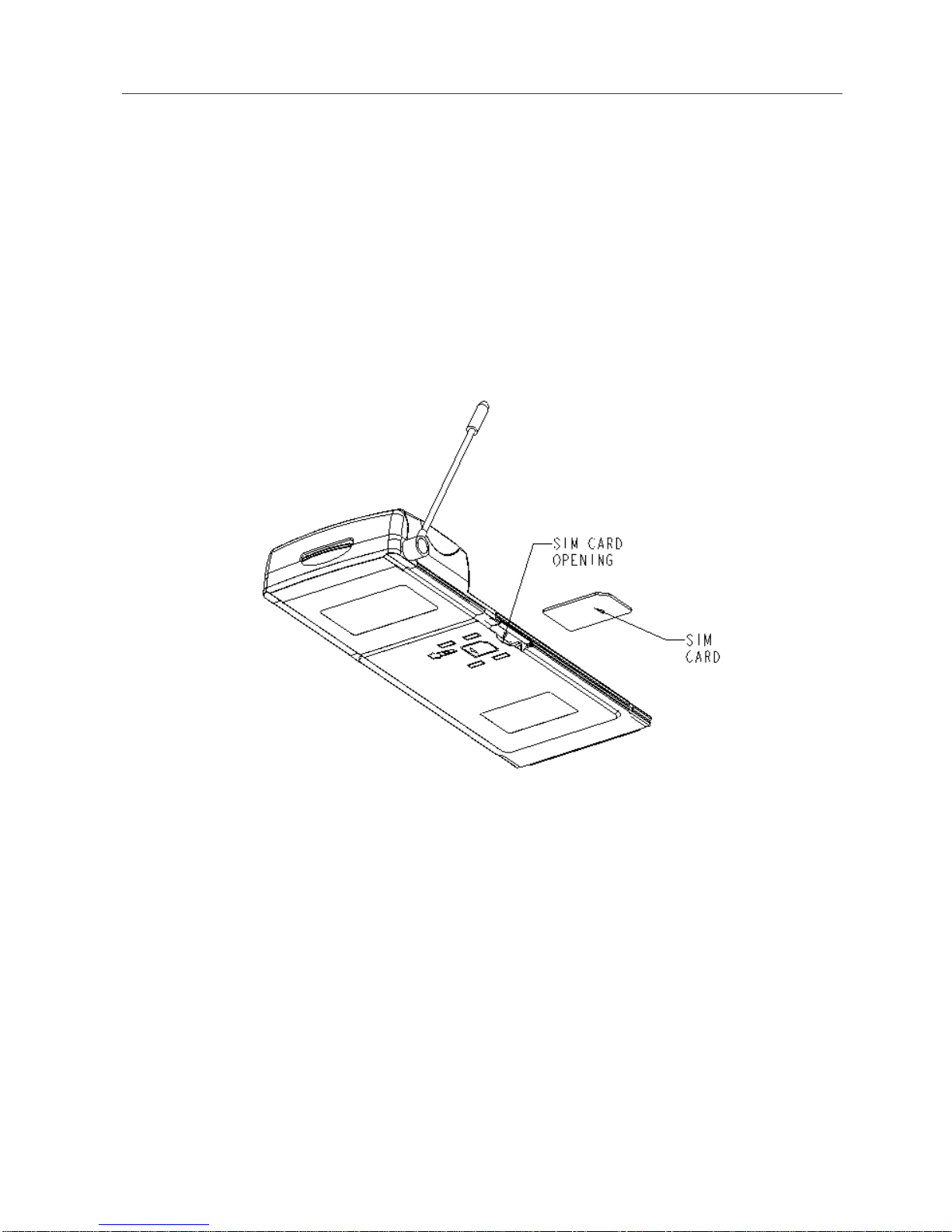

Figure 2. Replacing SIM Card

To remove the SIM card (see Figure 2):

1. Remove the iM1100 Wireless Modem from your laptop and turn it

over, so that the antenna is at the upper right corner.

2. Slide the SIM card out of its slot by inserting a ballpoint pen in the

slot on the left of the SIM card and gently pushing the SIM card out,

to the right.

3. When the SIM card pops out, gently hold the two sides with your

fingers and take out the SIM card.

ToreplacetheSIMcard(seeFigure2):

1. Turn the unit over, so that the antenna is at the upper right corner.

2. Gently insert the SIM card with the gold contacts facing down and

the clipped corner in the upper right corner.

3. Gently push the SIM card in until it stops moving.

Replacing the Battery

Figure 3. Replacing Battery

To remove the battery (see Figure 3):

1. Open the battery door by gently pushing the tab upward and taking it

off.

2. Release the battery by lifting it up slightly. The battery pops up

automatically.

3. Hold the sides of the battery with your fingers and gently pull it out.

To replace the battery (see Figure 3):

1. Insert the battery into the battery compartment. Push it all the way

in.

2. Gently press the tab on the battery door and snap the battery door

back into place.

iM1100 Wireless Modem Hardware

Charging the Battery

To charge the iM1100 Wireless Modem:

1. With your modem facing up, plug the accessory connector of the

Travel Charger (included with your modem) into the charging port

on the right side of the modem.

2. Flip open the charger’s’ prongs.

3. Plug the charger into an electrical outlet.

The first time you charge the battery, it takes three hours. Subsequent

charges take about two and a half hours.

You can charge the modem battery when the modem is on or off.

Status Light

The LED status light located on the front panel of the iM1100 Wireless

Modem indicates the service state of your modem.

When Using Modem.

NOTE

Your iM1100 Wireless Modem’s battery must be fully

charged when you install the iM1100 Wireless Modem

Application and Installation Software.

Status Light iM1100 Modem Status

Flashing Red Registering. Your modem is registering to your

service providers network. Please wait.

Solid Red No service. Your modem can’t register with the

network. The modem will continue trying to

off.

Flashing

Amber Unit registered. No packet data service.

When Charging Modem Battery (Modem Powered Off)

Flashing

Green In service. Your modem has successfully

completed packet data registration.

Solid Green Transmitting or receiving data.

Status Light iM1100 Modem Battery Status

Off No battery.

Alternating

Red and Green Fatal error was detected during power-up:

Flashstrap Fatal Error or Invalid Battery.

Solid Red Rapid charging.

Solid Amber 31%-60% charged.

Flashing

Green 61%-90% charged.

Solid Green 91%-100% charged.

Status Light iM1100 Modem Status
