Motorola WSM6300 Manuale utente

MEA

3.1

WSM6300

Wireless Serial Modem

Users Guide

Documentation Revision 3.1.5

MEA WSM6300 Users Guide

Copyrights

The Motorola products described in this document may include copyrighted Motorola computer programs. Laws in the

United States and other countries reserve for Motorola certain exclusive rights for copyrighted computer programs.

Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this

document may not be copied or reproduced in any manner without the express written permission of Motorola.

Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication,

estoppels or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the

normal nonexclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Disclaimer

Please note that certain features, facilities and capabilities described in this document may not be applicable to or

licensed for use on a particular system, or may be dependent upon the characteristics of a particular mobile

subscriber unit or configuration of certain parameters. Please refer to your Motorola contact for further information.

Trademarks

Motorola, the Motorola logo, and all other trademarks identified as such herein are trademarks of Motorola, Inc. All

other product or service names are the property of their respective owners.

Copyrights

retrieval system, or translated into any language or computer language, in any form or by any means, without the

prior written permission of Motorola, Inc.

Table of Contents

WIRELESS SERIAL MODEM ......................................................................................................1

Introduction..........................................................................................................................1

What’s in the Box.................................................................................................................1

INSTALLATION REQUIREMENTS..............................................................................................2

WSM6300 ASSEMBLY ................................................................................................................2

WSM6300 Installation Procedure .......................................................................................3

Deployment ..........................................................................................................................4

Deployment Tips...............................................................................................................4

Testing ..............................................................................................................................4

Device Addressing...............................................................................................................6

WSM6300 MAC Addresses Table ....................................................................................6

Configurable Parameters....................................................................................................7

CUSTOMER SERVICE INFORMATION ......................................................................................9

Obtaining Support .............................................................................................................10

System Information .........................................................................................................10

Return Material Request....................................................................................................10

Radio Products and Services Division............................................................................10

Radio Products and Services Division Telephone Numbers......................................11

Returning System Components to Motorola ...................................................................11

Returning FREs...............................................................................................................11

PRODUCT WARRANTY INFORMATION..................................................................................12

FCC REGULATORY INFORMATION........................................................................................15

FCC Information.................................................................................................................15

MEA WSM6300 Users Guide

FCC RF Energy Exposure Statement...............................................................................15

Regulatory and RF Safety Exposure................................................................................15

iii

List of Figures

Figure 1. WSM6300 Assembly......................................................................................2

Figure 2. WSM Serial Cable ..........................................................................................3

Figure 3. Device Manager Wireless Router Configuration Panel..............................7

MEA WSM6300 Users Guide

Wireless Serial Modem

Introduction

Thank you for purchasing the MEA Wireless Serial Modem (WSM6300). MEA is a wireless

communication system capable of supporting reliable, high data rate communications in noisy

RF environments.

The WSM6300 is a wireless modem that has been designed specifically for use in wireless

sensor systems. It provides a serial interface – 2-wire (RXD/TXD) RS-232 or RS-485 (half

duplex) serial interface. The type of serial interface is factory configurable. The WSM6300

requires a 5 – 14.0 VDC power supply and is designed for indoor/outdoor use. The WSM6300

provides similar functionality as the MWR6300. An antenna and the power/serial interface

connector are included.

The WSM6300 efficiently combines the functionality of a MEA infrastructure device and sensor

interface into a single cost-effective wireless network component. This makes it easy to attach

a remote sensor device to a Mesh Enabled Architecture (MEA) mobile broadband network.

Sensors, controllers, signs, signals, etc. can all be Mesh-Enabled to send and receive data via

the MEA network. Each WSM6300 can be individually configured to support a wide variety of

remote sensor devices. A Mesh Sensor API is also available to facilitate direct connectivity

between sensor hardware and Supervisory Control and Data Acquisition (SCADA) systems.

This document provides detailed installation and configuration instructions for use when

installing the WSM6300.

What’s in the Box

Each WSM6300 is a full-featured wireless networking device. The following is a list of the items

provided with each WSM6300:

•Power / Serial Connector

•Antenna

Installation Requirements

The Mesh Serial Modem will require the following in a typical installation:

•5 – 14.0 VDC Power.

•A suitable mounting location

•Antenna and RF cabling appropriate for use in the 2.4 GHz band.

WSM6300 Assembly

The external connection points on a WSM6300 unit are shown below.

•The power / serial connector interface is shown on the upper left corner below.

•The antenna port (N-type male) is shown on the upper right corner below.

•The transceiver MAC address is recorded on the label located on front side of the WSM

unit. Record the MAC Address in the table in the WSM6300 MAC Addresses section of

this document.

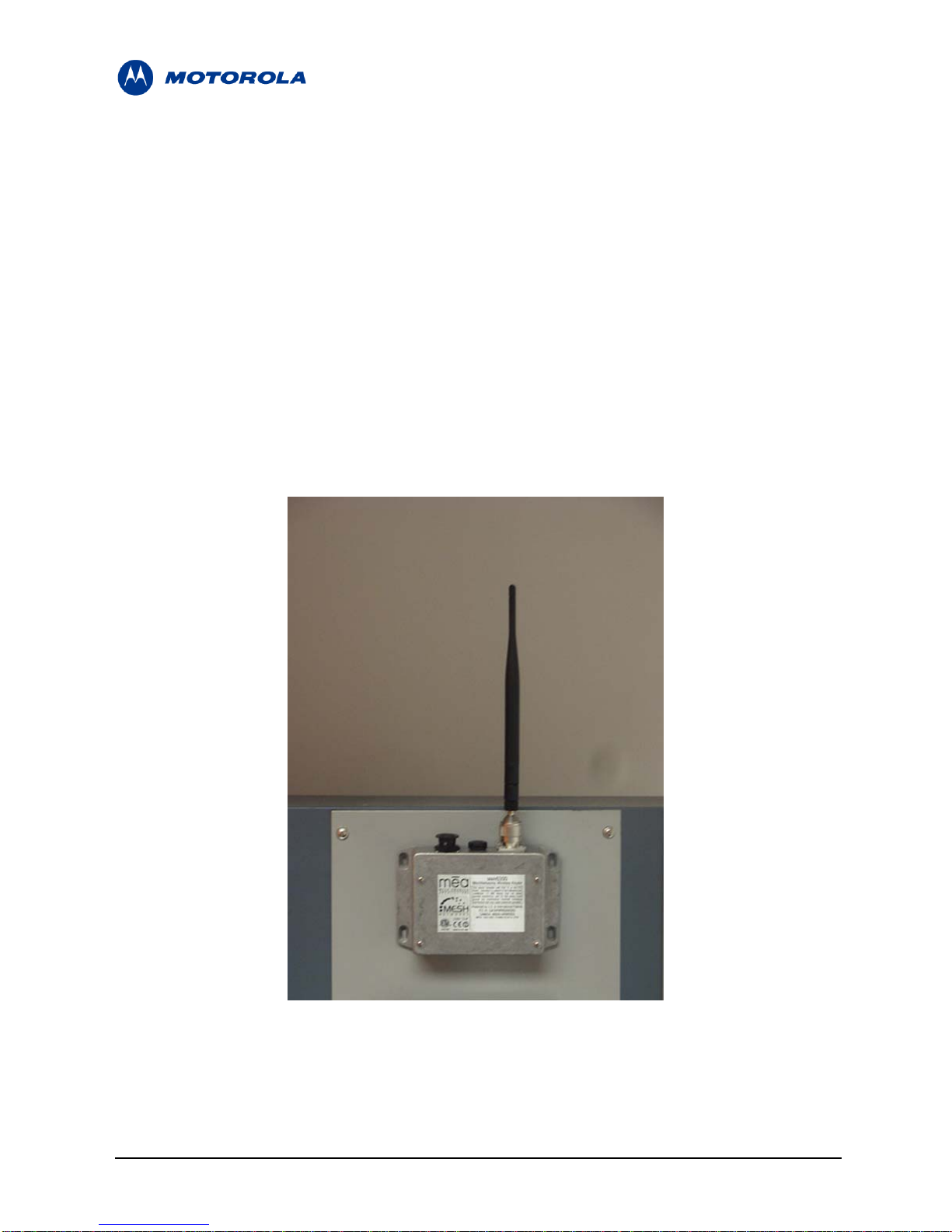

Figure 1. WSM6300 Assembly

MEA WSM6300 Users Guide

WSM6300 Installation Procedure

1. Mount the WSM6300 in a suitable location. The device is environmentally sealed. Refer

to the Deployment section of this document and the MEA Guidelines for Network

Deployment manual for deployment location recommendations.

WARNING

The WSM6300 chassis must be grounded to prevent the possibility of damage induced by

Electro Static Discharge (ESD).

2. Connect the antenna or antenna cable to the to the N-type antenna port.

3. Insert the Power Plug / Serial connector into 6-pin connector port.

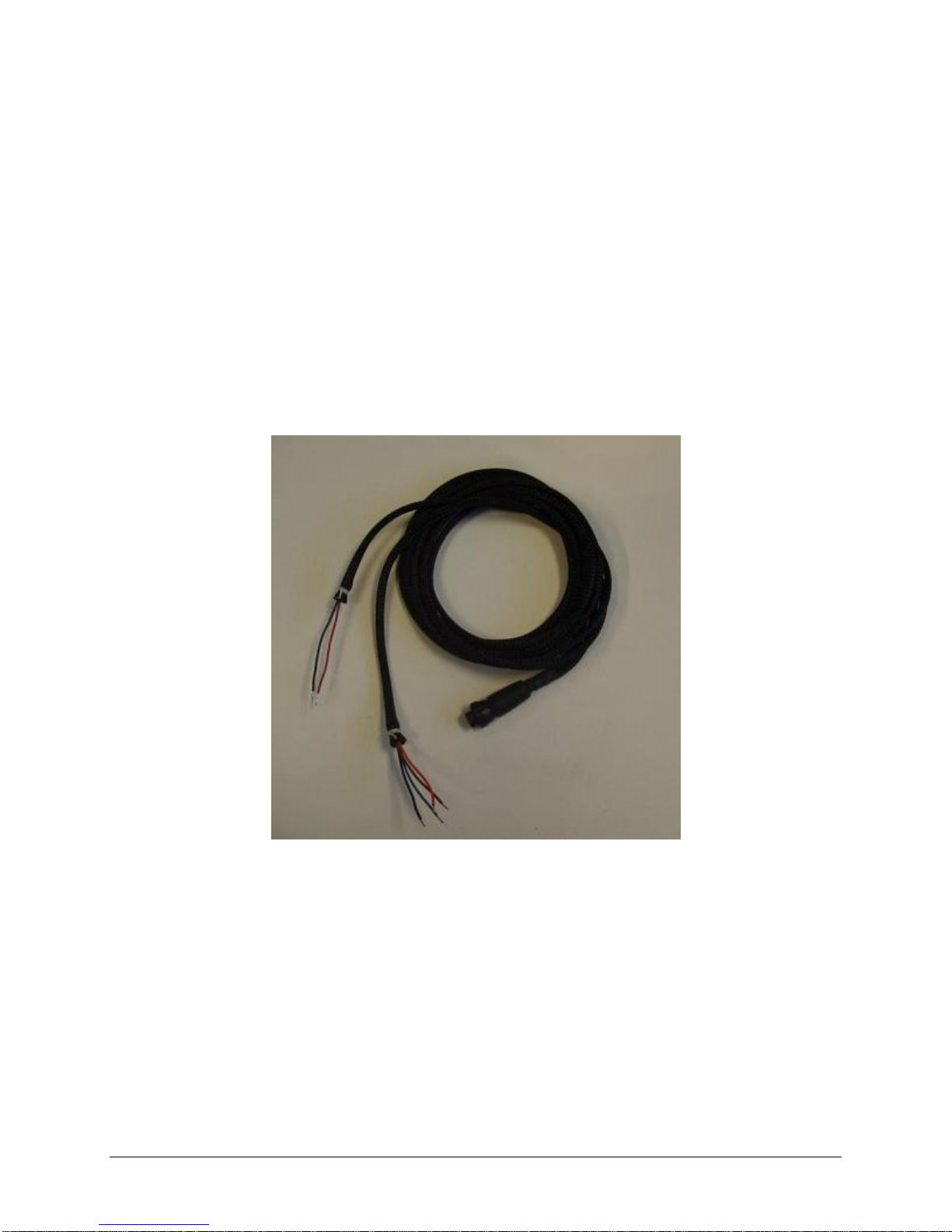

Figure 2. WSM Serial Cable

Pin Number Signal Power/Serial Cable Color

1 PWR GND Black

2 5 – 14.0 VDC Red

3 GPIO5 (0 to 3.3 V) Blue

4 TX(RS-232) or A+(RS-485) – from ASIC Brown

5 RX(RS-232) or B-(RS-485) – to ASIC Orange

6 Signal GND Black

Deployment

When deploying the WSM6300, the antenna should be a minimum of 30 inches from any

nearby metal poles to avoid distortion of the RF pattern. The antenna must have a separation

distance of at least 2 meters from the body of all persons and must not be co-located or

operating in conjunction with any other antenna or transmitter. Users and installers must be

provided with antenna installation and transmitter operating conditions to satisfy RF exposure

compliance.

Deployment Tips

1. Locate the antenna to minimize multipath

2. Minimize interference from nearby transmitters

3. Maximize chance of a direct line of sight connection to other devices.

4. Ensure that the antenna supplied is vertically polarized.

Testing

Verify the operation of the WSM6300 using the following procedure:

1. Apply power to the WSM6300.

2. Obtain the MAC address that was recorded earlier in the WSM6300 MAC Addresses

Table section of this document. The address will be in the format 00-05-12-0A-xx-yy for

the Transceiver MAC address.

3. From MeshManager, display devices using the MAC address.

4. Select the appropriate WSM in the device tree, and then ping the device (right click and

select ping).

A successful response to the ping command verifies that the WSM is communicating to the

infrastructure devices.

A WSM6300 is compatible with any of Motorola MEA wireless network devices and may be

used in a similar fashion as other infrastructure devices. MeshManager software is used to

manage a WSM6300 in the MEA network.

The following list defines the standard MEA hardware components required to install a WSM:

•WSM6300 Box with N-type Antenna Connector and Antenna (user must specify antenna

type from the approved antenna list below).

•WSM6300 External Power Cable and serial interface connector must be terminated by

the customer for the intended application. Refer to the following table for proper

connections.

The Network Operator must supply the following:

•Mounting Location

•Power Source (5-14.0V DC)

•Hand tools for installation
