About the Vanguard 100 1-1

Chapter 1

About the Vanguard 100

In This Chapter

This chapter describes the features and pre-installation activities appropriate to

Vanguard 100 devices.

In This Chapter Topic See Page

Features ......................................................................................................... 1-3

Memory DRAM Recovery ........................................................................... 1-5

Pre-Installation Procedures ........................................................................... 1-6

Unpacking ................................................................................................ 1-8

FCC Part 68 and Telephone Company Procedures

and Requirements for DSU ...................................................................... 1-10

Overview The Motorola Vanguard 100 Frame Relay Access Device (FRAD) connects serial

devices to a Frame Relay network. This FLASH-based Vanguard is available either

with or without an integral DSU daughtercard, DIM Site daughtercard, ISDN

daughtercard, or Voice daughtercard, in a desktop-size standalone enclosure, as

shown in Figure 1-1.

Figure 1-1. Motorola Vanguard 100

The Vanguard 100 can be ordered in mono FRAD or duo FRAD configurations with

either two or three serial ports, respectively.

You can use the optional second port for dial backup or as a second user port,

permitting two applications with different protocols share the same Frame Relay

circuit.

1-2 About the Vanguard 100

This

Configuration... Offers...

mono FRAD DIM Port orderable as V.24, V.35, V.36, or V.11

V.24 interface

mono FRAD with

DSU V.24 interface

DSU daughtercard interface

duo FRAD DIM Port orderable as V.24, V.35, V.36, or V.11

DIM Site daughtercard interface

V.24 interface

duo FRAD with

DSU DIM Port orderable as V.24, V.35, V.36, or V.11

V.24 interface

DSU daughtercard

About the Vanguard 100 1-3

Features

Standard Feature

Set The Motorola Vanguard 100 base unit includes the following standard feature set:

• X.25 Service

• Frame Relay Service

• Asynchronous Protocol

• Transparent Polled Asynchronous Protocol

• Simple Network Management P rotocol

• Trivial File Transfer Protocol

Software Bundles Vanguard 100 offers multiprotocol access, that runs a variety of protocols depending

on which software bundle you choose. Information about the available software

bundles appears in the software release notice for the currently shipping software

release.

DSU Functionality The DSU daughtercard provides a 56 kbps point-to-point DDS1 interface that

conforms to the AT&T 62310 or ANSI T1E1.4/91-006 standards.

The DSU is FCC Part 68-registered.

Diagnostic loopbacks from the telephone company are supported. You activate local

diagnostics from the Control Terminal Port (CTP).

CTP Manageability You can manage the Motorola Vanguard 100 from the CTP for configuration,

reporting, and troubleshooting.

Vanguard 100 is available in two and three serial port versions. Ports have the

following characteristics.

Port Characteristics

Port Connector Interface Default Speed DTE/

DCE

1 V.24: DB25 DIM Site D/C Frame

Relay 115.2 kbps (async)

80 kbps (sync) DCE

DSU: RJ48S DSU D/C Frame

Relay 56 kbps (sync) NA

2 DB25 DIM on

motherboard Frame

Relay V.24:

• 80 kbps (sync)

• 115.2 kbps

(async)

V.35, V.11, or V.36:

• 384 kbps int.

clocks

• 1.54 Mbps ext.

clocks

Select-

able

3 V.24: DB25 Motherboard Async 115.2 kbps (async)

80 kbps (sync) DCE

1-4 About the Vanguard 100

Features

Memory The board contains 1 Mbyte of FLASH memory and 2 Mbytes of DRAM.

Default Report Log

Size On software releases prior to 4.35, 140 data buffers were allocated for reports, for a

total of 200 reports.

For the 4.35 software, 10 data buffers are allocated for reports, for a total of 20

reports that can be logged on the Vanguard 100, thereby saving 130 data buffers.

There is no additional configuration required to recover these buffers.

Support for 57.6

Kbps The SLIP and PAD ports on the Vanguard 100 now support a baud rate of 57.6 kbps.

Note

The 6525 and Vanguard 200 do not support 57.6 kbps.

About the Vanguard 100 1-5

Memory DRAM Recovery

Introduction On software prior to Release 4.35, 65 kilobytes was allocated for configuration

memory size internally, which is identical to the allotment for the 6525.

For the Vanguard 100, 65 kilobytes is unnecessary, since configuration memory size

is only 8 kilobytes.

The software has changed to use some of this memory for new protocols. Vanguard

configuration memory is reduced to 16 kilobytes, saving approximately 220 data

buffers or 48 kilobytes of RAM.

Recovery

Conditions Consult the following table concerning conditions for memory resource recovery.

Recovery

Procedure Use the following procedure to recover memory DRAM.

If... Then...

You purchased a node with 4.35

software already installed No upgrade is required

The first page of the Node Stats

Record shows the decompressed

configuration memory (DRAM) to be

16384 bytes

No upgrade is required

Release 4.23 software is running Use one of these two options:

• Take no action: the Release 4.35

functions with the 65 kilobyte

configuration memory size that

Release 4.23 initially set up

• Upgrade the node to recover

memory DRAM

Step Action

1Save your configuration memory using a TFTP or kermit transfer.

2Default the node CMEM using the Control Terminal Port.

(i.e., entry 13 in the Main menu).

3Restore the saved configuration memory. (Booting the node is not

necessary.)

1-6 About the Vanguard 100

Pre-Installation Procedures

Site Preparation Ensure that the selected site is free of accumulated dust and environmental extremes.

Caution

All Motorola Vanguard 100 devices should be used in environments designed for

computers and electronic equipment. In areas susceptible to lightning, take

precautions to prevent damage to electronic equipment. Contact your telephone

company, or an electronic accessories vendor, for information on lightning

protection equipment.

Power Source Choose a site that is within an appropriate distance of a power source. Depending on

your application and the country in which you operate the Motorola Vanguard 100,

this must be a grounded 100 to 240 VAC outlet.

Warnings and

Cautions The following special notices apply to all equipment handling procedures in this

operator’s guide.

Warning

Motorola Vanguard 100 daughtercards and DIMs are sensitive to electro-static

discharge, which can damage components. Only trained, qualified technicians

should perform procedures outlined in this guide to ensure proper handling and

grounding procedures.

Connecting Ports

Warning

Ports that are capable of connecting to other apparatus are defined as SELV. To

ensure conformity with the EN60950 standard - check that these ports are only

connected to ports of the same type on other apparatus.

Attention

Les ports qui sont susceptibles d’être connectés à des équipements sont désignés

comme TBTS. Pour garantir la conformité à la norme EN 60950, n’interconnecte

ces ports qu’avec des ports du même type sur des autres matériels.

Achtung

Anschlusse, die mit anderen Geraten verbindet werden konnen, sind als SELV

beschrieben. Um Konformitat mit EN 60950 zu versichern, sichern Sie es, daß diese

Anschlusse nur mit den des selben Type auf anderen Geraten verbindet werden.

About the Vanguard 100 1-7

Pre-Installation Procedures

Cable Clearance/

Air Circulation Allow at least 12 inches (30.5 cm) in back of the unit for air circulation and interface

cable clearance. Refer to Figure 1-2.

Caution

To avoid overheating the unit’s circuitry, never place anything:

• On top of the unit,

• Within 1 inch (2.5 cm) of the ventilation slots on the front panel, or

• Within 12 inches (30.5 cm) of the back of the unit.

Figure 1-2. Proper Cable and Air Clearance

Minimum

12 inches

(30.5 cm)

Do Not Place

Anything on Top

of the Unit

1-8 About the Vanguard 100

Pre-Installation Procedures

Unpacking

Vanguard 100

Package Contents Motorola Vanguard 100 is packaged in shock-absorbent packing material with the

following items:

• Base unit

•Manual

• NEMA 5-115 power cord (if ordered)

• Telco cable for DSU

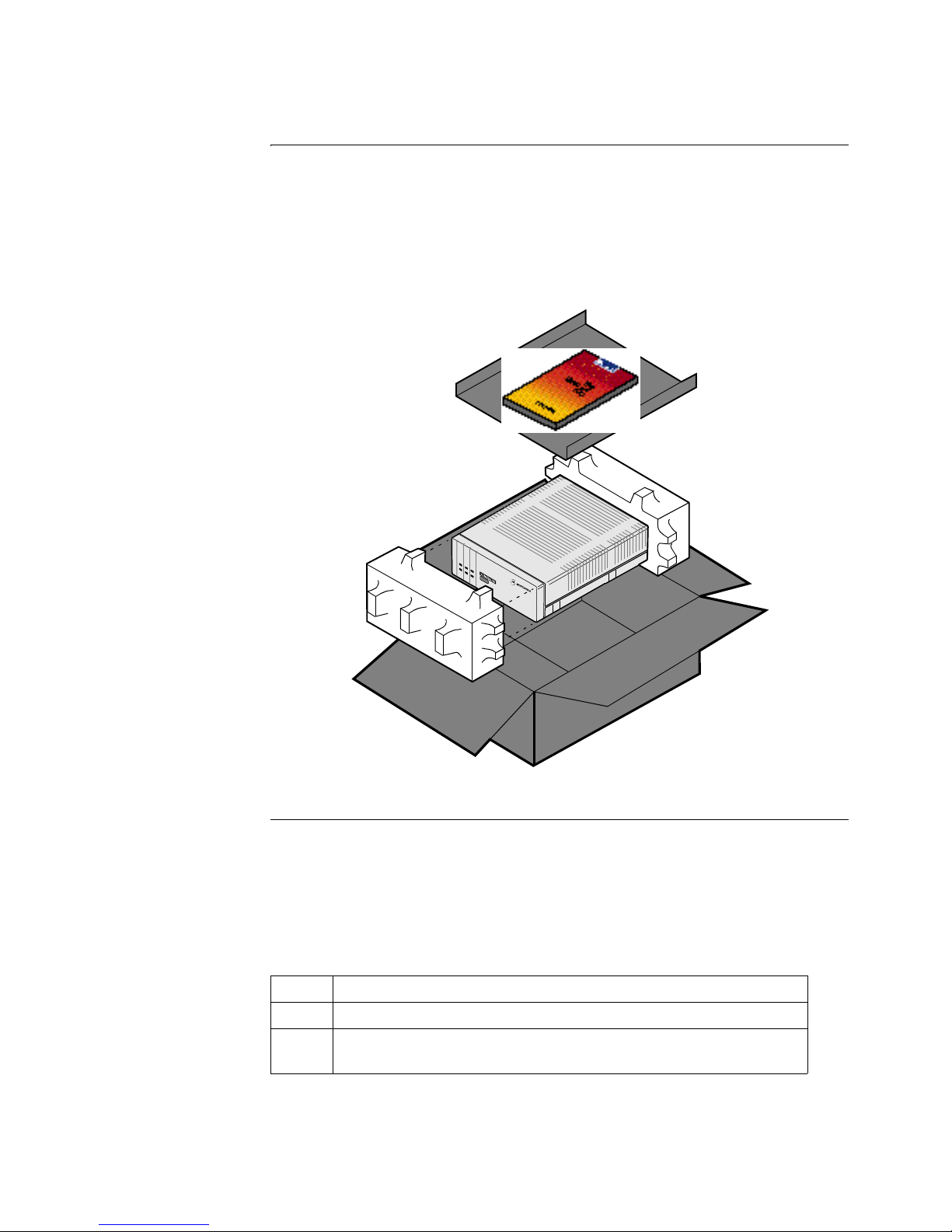

Figure 1-3. Unpacking the Motorola Vanguard 100

When You Receive

Your Vanguard 100 Vanguard 100 components are factory installed in the base unit. In addition to the

base unit and accompanying components, the shipping carton may include a sleeve

containing the power cord.

Upon receipt of the Motorola Vanguard 100, check the contents of the shipping

container as follows.

Step Action

1Check the shipping carton and its contents for damage.

2Lift the Vanguard 100 from its shipping carton and remove the

packing material.

About the Vanguard 100 1-9

Pre-Installation Procedures

In Case of Damage If the equipment is damaged in transit, contact the shipper.

If you have additional concerns in case of failure, about missing parts, or to return

equipment, contact your nearest Motorola ISG representative.

Cables For cabling information, refer to Chapter 3 in the Vanguard 6520 Installation Guide.

DSU Telco Cable The DSU telco cable is unshielded twisted-pair 19 to 26 AWG. The DSU cable is

shipped with the DSU daughtercard.

The DSU cable has an RJ48S (keyed 8 position jack) and terminates in RJ48S plugs

at both ends

Attach cables to the Vanguard 100’s rear panel connections as follows.

For Locations... Contact...

Inside the United States Motorola ISG

Customer Administration

20 Cabot Blvd.

Mansfield, MA 02048-1193

Phone (508) 261-4000, Ext. 4745

Outside the United

States Nearest Motorola ISG distributor

Step Action

1Connect the power cables.

2Connect the interface cables.

3Connect the DTE cable.

4Connect the power cord to the primary power source.

1-10 About the Vanguard 100

FCC Part 68 and Telephone Company Procedures and Requirements for DSU

FCC Part 68 and Telephone Company Procedures and

Requirements for DSU

Before You Begin Before the Motorola Vanguard 100 can be connected to the network, you must:

• Provide the local telephone company with the equipment’s registration

number

• Order the proper connections

How to Order

Connections To order the proper connections, provide the telephone company with the following

information:

• Interface type

• Required USOC jack connector number

• Service code

• Facility interface codes

Troubleshooting

Your Connection If any of your equipment is not operating correctly, immediately remove it from the

telephone line before damaging the network. If the telephone company is aware of

the problem, they may temporarily disconnect your service. Whenever possible, the

telephone company notifies you in advance of the disconnection.

If advance notice is not feasible, you are notified as soon as possible. Once notified,

you can correct the problem. If necessary, it is your right to file a complaint with the

FCC.

Customer-Provided

Telephone

Equipment

FCC regulations and telephone company procedures prohibit connection of

customer-provided equipment to telephone company-provided coin service (central

office-implemented systems). Connection to party lines is subject to state tariffs.

Occasionally, the telephone company may make changes in their equipment,

operations, or procedures. If these changes can affect your equipment or service, the

telephone company provides written notice so that you can make the necessary

changes to maintain uninterrupted service.

Contact your telephone company if you have any questions about your telephone

line.

In some circumstances, the telephone company may ask you for information about

the equipment that is connected to the telephone line. Within the United States (at the

request of the telephone company), you should provide your equipment’s FCC

registration number. This number is located on the unit’s label.

Interface Type USOC Jack

Connector Service

Code Facility Interface

Code

56-kbps digital interface RJ48S 6.0F 04DU5-56

Altri manuali per 68436 - Vanguard 100I - Remote Access Server

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Hardware di rete

Motorola

Motorola PTP 58500 Manuale utente

Motorola

Motorola PTP 600 Series Guida di riferimento rapido

Motorola

Motorola PTP 500 Manuale utente

Motorola

Motorola NE 1000 Manuale utente

Motorola

Motorola PTP-SYNC Manuale utente

Motorola

Motorola SV-4250-P-1 - AirDefense Enterprise Appliance... Manuale utente

Motorola

Motorola AP-7131 Series Manuale utente

Motorola

Motorola CPEi 825 Series Manuale del proprietario

Motorola

Motorola MOTORMESH 4300 Manuale utente

Motorola

Motorola DSR-4410MD Manuale

Motorola

Motorola VAP2404 Manuale utente

Motorola

Motorola PMP 400 Manuale utente

Motorola

Motorola vap2400 Manuale utente

Motorola

Motorola PTP 400 Series Manuale utente

Motorola

Motorola M68MM01 Manuale utente

Motorola

Motorola 5701BHDD - Canopy PTP 58100 Lite Manuale utente

Motorola

Motorola Starline SG 2000 Manuale utente

Motorola

Motorola CPEo 400 Series Manuale utente

Motorola

Motorola Vonage VT2142 Manuale utente

Motorola

Motorola Avigilon HD-NVR4-STD-16TB Manuale utente

Motorola

Motorola CB3000 - Client Bridge - Wireless Access... Manuale utente

Motorola

Motorola MOTOWI 4 Manuale utente

Motorola

Motorola Avigilon 3 Series Manuale utente

Motorola

Motorola Avigilon HD-NVR3-VAL-3TB Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
