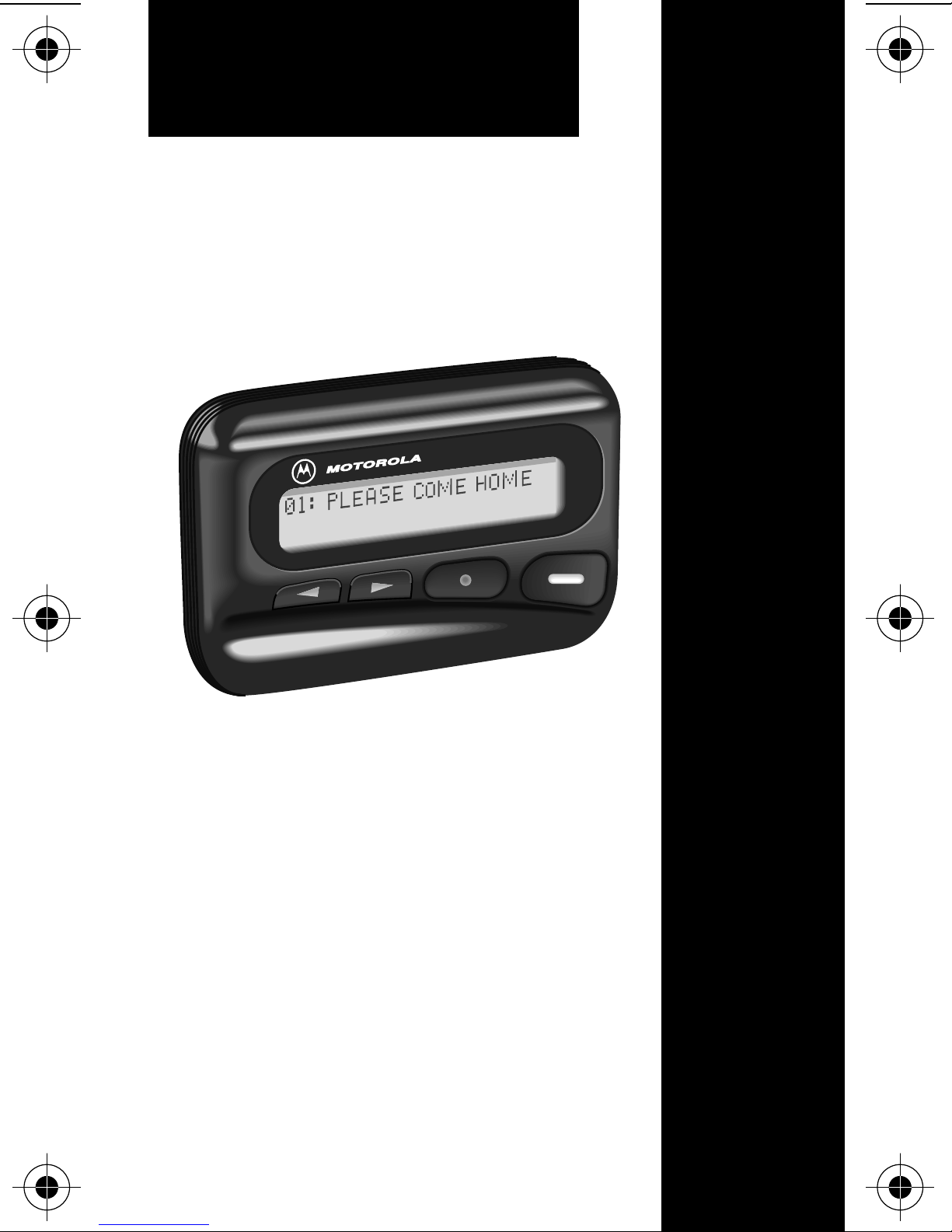

SCRIPTOR LX2

™

ALPHANUMERIC PAGER

Congratulations on purchasing a

Scriptor LX2

alpha-

numeric pager by Motorola, the world leader in pag-

ing.Your

Scriptor LX2

pager incorporates many of

the most advanced electronic, communications, and

wireless technologies available.It’s reliable, conve-

nient, and designed for easy operation.

These Operating Instructions explain how to use

your

Scriptor LX2

pager and provide helpful sugges-

tionsforﬁrst-time as well as experienced users.Keep

this booklet handy for quick reference.

GETTINGTHE MOST FROMYOUR SCRIPTOR

LX2 PAGER

• Give your pager number to secretaries, business

associates, friends and family.This allows you to

keep in touch wherever you go!

• Include your pager number on your business cards

and on your telephone answering machine mes-

sage.Let people know how to contact you when

you're on the go.

• Leave your pager number at your children’s school

and with the baby-sitter so you can always be

reached, right away, in an emergency.

1019b70c.fr5 Page 1 Thursday, December 5, 1996 11:58

DISPLAY SYMBOLS

Delete

All

Set

Alert

Set

Time Set

Alarm Lock/

Unlock

Turn

Audible/

Silent Mode

Prompt

SET ALARM

ÈÑÖÉóíïñ

Off

Msg Msg

CONTROLS

Directional Control

Arrows Function/Select

Button Read/Reset

Button

1019b70c.fr5 Page 2 Thursday, December 5, 1996 11:58

SCRIPTOR LX2

SYMBOL QUICK REFERENCE

LIST

Display Annunciators

Power On

Auto On/Off Mode Enabled

Combined Power On and Auto On/Off

Mode Enabled

Audible Alert Mode Enabled

MESSAGE STATUS SYMBOLS

Lock Message

Cursor on Locked Message

Maildrop Indicator

Cursor on Message Indicator

Message In Memory Indicator

Memory Full Indicator (optional)

FUNCTION MENU SYMBOLS

Set Audible Alert (or)

Set Silent Alert

Turn Pager Off

Lock Message

Unlock Message

Delete Message

Delete All Messages

Escape to Main Screen

Set Alert

Set Alarm

1019b70c.fr5 Page 3 Thursday, December 5, 1996 11:58

OTHER SYMBOLS

SetTime

24 HourTime Indicator

AMTime Indicator

PMTime Indicator

Disable Alarm

Enable Alarm

Low Battery Alert

Out Of Range Indicator

Message Continuation Indicator

Press Right Arrow Button Prompt

IncrementValue

TURNINGYOUR PAGER ON

Press

.Your pager alerts and shows the

indicator in the upper left corner of the display.At the

end of the alert the time and date is displayed

momentarily.The screen then once again displays

the ON

indicator.

TURNINGYOUR PAGER OFF

➊

Press

to display the function menu.

The

TURN OFF

symbol ﬂashes when this menu

item is displayed.

➋

Press

to select the

TURN OFF

function.Press it

again to turn your pager off.

RECEIVING AND READINGYOUR MESSAGES

When receiving a message, your pager alerts and

displays the incoming message

symbol.

1019b70c.fr5 Page 4 Thursday, December 5, 1996 11:58

➊

Press any button to stop the alert.

➋

Press

to display your message.

The ﬂashing arrow at the bottom right corner of the

screen

indicates the message you received con-

tinues beyond the ﬁrst two lines of the display.Each

press advances the message to the next two

lines.

Press and hold

to rapidly scroll through your

message.

Your pager automatically stores the message, along

with the time and date your message was received.

If more than one message exists, press

select the message you want to read.The reversed

arrow cursor

indicates the location of your mes-

sage in memory.Press

to display your message.

A ﬂashing ON

symbol indicates a message has

been received, but has not yet been read.If pro-

grammed with reminder alerts, your pager beeps at

predetermined intervals to remind you of an unread

message.

USINGTHE FUNCTION MENU

Press

to display the function menu.

The function menu gives you access to the many fea-

tures of your pager through a series of symbols and

prompts.For example, when the function menu screen

is displayed, the

TURN OFF

symbol or the

ESCAPE

symbol

flashes (depending on the pager’s fac-

tory setting) indicating the present position of the cur-

sor.

1019b70c.fr5 Page 5 Thursday, December 5, 1996 11:58

Asyoumovethecursorleft or right acrossthesymbols,a

corresponding prompt appears.To activate your function

selection, press

NOTE:

To escape from any ﬁeld without making any

changes, press

BACKLIGHTING

To view your display in low light conditions, turn on

your pager's backlight by pressing and holding

for

1.5 seconds.If no further buttons are pressed, the

backlight automatically turns off when the display

goes blank.You can also turn off the backlight by

pressing and holding

for 1.5 seconds.

LOCKING AND UNLOCKING MESSAGES

Up to 10 messages can be “locked”in memory, pre-

venting them from being replaced when your pager’s

memory is full or from being deleted if the

DELETE

ALL

function

is chosen.

➊

Press

➋Press äor ãto select the message you want to

lock.

➌Press Áto display the function menu.

➍Press ãto move the cursor to the LOCK MSG í

symbol.

➎PressÁtolockthemessage.Thepadlockísymbol

appears, indicating the message has been locked.

To unlock ìa locked ímessage, use the same proce-

dure outlined above.

1019b70c.fr5 Page 6 Thursday, December 5, 1996 11:58

SETTINGTHE CLOCK

➊While in the function menu, move the cursor left to

the SET TIME Ñsymbol bypressing ä.

➋Press Áto display the SET TIME screen.The cur-

sor ﬂashes in the hour position.Pressingäincre-

ments the ﬂashing digits.This is deﬁned by the+

symbol shown on the display above the button.

➌Press äto advance to the desired hour.

➍Press ãto move the cursor to the minute ﬁeld.

➎Repeat the process for each ﬁeld hour, minute,

AM/PM/24 hr., day/month/year.

➏Press Áto initiate the change.

If you move your cursor past the last ﬁeld in the row

(far right), it automatically wraps around and appears

at the ﬁrst function symbol in that row (far left).

NOTE:To escape from any ﬁeld without making any

changes, press Ë.

SETTINGTHE ALERT PATTERN

NOTE:The pager must be in the audible alert mode

to select an alert pattern.The select alert menu is not

displayed on the function menu if the pager is in the

silent mode.

➊Press Áto display the function menu.

➋Press äto move the cursor to the set alert È

symbol.

➌Press Áto display the SET ALERT screen.

1019b70c.fr5 Page 7 Thursday, December 5, 1996 11:58

➍Move to the desired alert and pressÁto initiate the

alert change.The selected alert number ﬂashes

while a 2 second sample of the selected alert plays

through the internal speaker.

NOTE:To escape from any ﬁeld without making any

changes, press Ë.

SETTINGTHE ALERT MODE (SILENT/

AUDIBLE)

➊Press Áto display the function menu.

➋PressätomovethecursortotheAUDIBLE MODE

Éor SILENT MODE Œsymbol.

The AUDIBLE MODE Ésymbol is displayed if the

pager is in the silent alert mode (prompting you to

enter that mode, if desired).The SILENT MODE Œ

symbol is displayed if the pager is in the audible alert

mode (prompting you to enter that mode, if desired).

➌Press Áto select the desired alert.

If the selected mode is audible É, your pager emits a

short“chirp.”If the selected mode is silent Œ,

and

equipped with a vibrator, your pager vibrates.

SETTINGTHE ALARM

If your pager is equipped with theALARM feature,

and

you want to set the alarm:

➊Press Áto display the function menu.

➋Press äto move the cursor to the SET ALARM

Ösymbol.

➌Press Áto display the set alarm screen.

1019b70c.fr5 Page 8 Thursday, December 5, 1996 11:58

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Motorola Cercapersone

Motorola

Motorola Bravo Plus Manuale utente

Motorola

Motorola RSVP RSVP Numeric Display Pager for Micro-TAC Cell... Manuale utente

Motorola

Motorola WORDline Manuale utente

Motorola

Motorola LS355 Manuale utente

Motorola

Motorola LS750 Manuale utente

Motorola

Motorola PAGE WRITER 2000X Manuale utente

Motorola

Motorola Keynote Manuale utente

Motorola

Motorola Timeport P730 Manuale utente

Motorola

Motorola GoldLine Manuale utente

Motorola

Motorola LIFESTYLE PLUS Manuale utente

Motorola

Motorola RadioShack WordLine FLX Manuale utente

Motorola

Motorola WORDline Manuale utente

Motorola

Motorola Advisor Pro Manuale utente

Motorola

Motorola Advisor Pro Manuale utente

Motorola

Motorola Scriptor FLX4 Manuale utente

Motorola

Motorola Advisor II Manuale utente

Motorola

Motorola TalkAbout T350 Manuale utente

Motorola

Motorola TalkAbout T350 Manuale utente

Motorola

Motorola 9501 Manuale utente

Motorola

Motorola Express Xtra Express Xtra FLX Pager Manuale utente

Motorola

Motorola TALKABOUT FLEX T10 Manuale utente

Motorola

Motorola MINITOR VI Manuale utente

Motorola

Motorola BRAVO FLX pager Manuale utente

Motorola

Motorola Pronto Manuale utente

Manuali Cercapersone popolari di altre marche

Alpha

Alpha Elite Manuale utente

LRS

LRS RX-E467 Manuale utente

Bellman & Symfon

Bellman & Symfon Visit BE1470 Manuale utente

unication

unication E3 Manuale utente

Infostream

Infostream X5 Istruzioni per il montaggio

ACE TELECOM

ACE TELECOM ACE-2040 Manuale utente

Intek

Intek Allure Manuale utente

Pocsag

Pocsag PG-2092P Manuale utente

Alert Systems

Alert Systems HyperGuard MP10D Manuale utente

Radio Shack

Radio Shack 17-7040 Manuale utente

PageOne

PageOne Advisor Graphix Manuale utente

Syscall

Syscall Nttworks GP-210RT Manuale utente

unication

unication G4 Manuale utente

GE LBI-31482 Manuale utente

Gold Apollo

Gold Apollo AL-A27 Manuale utente

Diva Telecom

Diva Telecom profile Manuale utente

scope

scope GEO40A Manuale utente

ISE

ISE ISP-5900 Manuale utente
