Motorola RS309 Manuale utente
RS309 Scanner
Quick Reference Guide
2 RS309 Scanner
©2007 MOTOROLA, INC. All rights reserved.
Motorola reserves the right to make changes to any product to improve reliability,
function, or design.
Motorola does not assume any product liability arising out of, or in connection
with, the application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise
under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Motorola products
might be used. An implied license exists only for equipment, circuits, and
subsystems contained in Motorola products.
MOTOROLA, the Stylized M Logo and Symbol and the Symbol logo are
registered trademarks of Motorola, Inc. Other product names mentioned in this
manual may be trademarks or registered trademarks of their respective
companies and are hereby acknowledged.
Motorola, Inc.
One Motorola Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Warranty
For the complete Motorola hardware product warranty statement, go to:
http://www.symbol.com/warranty.
Patents
This product is covered by one or more patents. For patent information go to:
http://www.symbol.com/patents.
Quick Reference Guide 3
Introduction
The RS309 is a modular, wearable laser scanner that provides the operator with
unencumbered bar code scanning capability. The RS309 is used with the
WT4070/90 wearable terminal.
The operator wears the RS309 on the back of the hand and uses a
thumb-activated trigger to operate the scanner. An interface cable connects the
RS309 to the wearable terminal. Power for the RS309 is provided by the wearable
terminal.

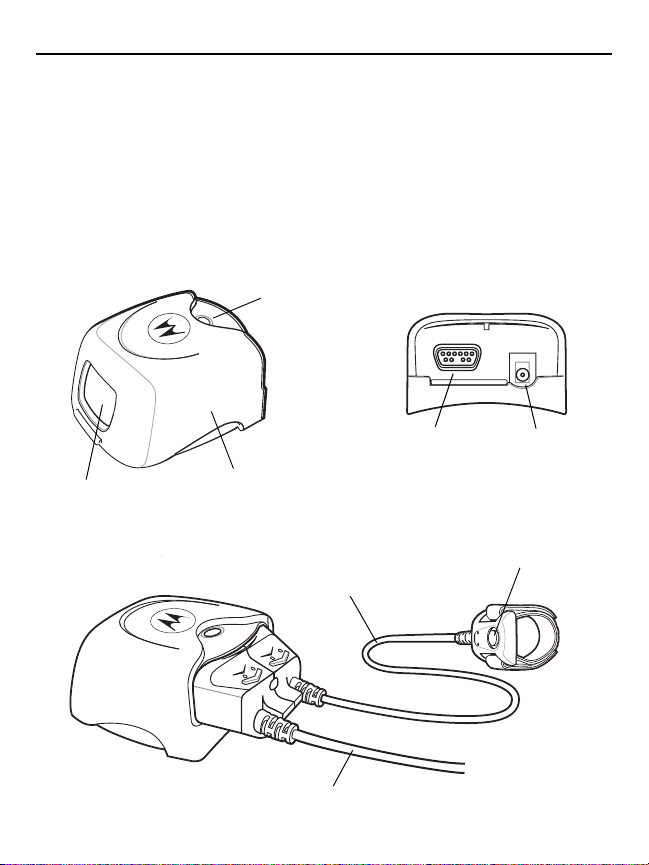

Scan LED
Trigger
Connector
Protective Cap
Exit Window
Interface
Connector
Scan Button
Trigger Cable
Interface Cable (accessory)
4 RS309 Scanner
Installation
The RS309 connects to the wearable terminal and mounts on the back of the
hand using the RS309 Glove.
1. Connect the RS309 trigger cable to the back of the RS309.
2. Connect the RS309 interface cable to the back of the RS309.
3. On the wearable terminal, remove the connector cap covering the cable
connector.
NOTE There are two interface cables available. The standard interface
cable connects the RS309 to a wearable terminal mounted on the
arm. The extended length interface cable connect the RS309 to a
wearable terminal mounted on the hip.
Trigger Connector
Interface Connector
Quick Reference Guide 5
4. Connect the other end of the RS309 interface cable to the wearable terminal
cable connector. If the wearable terminal is mounted on the arm, connect the
cable to the cable connector closest to the wrist.
5. Mount the RS309 on the RS309 Glove. Refer to the RS309 Glove Installation
Guide for information on mounting the RS309.
6. Slide the trigger strap on the index finger, with the button positioned next to the
thumb, and adjust the strap.
7. Warm boot the wearable terminal.
Interface Cable Cable Connector
6 RS309 Scanner
Using the Scanner
To scan bar codes:
1. Turn on the wearable terminal.
2. Launch a scanning application.
3. Press the scan trigger and aim the RS309 at a bar code. The LED turns red to
indicate the RS309 is on.
4. Adjust the aim so that the thin, red laser beam covers the entire length of the
bar code.
5. If the decode is successful the LED turns green. The terminal beeps if
programed accordingly.
Scanning Tips
• For larger bar codes, hold the RS309 farther away from the bar code.
• For bar codes with bars that are closer together, hold the RS309 closer to the
bar code.
• The optimal scanning distance varies with bar code density, but 10 to 25 cm (4
to 10 inches) generally works. Practice to determine what distances to work
within.
• Position the scanner at an angle to the bar code. If the scanner is
perpendicular to the bar code being scanned, light can bounce back into the
scanner’s exit window and prevent a successful decode.
Right
012345
Wrong
012345
Quick Reference Guide 7
RS309 Freezer Version
The RS309 Freezer version provides unencumbered bar code scanning capability
in cold environments. Two desiccant packs must be inserted inside the scanner to
prevent condensation in the exit window.
These packs require replacement; how frequently depends on your environment.
Additional packs can be ordered from Motorola.
Inserting the Desiccant Packs
To insert or replace the desiccant packs:
1. Insert a coin into the slit on the round access cover, and turn the coin
counter-clockwise 45°.
2. Remove the cover.
3. If there are existing desiccant packs inside, carefully remove them and discard
properly.
4. Remove the new desiccant packs from the sealed plastic bag.
5. Insert the new packs into the scanner.
NOTE The RS309 Freezer version is shipped with desiccant packs in a
sealed plastic bag. Be sure to insert the packs provided before using
the scanner.
8 RS309 Scanner
6. To replace the access cover, align the knobs on the cover with the notches
inside the desiccant well, and turn the cover clockwise 45° using the coin.
Replacing the Protective Cap
To replace the protective cap that covers the RS309:
1. Remove all cables connected to the RS309 and remove the RS309 from any
mounting equipment.
2. Push up on the recesses between the protective cap and the scanner (located
underneath the exit window) until the tabs on the scanner pop out.
3. Lift the protective cap off the RS309.
4. Slide the RS309 into the back of the new protective cap so the connectors
appear through the back opening of the protective cap.
5. Push the front of the RS309 into the protective cap until it snaps into place.
Recess Area
Tabs
Quick Reference Guide 9
Cleaning
Wipe the exit window periodically with a lens tissue or other material suitable for
cleaning optical material, such as eyeglasses.
Troubleshooting
CAUTION Do not pour, spray, or spill any liquid on the scanner.
Symptom Probable Cause Action
Laser beam does not
display when
pressing the trigger.
Interface cable is not
secure.
Verify that the interface cable
connections are connected
properly.
Power is not applied to
RS309.
Power for the RS309 is provided
by the wearable terminal. Verify
that the wearable terminal is on
and that it has a charged battery
installed.
Scan enabled application
on the wearable terminal is
not running.
Launch scanning application on
the wearable terminal.
Wearable terminal does not
recognize the RS309
scanner.
On the wearable terminal,
perform a warm boot.
RS309 does not
decode a bar code.
Bar code is unreadable. Verify that the bar code is not
defective.
Exit window is dirty. Clean exit window with a lens
tissue. Tissues for eyeglasses
work well. Do not use tissues
coated with lotion.
Symbology is not enabled. See your system administrator.
10 RS309 Scanner
Ergonomic Recommendations
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
CAUTION In order to avoid or minimize the potential risk of ergonomic injury
follow the recommendations below. Consult with your local Health &
Safety Manager to ensure that you are adhering to your company’s
safety programs to prevent employee injury.
