AVA QUAD CAMERA

MOUNTING GUIDE

Avigilon Alta Cloud Security

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 2 / 17

IMPORTANT WARNINGS AND SAFETY INSTRUCTIONS

Avoid exposing the camera to shocks, high pressure or

temperatures above 60°C.

Avoid placing the camera near fans, ventilation or other noise

sources. This will degrade audio performance.

Avoid scratching or leaving ﬁngerprints on the lens cover,

this degrades image quality. If possible, keep the protective

plastic on the lens cover during installation.

Do not clean the camera with harsh detergents, gasoline or

chemicals such as acetone.

Do not try to repair the unit yourself. Refer all servicing of the

camera to Avigilon or contact a reseller.

Do not install the camera during rain, mist or other conditions

of high humidity. Water may be trapped inside, causing

damage or condensation issues.

Disconnect power from the unit when performing a

maintenance task.

The power supply should bear the UL listed and LPS marks.

Requires PoE+ power connection to operate with IR.

This product should be supplied by a Power over Ethernet

Power Sourcing Equipment (PSE) compliant to IEEE 802.3at

Type 2 (PoE+).

The camera should be connected only to PoE networks

without routing to the outside plant. The PoE PSE must be

properly grounded.

Please contact Avigilon’s certiﬁed dealers (or distributor) for

power adapters.

For the grounding wire use a green/yellow wire (min. 18AWG),

a knurled washer and min. 3.5mm screw.

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 3 / 17

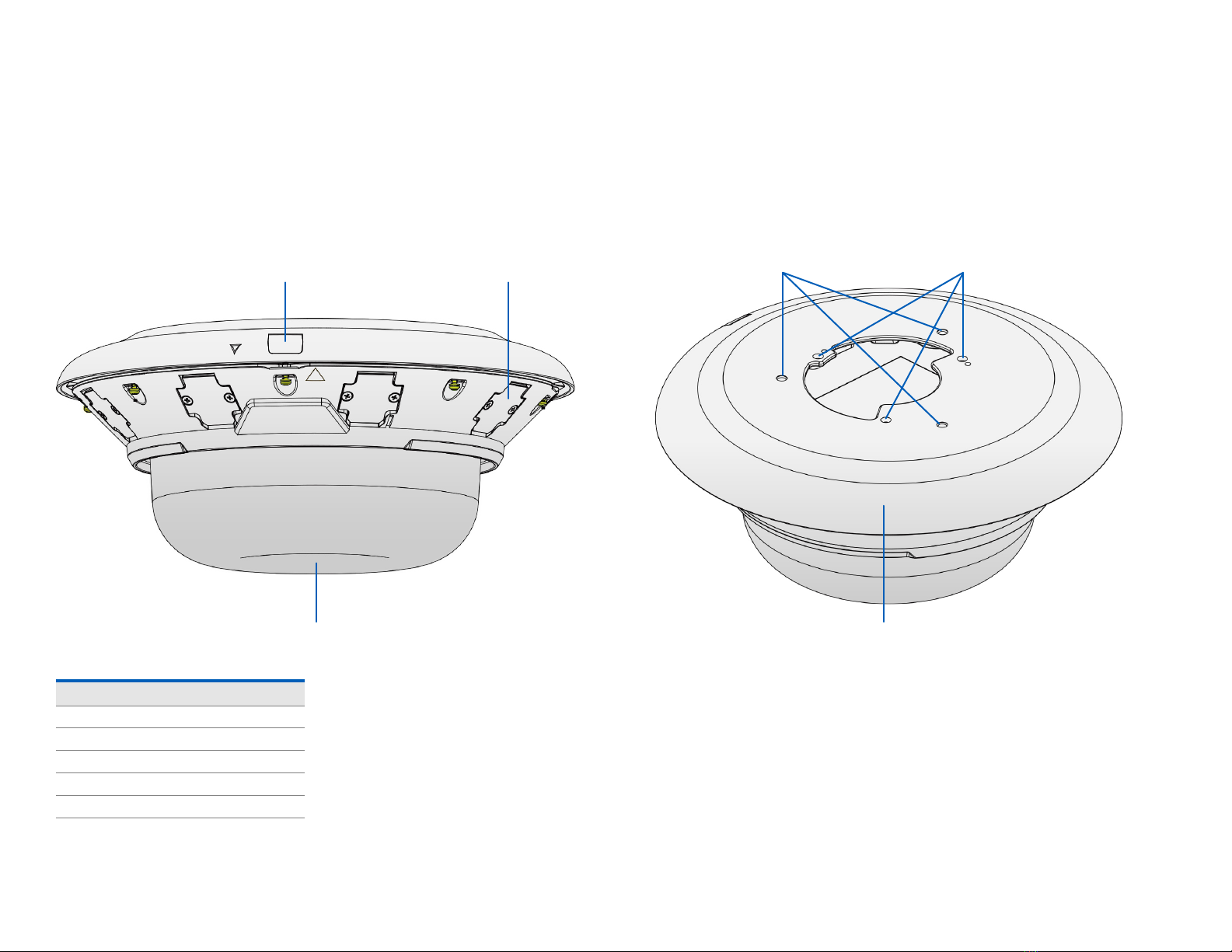

OVERVIEW

Outer view

Release button IR LEDs

Threaded holes for

mounting adapter

Top mounting plate

Through holes for ceiling-mount

or wall mount bracket

Dome cover

Top view

PACKAGE CONTAINS

Quad camera

IR light cover

Alignment sticker

Screws and anchors

T10 security L-key

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 4 / 17

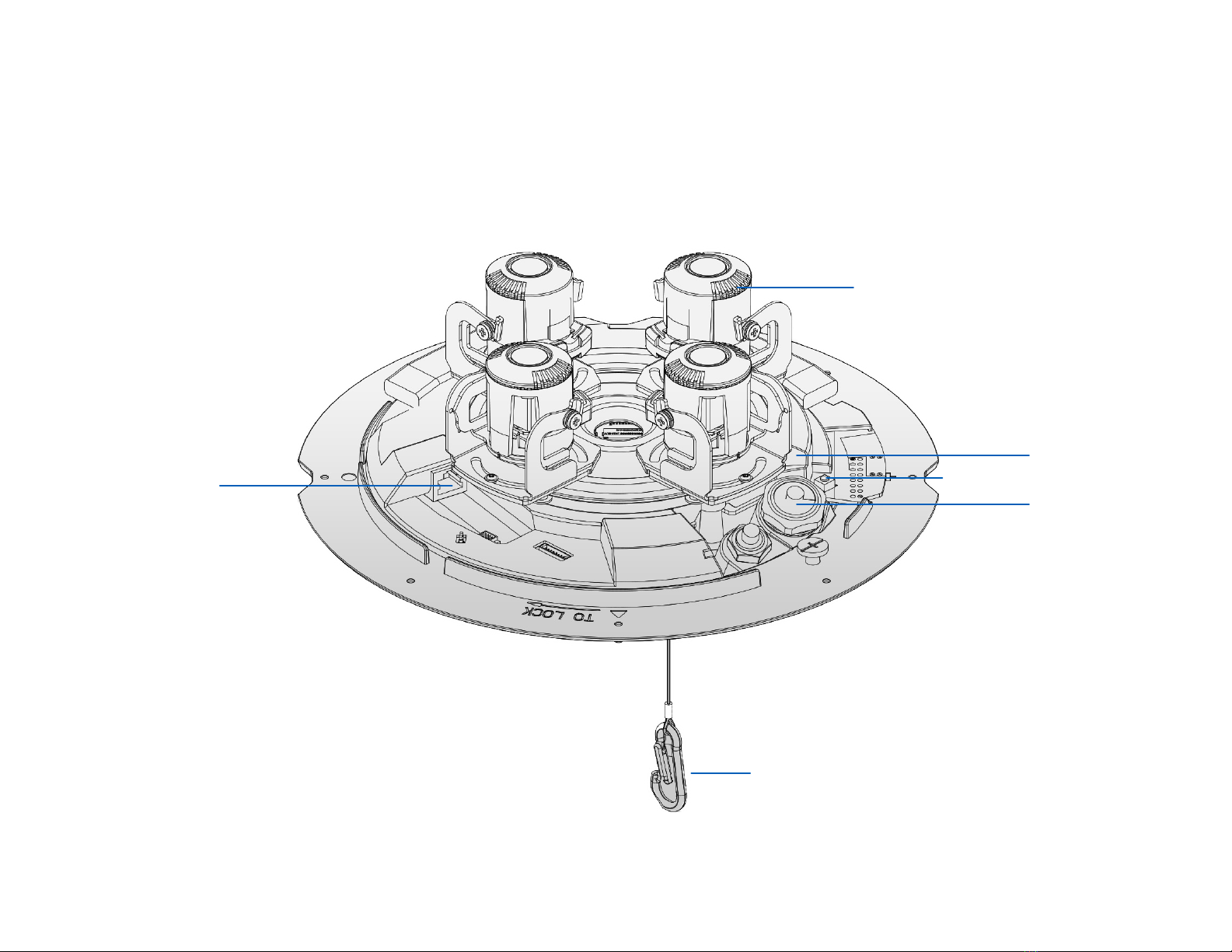

OVERVIEW

Inner view

Lens (sensor) module,

3-axis adjustable

Reset button

Cable gland

Status LEDs

Safety tether wire

RJ45 Ethernet port

(only POE+ supported)

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 5 / 17

T10 security

bit

1 2 3

PREPARING TO MOUNT THE CAMERA

For all install options

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 6 / 17

PREPARING TO MOUNT THE CAMERA

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 7 / 17

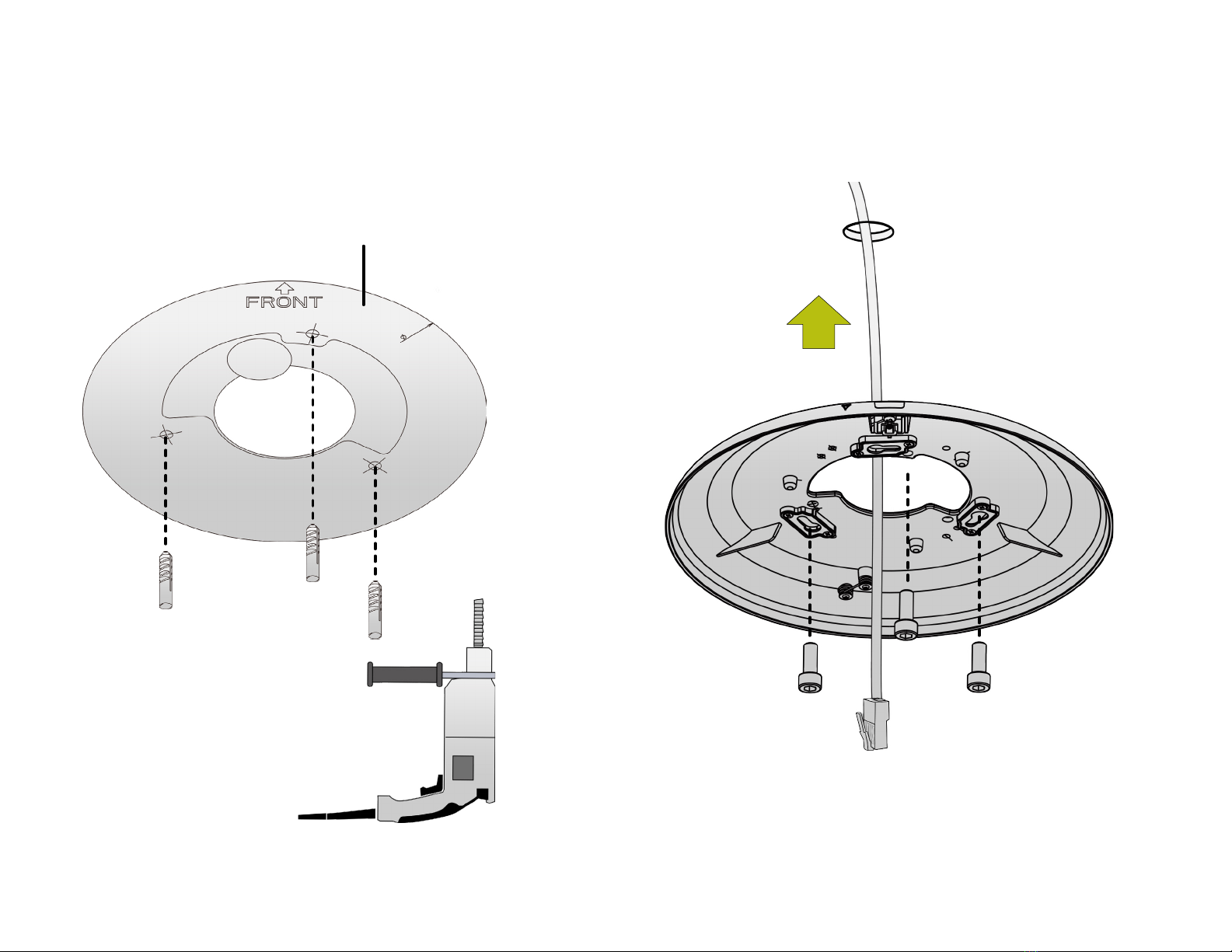

OPTION A - USING THE CEILING MOUNT

Cable hole

Drill hole

180mm

Alignment sticker

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 8 / 17

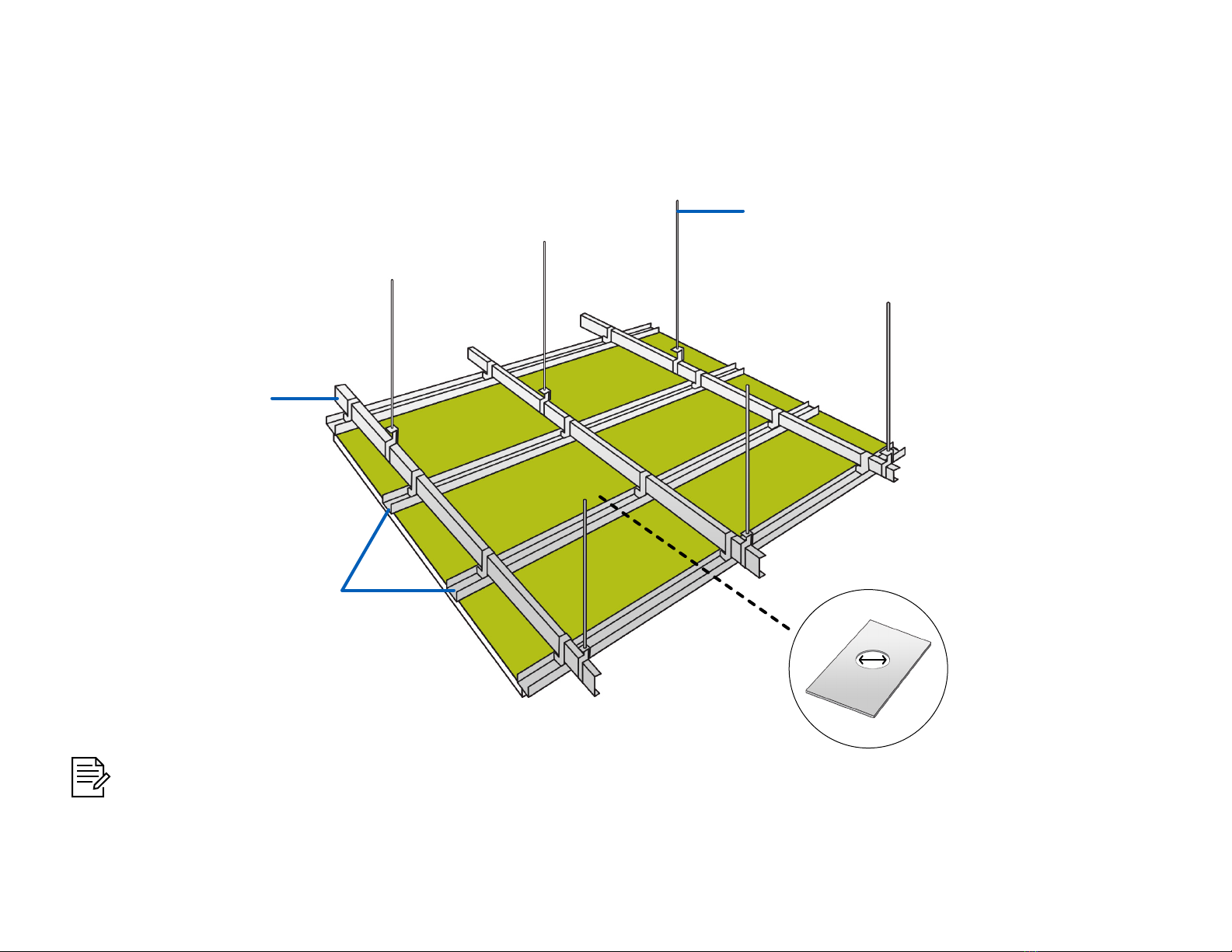

OPTION B - USING THE IN-CEILING MOUNT

If needed, add hanging rods to strengthen the ceiling structure.

Weight of camera: 2.7 Kg

Weight of Recessed kit: 1.1 Kg

Hanging rod

Main keel

Secondary keel

ø15cm

Cut a hole in the center of the tile with a diameter of 15cm.

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 9 / 17

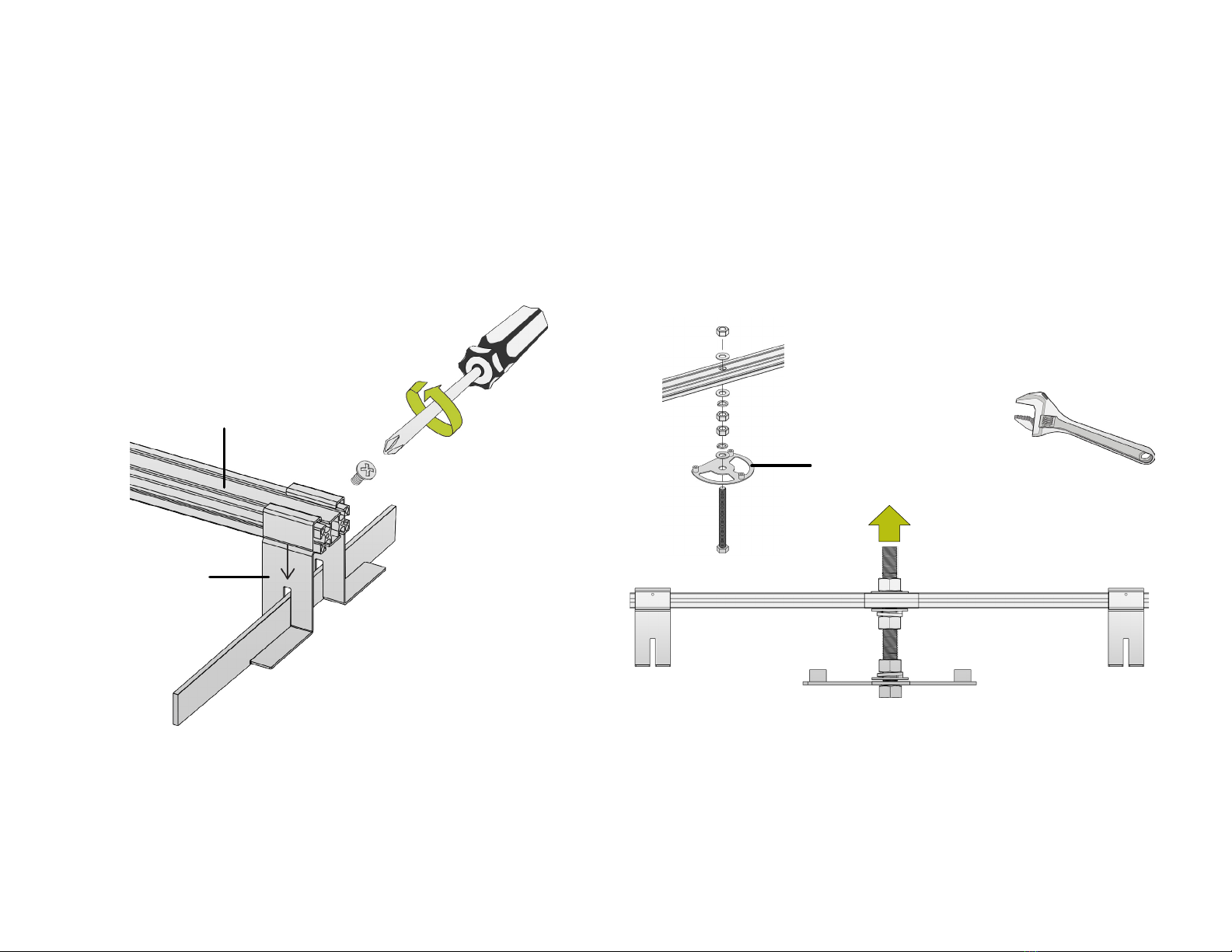

OPTION B - USING THE IN-CEILING MOUNT

Remove the assembly from the ceiling and assemble the adapter plate to the bracket rod.

Use nuts, washers and lock washers as shown, tighten the nut towards the adapter plate and

make sure the two nuts close to the bracket rod are loose.

Assemble the bracket stand to the bracket rod, adjust the width so the stands are resting on the

secondary keels. Secure the position by the two ﬂathead screws.

Adapter plate

Bracket rod

Bracket stand

MOUNTING GUIDE | AVIGILON AVA QUAD CAMERA 10 / 17

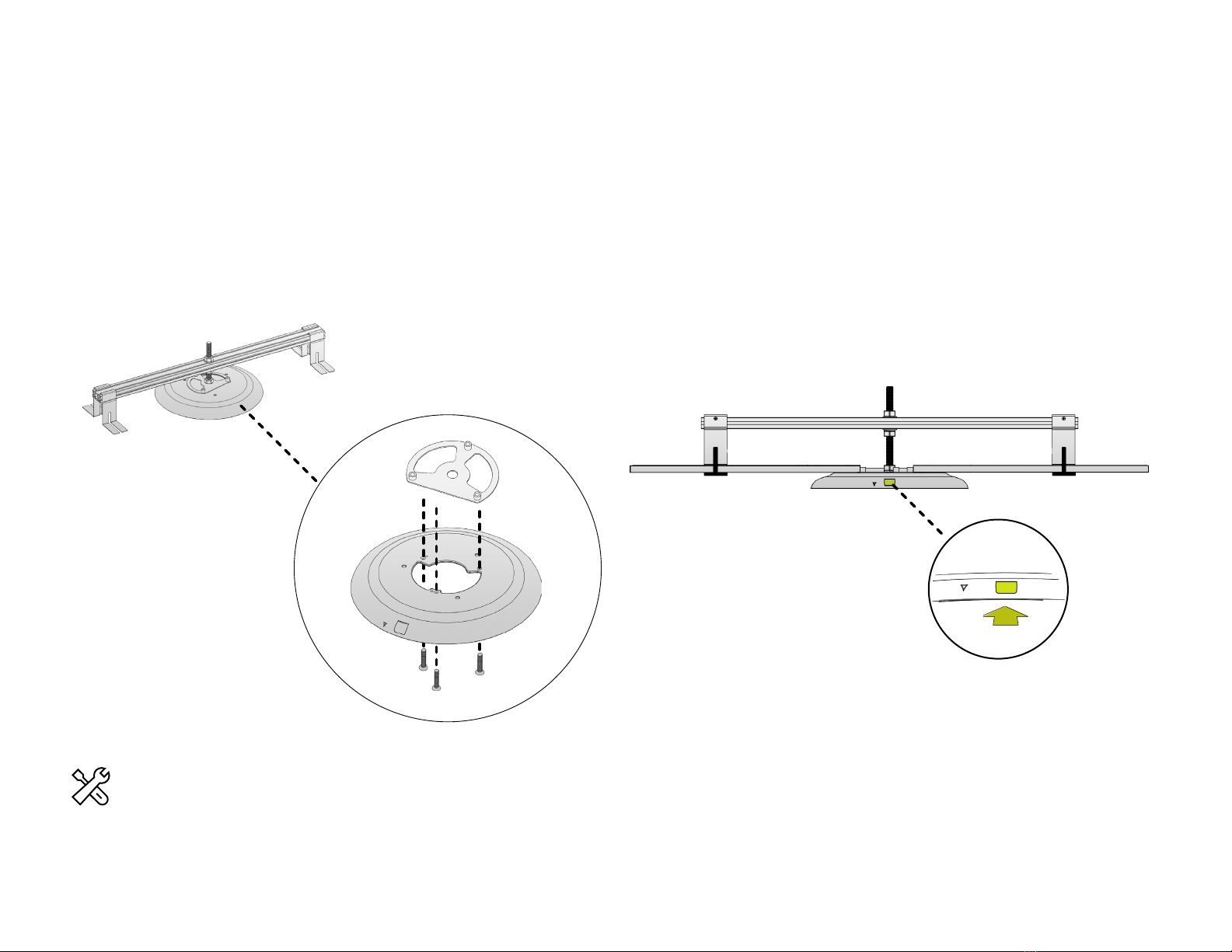

OPTION B - USING THE IN-CEILING MOUNT

B4 B5

Put the bracket assembly in the correct position in the ceiling and install the tile.

Assemble the camera top mounting plate to the adapter plate, adjust the position so the camera

will be ﬂush to the ceiling and the release button can be pressed.

Fasten the remaining two nuts to secure position of the rod.

Required:

ACQ-REC-KIT Recessed kit
