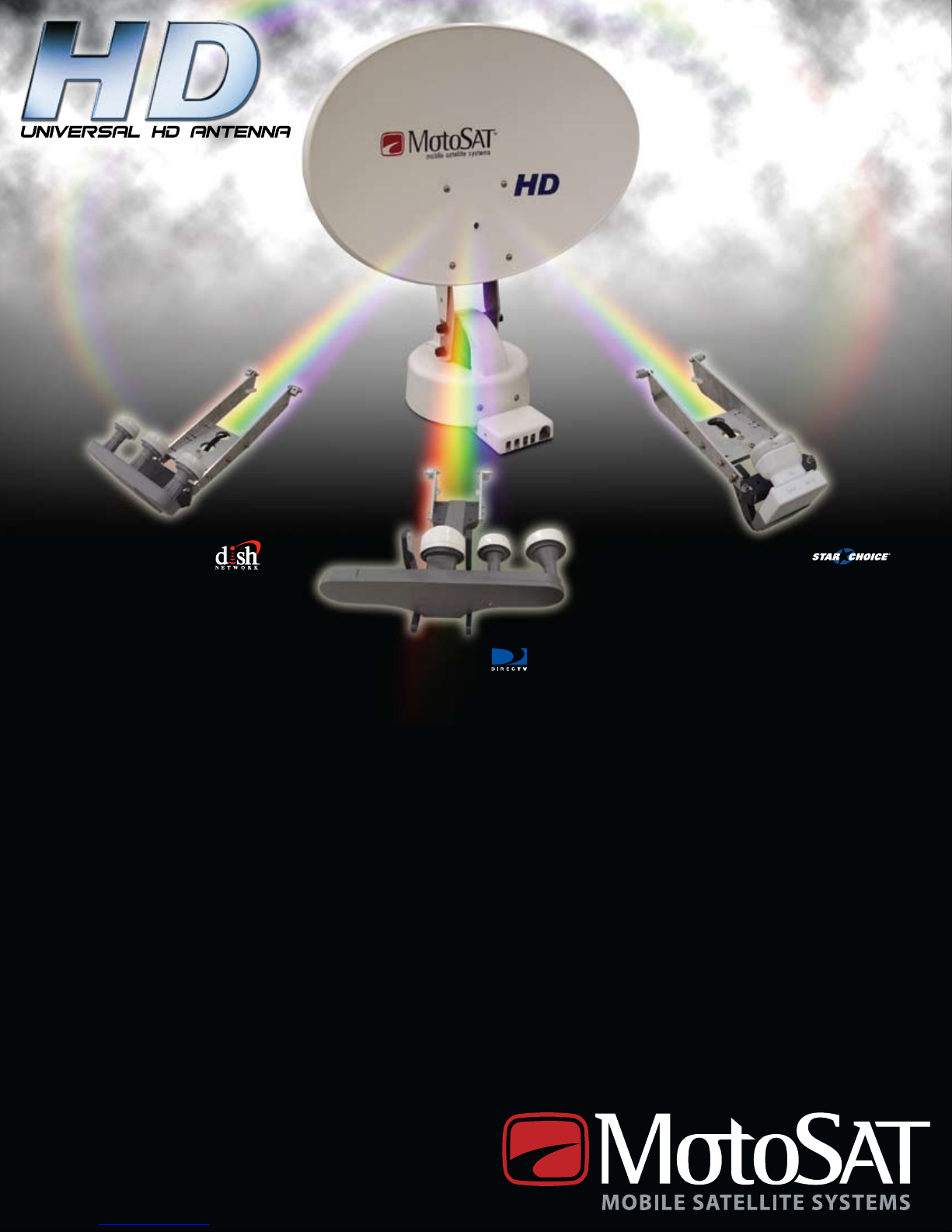

When it comes to High-Definition programming, you have choices. The MotoSAT™ HD Universal Mount

allows you to choose the programming platform that is right for you. Whether you subscribe to DirecTV™,

Dish Network™, or Star Choice™ (Canada), all you have to do is choose:

>> HD-SL5 for DirecTV’s Slim Line 5-satellite system (99°, 101°, 103°, 110° and 119°.)

>> HD-DP3 for Dish Network’s 3-satellite system (110°, 119° and 129°.)

>> HD-SC2 for Star Choice’s 2-satellite system (107.3° and 111.1°.)

With the simple push of a single button, the MotoSAT™ HD Universal Mount will align itself on all of your

provider’s HD satellites at the same time! The HD Universal Mount accesses all platform-specific satellites

simultaneously. Its robust design allows for pinpoint accuracy and stability, even in harsh environments. So

choose the system that best suits your needs, and JOIN THE HIGH-DEFINITION REVOLUTION!

What the competition THINKS is next generation, is already here!

www.MotoSAT.com || 800.247.7486 || Sales@MotoSAT.com

When All You Want Is Everything.

HD-SL5

HD-DP3 HD-SC2

HD-SL5

HD-DP3 HD-SC2

HDTV CONNECTIVITY:

>> HD-SL5 system (99°, 101°, 103°, 110° and 119°)

>> HD-DP3 system (110°, 119° and 129°)

>> HD-SC2 system (107.3° and 111.1°)

SPECIFICATIONS:

Reﬂector: .7 Meter (32.5 in. W x 23.25 in. H)

Stowed Dimensions: 35.25”L x 32.5”W x 10” H

Weight: 39.5 lbs.

Movement: Elevation / Azimuth / Skew

Motor Voltage: 12 VDC

Controller: MotoSAT® NOMAD 2©and next-

generation compatible

ENVIRONMENT:

Operational Temp: -20 F to 125 F

Windspeed Stowed: 140 MPH

www.MotoSAT.com || 800.247.7486 || Sales@MotoSAT.com

* Call For Details

*FOR STATIONARY USE ONLY

LNB FEED ASSEMBLIES:

DirecTV™ Slim Line 5 LNB (4 output)

Ku 101°, 110°, 119° Ka 99°, 103°

*DirecTV™ Triple LNB (4 output)

Ku 101°, 110° 119°

Dish Network™ Dish Pro 3 LNB (3 output, 1 input)

Ku 110°, 119°, 129°

*Dish Network™ Dish Pro Twin 2 LNB (2 output)

Ku 110°, 119°

*Dish Network™ Dish Pro Quad 2 LNB (4 output)

Ku 110°, 119°

Star Choice™ Star Choice 2 LNB (1 output)

Ku 107.3° and 111.1°

CONTROLLER:

MotoSAT® NOMAD 2©and next-generation

compatible
